SF Innovations Custard Pi 8 Ready Built SMT and Through Hole Prototyping Board for the Raspberry Pi with 26 Pin Ribbon Cable

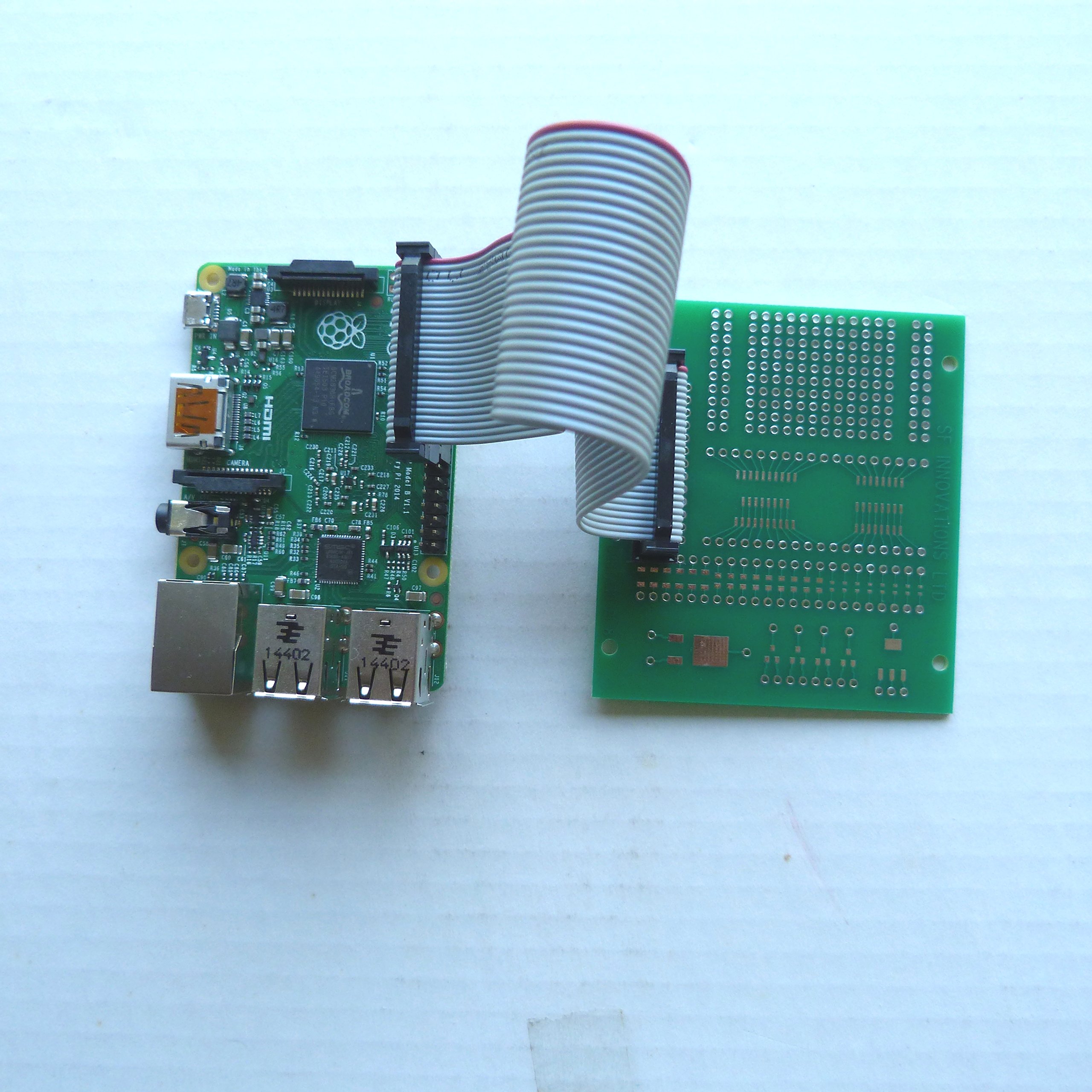

• 80mm x 72mm Prototyping PCBs with 160 point through-hole prototyping area with 4 power rails which can take up to a 20 pin DIP IC , and 2 x 13 way connector that can be used to link up to the Raspberry Pi GPIO if required
• Breakout pads for SMT IC that can take a narrow body (0.15 inch) or wide body (0.3 inch) with up to 16 pins
• Breakout pads for SMT IC that can take narrow body (0.15 inch) with up to 16 pins and wide body (0.3 inch) with up to 20 pins
• Breakout pads for 7 x 1206, 8 x 0603 and 9 x 0805 devices & Attached 26 pin ribbon cable and connector
• Pads for 4 SOT-23 devices and Pads for 1 SOT 223 and 1 DPAK (TO252) device

Use of SMT or surface mounted technology results in much smaller electronic assemblies. It also allows fully automated production. However, SMT is normally a headache for engineers wanting to quickly prototype a circuit. Most of the prototyping options available are for through-hole components. There are adaptor boards that will allow an engineer to try out a SMT integrated circuit but they are limited in scope. The Custard Pi 8 solves this problem by providing a number of pads for SMT devices and bringing them out to plated-through holes so that the engineer can wire to these easily. This 80mm x 72mm PCB provides the following: 160 point through hole prototyping area with 4 power rails which can take up to a 20 pin DIP IC. 2 x 13 way connector that can be sued to link up to the Raspberry Pi GPIO if required. Breakout pads for SMT IC that can take a narrow body (0.15 inch) or wide body (0.3 inch) with up to 16 pins. Breakout pads for SMT IC that can take narrow body (0.15 inch) with up to 16 pins and wide body (0.3 inch) with up to 20 pins. Breakout pads for 7 x 1206, 8 x 0603 and 9 x 0805 devices. Pads for 4 SOT-23 devices Pads for 1 SOT 223 and 1 DPAK (TO252) device 26 pin ribbon cable and connector ready attached This prototyping board is suitable for use with all Raspberry Pi models. Please note you are buying the Custard Pi 8 prototyping board with 26 pin ribbon cable and connector, which does NOT include a Raspberry Pi itself or any other connected/connecting boards.
