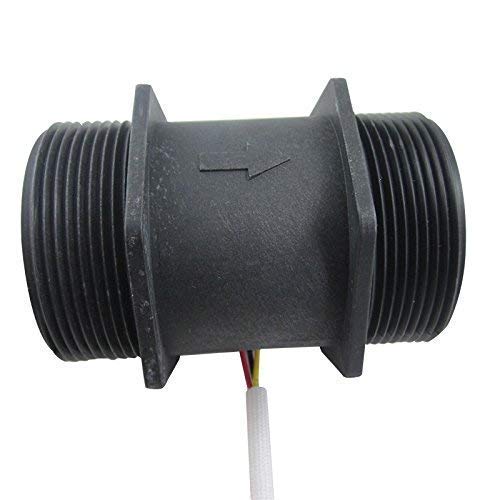

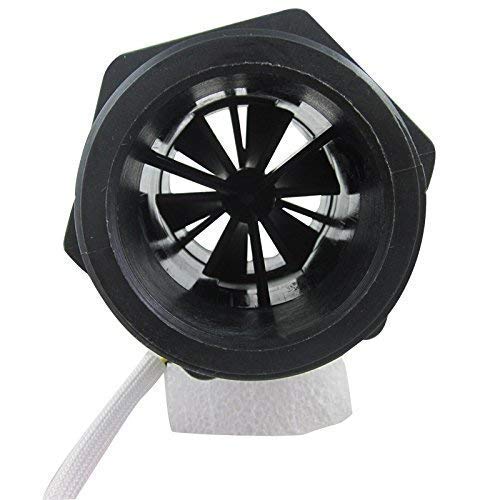

SENSTREE G2" 2 inch Water Flow Sensor, Food-Grade Hall Effect Sensor Flow Meter Flowmeter Control 10-200L/min - Arduino, Raspberry Pi, and Reverse Osmosis Filter Compatible

• Work for Arduino, Raspberry Pi, and Reverse Osmosis Filter. Small size, waterproof, easy to install, heat resistance, pressure resistance, cold resistance.
• Material: food grade, all materials are in line with ROHS testing standards, can be used for potable water.
• Hall effect sensor. Flow range:10-200L/min, working voltage range:DC 5-18 V, allow compression:Water pressure 1.75 Mpa below.
• Connect to G2 inch BSPT male thread, if used for NPT, need thread seal tape. Output waveform: square wave, output pulse signal.
• Wide application: It is mainly used in water heater, coffee machine, water purifier, drinking fountain, beverage machine, campus smart card equipment, etc.

Specifications: Flow range:10-200L/min Sensor: Hall effect Maximum current:10 mA(DC 5V) Working voltage range:DC 5-18 V Load capacity: ≤10 mA(DC 5V) Operating Temp:up to 80℃ Operating humidity: 35%-90%RH Allow compression: Water pressure 1.75 Mpa below Insulation resistance: >100M OHM Storage Temperature: -25-80℃ Storage humidity: 25%-95%RH Output Waveform: Square Wave,output pulse signal. Cable length:480mm Max Size:92mm*68mm Package include: Flowmeter x 1
