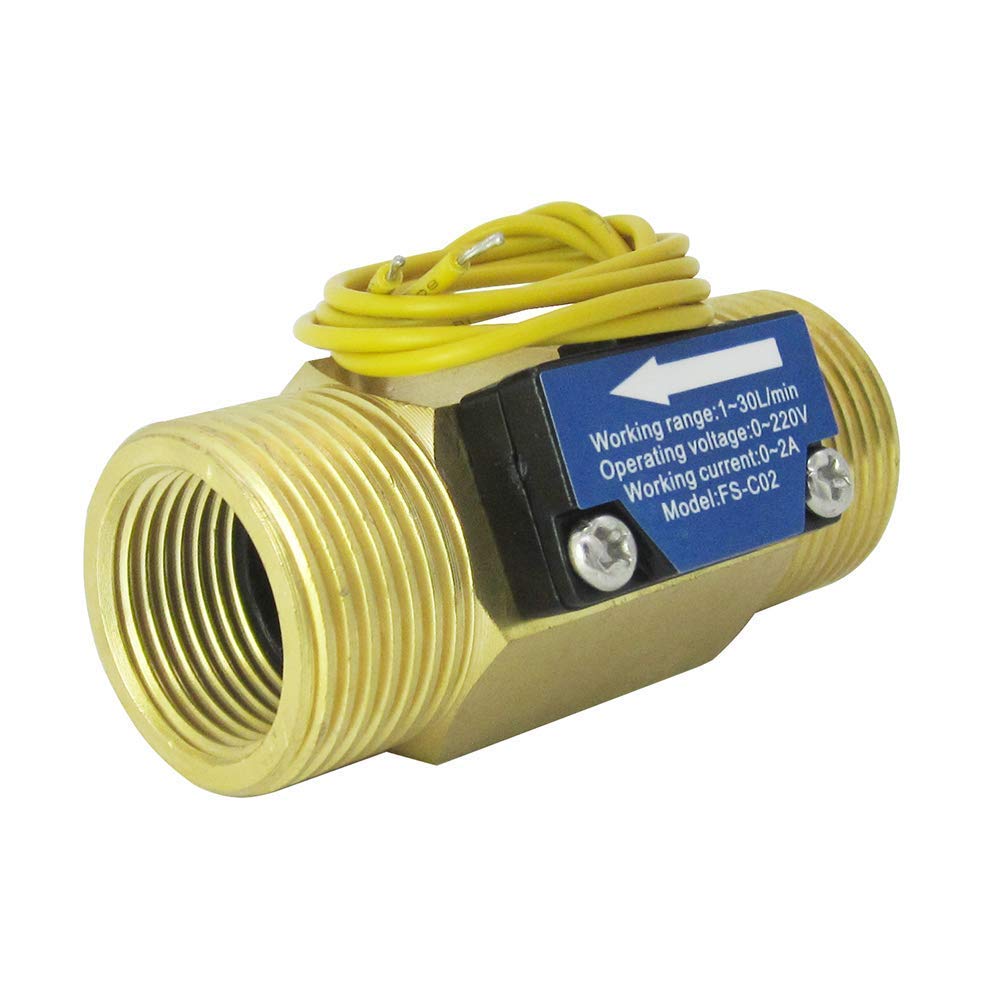

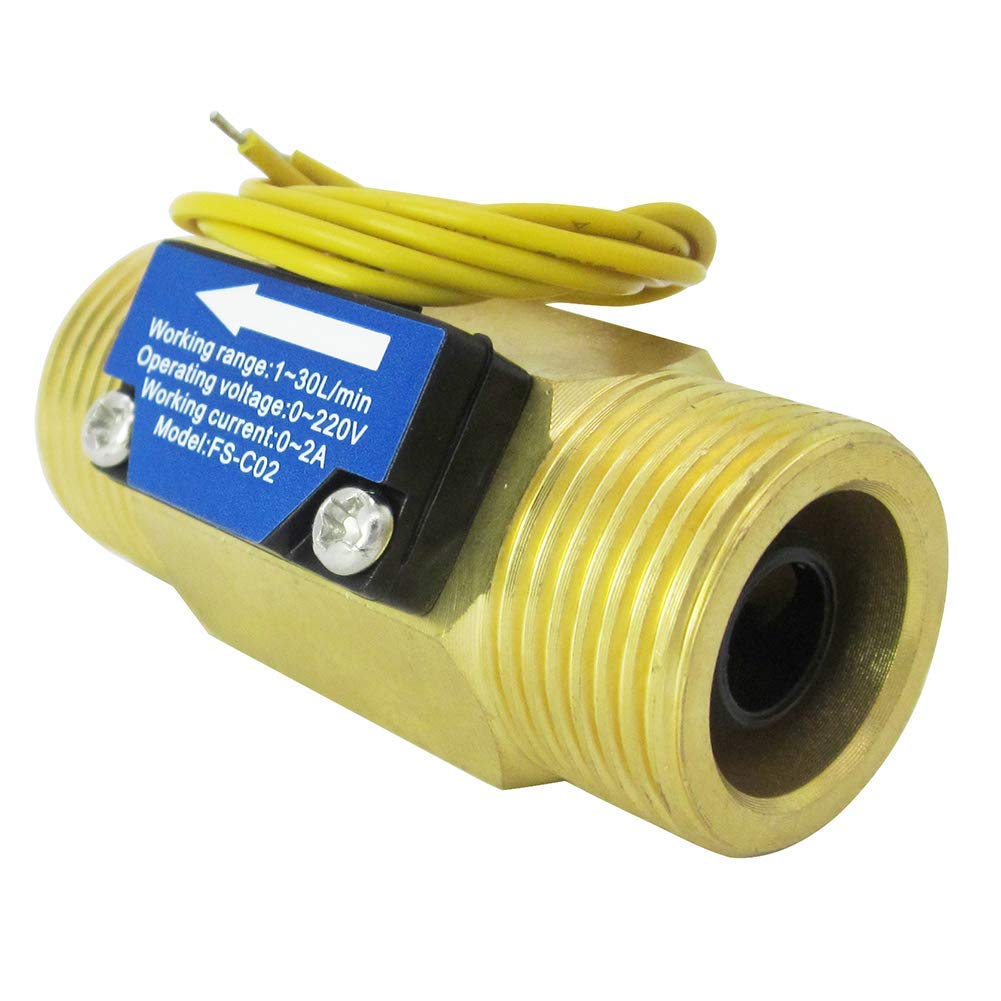

SENSTREE FS-C02 G3/4" BSP Male Thread Brass Water Flow Switch 1-30L/min, 0-2A/ 0-220V(AC or DC)

• Thread type: 3/4" BSP Male Thread The flow sensor `s male thread external diameter: 25.85mm.It is fit in NPT Thread if you connect them with teflon
• Specification Operation voltage of this flow sensor is : 0-220V(AC or DC), Working current: 0-2A, max working pressure: 1.75 MPa. Flow range: 1-30L/min.
• Widely Applications This water flow sensor switch can be use for Water heaters, pumps, hot tub, boiler, water dispensers, coffee machines, hot card machines, steam equipment, water system, the campus card sales, selling self-help water systems, water treatment equipment, cooling systems, mechanical equipment, instrumentation, pharmaceutical equipment.
• International products have separate terms, are sold from abroad and may differ from local products, including fit, age ratings, and language of product, labeling or instructions.

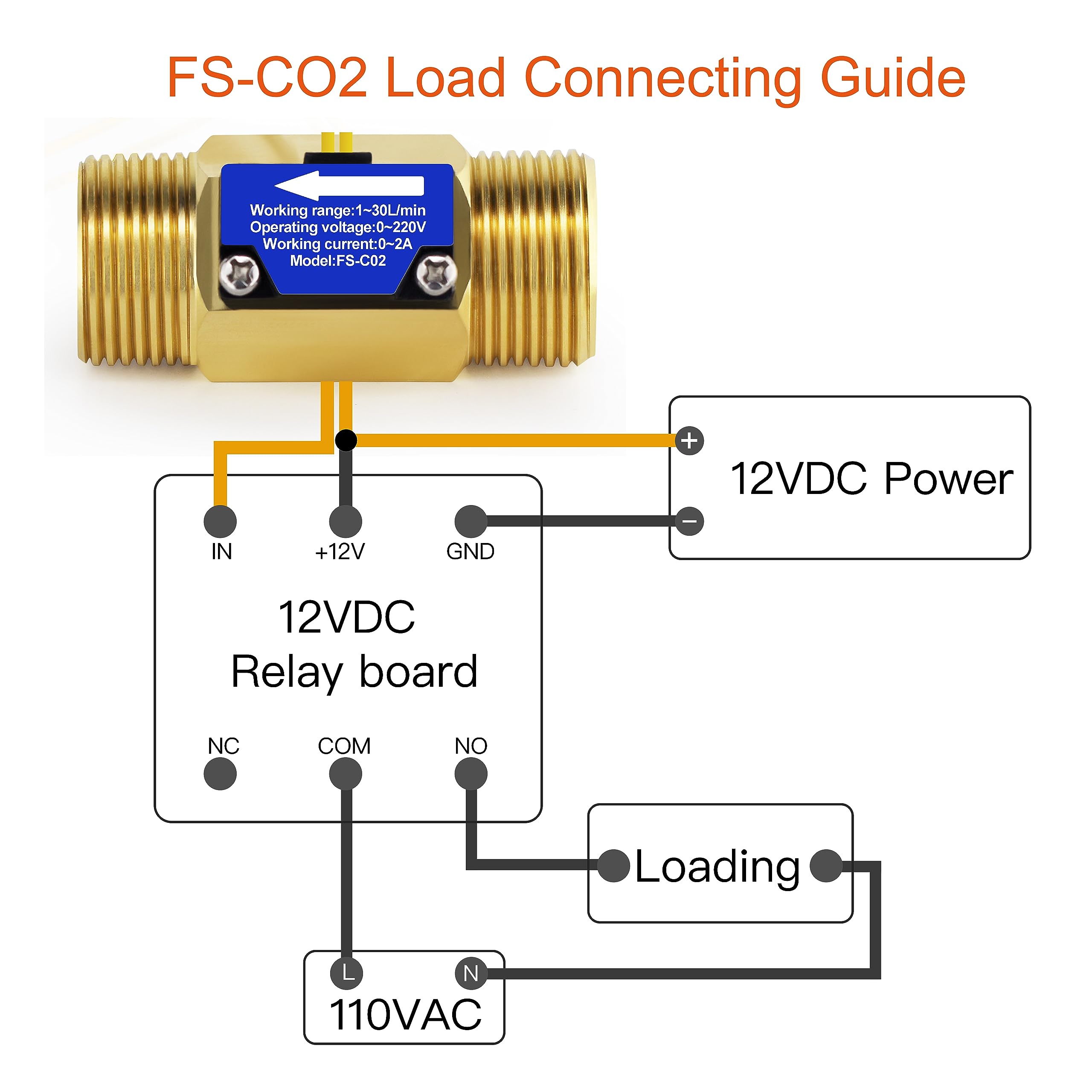

Main application: Magnetic Water Flow Switch adopts a Magnetic Reed Switch and a movable magnet which is fixed inside the water pipe. When water runs through the pipe part, the magnet will detect the water flow, and the magnet is shoved to one side by the flow. This then attracts the conductive strip which gets pulled down and makes contact, which completes the circuit and activates whatever electrical device you have attached to it Specifications: Thread type: 3/4" BSP Male Thread It is fit in NPT Thread if you connect them with teflon Operation voltage: 0-220V(AC or DC) Flow range: 1-30L/min Working temperature: 1-120℃ Mini start water pressure: 0.02Mpa Max working pressure: 1.75 MPa Max loading power: 50W Working current: 0-2A Response time: 0.2S Material: Brass Male Thread External Diameter: 25.85mm(1.0 inch) Tube Length: 60mm(2.36 inch) Cable Length: 29cm(11.41 inch) Size: 60mm*30mm*30mm(L*W*H) Please Note: Don't forget to mark which way the old flow switch arrow is pointing so you can install exactly the same. Package Include: Brass Flow Switch x 1
