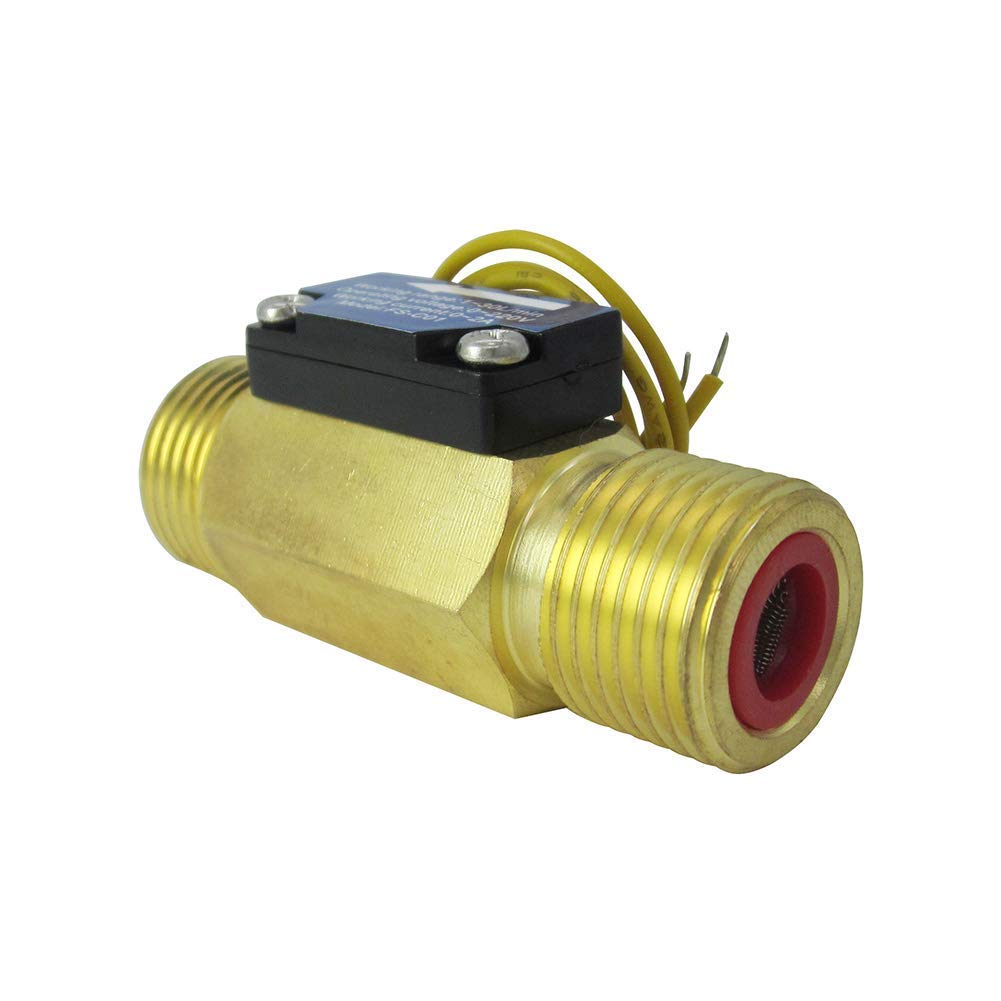

SENSTREE FS-C01 G1/2" BSP Male Thread Brass Water Flow Switch with Filter 1-30L/min, 0-2A/ 0-220V(AC or DC)

• √ Safe and Reliable. This flow sensor switch is made of brass, all materials are in line with ROHS testing standards. It's a safety device that shuts off the current to the device (heaters, pumps, etc.) when it senses no water flow.

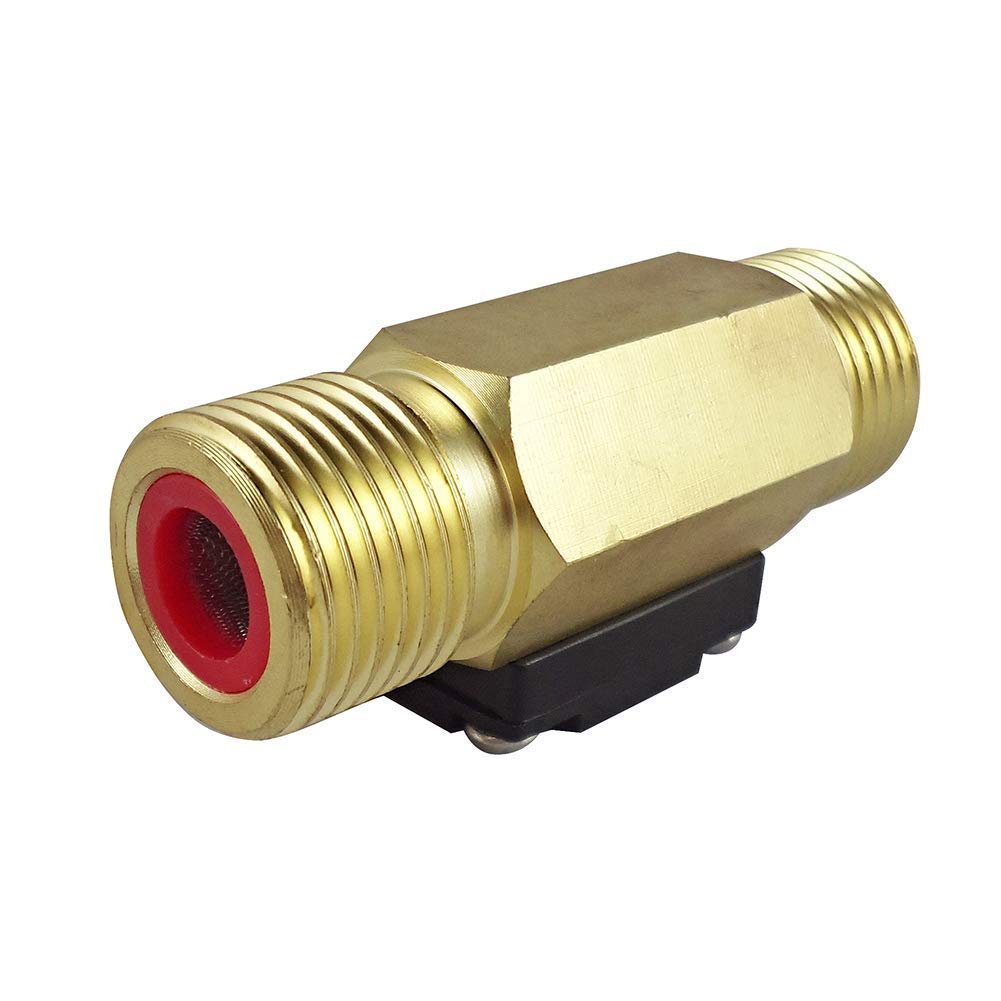

• √ Equipped with filter water entry. It have a filter to prevent sediments from getting in the workings of the sensor. Thread type: 1/2" BSP Male Thread. Male Thread External Diameter: 20.55mm.
• √ Easy to install. Waterproof, heat resistance, pressurresistance, cold resistance, small size, stable and reliable.
• √ Operation voltage: 0-220V(AC or DC), Working current: 0-2A, max working pressure: 1.75 MPa. Flow range: 1-30L/min.
• √ Widely Applications. Water heaters, pumps, hot tub, boiler, water dispensers, coffee machines, hot card machines, steam equipment, water system, the campus card sales, selling self-help water systems, water treatment equipment, cooling systems, mechanical equipment, instrumentation, pharmaceutical equipment.

Main application: Magnetic Water Flow Switch adopts a Magnetic Reed Switch and a movable magnet which is fixed inside the water pipe. When water runs through the pipe part, the magnet will detect the water flow, and the magnet is shoved to one side by the flow. This then attracts the conductive strip which gets pulled down and makes contact, which completes the circuit and activates whatever electrical device you have attached to it Specifications: Thread type: 1/2" BSP Male Thread Operation voltage: 0-220V(AC or DC) Flow range: 1-30L/min Working temperature: 1-120℃ Mini start water pressure: 0.02Mpa Max working pressure: 1.75 MPa Max loading power: 50W Working current: 0-2A Response time: 0.2S Material: Brass Male Thread External Diameter: 20.55mm(0.8 inch) Tube Length: 60mm(2.36 inch) Cable Length: 29cm(11.41 inch) Size: 60mm*30mm*30mm(L*W*H) Please Note: Don't forget to mark which way the old flow switch arrow is pointing so you can install exactly the same. Package Include: Brass Flow Switch x 1
