SeKi 14170, 1.5-2.5 mm², with Shrinkage, 25 Pieces Butt connectors, Blue.

• 25 x butt connectors for cross section 1, 5-2, 5 mm²
• Sauce connector with heat shrink tubing, suitable for connecting single conductors and fine wire copper wire.
• Identification colour: blue

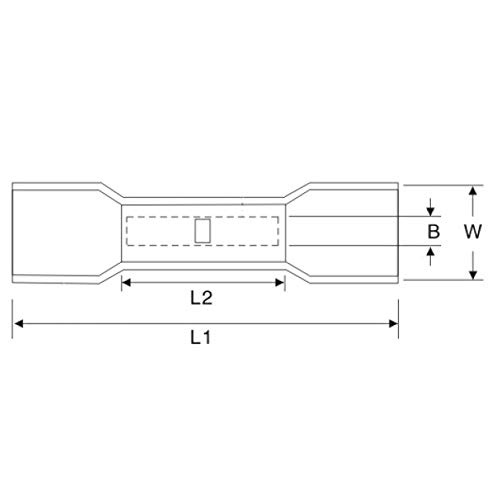

• Dimensions (mm): W = 2, 4, L2 = 15, W = 5, 8, L1 = 36, 5

Insulated butt connector with heat shrink tubing for connecting cables and wires. Shrink rate 3: 1 Mechanical properties: tensile strength: min. 16 MPaElongation at break: min. 200% thermal properties: heat ageing: (168 hours at 158 °C) no breaking, flowing or dropsHeat shock: (4 hours at 250 °C) no breaking, flowing or dropsFlexibility in cold 4 hours at -30 °C no breaking temperature min. : 80° storage temperature: + 50°C max. Temperature for continuous operation: -55 °C to + 125 °C. Technical data: type: butt connector with heat shrink tube for cross section: 1, 5-2, 5 mm² AWG: 16-14 Dimensions (mm): B = 2, 4, L2 = 15, W = 5, 8, L1 = 36, 5 contact material: copper, insulation type: insulated, insulation material: PE. Colour: blue.
