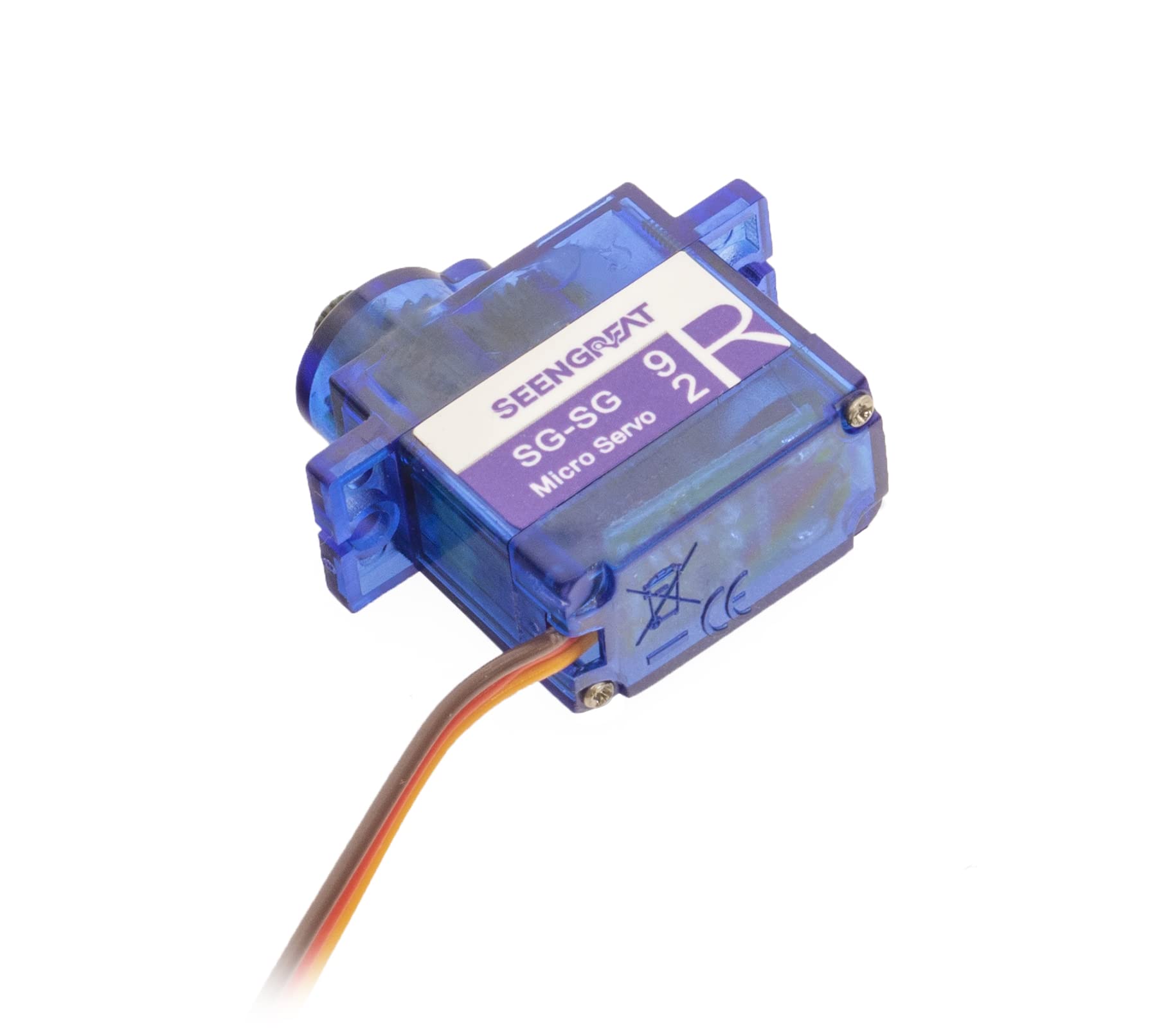

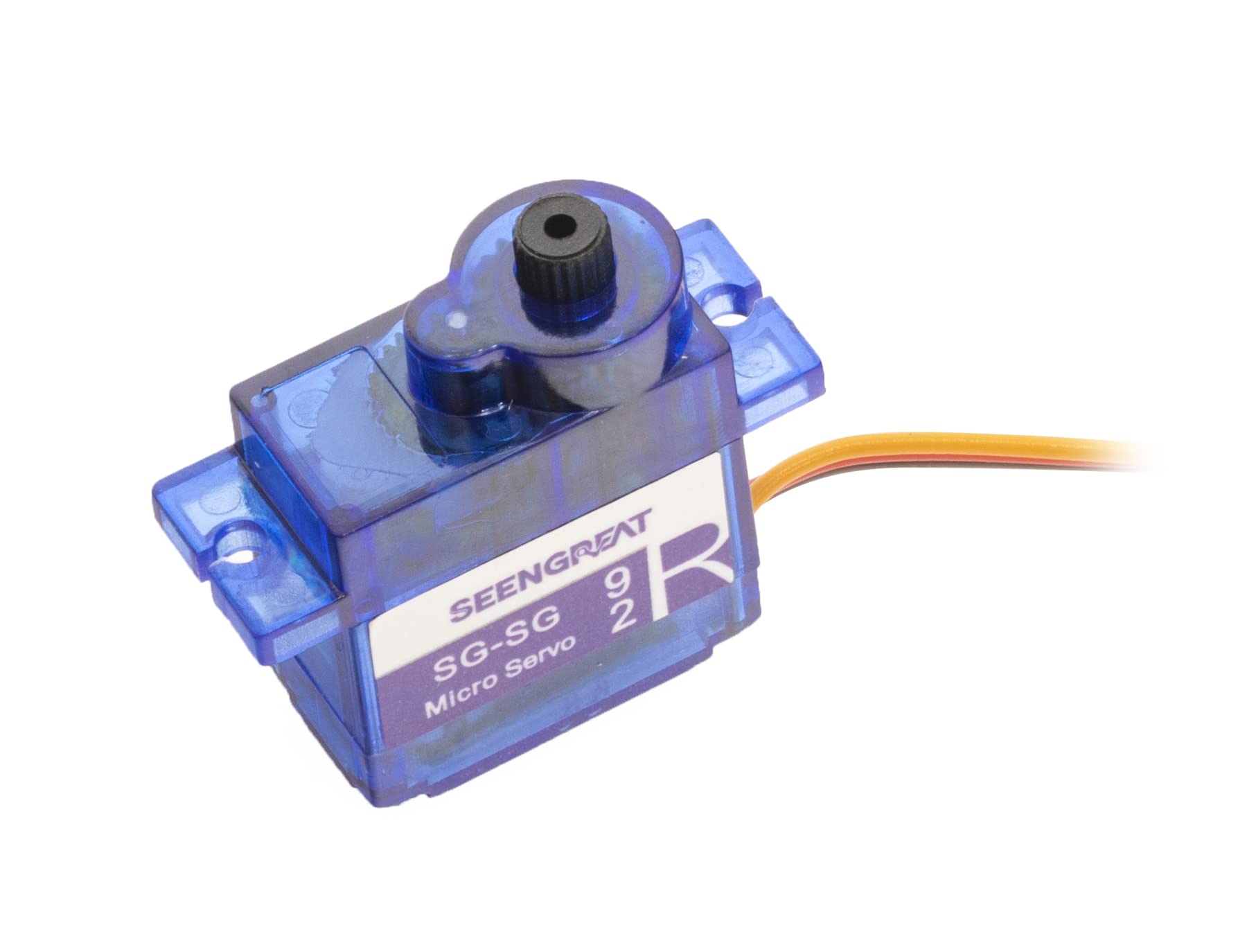

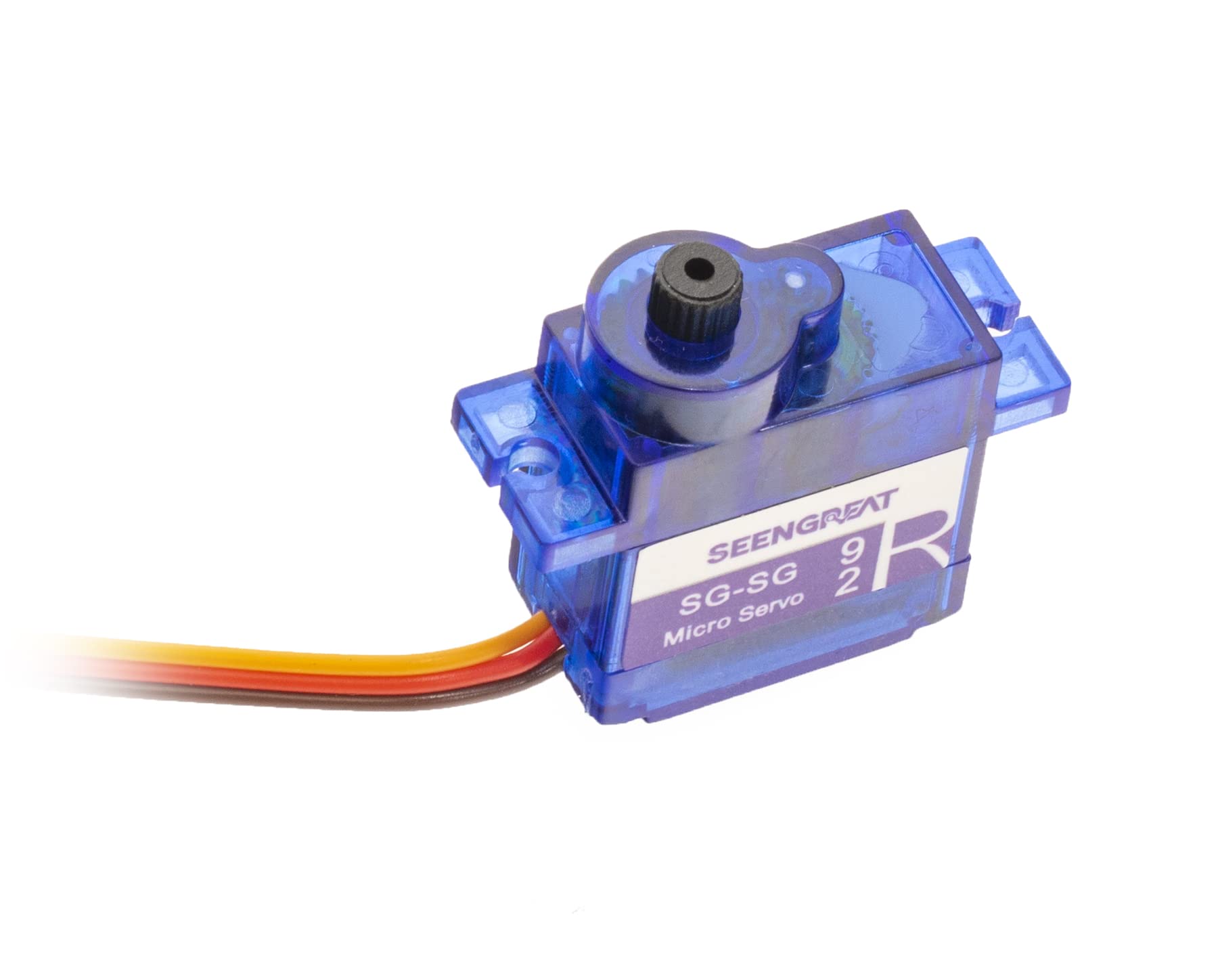

SEENGREAT SG-SG-92-R Servo SG-SG 92-R Micro Digital Servo 9 g with Nylon Carbon Fibre Gears High Precision Gear High Torque Servo for RC Aeroplane Helicopter Controlled Car Boat 4 Pieces Servos

• SG-SG-92 Servo is made of environment-friendly POM plastic, classic low weight of 9g, which is small, light and not easy to be damaged. Control is simple
• It can control the rotation speed and direction of the output shaft
• Strong compatibility, whether it is the program or mechanical structure, as far as possible compatible processing
• The internal integrated reduction gear can increase the torque and is suitable for programmable fixed wing, helicopter KT, glide, intelligent car, small robot manipulator and other models
• 3Pin 2.54mm DuPont cable Header. Operating voltage is DC4.8 V ~ DC6.0 V. Operating speed (at no load): 4.8V test 0.12±0.01sec/60°;6.0V test 0.1±0.01sec/60°

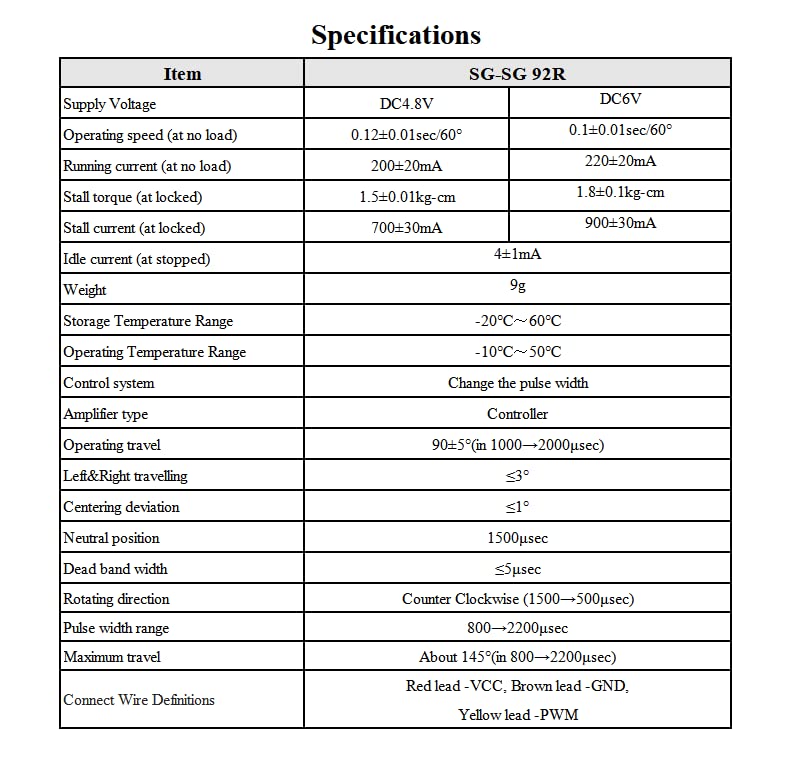

Specifications: Supply voltage: DC4.8V / DC6V. Operating speed (at no load): 4.8V 0.12±0.01sec/60° 6V 0.1±0.01sec/60° Running current (at no load): 4.8V 200±20mA 6V 220±20mA Stable torque (at locked): 4.8V 1.5±0.01kg-cm 6V 1.8±0.1kg-cm. Stall current (at locked): 4.8V 700±30mA 6V 900±30mA Idle current (at stopped): 4±1mA. Weight: 9 g. Storage temperature range: -20℃~60℃. Operating temperature range: -10℃~50℃. Control system: Change the pulse width. Amplifier type: controller. Operating travel: 90±5°(in 1000→2000μsec). Left and right travelling: ≤3°. Centering deviation: ≤1°. Neutral position: 1500μsec. Dead band width: ≤5μsec. Rotating direction: counter clockwise (1500 - 500μsec). Pulse width range: 800 - 2200μsec. Maximum travel: about 145° (in 800 - 2200μsec). Connect Wire Definitions: Red lead -VCC, Brown lead -GND,Yellow lead -PWM Package contents: 1. SG-SG 92 servo, 4 pieces x 1.
