SEENGREAT Microwave Radar Sensor Module LD2410, Human Presence Motion Sensing Module, 24GHz ISM Band,Non-Contact Monitoring Detector, Support GPIO and UART Output, Plug and Play, Bluetooth to debug

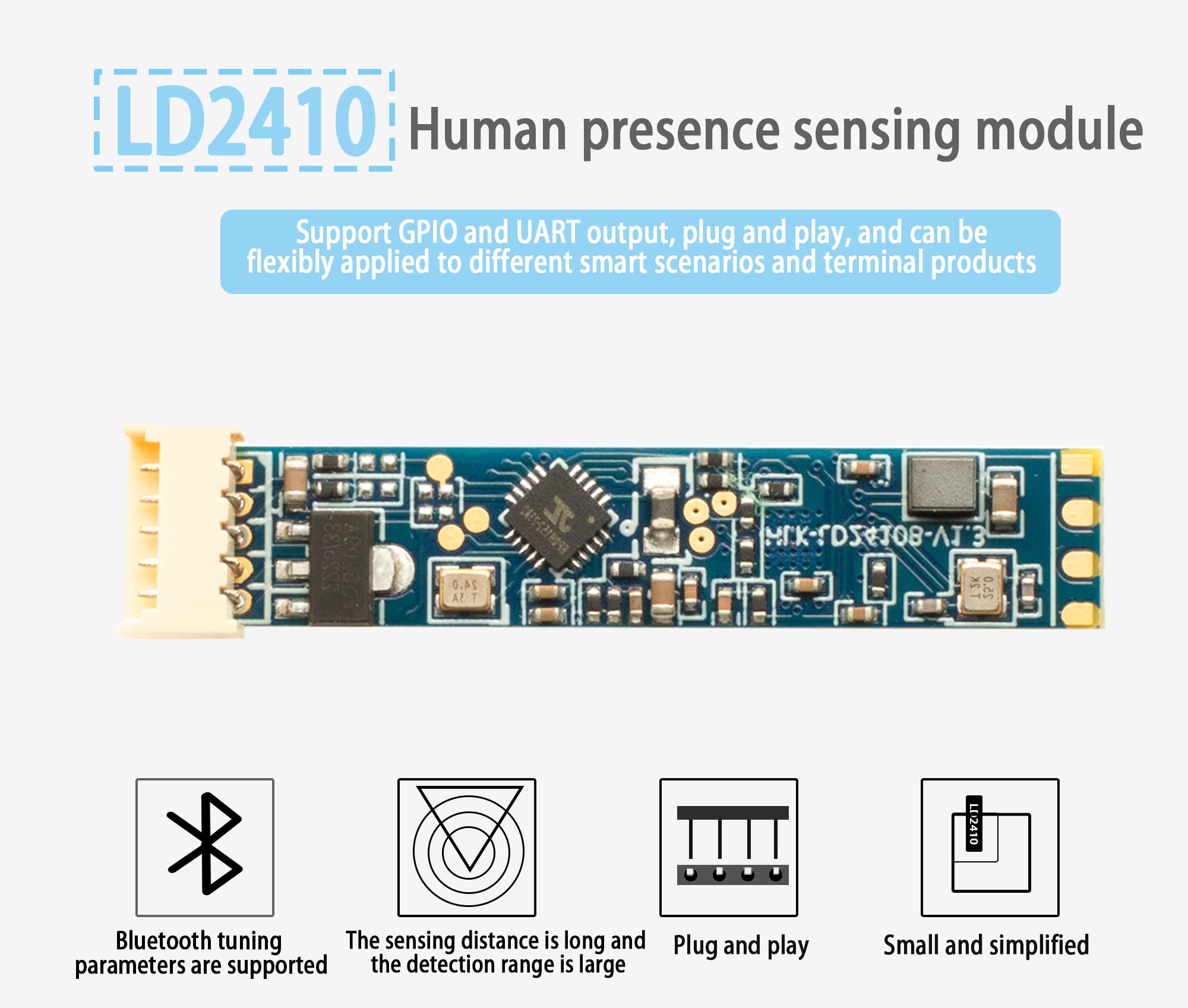

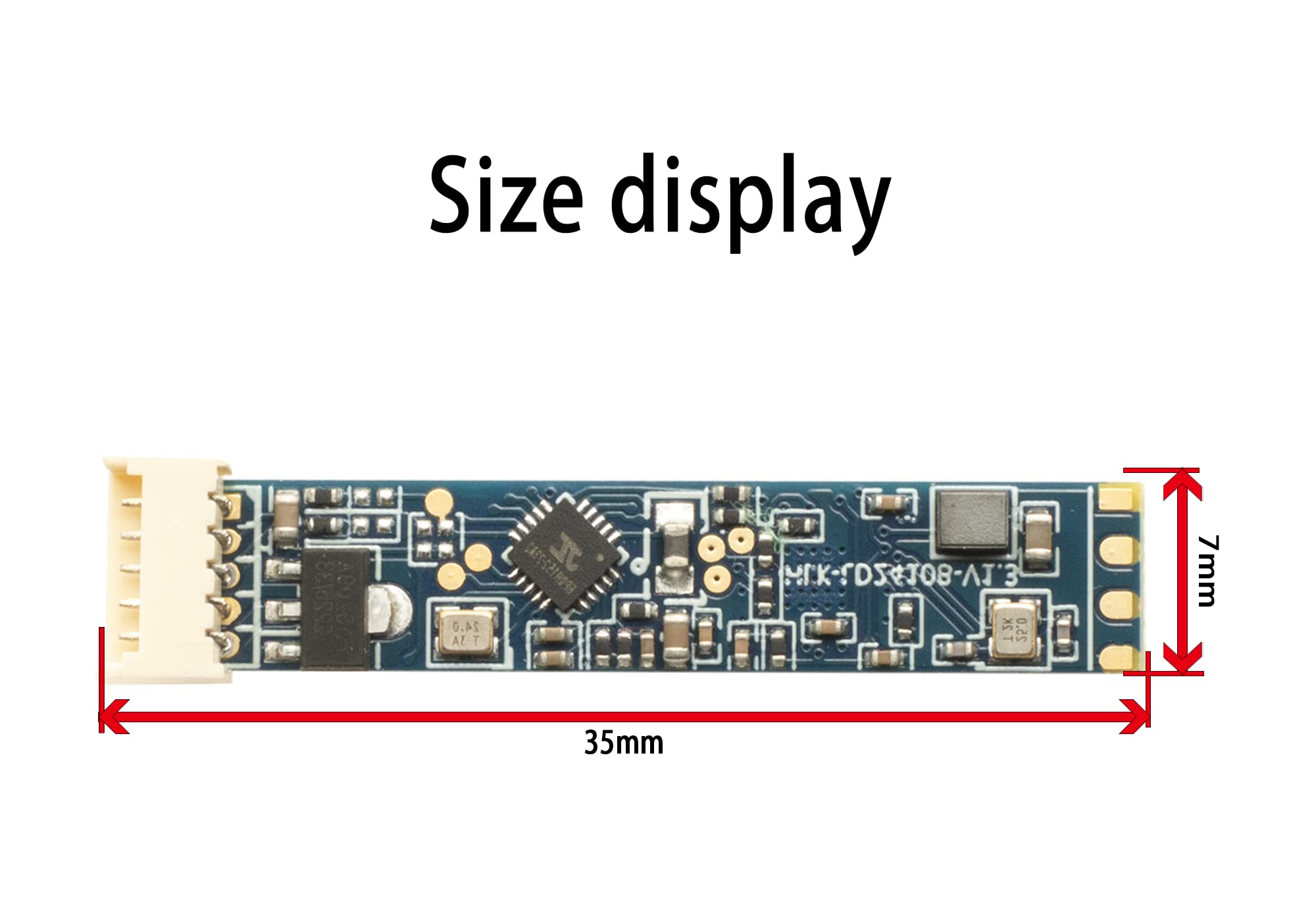

• This microwave radar sensor module LD2410 is tiny and simplified. The minimum size is only 7mmx35mm. It supports ceiling, wall and other installation methods, plug and play, easy assembly

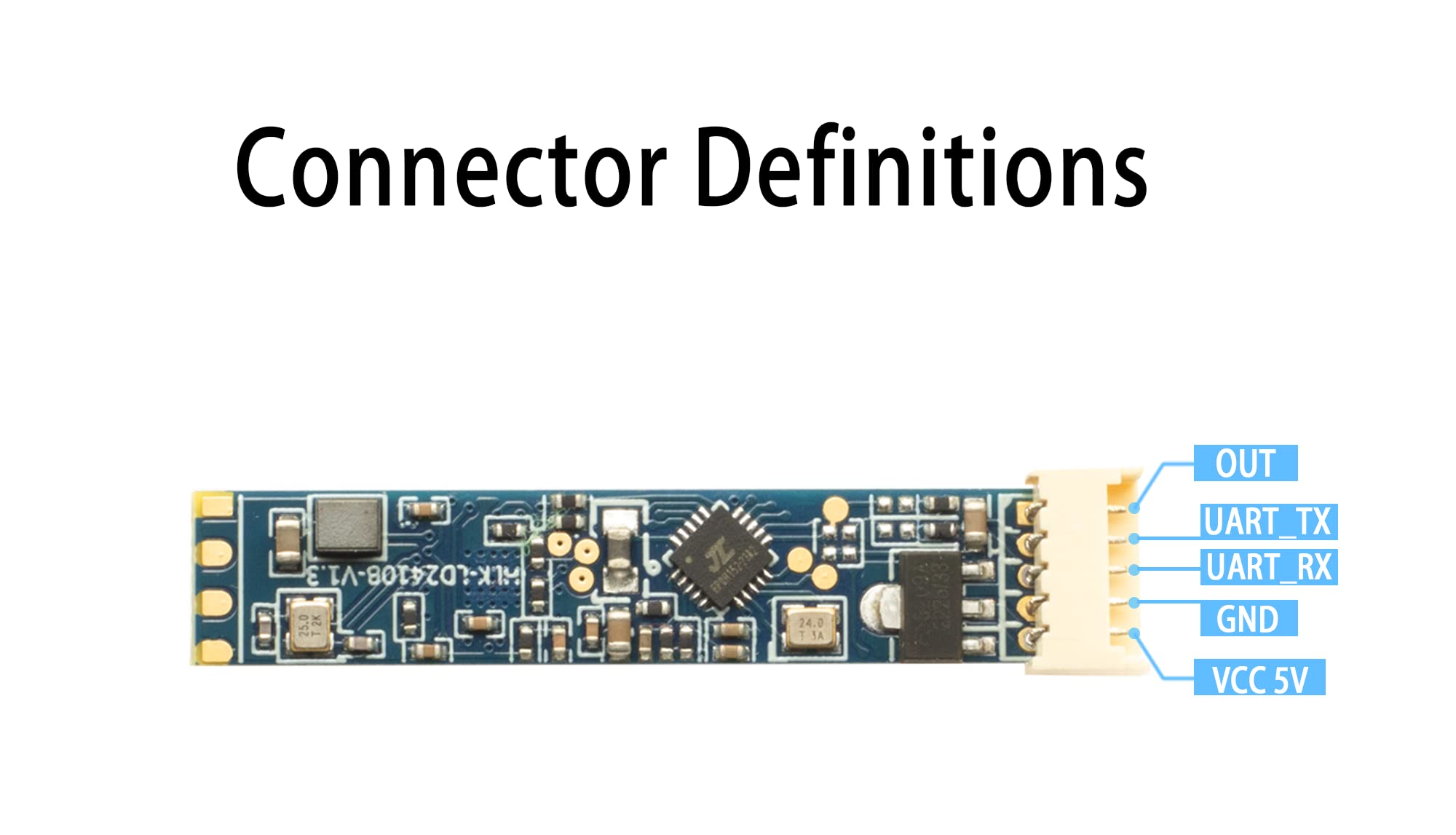

• Human presence motion sensing module adopts 24GHz ISM band, compliant with FCC and CE spectrum regulations, supportting GPIO and UART Output

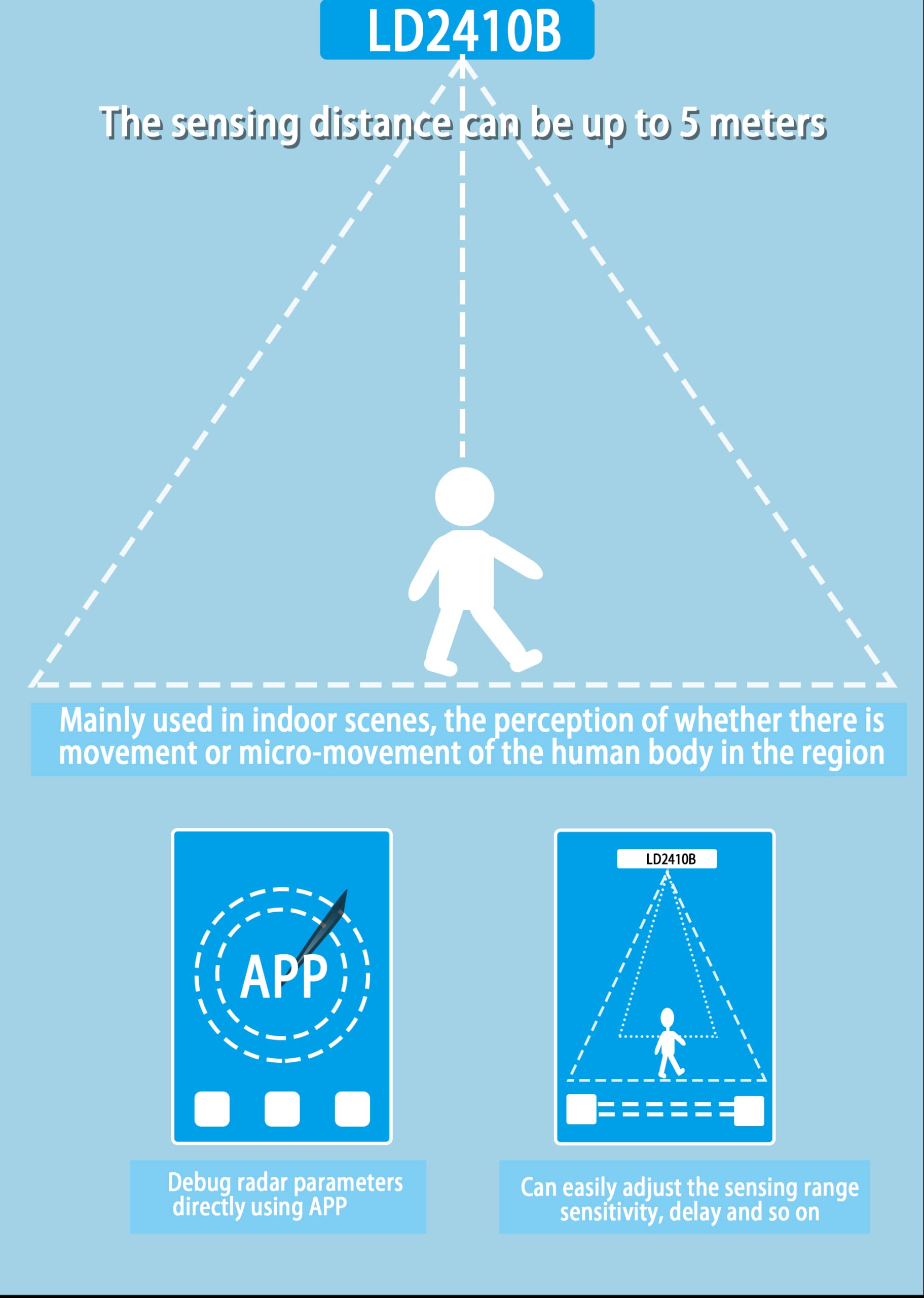

• The farthest sensing distance is up to 5 meters and large detection angle covers up to ±60 degrees. It can also sensitively sense static, micro-moving, sitting and lying human bodies that cannot be identified by traditional solutions
• Accurately identify within the interval, support the division of the sensing range, and shield the interferenceoutside the interval
• Multi-level intelligent parameter adjustment to meet the needs of scene changes. Visual debugging and configuration tools. This monitoring detector can be debugged using Bluetooth, convenient to use

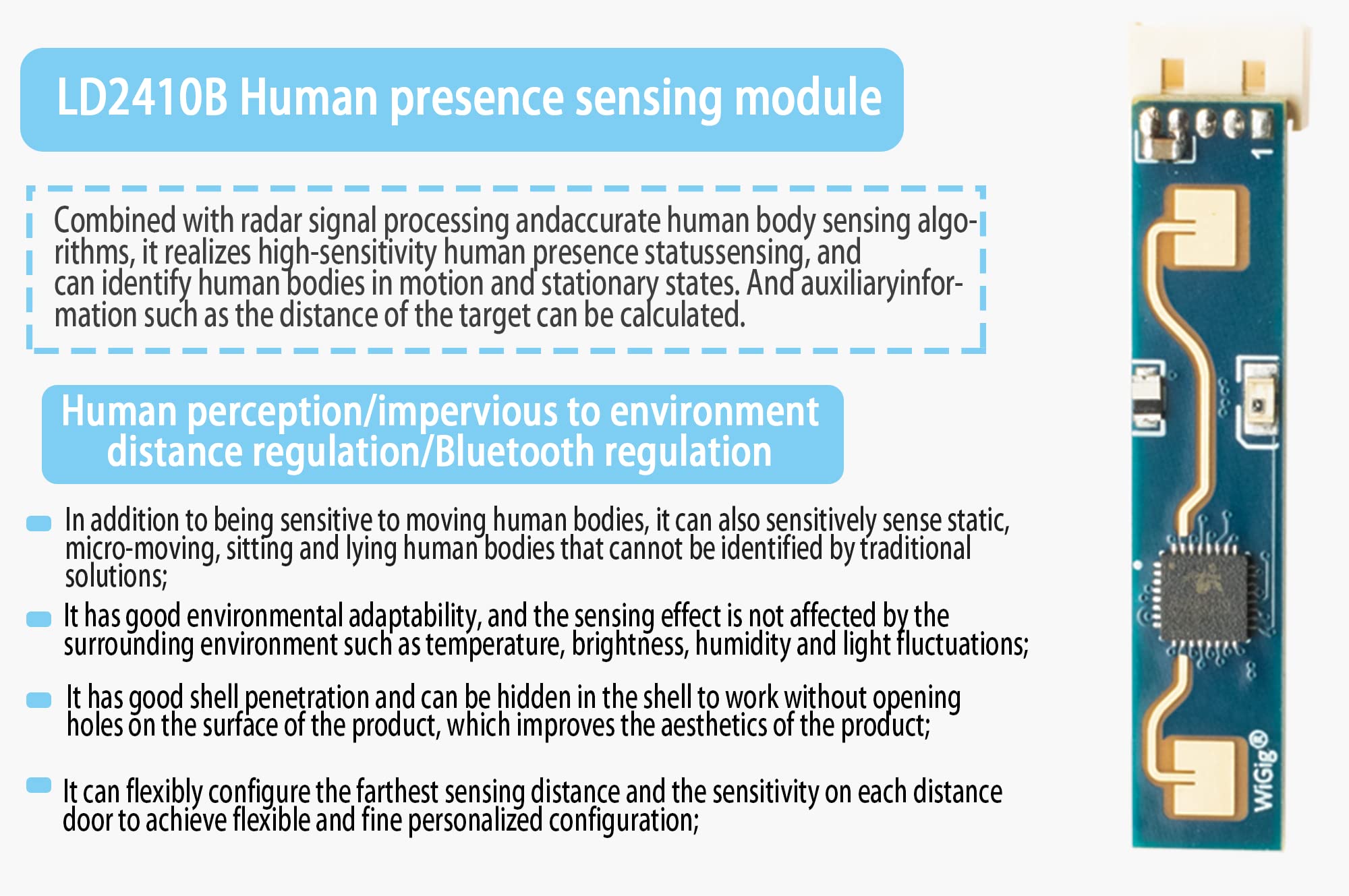

Overview This human presence radar Sensing module LD2410 is a high-sensitivity 24GHz human presence status sensing module. Its working principle is to use FMCW frequency-modulated continuous wave to detect human targets in the set space. Combined with radar signal processing and accurate human body sensing algorithms, it realizes high-sensitivity human presence status sensing, and can identify human bodies in motion and stationary states. And auxiliary information such as the distance of the target can be calculated. Application scenarios The LD2410 human body sensing module can detect and identify the human body in motion, fretting, standing, sitting and lying down. It supports multi-level parameter adjustmentand can be widely used in various AloT scenarios. The common types are as follows: 1. Human body sensor light control It senses whether there is someone in the space, and automatically controls lights, such as lighting equipment in public places, various sensor lights, bulb lights, etc. 2.Human body induction wake-up of advertising screens and other devices Automatically turn on when people come, and automatically sleep when no one comesto save power, information delivery is more accurate and efficient 3. life safety protection UV lamp work protection to prevent the UV lamp from being turned on when there are people around and causing personal injury Automatic detection and alarming of dangerous places to prevent people from entering specific high-risk spaces, such as high-risk places where coal mine blasting personnel enter 4. Smart Appliances When there is no one in the room for a long time, the TV, air conditioner and other electrical appliances are automatically turned off, saving energy and safety 5. Smart Security Detection and identification of people intruding, staying, etc. within the specified range Specifications: DIMENSIONS: 35mm(length)*7mm(Width) Interface: 1 GPIO, IO level 3.3V, 1 UART Power Requirements: DC 5V，Power supply capability>200mA Average operating current: 80 mA Detection distance: 0.75m～6m，adjustable Working frequency: 24GHz~ 24.25GHz (Compliant with FCC, CE, non-commission certification) Modulation: FMCW Detection angle: ±60 ° Distance resolution: 0.75m Sweep Bandwidth: 250MHz (Compliant with FCC, CE, non-commission certification) Ambient Temperature: -40℃ ~ 85℃ Package contents: 1. Human Presence Radar Sensing Module LD2410 x1 2. MX1.27 5Pin Header x1 Please feel free to contact us via Amazon message if you have any problem.
