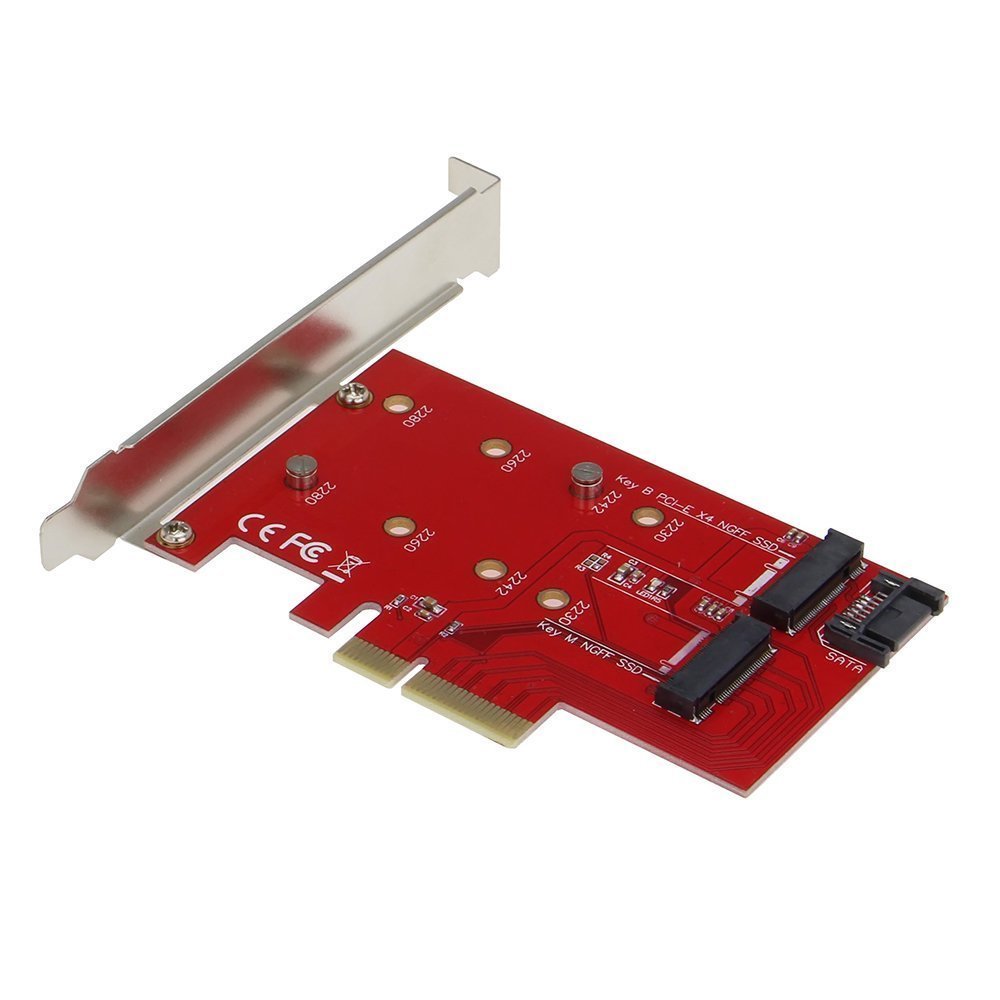

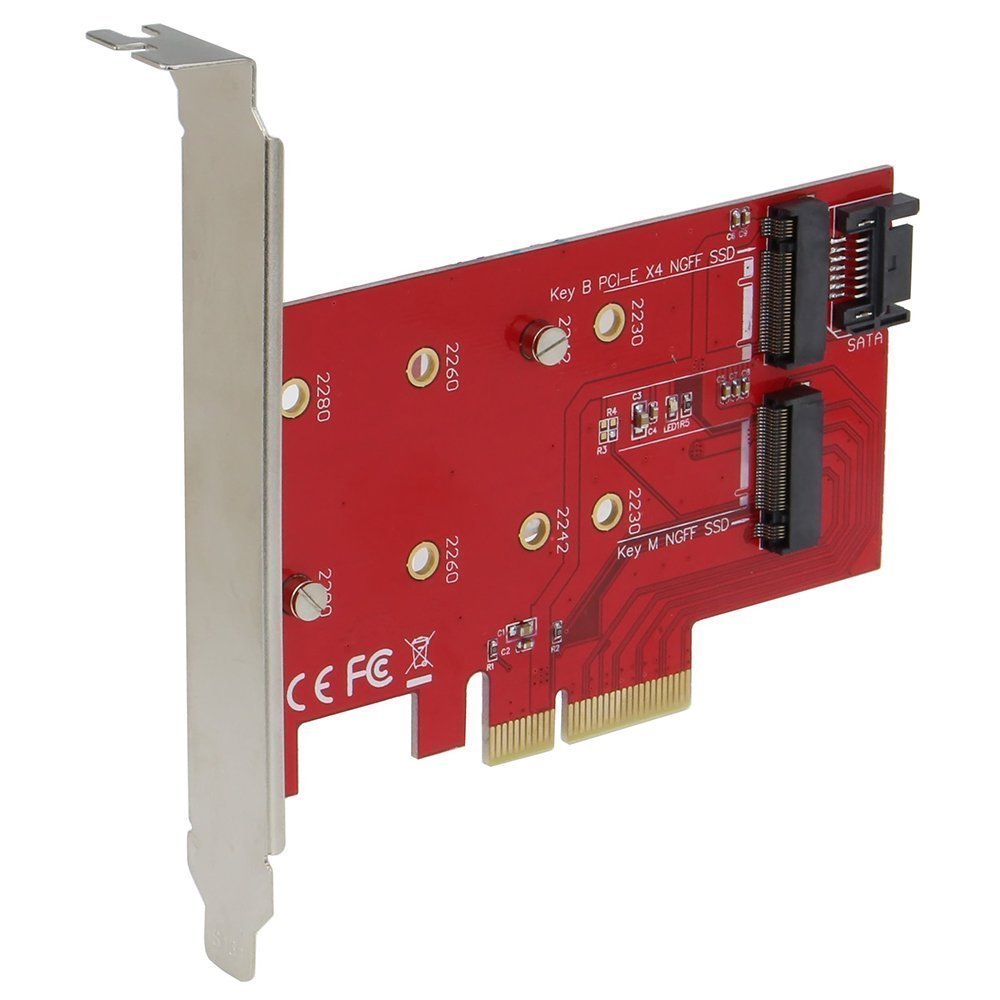

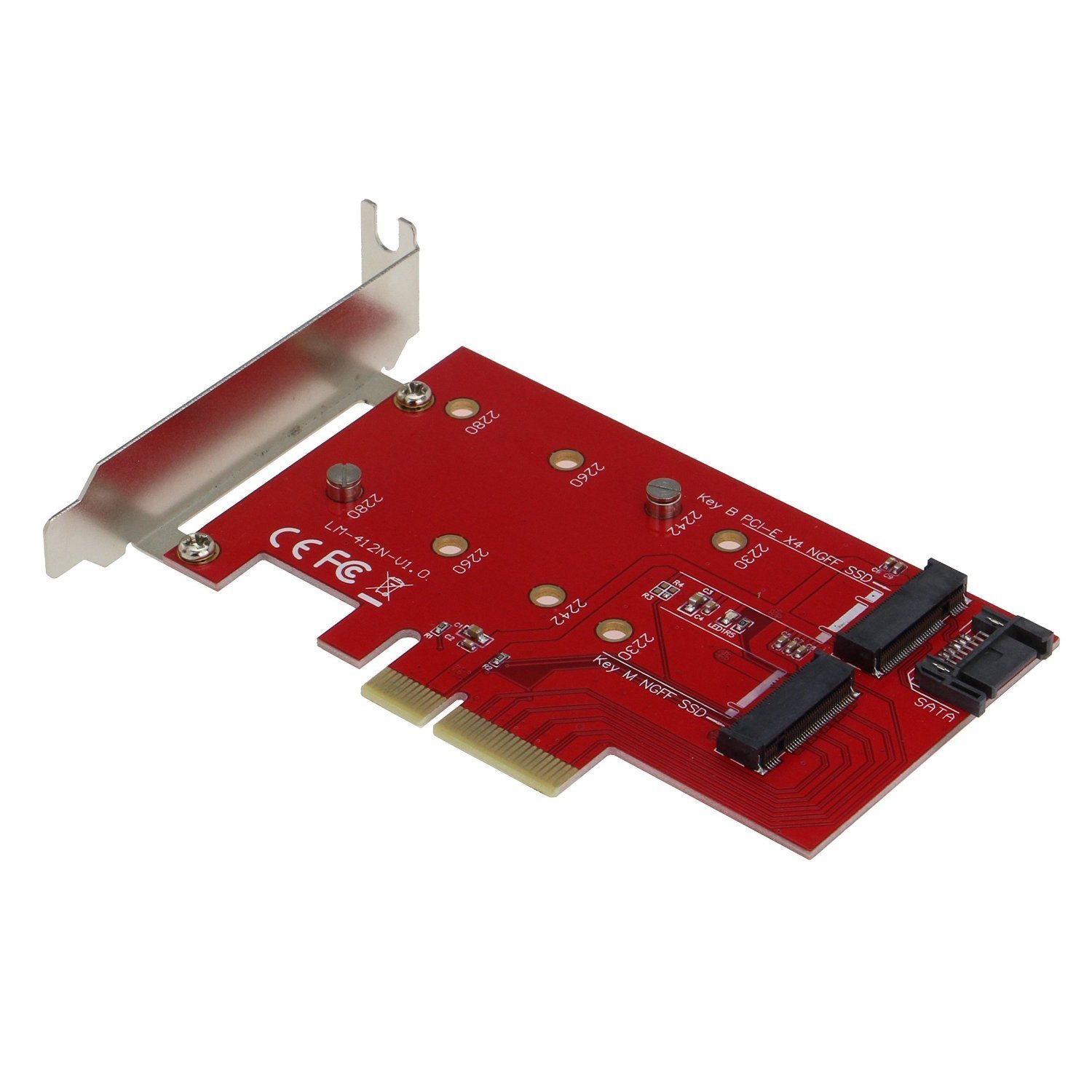

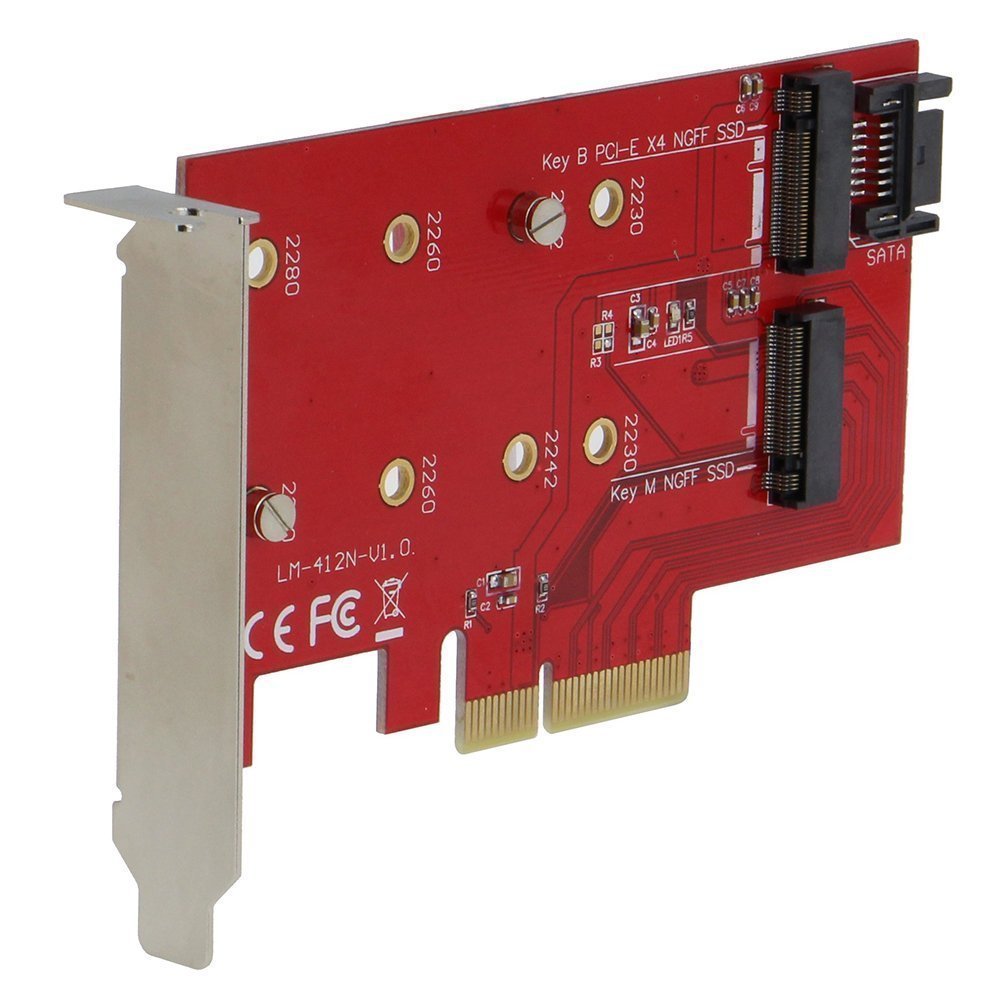

SEDNA - 2 Port NGFF M.2 B + M Key SSD to PCI-E PCI Express 4 X 4 Lane Adapter with low profile bracket

• Connects one B key & one M key NGFF SSD at the same time to PCI-E 4X motherboard.
• Compliant with PCI Express M.2 specification 1.0
• Compliant with SATA 3.0 specification for B key
• Supports 2230, 2242, 2260 & 2280 size NGFF SSD
• Easy installation & no driver required

Features and specifications : Connects one B key & one M key NGFF SSD at the same time to PCI-E 4X motherboard. Compliant with PCI Express M.2 specification 1.0. Compliant with SATA 3.0 specification for B key. Compliant with PCI-E 4X 3.0 specification for M key. Supports data transfer up to 6.0Gb/s. Supports SATA-based B key and PCI-E 4X-based M key NGFF SSD. Supports 2230, 2242, 2260 & 2280 size NGFF SSD. One NGFF B Key and one NGFF M key sockets available. 8 screw holes 2230/2242/2260/2280 available to fix NGFF SSD cards. Easy installation & no driver required. No additional power required. Support boot function. Supports any OS, like Windows, WinCE, Mac & Linux etc. Remark : For B key SSD the SATA 7 pin connector must be connected to motherboard. Remark : For M key SSD there must be a 2.0 or higher PCI-E 4X socket Include Low profile bracket for installation in slim PC or server Package Content : 1X 2 Port NGFF M.2 B + M Key to PCI-E 4X Adapter Card. 1 x SATA III cable 1 x Low profile bracket
