Seaflo 24V Diaphragm Pump, 3.0GPM 55PSI, Reduced Cycling, Meets RoHS, SGS, ISO Standards, 2 Year Warranty

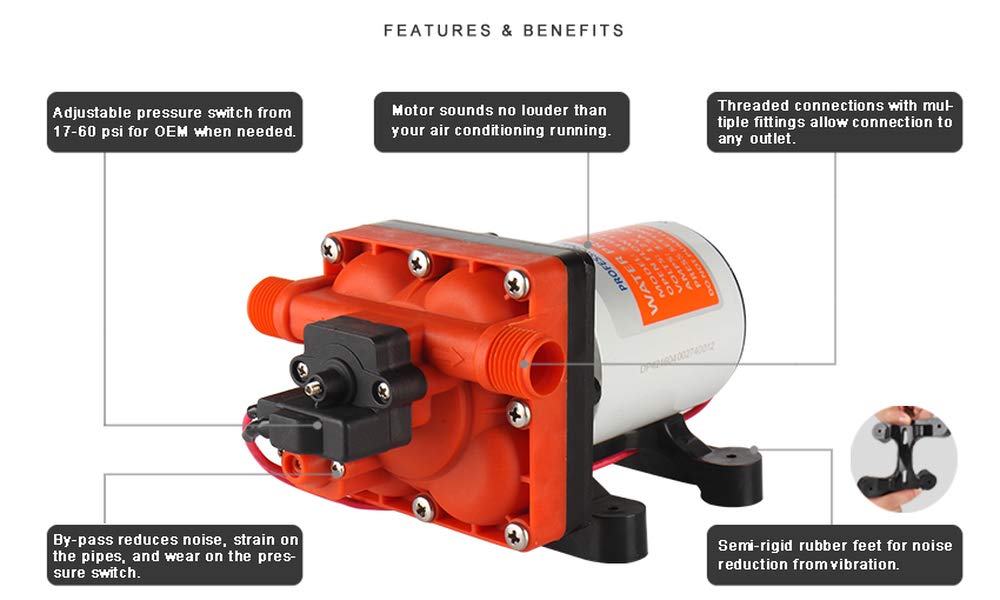

• Continuous duty and On-demand use. Self priming and Run dry safe.
• Internal bypass technology reduces cycling.

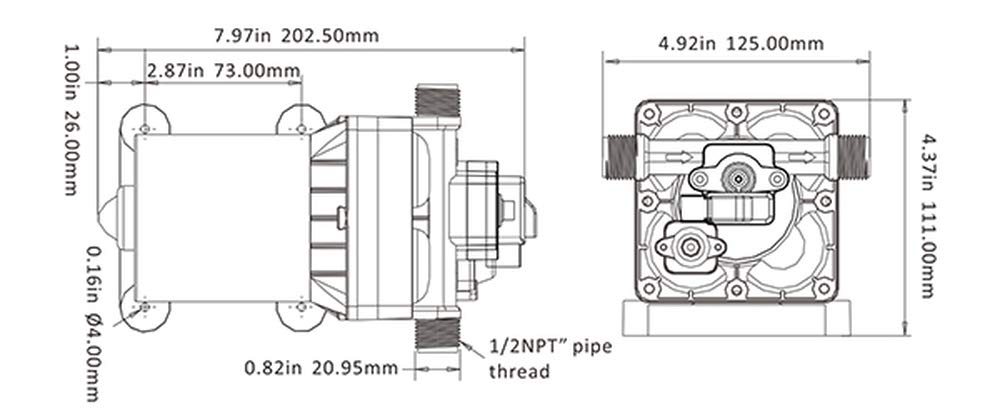

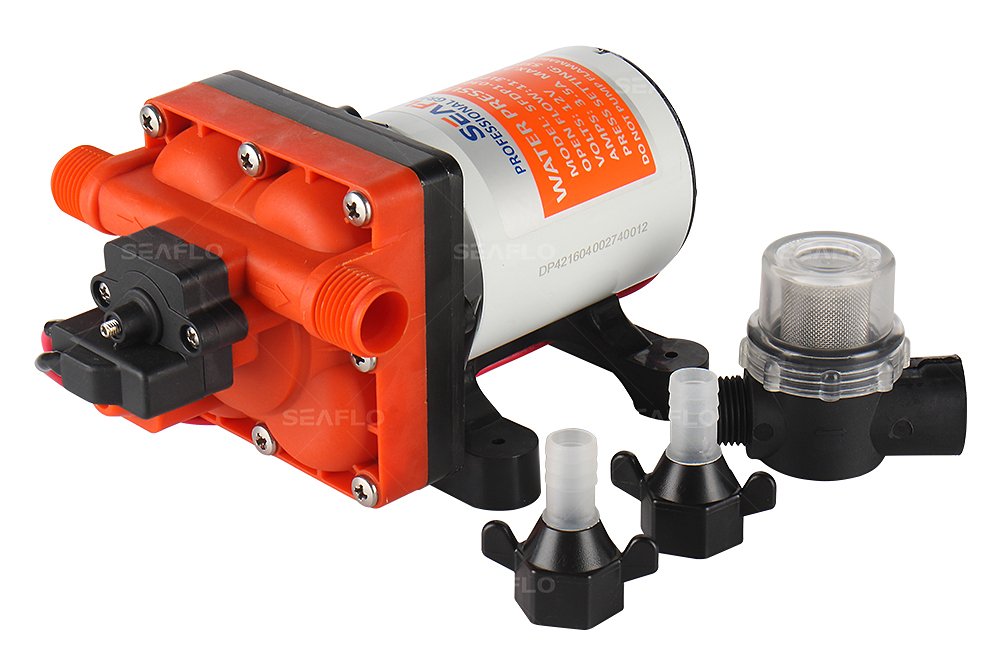

• 16AWG,9.4" long Leads. 13mm (1/2") MNPT threaded connections, with adaptors to 13mm hose barb.
• 2 Year Warranty.
• Meets or exceeds RoHS, SGS, and ISO standards.

SEAFLO 42 Series Diaphragm Pump with Bypass for Reduced Cycling 24V 3.0GPM 55PSI Meet our newest addition to our diaphragm pumps: the 42 series. It retains the raw power and pressure of its predecessors, but also can adapt to situations where huge flow is not needed. Compact but capable, it is a great fit for tight spaces. It also may be configured with different inlet types, each with their own unique fittings, to be sure that it fits any application you can find. TYPICAL APPLICATIONS Marine,RV,Agricultural Spraying,General Industrial,Filtration,Beverage Processing,Solar Water System. DETAILS Type: 4 Chamber positive displacement diaphragm pump, self priming, capable of being run dry Control Type: Pressure switch & By pass control Max Recommended Temperature: 60° C（140° F） Priming Capabilities: 6 feet (1.8 m) suction lift Re-start Pressure: Shut-off Pressure 55 PSI : 41 PSI ±5 PSI (±0.3 bar) Inlet/Outlet Ports: 1/2"-14 MNPT Weight: 4.0 lbs (1.9 kg) MOTOR Leads: 16 AWG, 9.4" (24 cm) long with 2-Pin connector / Leads Duty Cycle: Intermittent Max.Amp Draw: 3.37 A STANDARD PUMP CONFIGURATIONS Model: SFDP2-030-055-42 Open Flow(GPM/LPM): 3.0 / 11.3 Voltage: 24 V Control Type: switch & By pass Max Draw: 3.37 A Shut-off Pressure(PSI/BAR): 55 / 3.8 Valves: EPDM Diaphragm: Santoprene Ports: 1/2"-14 MNPT Wire Connections: 2-Pin/Leads
