Seaflo 41 Series DC Water System Pump 12V 12.5 LPM 35 PSI

• Can supply up to 3 fixtures & Quick connect fitting
• 2 Year Warranty
• Self priming & Run dry safe
• Can be use for Fresh & Salt Water
• Meets or exceeds RoHS, SGS, and ISO standards

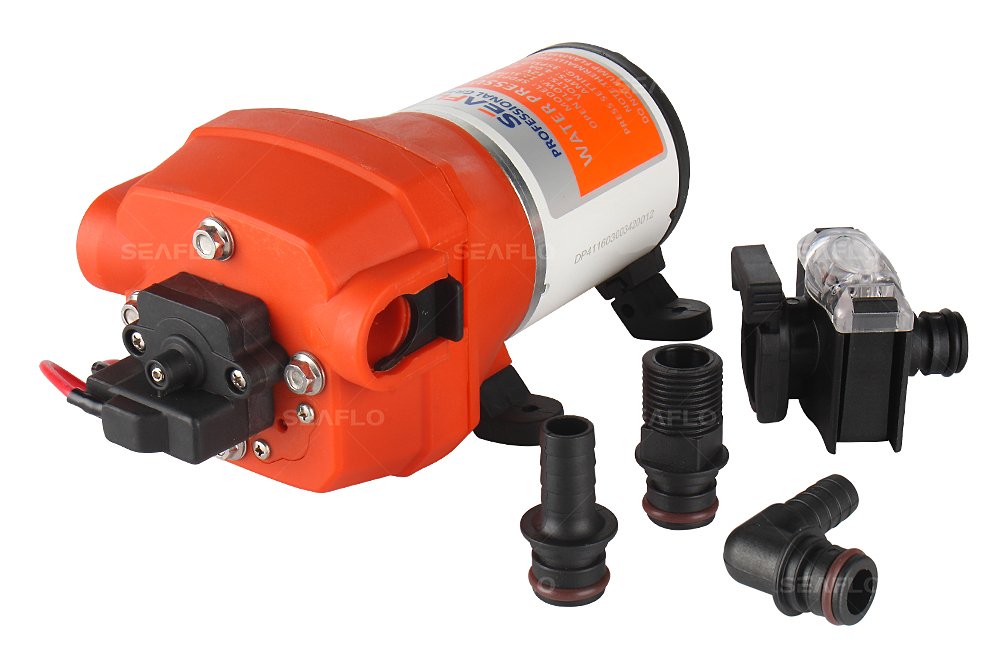

SEAFLO 41 Series DC Diaphragm Pump 12V 12.5 LPM 35 PSI The 41-Series pump provides high volume water flow with reduced pump cycling, thanks to the quad chamber diaphragm and internal bypass. These models are designed to run on water systems with no accumulator tank necessary, and up to five outlets. It is also suited for use with a holding tank water system, as may be found in a boat, RV or remote cabin. It provides up to 3.3 gallons per minute, suitable in a system of up to five fixtures. The 41-Series pumps are self-priming, and can run dry without damage, performance reliable and low current. This automatic demand water system pump has a built-in pressure switch, which automatically starts and stops the pump when faucet is opened and closed. They're easy to install, service and winterize with quick snap-in port fittings. INFORMATION Type: 4 Chamber positive displacement diaphragm pump, self priming, capable of being run dry Control Type: Pressure switch & By pass control Max Recommended Temperature: 60° C (140° F) Priming Capabilities: 6 feet (1.8 m) suction lift Re-start Pressure: Shut-off Pressure 35 PSI: 25 PSI ± 5 PSI(± 0.3 bar) Inlet/Outlet Ports: QUICK ATTACH Weight: 4.98 lbs (2.26 kg) MOTOR Leads: 16 AWG, 11" (28 cm) long with 2-Pin connector / Leads Duty Cycle:Intermittent Max.Amp Draw: 8.0 A Fuse: 12.0 A STANDARD PUMP CONFIGURATIONS Voltage:12V Open Flow（GPM/LPM）: 3.3 / 12.5 Max Draw: 8.0A Control Type: switch & By pass Shut-off Pressure（PSI/BAR）: 35 / 2.4 Valves:EPDM Diaphragm:Santoprene Wire Connections: 2-Pin/Leads
