Seaflo 33 Series DC Diaphragm Pump 12V/24V 3.0GPM 45PSI (12 Volts)

• Self-priming.
• Meets or exceeds RoHS, SGS and ISO standards.
• Adjustable pressure switch.
• Continuous Duty & Run, dry, safe.

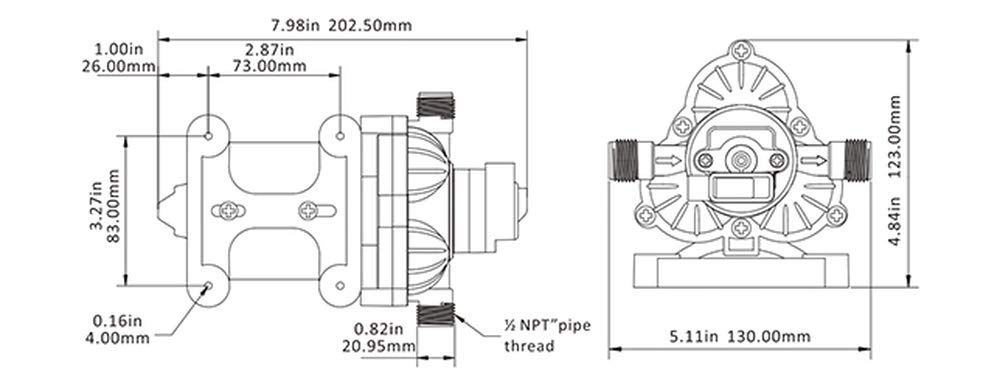

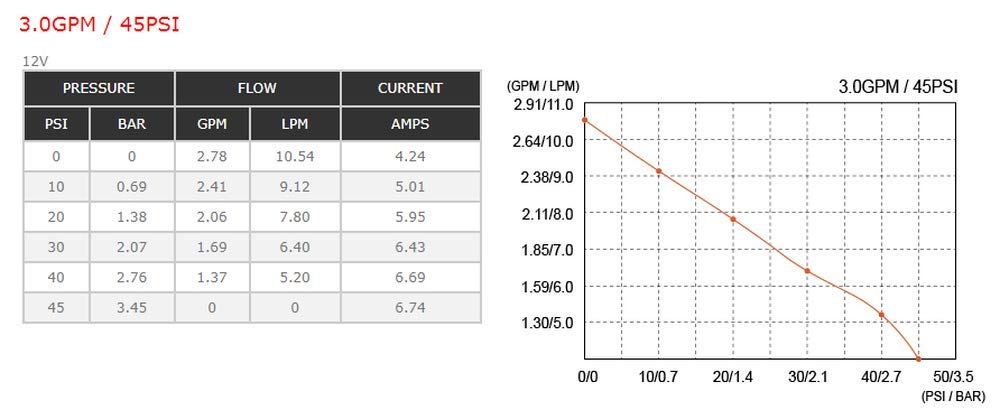

SEAFLO 33 Series DC Diaphragm Pump 12V 3.0GPM 45PSI The 33-Series is our general-duty on-demand positive displacement pump. It provides reliable performance in high water flow, moderate pressure applications. This 3-chamber diaphragm pump provides up to 3.0 gallons per minute and is capable of self-priming up to 6vertical feet, and can run dry without damage. Serves 3 or more 1/2” (13 mm) outlets. This automatic demand water system pump has a built-in pressure switch, which automatically starts and stops when the faucet is opened and closed. They're easy to install, service and winterize. MORE FEATURES & BENEFITS - On-demand use -16AWG,4.5＂long Leads - It can supply water for 1-2 taps. TYPICAL APPLICATIONS Marine,RV,Agricutural Spraying,General Industial,Filtration,Beverage Processing,Solar Water System. DETAILS Type: 3 Chamber positive displacement diaphragm pump, self priming, capable of being run dry Control Type: Pressure switch Max Recommended Temperature: 60° C（140° F） Priming Capabilities: 6 feet (1.8 m) suction lift Re-start Pressure: Shut-off Pressure 45 PSI : 35 PSI ±5 PSI (±0.3 bar) Inlet/Outlet Ports: 1/2"-14 MNPT Weight: 4.2 lbs (1.9 kg) MOTOR Leads: 16 AWG, 13" (33 cm) long with 2-Pin connector / Leads Duty Cycle: Intermittent Max.Amp Draw: 8.0 A Fuse: 12.0 A
