GINTOOYUN SD Card to 2.5 Inch IDE Adapter，SD SDHC SDXC MMC Memory Card to IDE 2.5" 44 Pin Male Adapter Converter

• The SD Card to 2.5 Inch IDE Adapter Adapt SD/MMC flash memory card to a super compact, SD card has the characteristics of small size, large capacity, anti-seismic and moisture-proof, high-temperature resistance, stable performance, permanent and effective data storage, no noise, no seek error.
• Enables IT engineers and embedded technology enthusiasts to use SD/MMC card as a normal IDE 2.5" hard disk. Ideal for some devices that required a fast and easy bootable device such as POS. Be a SD/MMC card reader/writer.Compatible with SD, SDHC, SDXC & MMC specification.
• Supports PIO, Multi-Word DMA and Ultra DMA data transfer mode.Supports boot function.No external power required and powered from IDE interface.Easy installation and no driver required.Mini board design and no space wasted.
• Enables SD/MMC card as a normal IDE 2.5" hard disk,Provides an alternative for data storage and transfer or test for motherboard, sound/audio/memory card, etc.
• NOTE: This adapter does not support hot-swap of CF cards, so please turn off power when changing cards.

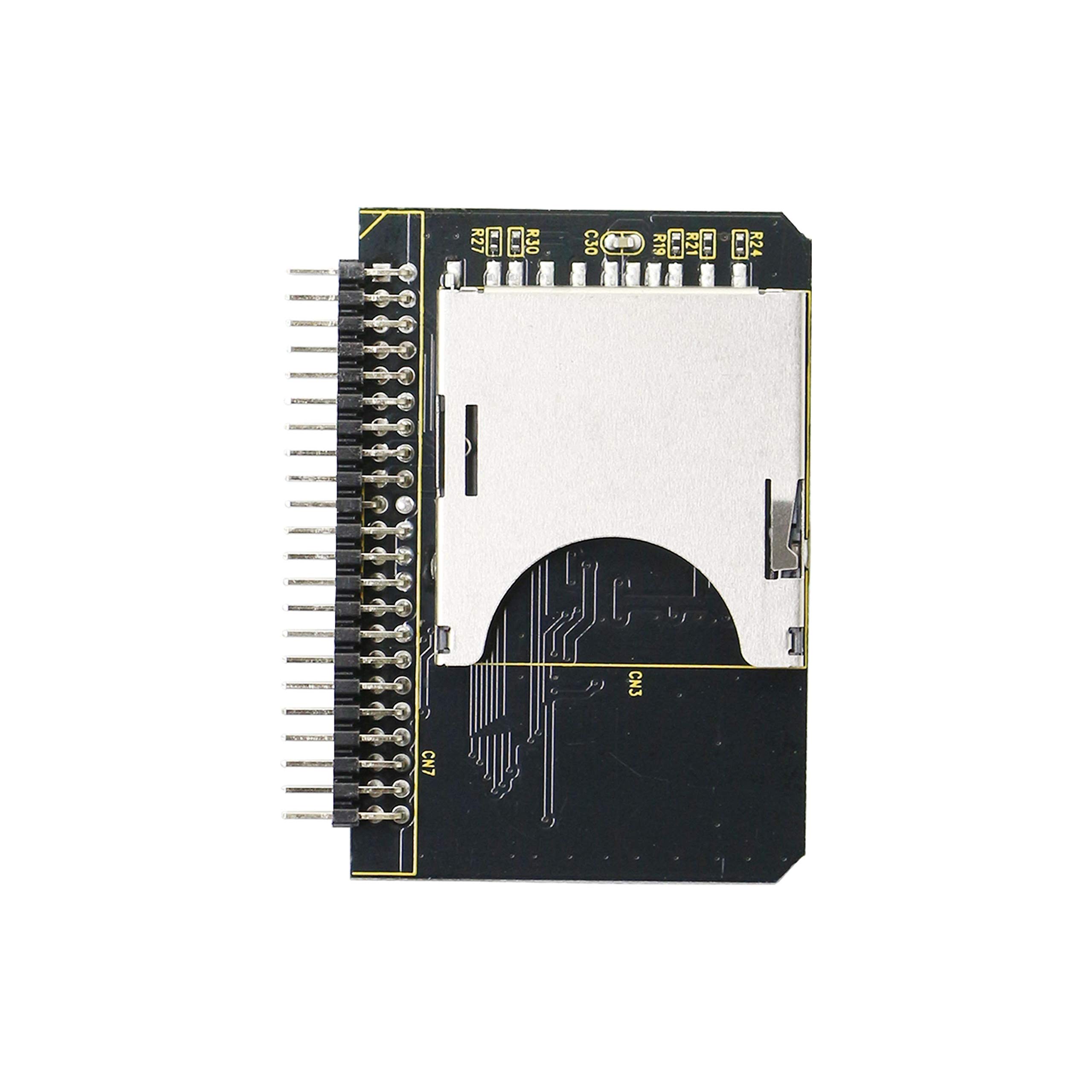

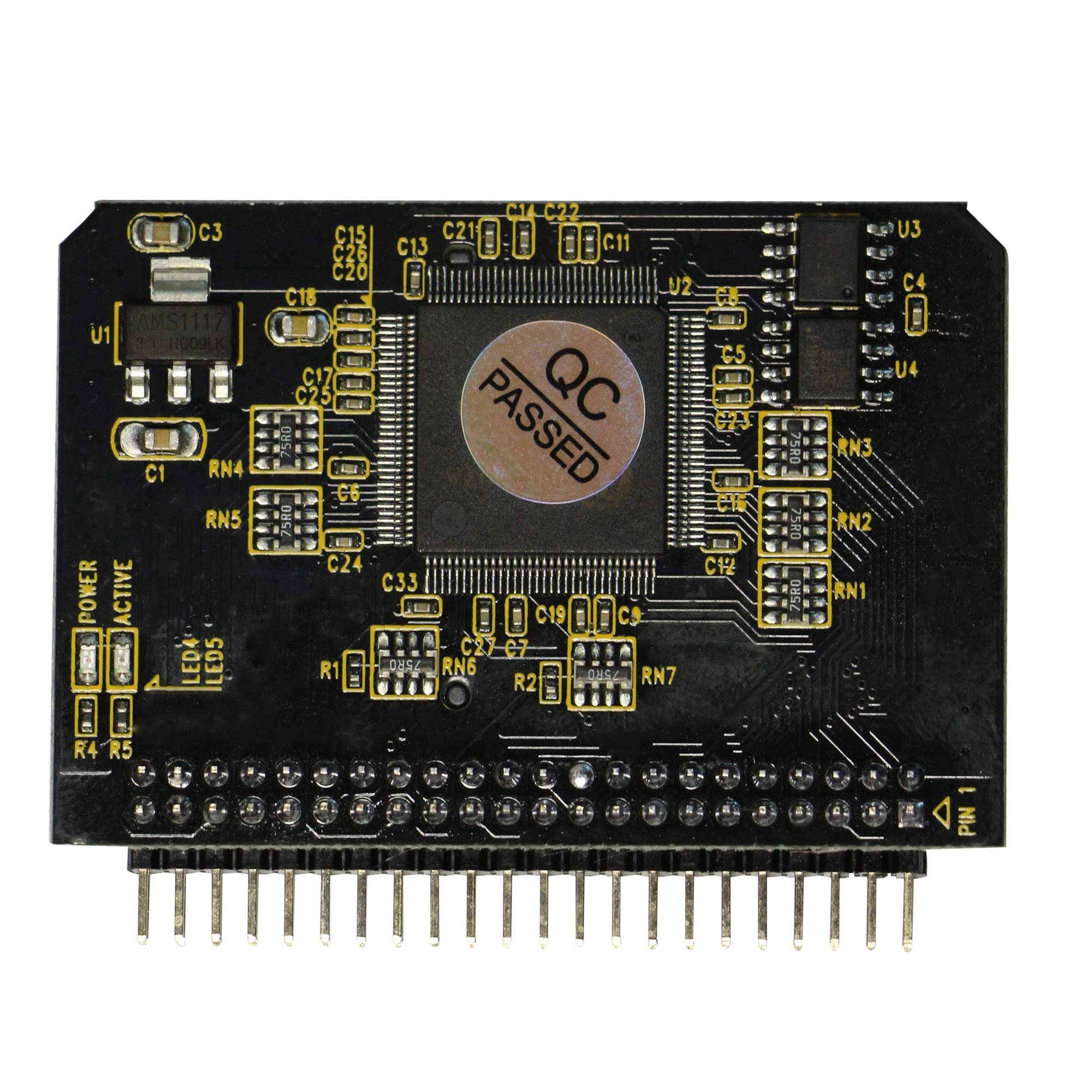

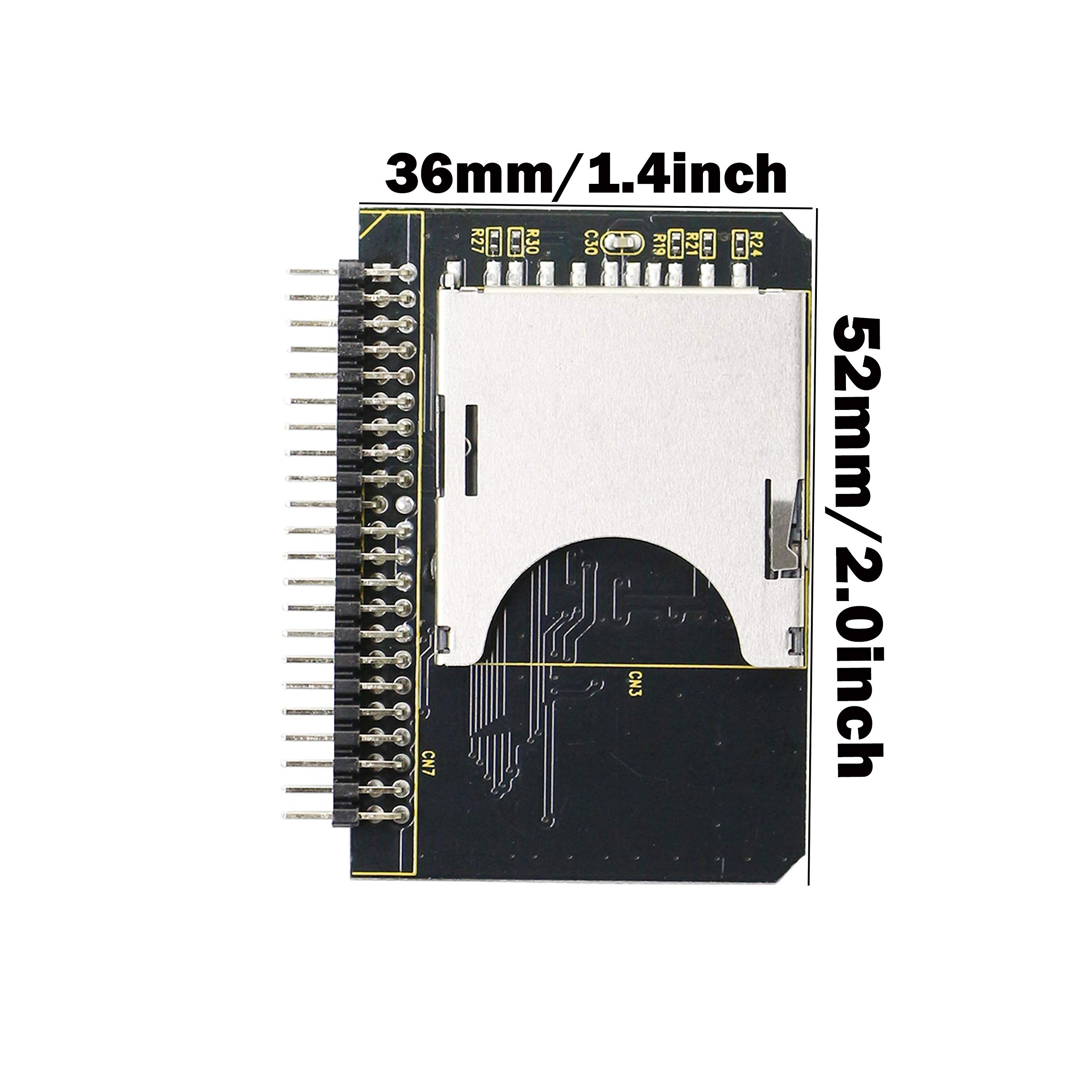

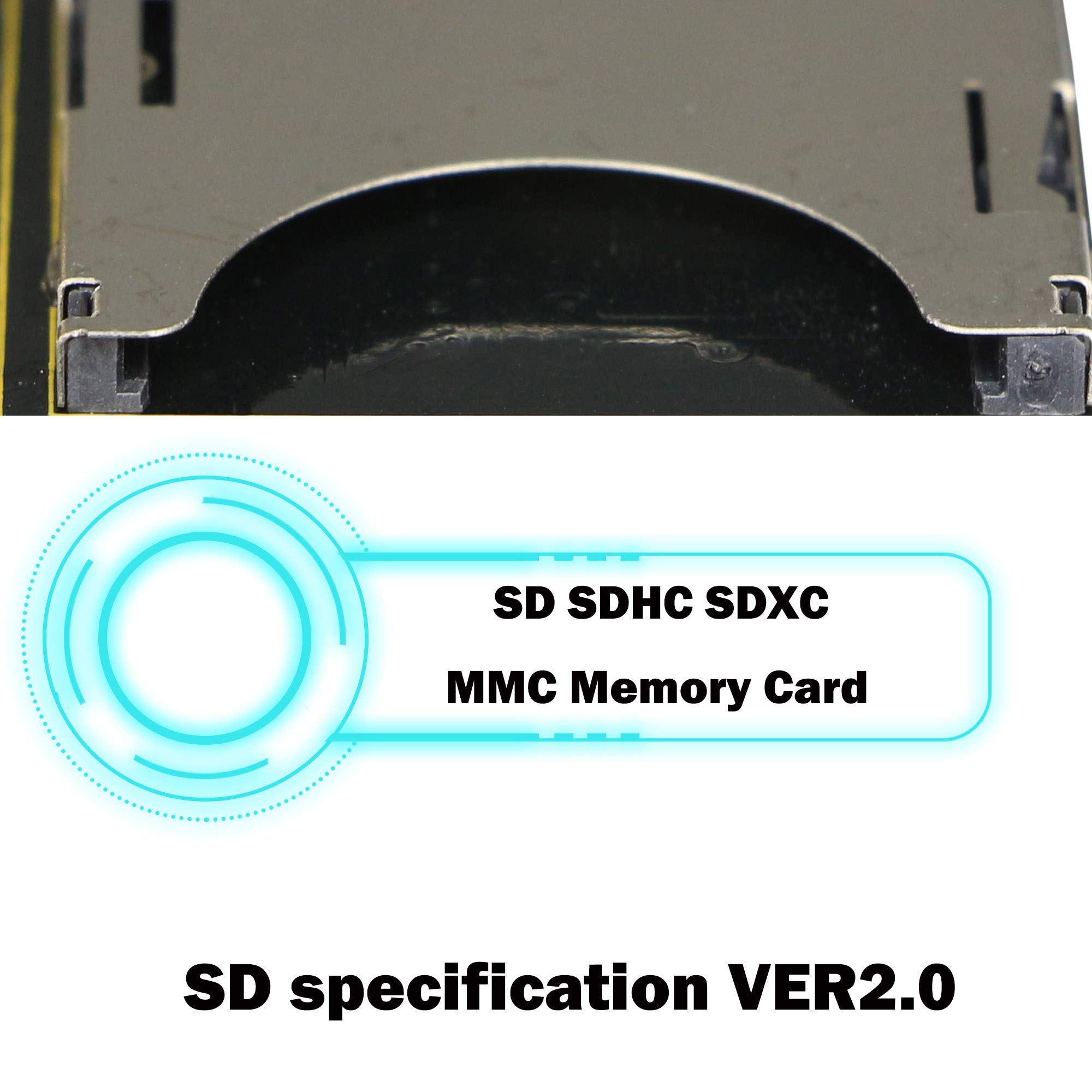

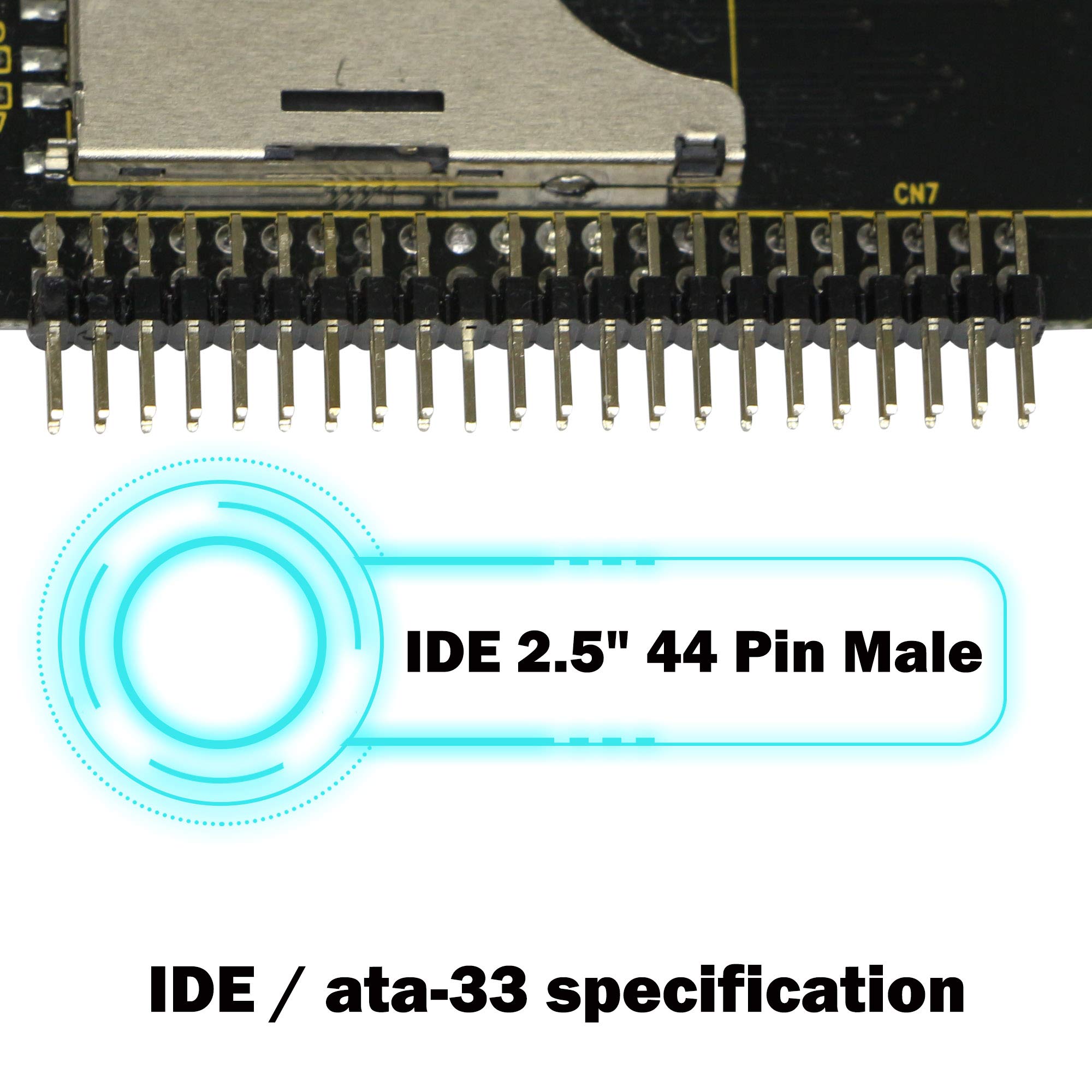

SD SDHC SDXC MMC Memory Card to IDE 2.5" 44 Pin Male Adapter Converter Memory card is a popular mainstream product nowadays. This adapter card allows you to connect the SD card with this advantage to the standard ATA IDE interface, when the standard ide storage device. Performance features: Standard: SD specification VER2.0, IDE / ata-33 specification; Standard IDE interface: true ide mode, and support dma-33 transmission mode; IDE interface is 44 pin / 2.0 mm male connector; There are two main control chips on the board and an SD card socket on the back; Advantages: small occupation area, exquisite design, simple operation; The SD card can be a device containing OS and application software, and can start the device directly; It is suitable for Windows 2000, Windows XP, windows Mac, Windows XP, Windows 2000 Installation instructions: First install the SD card into the slot, and then connect the hard disk data cable to the interface of the notebook hard disk. After the power on test is normal, it can be operated and used. It is so simple that there is no need to drive any more Weight:8g Size:53mm*36mm Package:SD Card to 2.5 Inch IDE Adapter x 1
