SCHWAIGER KOX110 100 SAT Antenna Cable Drum 100 m Satellite Cable Coaxial Cable Unassembled HDTV DVB-T2 110 dB 75 Ohm Triple Shielded

• Triple shielding for additional safety against electromagnetic interference
• Excellent stripping and installation properties
• Moisture-resistant with high long-term stability
• Cable with metre coding
• UV-resistant cable in a practical roll box

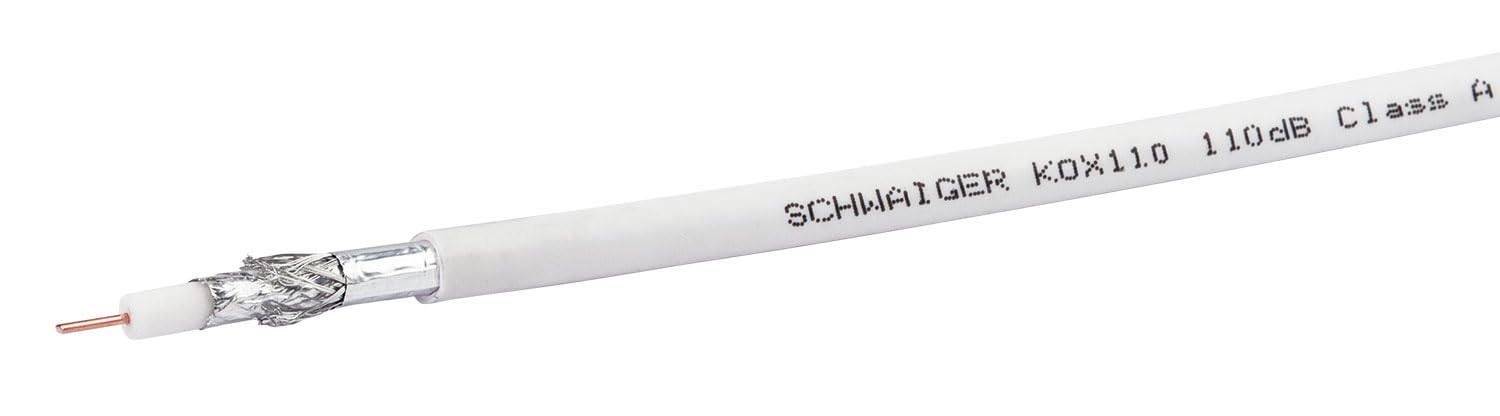

This SCHWAIGER coaxial cable is suitable for higher requirements in satellite and cable TV installations. The screen size of 110 dB allows the best possible protection against electromagnetic interference. In addition, thanks to the cable construction, very low signal attenuation is achieved. The cable can be shortened to any length and equipped with appropriate F-connectors. SCHWAIGER offers a suitable stripping tool. Triple shielding for additional safety against electromagnetic interference. Excellent stripping and installation properties. Moisture-resistant with high long-term stability. Cable with metre coding. UV-resistant cable, in a practical roll box. Technical data: Impedance 75 ohm cable construction 1.02 mm (inner conductor). 4.5 mm (dielectric). 7 mm (sheath) shielding, triple shielded, shielding factor 30 - 1000 MHz>=95 dB 1000 - 2400 MHz>=95dBReturn Loss 5 - 470 MHz>=23dB 470 - 862 MHz>=20 dB. 862 - 1000 MHz>=20 dB. 1000 - 2400 MHz>=18 dB attenuation to 100 m1.9 dBbis5 MHz. 5.25 dBto 50 MHz. 7.56 dBbis 100 MHz. 14.45 dBto 450 MHz. 20.04 dBto 860 MHz. 21.49 dBbis 1000 MHz. 32.15dBbis2150 MHz. 34.68dBbis2400MHzShielding materialAluminium composite foil (double) 84 aluminium mesh. Aluminium composite foil (double)Inner conductorCuCable length100 m / 250 m / 500 mProduct materialPlasticClassificationClass A++ColourWhitePackage Content1x SAT coaxial cable
