SCHWAIGER -KOX11550 052- SAT Coaxial Cable 50 m / 115 dB/High Shielding Rate / 4x Shielded/Satellite Cable/Unconvected / 7.3 mm/White

• 4-way shielding with excellent shielding rate
• High-quality digital coaxial cable with 84 braid
• Meets "Class A" requirement
• Length: 50 m + diameter: 7.3 mm for F-connector (FST 7002 532)
• Box contents: coaxial cable

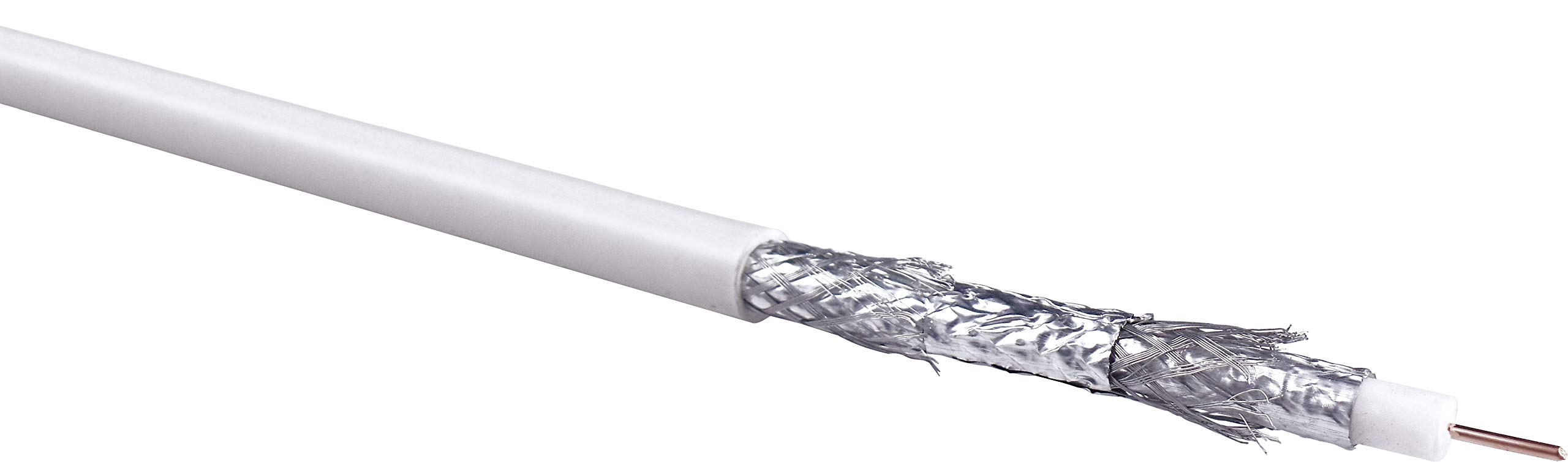

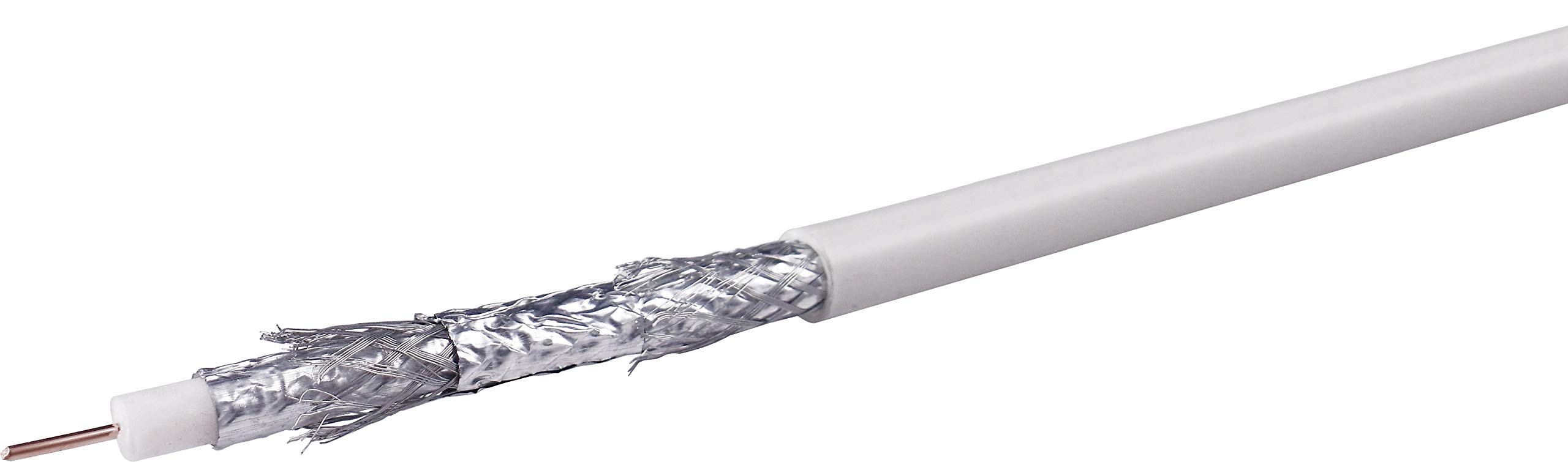

This SCHWAIGER coaxial cable is suitable for very high requirements in satellite and cable TV installations. The screen size of 115 dB allows the best possible protection against electromagnetic interference and radio interference of all kinds. In addition, thanks to the cable construction, very low signal attenuation is achieved. The cable can be shortened to any length and equipped with matching F-connectors. SCHWAIGER® offers a suitable stripping tool for this purpose. Technical data: Colour: white. Impedance: 75 ohms. Cable construction: 1.1 mm (inner conductor); 4.6 mm (dielectric); 7.3 mm (jacket). Shielding: 4x shielding. Shielding rate: 115 dB. Attenuation at 100 m: 4dB to 50 MHz / 6 dB to 100 MHz / 12 dB to 470 MHz / 18 dB to 860 MHz / 20 dB to 950 MHz / 26 dB to 1750 MHz / 30 dB to 2150 MHz / 32 dB to 2400 MHz Shielding material: 64 aluminium braid/aluminium composite foil/64 aluminium braid/aluminium composite foil. Inner conductor: CCS. Cable length: 50 m. Product material: plastic. Classification: Grade A
