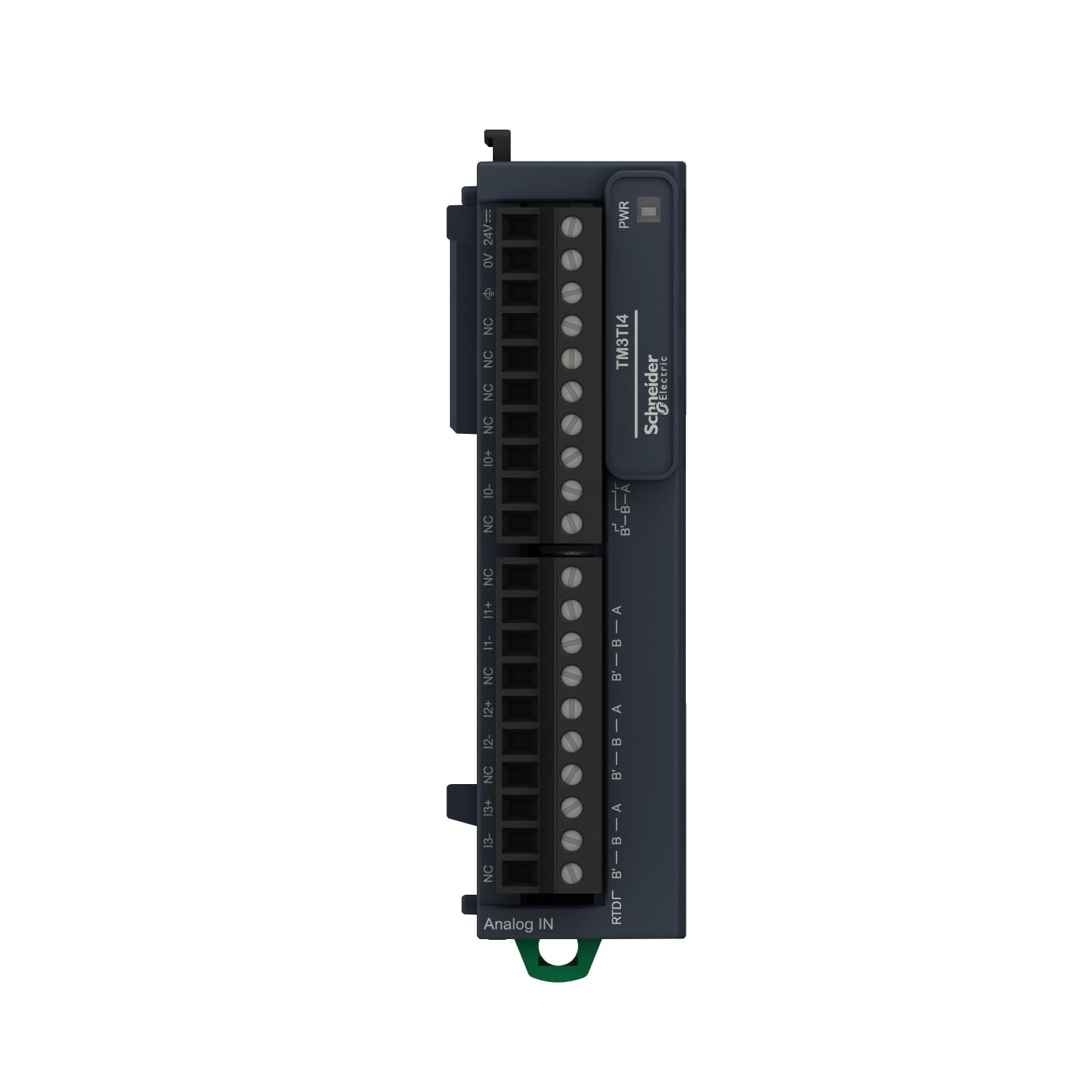

Schneider Electric tm3ti4 Module TM3, 4 input temperature

• Range: Modicon TM3
• Number of Analog Input: 4
• Continuous overload current: 40 mA, 13 V voltage

I/O extension TM3 I/O module 4 analog E. TM3TI4 number of analog inputs 4, number of analog outputs 0, analog inputs configurable, input, current, input, voltage, input, resistance, input, thermocouple, resolution of the analog inputs 16 bits , design of the electrical connection screw connection, category according to EN 954-1 1, SIL according to IEC 61508 without, performance level according to EN ISO 13849-1 without, explosion protection category for gas without, explosion protection category for dust without, width 23.6mm, Height 90mm, depth 70mm Special features: Modicon TM3 expansion modules were designed with a simple locking mechanism. A bus extension cable is used to distribute data and power when the Modicon TM3 expansion module is connected to the PLC controller.
