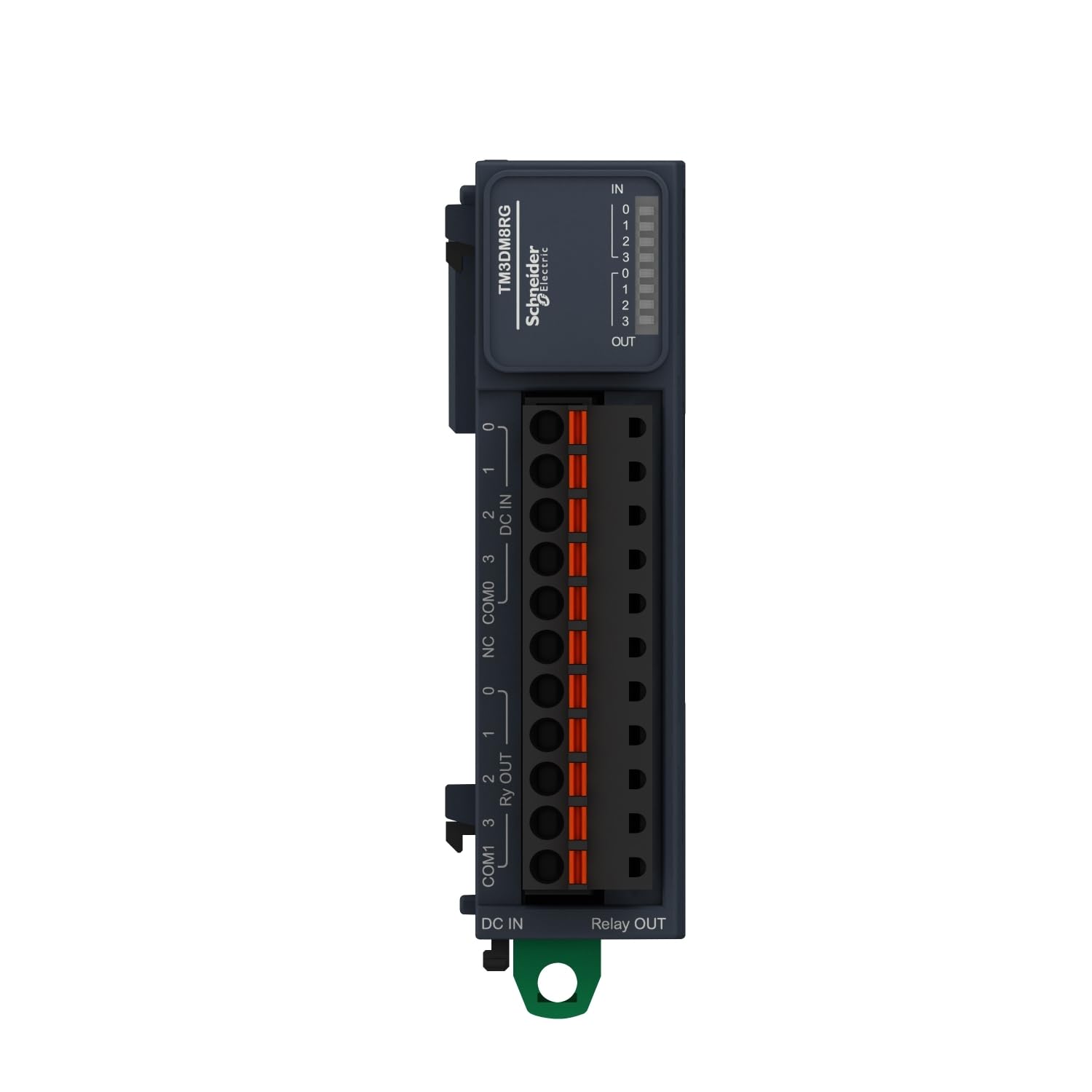

Schneider Electric tm3dm8rg Module TM3, 8 IO Spring

• Range: Modicon TM3
• Foot ducting, Input: 4 in accordance with IEC 61131 – 2 Type 1
• Number of outputs: 4 discrete

Supply Voltage at DC is 24 V. Voltage Type the supply voltage is DC NUMBER OF DIGITAL INPUTS is 4 No. of Digital Outputs is 4 digital inputs configurable is no. Digital Outputs configurable is no. Input Current on signal 1 is 7 mA. Maximum voltage at the input is 19.2 – 28.8 V Art The input voltage is DC Art of the digital output relay. Output Current is 2 A. Maximum voltage at the end is 30.. 264 V Type of Output Voltage is AC/DC short circuit protection – Intelligent circuitry to prevent overcharging, Ports without is no. Redundancy is no. Construction of the electrical connection is spring connector. Response Time On signal change is 4.. 10 ms. Suitable for security features is no. Explosion protection category for gas is not included. Explosion protection category for dust is no. Width is 10-3 SIZE AND HEIGHT IS 70 MM DEPTH 84.6 mm ea module 4d.e./4d.a. Schneider Electric I/O expansion TM3 EA Module 4d.e./4d.a. TM3DM8RG3606480611537
