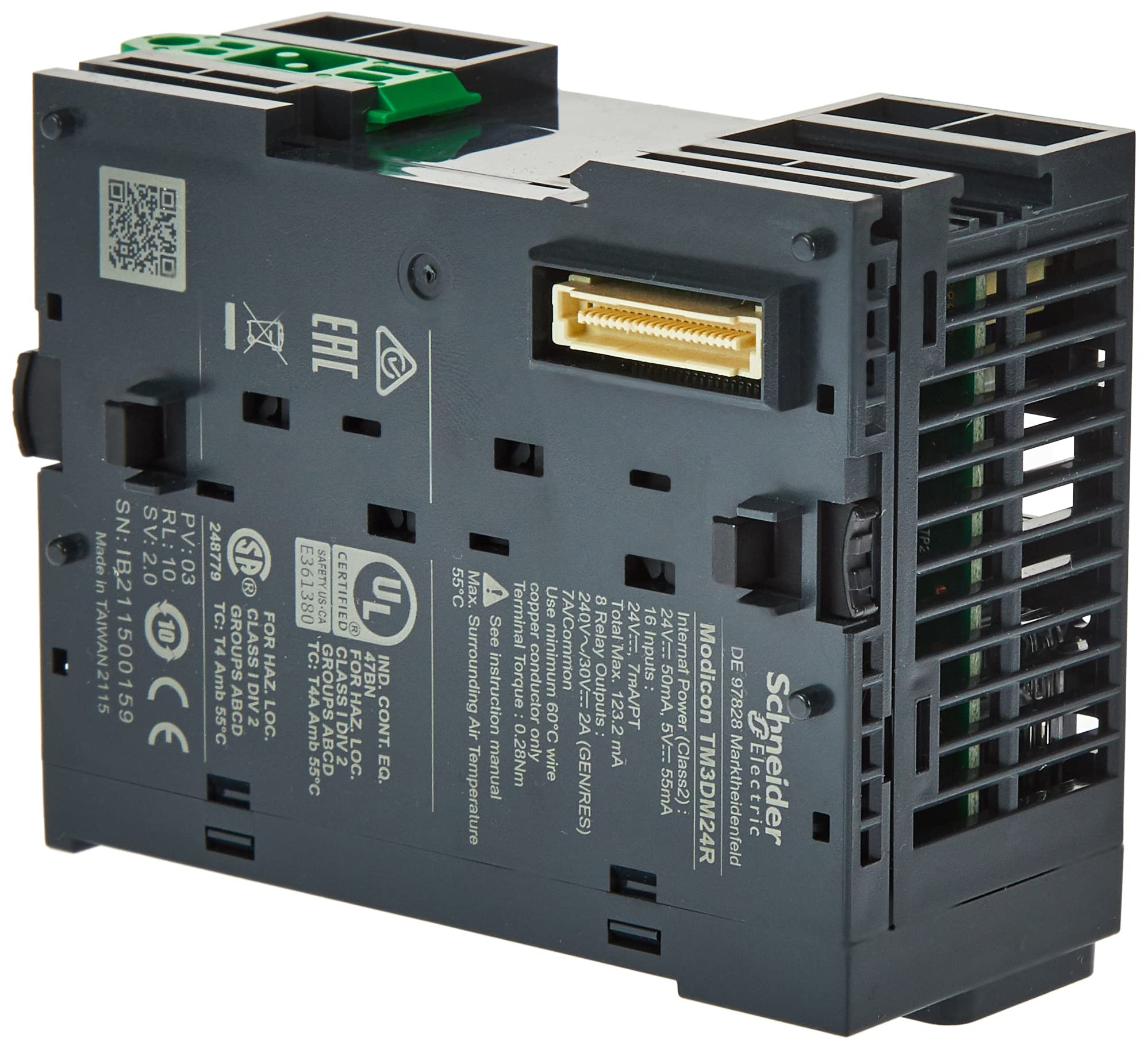

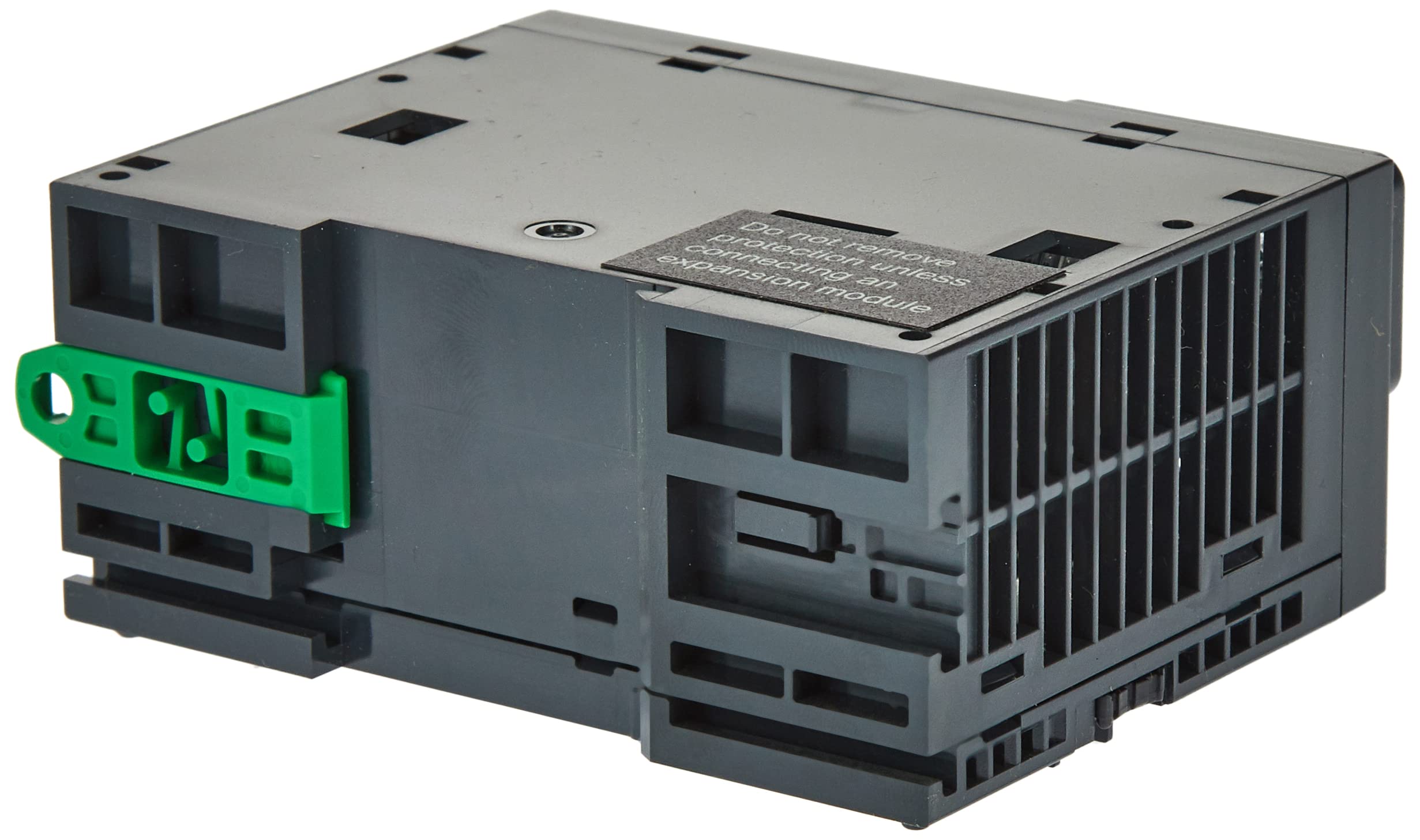

Schneider Electric tm3dm24r Module 16E/8S Relay

• Receiver or supply (positive/negative)
• 16 Input in accordance with IEC 61131 – 2 Type 1
• Product Range: Modicon TM3

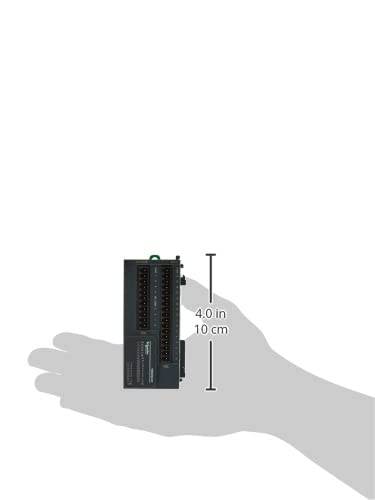

I/O extension TM3 I/O module 16d.E/8d.A. TM3DM24R supply voltage at DC 24 ... 24V, voltage type of the supply voltage AC/DC, number of digital inputs 16, number of digital outputs 8, input current with signal 1 7mA, permissible voltage at the input 19.2 ... 28.8V, Art input voltage AC/DC, type of digital output relay, output current 2A, permissible voltage at the output 30 ... 264V, type of output voltage AC/DC, design of the electrical connection screw connection, delay time with signal change 4 ... 10ms, category according to EN 954 -1 1, SIL according to IEC 61508 without, performance level according to EN ISO 13849-1 without, explosion protection category for gas without, explosion protection category for dust without, width 42.9mm, height 90mm, depth 84.6mm, digital mixed E /A modules Modicon TM3. TM3 module, 24 I/Os, relays. Connection: screw, output: 8 relays, 2 A, input: 16 sink/source, 24 V c. Removable screw or spring terminal blocks included.
