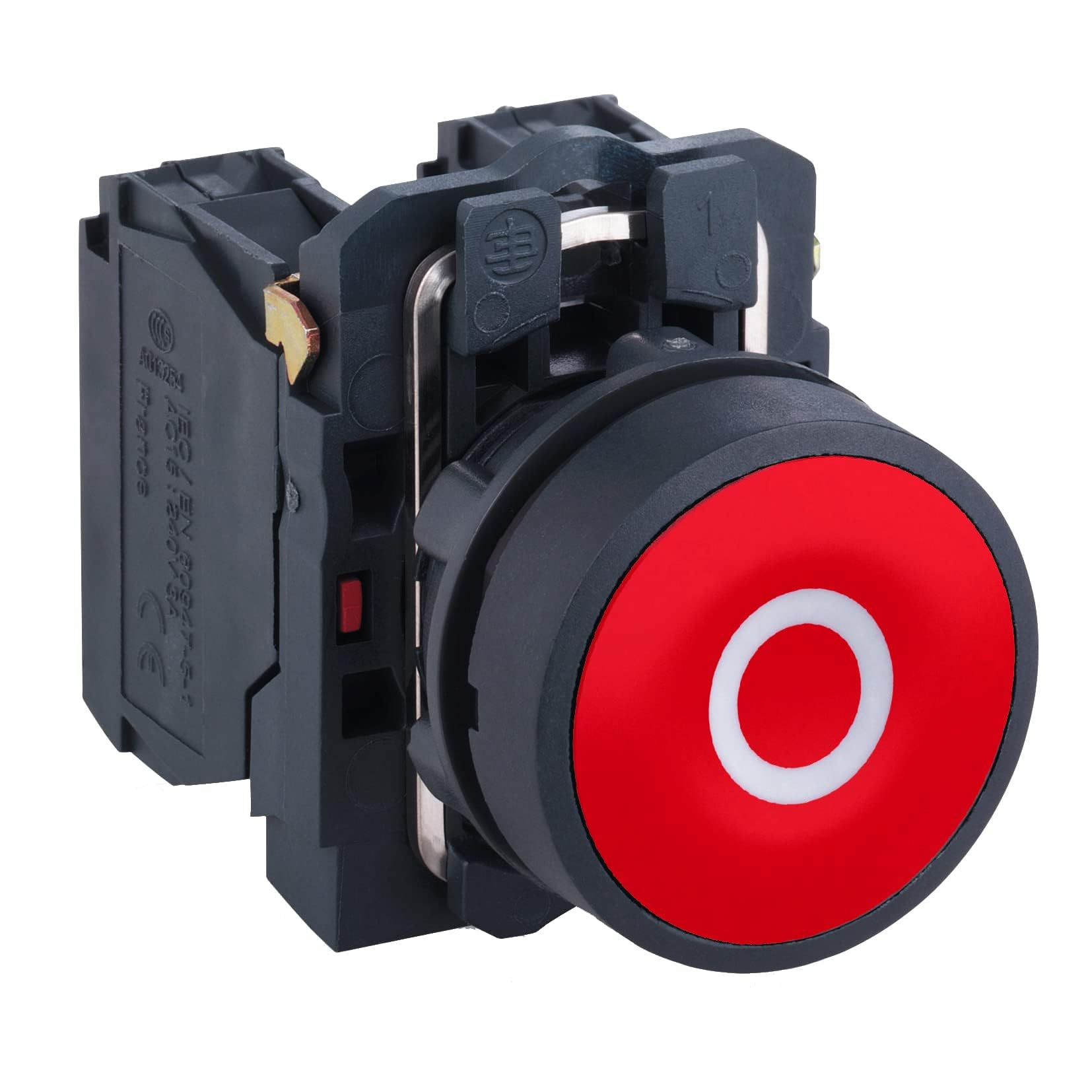

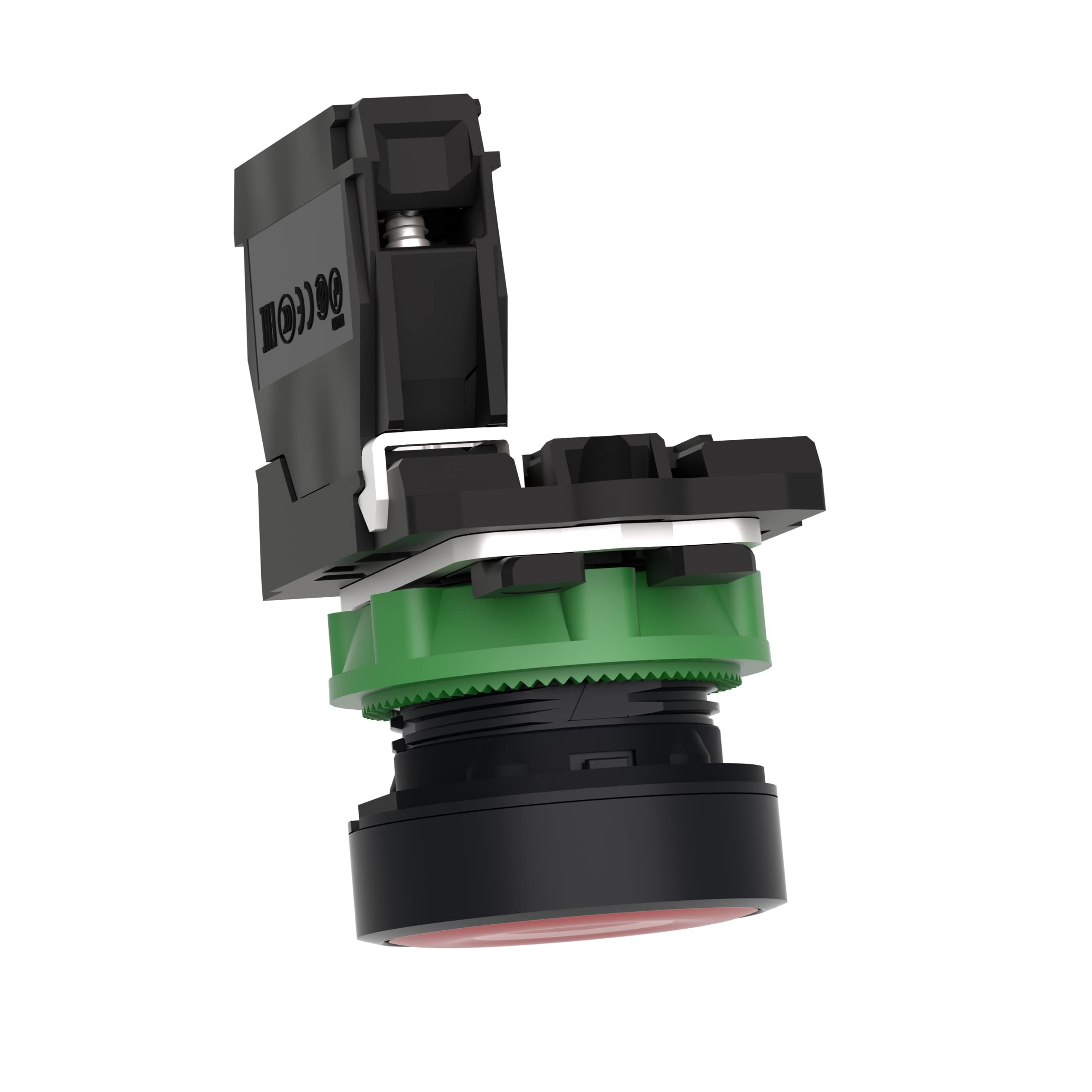

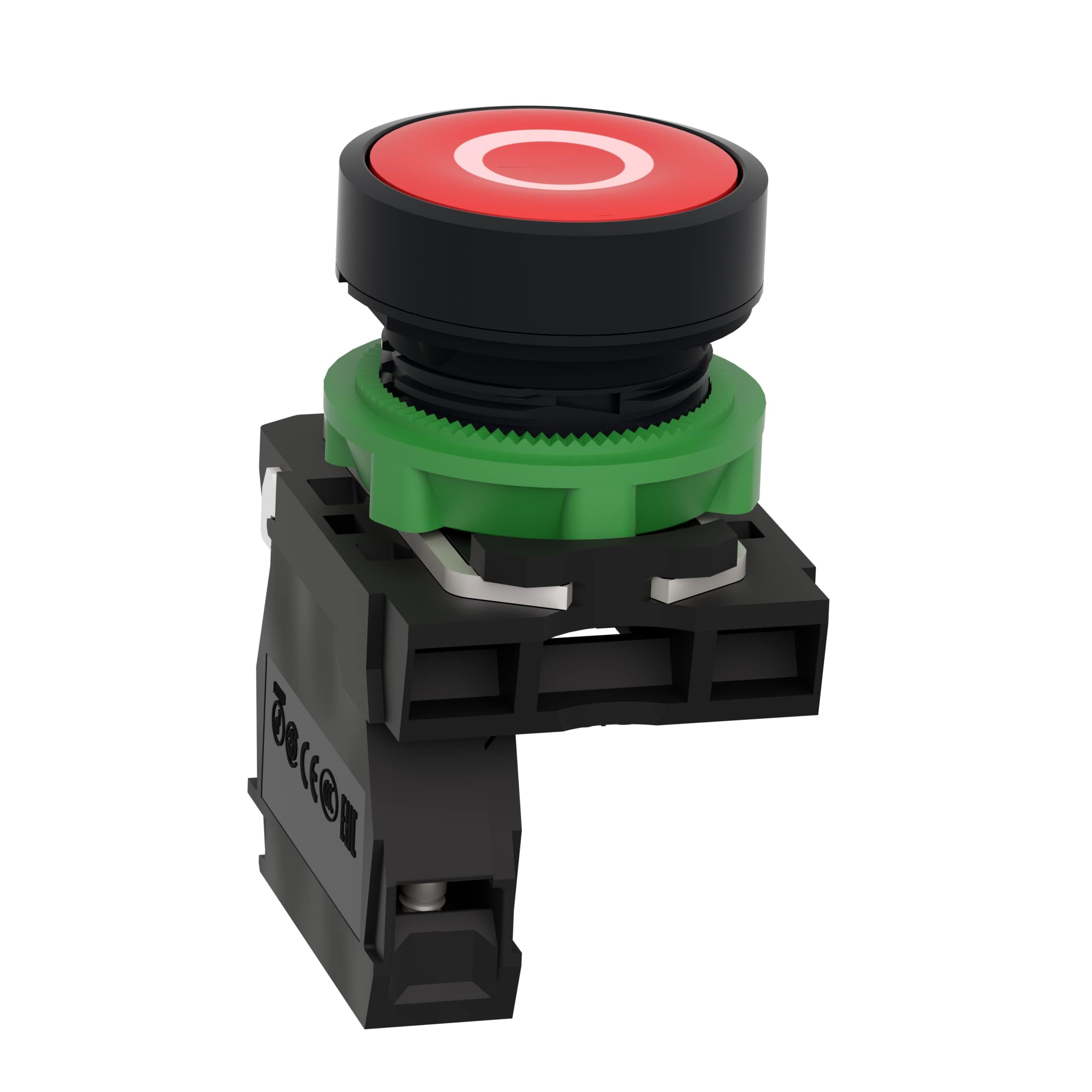

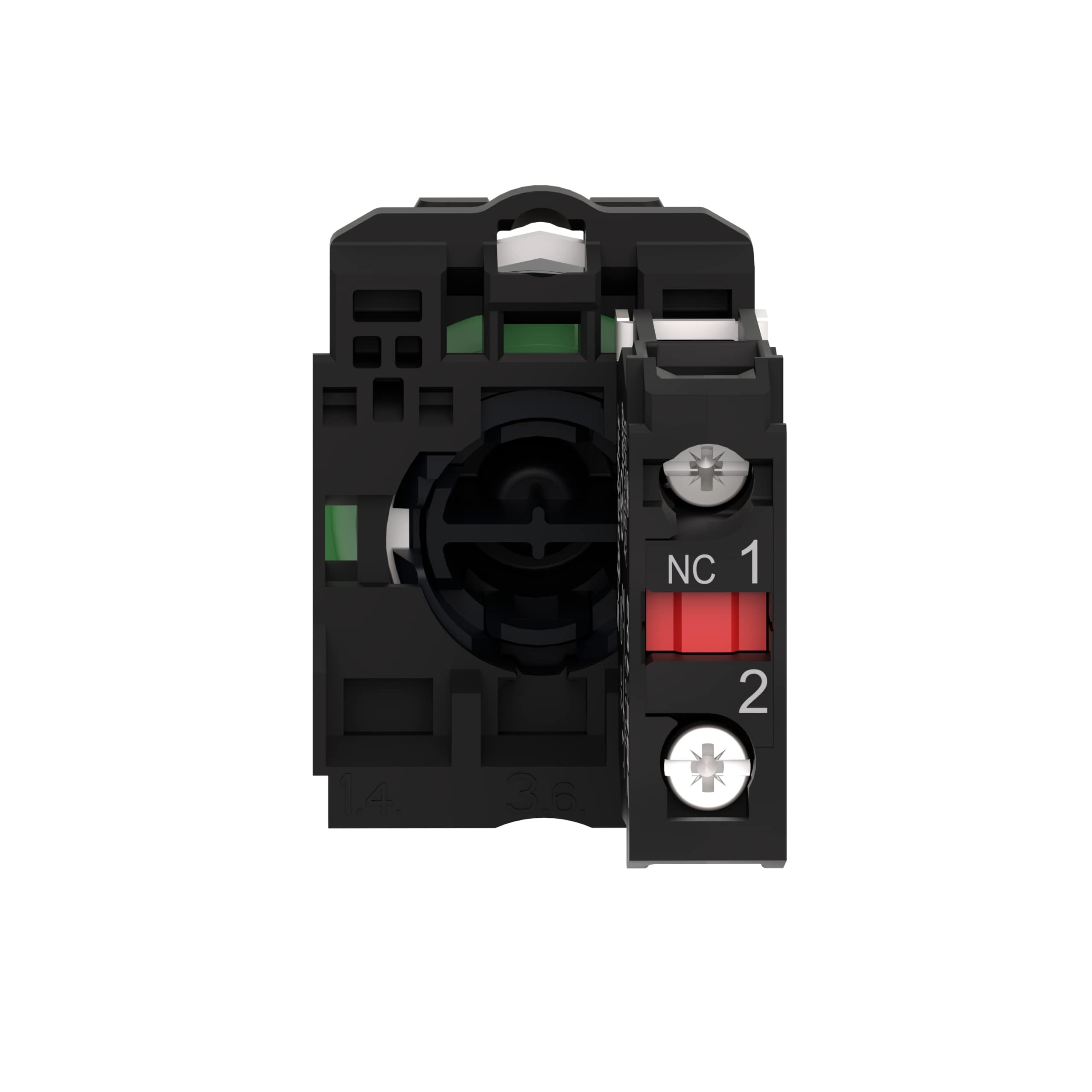

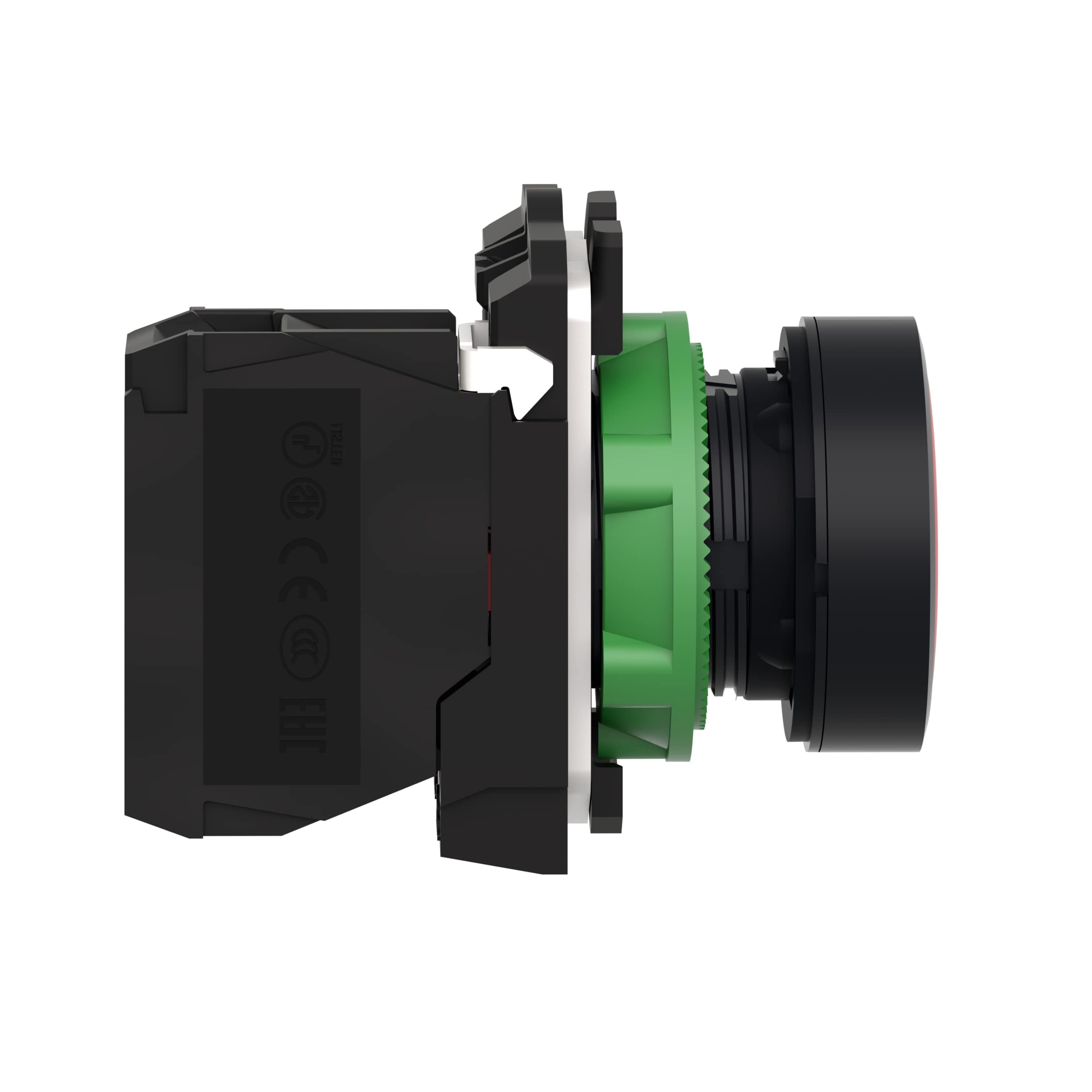

Schneider Electric red flush complete pushbutton Ø22 spring return 1NC 'O'

• Red flush complete pushbutton Ø22
• Simple modular design facilitates post installation servicing, modification and adaption of machines by non-specialists
• Designed to fit in a standard 22mm cutout, ensuring compatibility when installing in pre-existing machinery

This Harmony XB5, modular red push button operates with a spring return / impulse mechanism and uses screw clamp terminals. It is marked with a "O" symbol. This push button provides a simple and robust control to machines and processes. It is easily installed into standard 22mm diameter cut-outs and connected with simple screw-clamp connections. Its schematic is clearly distinguishable visually at a distance thanks to clear colors and markings, minimizing errors during initial wiring and later maintenance operations. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP66 / IP67 / IP69 / IP69K, making it ideal for operation in harsh environments. Its plastic bezel makes it ideal for applications requiring good resistance to chemical agents and/or double electrical insulation.
