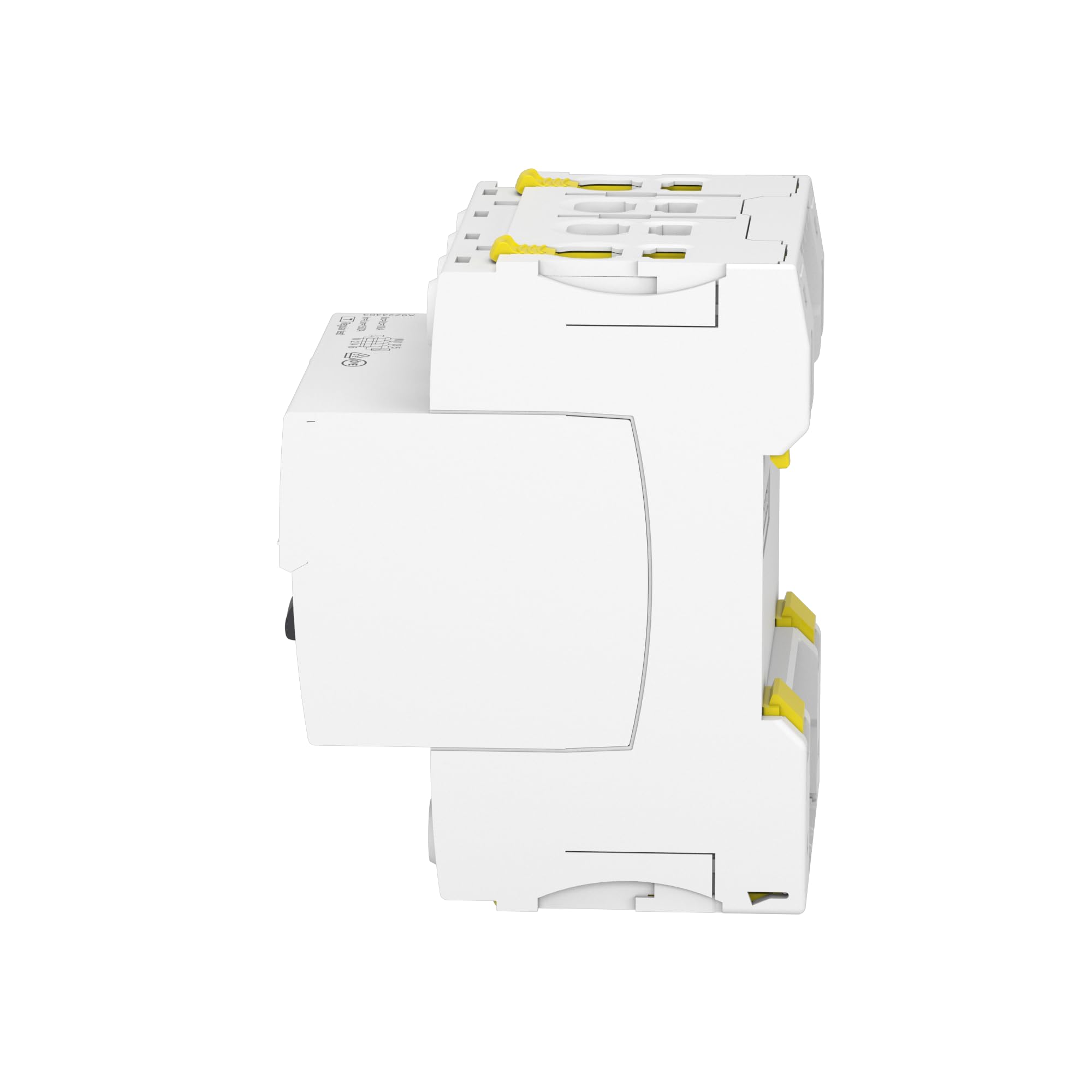

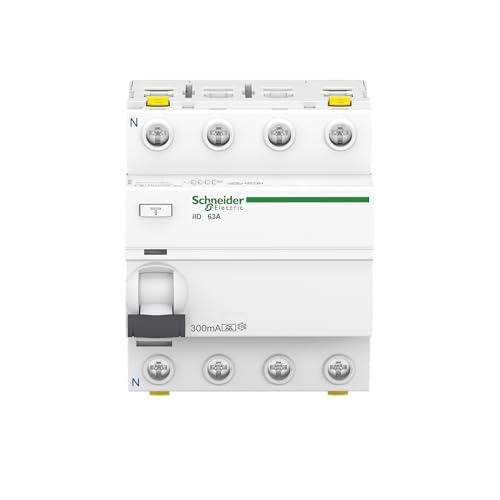

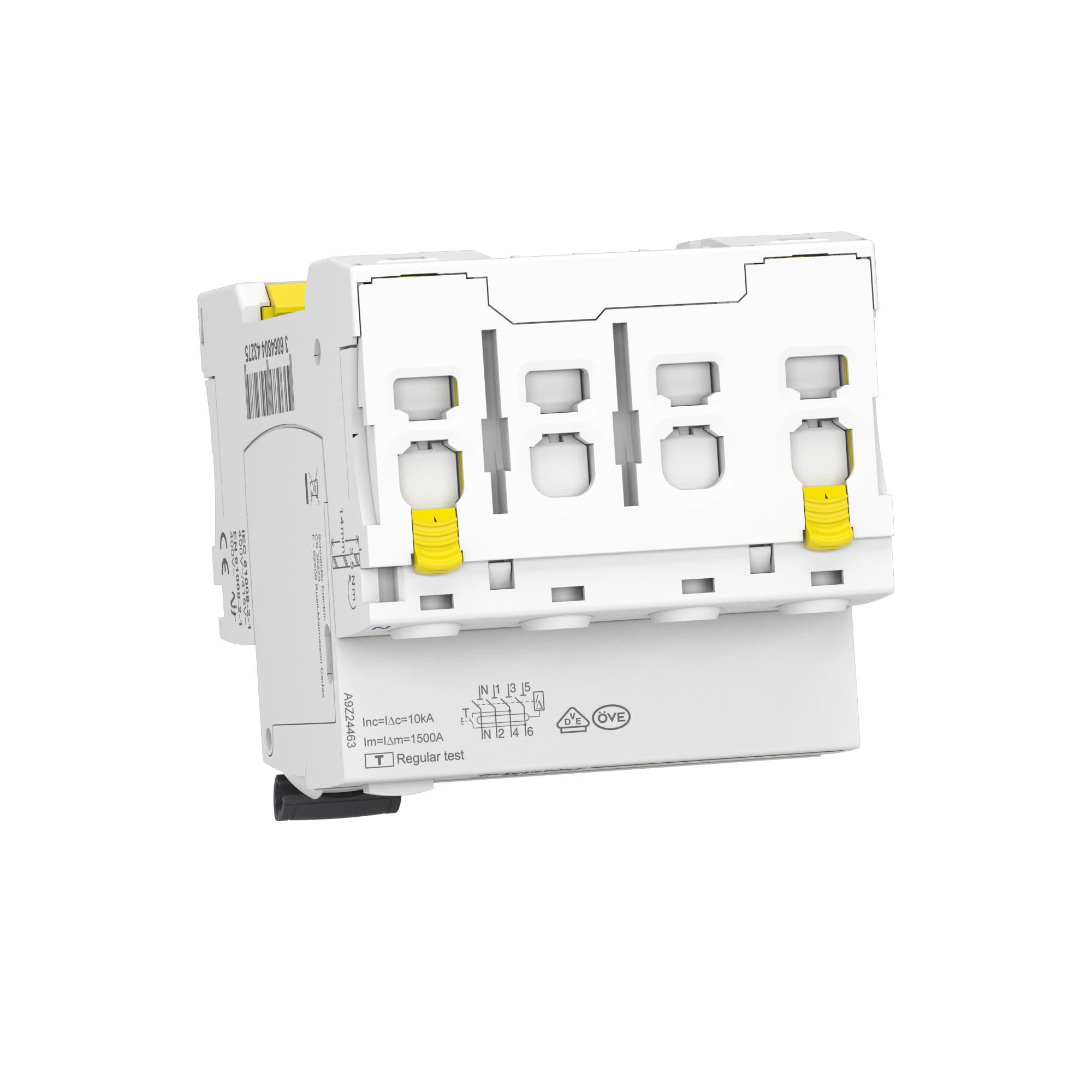

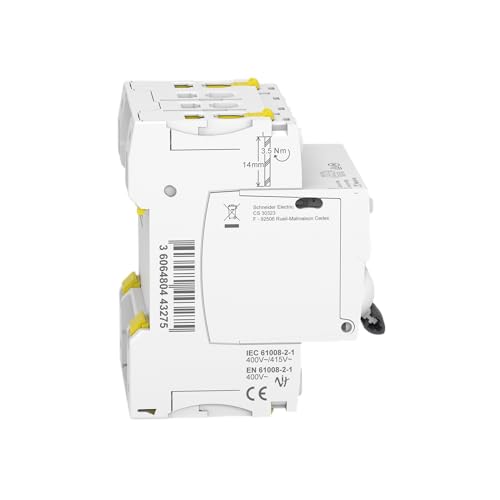

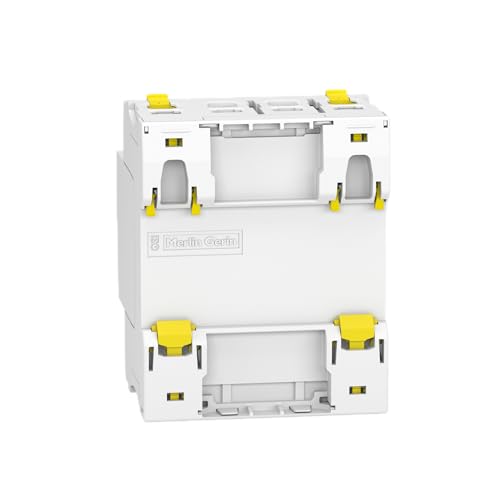

Schneider Electric Residual Current Circuit Breaker ACTI9 iID, 4P, 63A, 300mA, Type A, A9Z24463

• The Schneider Electric A9Z24463 residual current circuit breaker is a 4-pin RCD with a rated current of 63A and a tripping current of 300mA.
• It detects residual currents and protects against electric shock in fires.
• This type A residual current circuit breaker is particularly suitable for protecting AC circuits where pulsating DC fault currents can also occur.
• With a 4-pin configuration, it is suitable for three-phase installations.
• This residual current circuit breaker is used in industrial and commercial applications.

Residual current circuit breaker Acti 9 iID, 1.5kA (IEC/EN 61008-1). 4-pin, rated current 63A, ground fault sensitivity 300mA, ground fault protection class type A, operating voltage (Ue) 400V AC, insulation voltage (Ui) 500V AC. Ensures additional protection when touching directly (≤ 30mA). Error protection in case of indirect touch, e.g. in case of insulation faults (≥ 100 mA, ≤ 300 mA). Error protection in construction power distributors (500mA). Switching and disconnecting circuits. Jump circuit for low-wear switching of the contacts. With mechanical front error message indicator (VisiTrip) to indicate overload or short circuit triggers. Safe contact display (VisiSafe) of the residual current circuit breaker, when the indicator is green indicator, safety of voltage clearance on the outlet side. Test button for regular checking of the function. Double terminals for connecting cables or phase rails on both sides. Easy removal of the individual device with installed phase rail, thanks to the front accessible fastener. Additional stackable auxiliary modules (optional)- low voltage release (iMN), surge release (iMSU), working current trigger (iMX), auxiliary switch for status message (iOF), error message switch (iSD). Tool-free mounting on the left side of the device. Colour: RAL 9003. The residual current circuit breaker iID meets the following standards - IEC/EN 61008-1 and IEC/EN 60947-2. Furthermore, this series is VDE certified.
