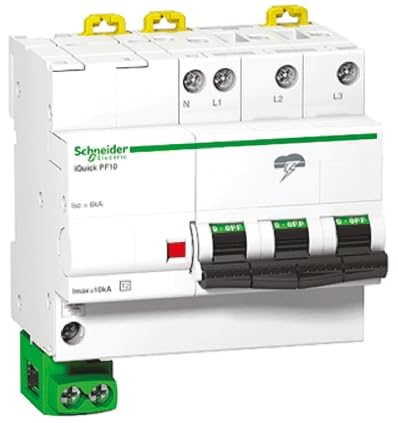

Schneider Electric A9L16618 Surge Limiter iQuick Pf 3P+N - 275V, white

• Short device name: IQuick PF
• Number of poles: 3P + N
• Rated operating voltage 400V (+/- 10%) AC 50/60Hz, 230V (+/- 10%) AC 50/60Hz

[In] Rated Discharge Intensity: Differential Mode: 5kA L/N, Common Mode: 20kA N/PE [Imax] Max Discharge Intensity: Differential Mode: 10kA L/N, Common Mode: 20kA N/PE Continuous Maximum Operating Voltage: Differential Mode: 275V L/N, Common Mode: 275V N/PE [Up] Voltage Protection Level 1.5kV Type 2 Differential Mode L/N, 1.5kV Type 2 Common Mode N/PE [Ut] Temporary Surge Maintain: 442V L/PEfor 5s, Safe Fault Mode: 1200V N/PEfor 200ms, Maintain: 337V L/Nfor 5s. [If] Intensity Monitoring 0.1kA Common Mode N/PE. Sectioning Device Type: Auto, Integral ICU 6kA Rated short circuit current 6KA. Short circuit intensity assigned 6kA.
