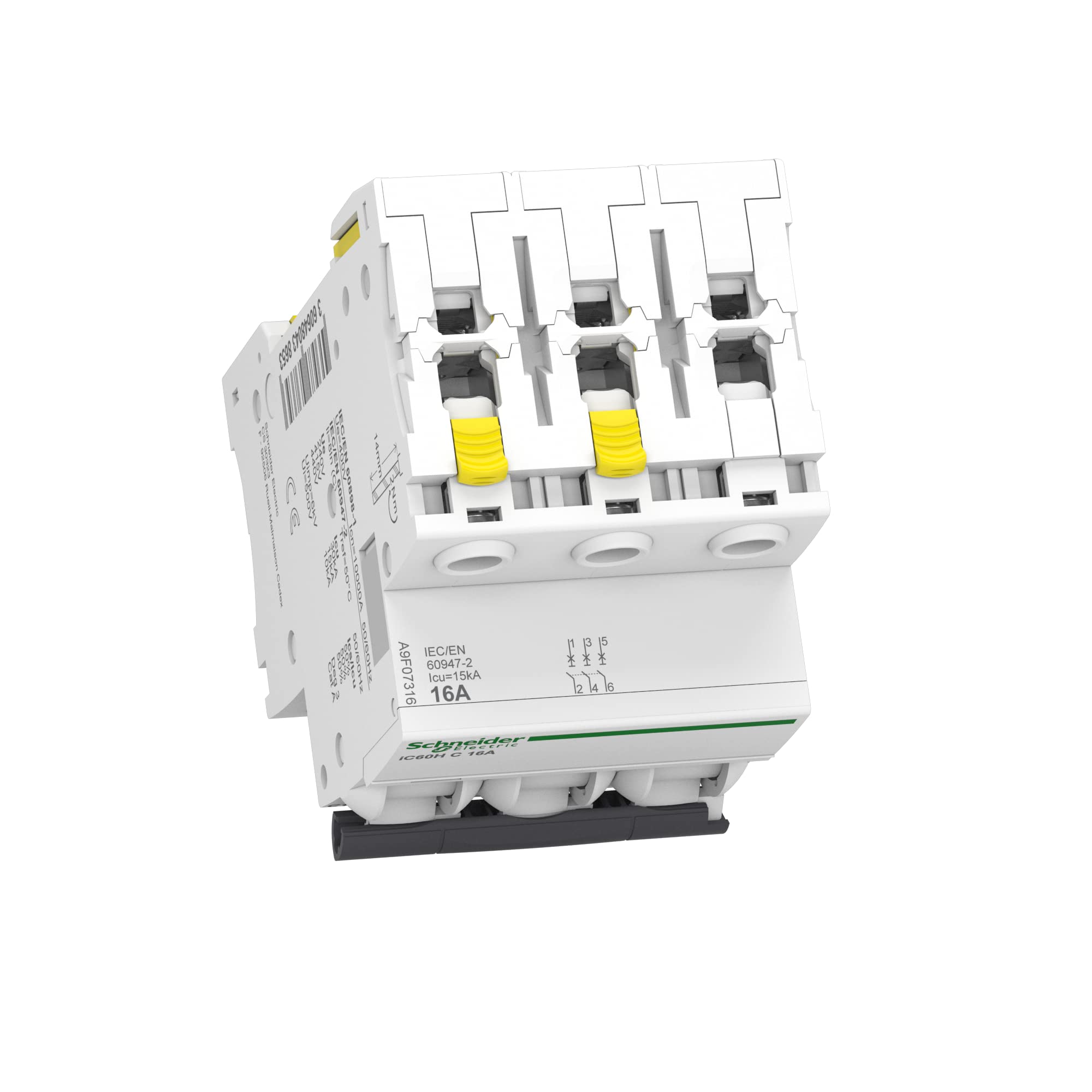

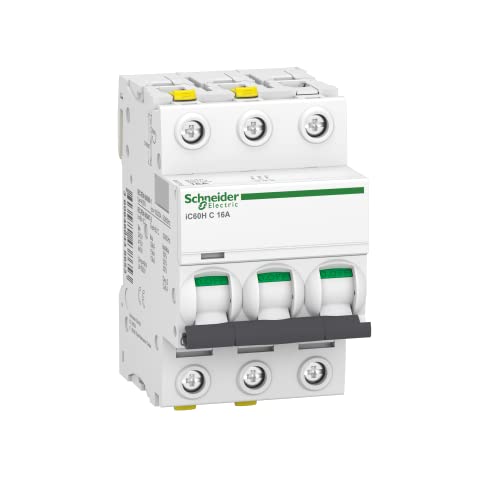

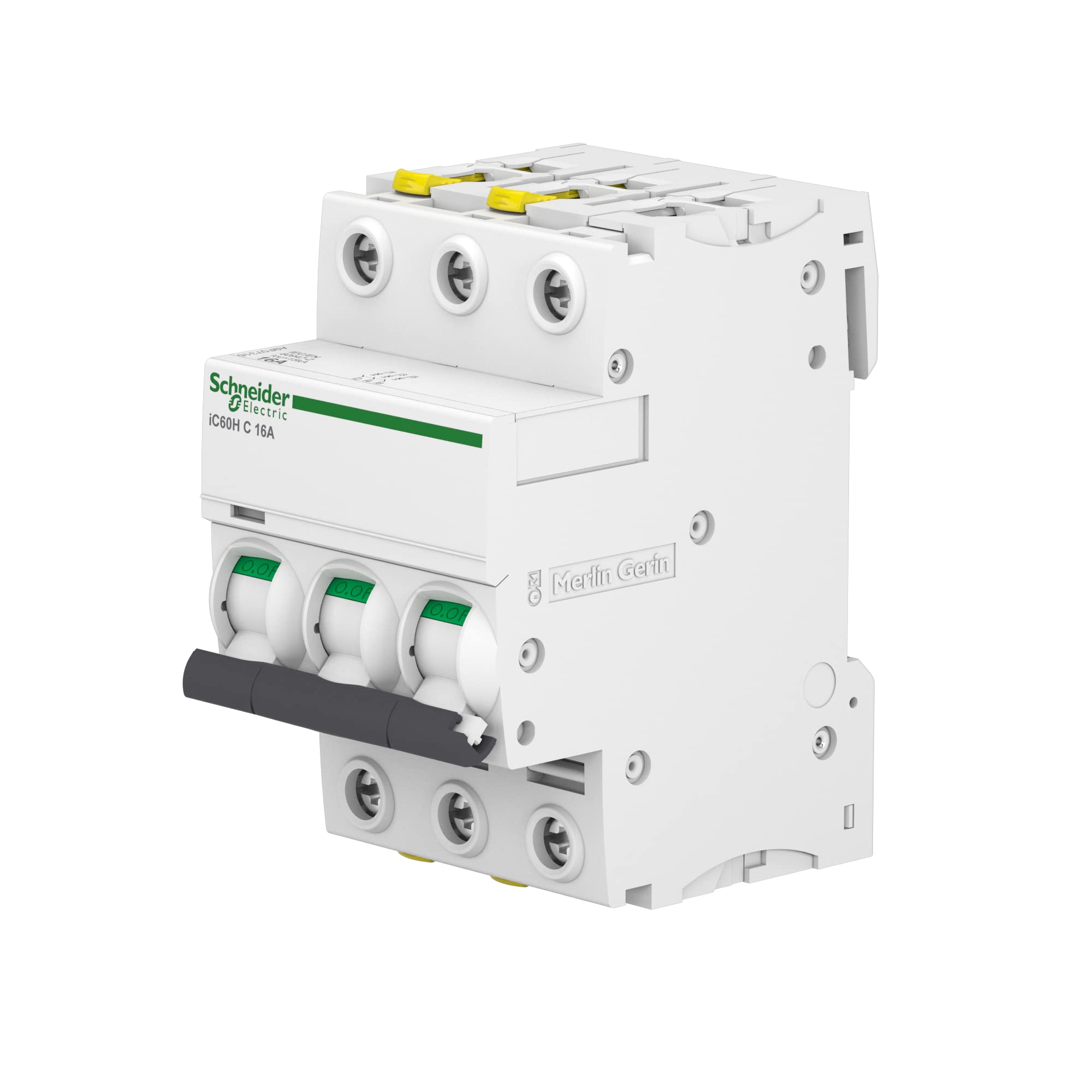

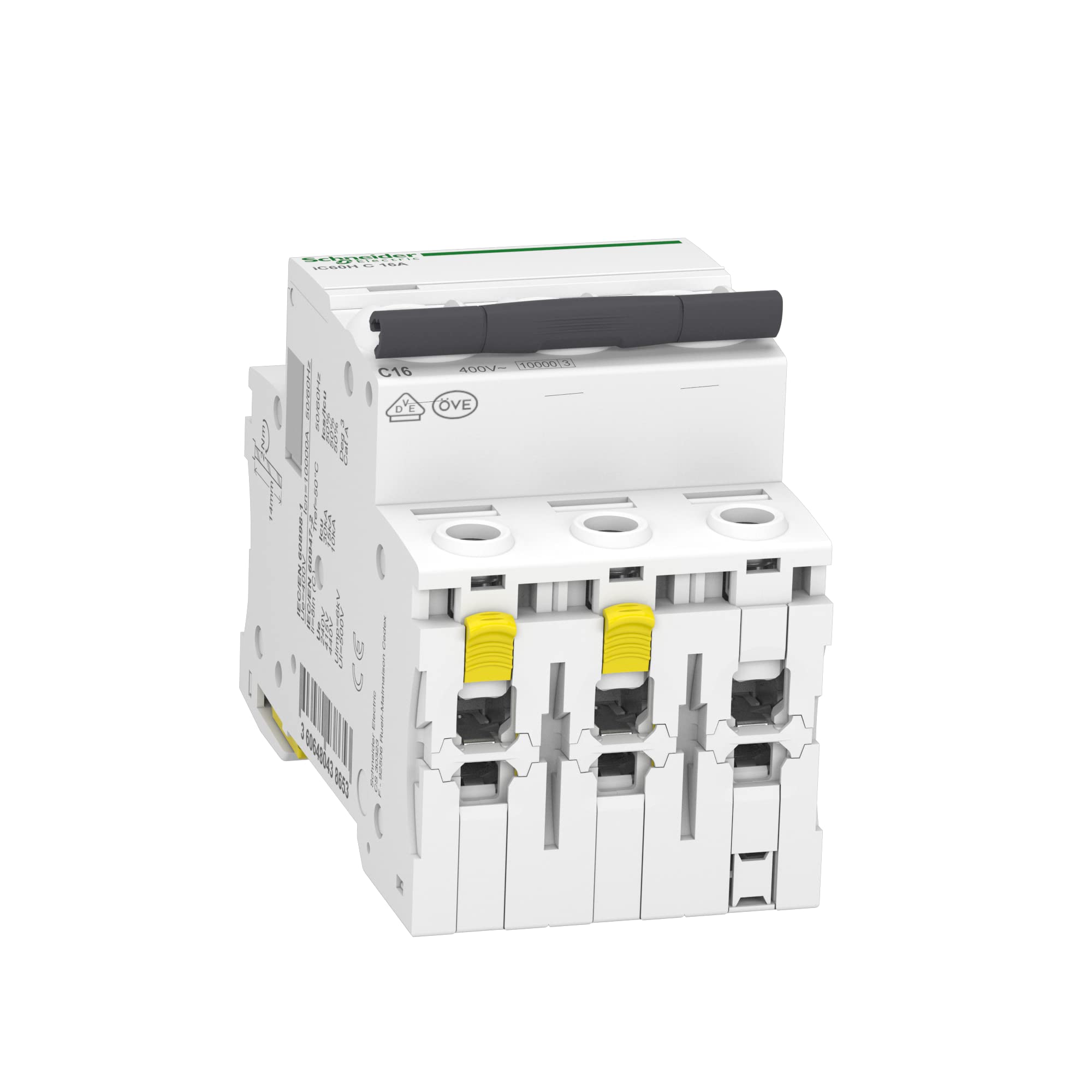

Schneider Electric A9F07316 Circuit Breaker ACTI9 IC60H 3P 16A C

• 1. Enables the protection of electrical wires from overloads and short circuits.
• 2. Has a rated current of 16 amps and is suitable for a voltage of up to 440 volts.
• 3. It is equipped with short circuit detection that allows quick shutdown in the event of a short circuit.
• 4. Features a high breaking capacity of 10 kA to ensure safe shutdown even at high short circuit currents.
• 5. Meets IEC 60898-1 and IEC 60947-2 standards and is therefore approved for use in residential, industrial and commercial buildings.

Circuit breaker Acti 9 iC60H, 10kA (IEC/EN 60898-1), 15kA (IEC/EN 60947-2). 3-pin, rated current 16A, C-characteristic, operating voltage (Ue) 380-415V AC, insulation voltage (Ui) 500V AC. Double terminal for cable and pin comb bar on the top and bottom of the device. Jump circuit for low-wear switching of the contacts. Travelling insulation cover. Actuation of the DIN rail mounting element on the front of the device for tool-free installation and easy access for the user. With mechanical front error message indicator (VisiTrip) to indicate overload or short circuit triggers. Safe contact indicator (VisiSafe) of the circuit breaker, when the indicator is green, the safety of voltage clearance on the outlet side. Trigger unit technology - thermomagnetic Can be combined with the Acti 9 iID series FI circuit breakers, as well as the FI Block Vigi iC60. Additional stackable auxiliary modules (optional)- display of switching position, fault triggering, working current trigger, undervoltage trigger, surge trigger. Colour: RAL 9003. The iC60H circuit breaker meets the following standards - IEC/EN 60898-1 and IEC/EN 60947-2. Furthermore, this series is VDE certified.
