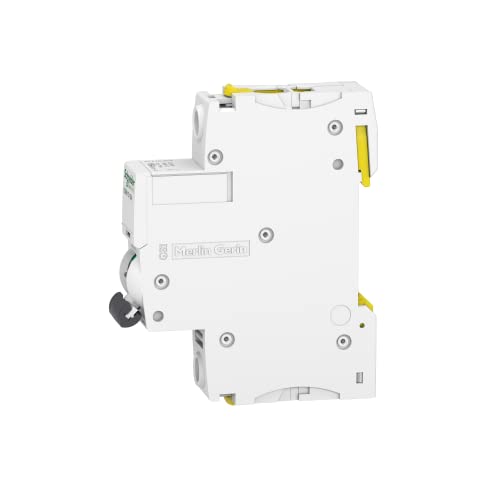

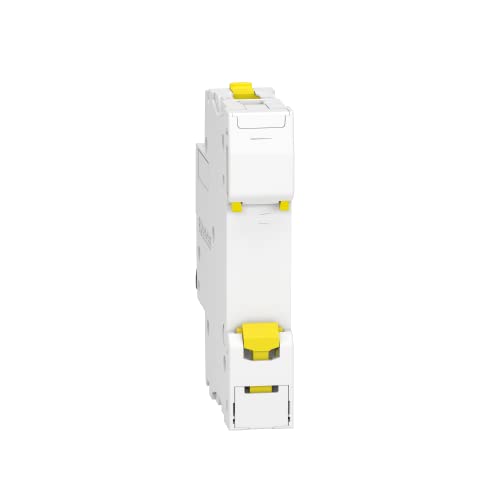

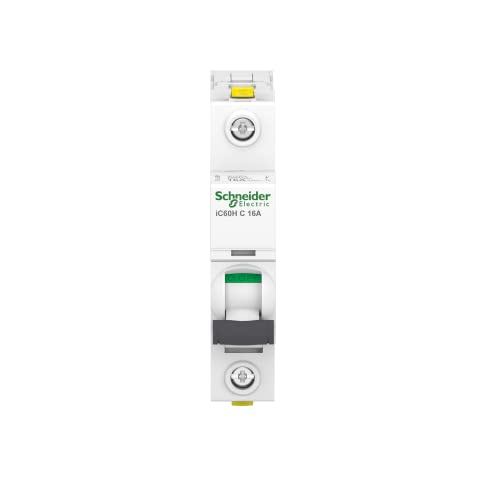

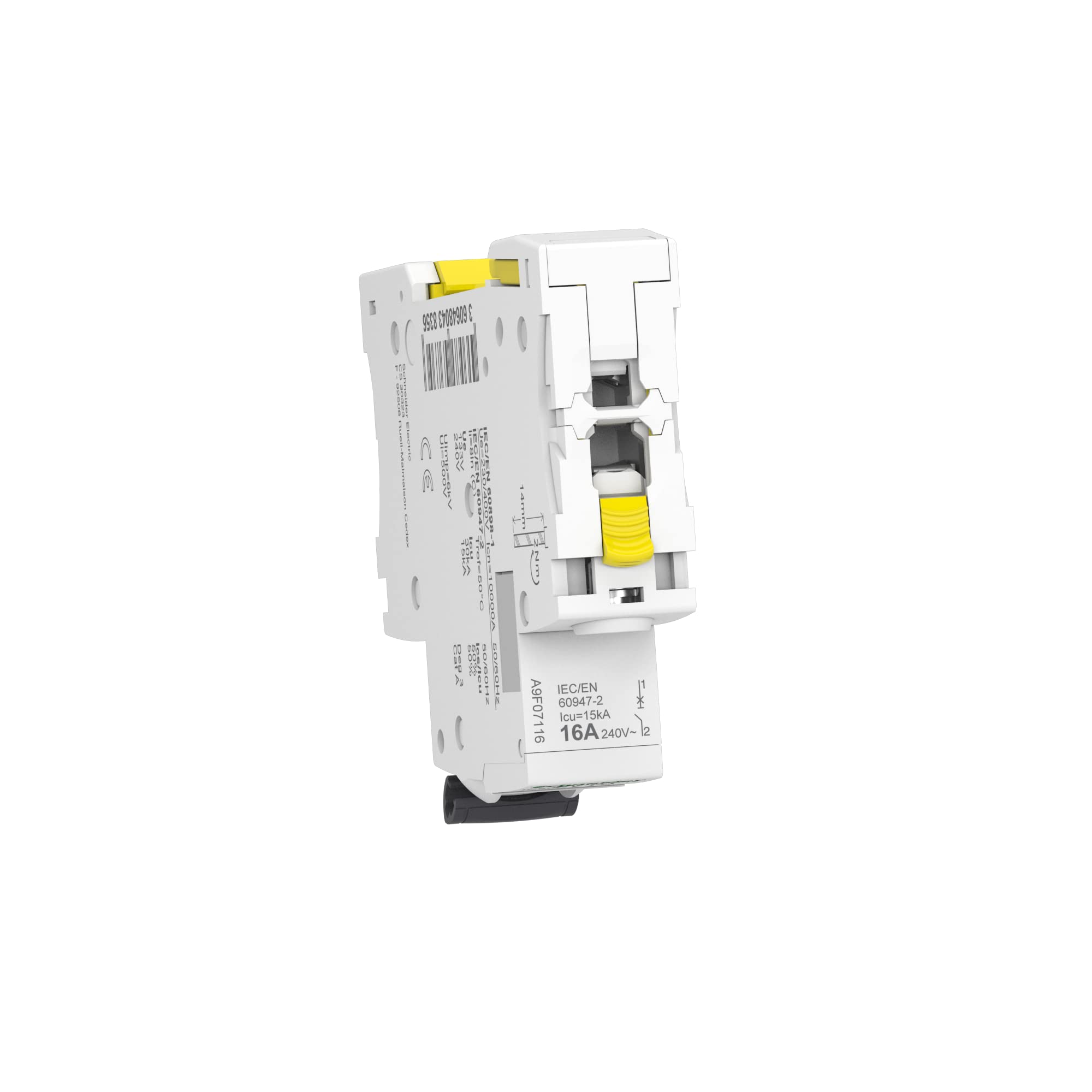

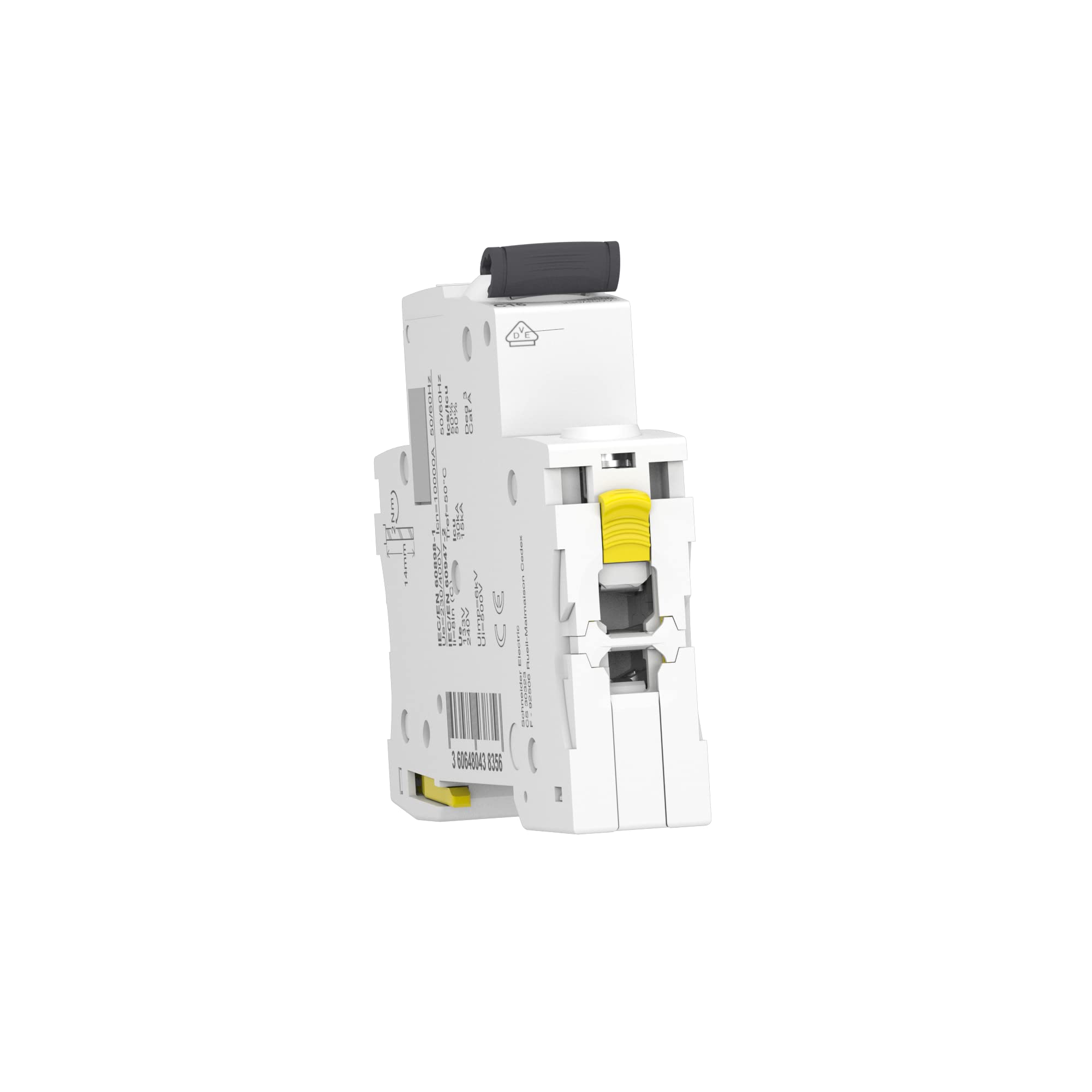

Schneider Electric ACTI9 IC60H 1P 16A C A9F07116 Circuit Breaker 16 Amp C

• Schneider Electric single-pole circuit breaker with a rated current of 16 amps and C characteristic.
• Provides protection against overload and short circuit in single-phase circuits.
• The circuit breaker has a medium cut-off current capability, which is suitable for a variety of applications.
• Suitable for use in residential, commercial and industrial buildings to secure electrical installations and equipment.
• Meets international standards and provides reliable protection for electrical circuits.

Circuit breaker Acti 9 iC60H, 10kA (IEC/EN 60898-1), 15kA (IEC/EN 60947-2). 1-pole, rated current 16A, C-characteristic, operating voltage (Ue) 380-415V AC, insulation voltage (Ui) 500V AC. Double terminal for cable and pin comb bar on the top and bottom of the device. Jump circuit for low-wear switching of the contacts. Travelling insulation cover. Actuation of the DIN rail mounting element on the front of the device for tool-free installation and easy access for the user. With mechanical front error message indicator (VisiTrip) to indicate overload or short circuit triggers. Safe contact indicator (VisiSafe) of the circuit breaker, when the indicator is green, the safety of voltage clearance on the outlet side. Trigger unit technology - thermomagnetic Can be combined with the Acti 9 iID series FI circuit breakers, as well as the FI Block Vigi iC60. Additional stackable auxiliary modules (optional)- display of switching position, fault triggering, working current trigger, undervoltage trigger, surge trigger. Colour: RAL 9003. The iC60H circuit breaker meets the following standards - IEC/EN 60898-1 and IEC/EN 60947-2. Furthermore, this series is VDE certified.
