480061 Schläfer | 40mm Mixer Cartridge, Replacement Cartridge for High Ceramic Mixers with 2 Feet for Kitchen, Bathroom, Shower and Bathtub Mixer Taps, Kerox Model K40-B

• SPARE CARTRIDGE:High ceramic with 2 feet with KEROX ceramic disc distributor - K40 B. Suitable for mixers with high cartridge seat Ø 40 mm. Use : for single-lever mixer taps in the kitchen, bathroom, shower and bathtub.

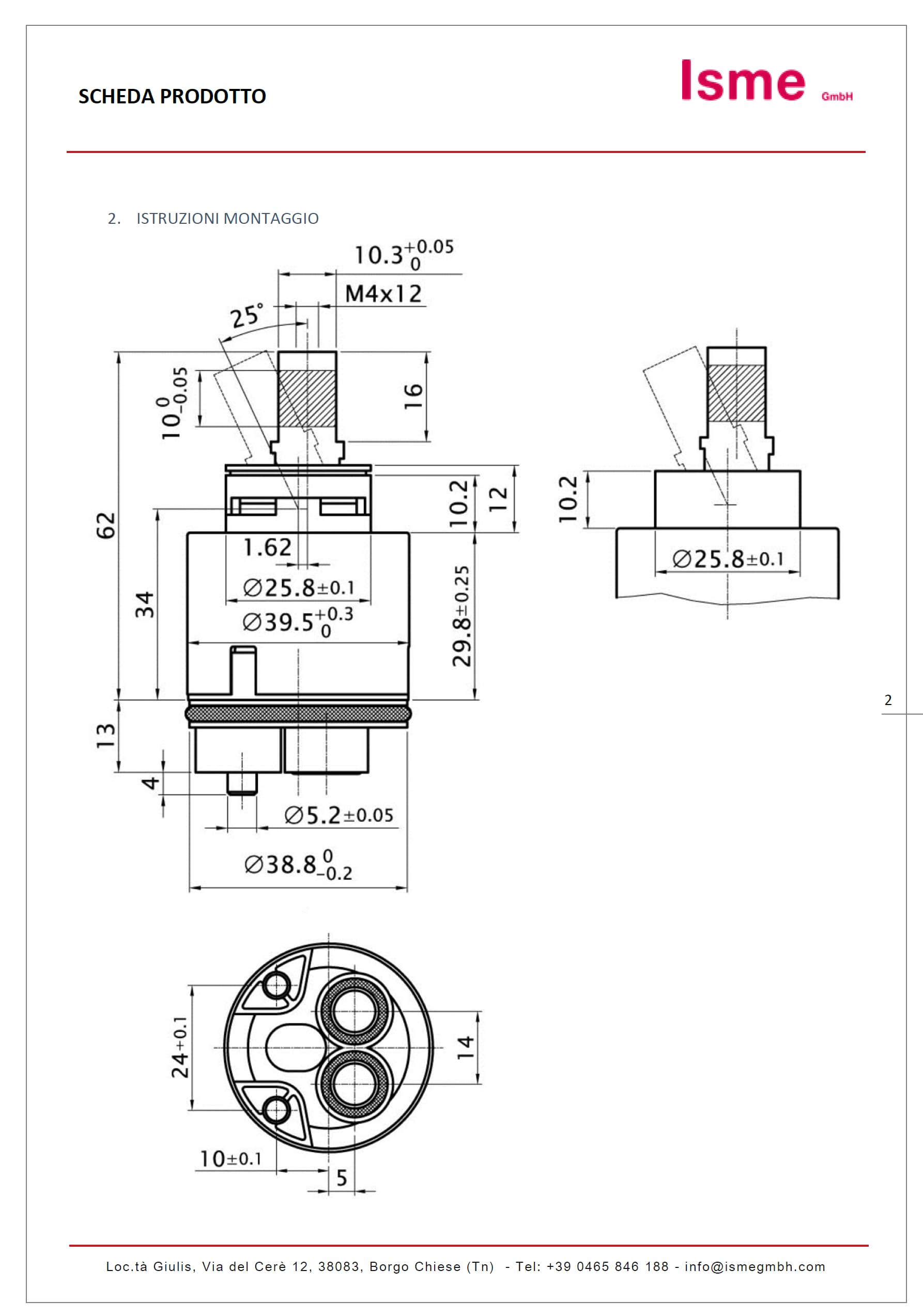

• INSTALLATION: The ceramic cartridge you choose must be compatible with the faucet. Make sure that the cartridge positioning feet fit into the holes in your mixer and finally make sure that you have screwed the cartridge clamp nut tightly, taking care not to exert too much force, risking breaking it. If the problem of water leaks has not been solved, it is necessary to clean the holes in the tap, from limescale and proceed.

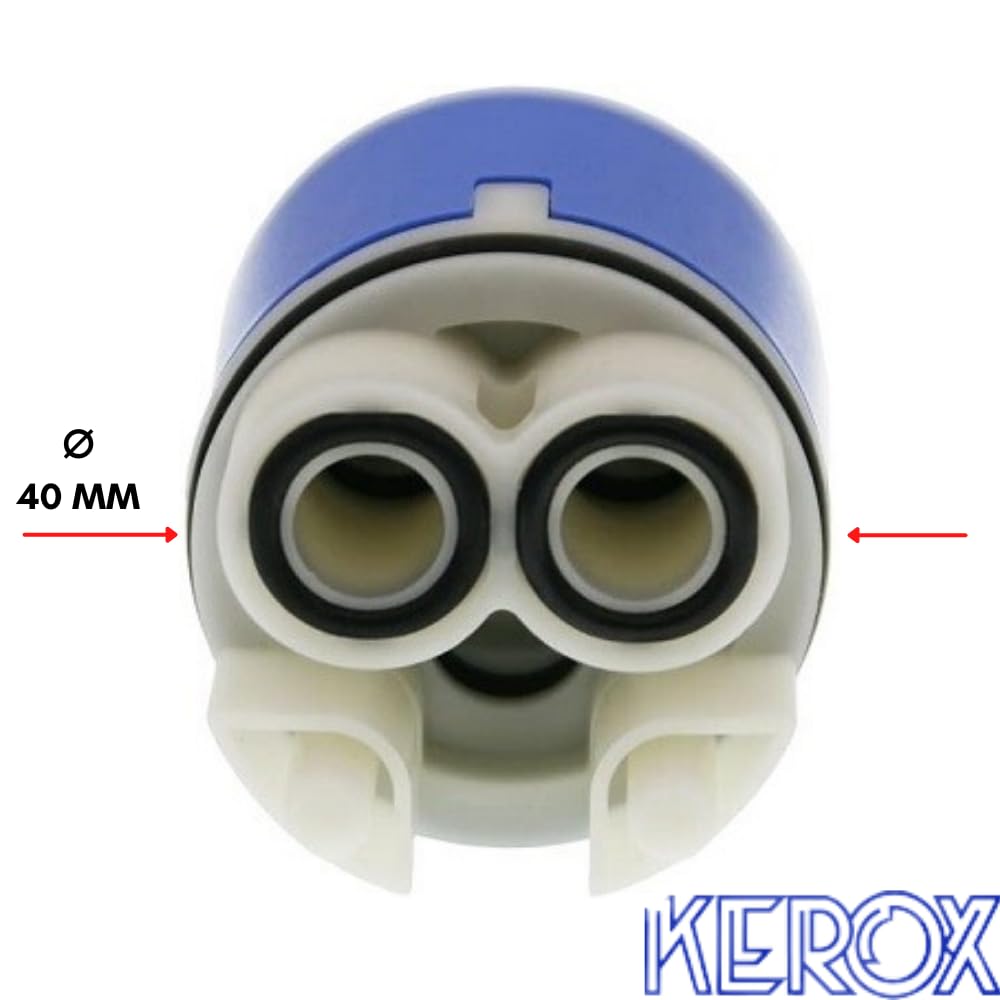

• HOW TO CHOOSE A CERAMIC DISC CARTRIDGE: You need to measure the outside diameter of the ceramic cartridge of your faucet, mixer, single lever to verify that you are buying a compatible cartridge. The diameter of the cartridge with ceramic discs is generally 25 mm - 35 mm and 40 mm. Carefully read the technical data sheets of the chosen product.
• PRODUCT CERTIFICATION: Cartridge for Ceramic Disc Mixers Dimensions: ø 40 mm. Low without lifting base TECHNICAL DATA: Ring nut tightening torque: 12-13 Nm Leak tests under pressure: Air: 6 bar Water: 35 bar FLOW TESTS: at 3 bar in test tap according to EN 817 standards 20.1 l/min with resistance ? C? DURABILITY TESTS: according to EN 817 standards 70 000 cycles - According to ASME A 112.18.1M standards 500 000 cycles.
• 24/7 SUPPORT: We offer an always-on, dedicated customer service that covers all your pre- and post-sales needs, including warranty management. Contact us if you need help.

Schläfer Der HeimwerkerProfi - 480061 | Mixer Cartridge 40mm High INSTALLATION: The ceramic cartridge you choose must be compatible with the faucet. Make sure that the cartridge positioning feet fit into the holes in your mixer and finally make sure that you have screwed the cartridge clamp nut tightly, taking care not to exert too much force, risking breaking it. If the problem of water leaks has not been solved, it is necessary to clean the holes provided for the tap, from limescale and proceed with the installation HOW TO CHOOSE A CERAMIC DISC CARTRIDGE: You must measure the external diameter of the ceramic cartridge of your tap, mixer, single lever to verify that you are buying a compatible cartridge. The diameter of the cartridge with ceramic discs is generally 25 mm – 35 mm and 40 mm. Carefully read the technical data sheets of the chosen product. PRODUCT FEATURES Type: Ceramic cartridge for mixer Material: Plastic Model: High with distributor and lift base Outer Diameter: 40 mm Total Height: 75 mm Feet : 2 Maximum temperature: 90° C IN THE BOX x1 Mixer Cartridge Give the right space to the news! Discover all Schläfer Der HeimwerkerProfi offers on brand new products, many bargains await you!
