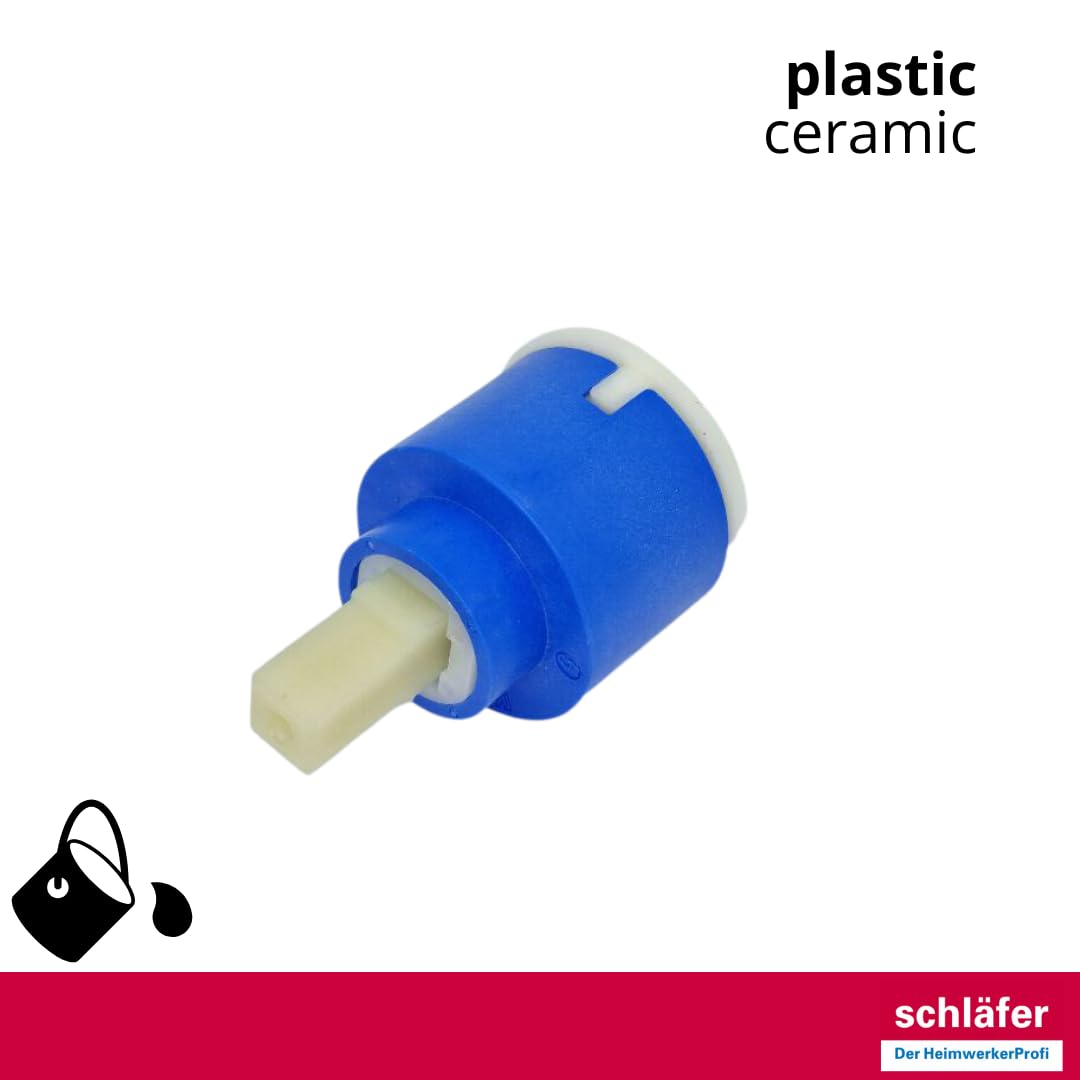

Schläfer 480070 | K-42mm Single Lever Conventional Type Ceramic Kerox Universal Mixing Replacement Cartridge with Single Foot

• REPLACEMENT CARTRIDGE Low ceramic with 1 foot without KEROX - K42 ceramic disc distributor. Suitable for mixers with Ø 42 mm cartridge seat. Use : for single-lever mixer taps in the kitchen, bathroom, shower and bathtub
• INSTALLATION : The ceramic cartridge you choose must be compatible with the tap. Make sure that the cartridge positioning feet fit into the holes in your mixer and finally make sure that you have screwed the cartridge clamp nut tightly, taking care not to exert too much force, risking breaking it.

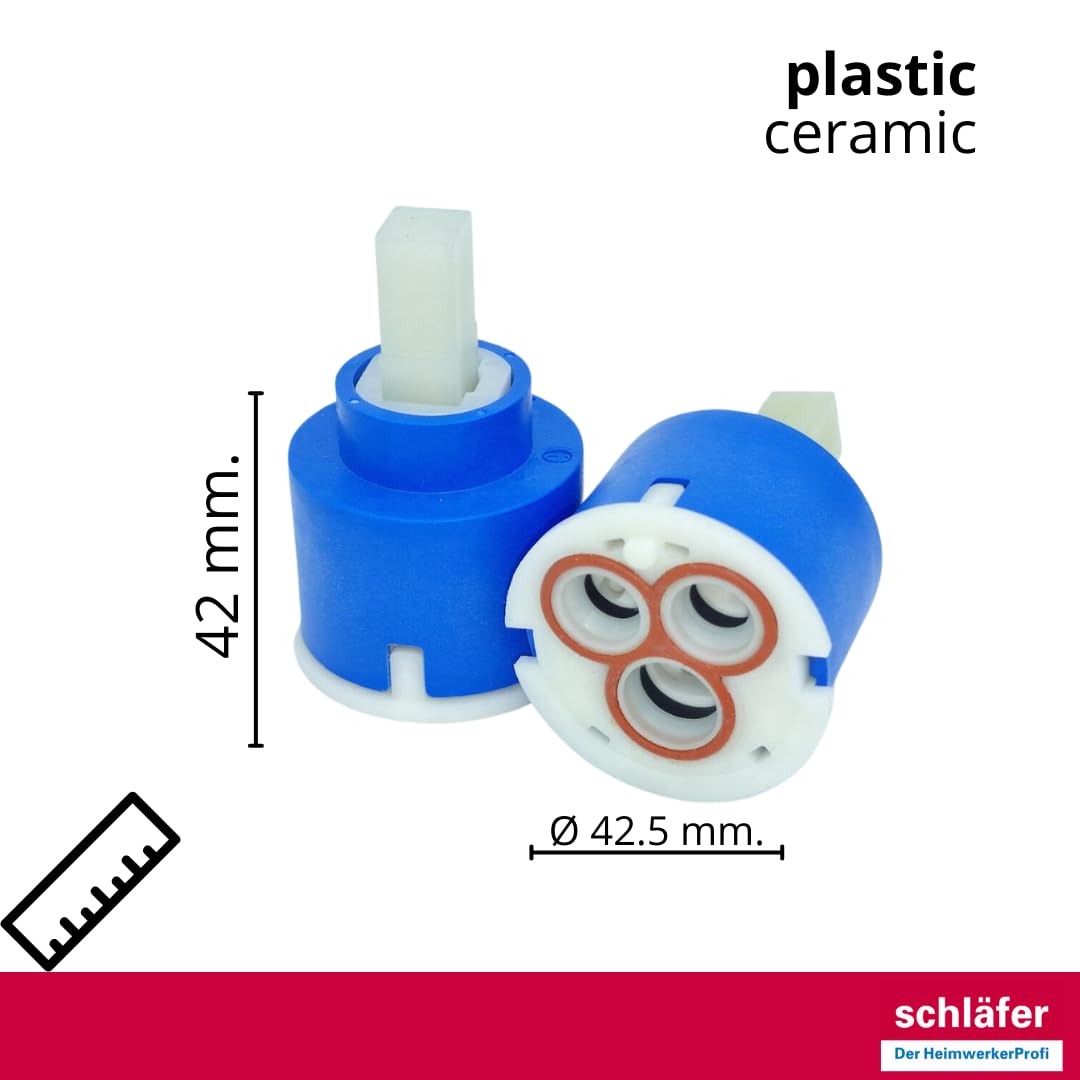

• HOW TO CHOOSE A CERAMIC DISC CARTRIDGE: You need to measure the outside diameter of the ceramic cartridge of your faucet, mixer, single lever to verify that you are buying a compatible cartridge. The diameter of the cartridge with ceramic discs is generally 25/28 mm - 35 mm and 40 mm. Carefully read the technical data sheets of the chosen product.

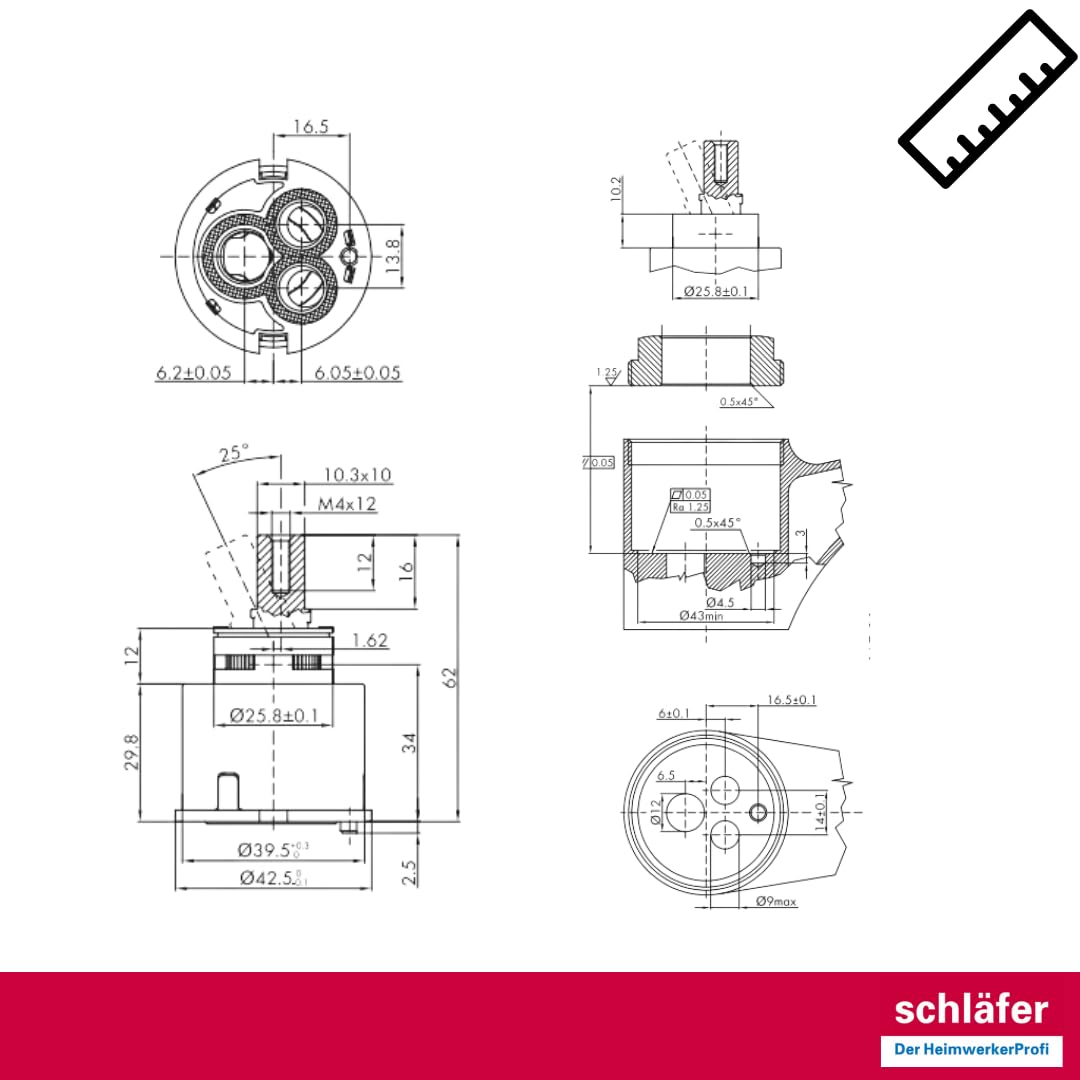

• PRODUCT CERTIFICATION Cartridge for Ceramic Disc Mixers Dimensions: ø 42 mm. Low without lifting base TECHNICAL DATA: Ring nut tightening torque: 12-13 Nm Leak tests under pressure: Air: 6 bar Water: 35 bar FLOW TESTS: at 3 bar in test tap according to EN 817 standards 20.1 l/min with resistance "C" DURABILITY TESTS: according to EN 817 standards 70 000 cycles - According to ASME standards A 112.18.1M 500 000 cycles
• REPLACEMENT MIXER CARTRIDGE Low Ceramic with 1 foot without ceramic disc distributor K42 "Kerox" Suitable for mixers with low cartridge seat Ø 42 mm - Universal, compatible for Franke, Paffoni, Nobili, Frattini, Paini taps. Package : 1pc

Schläfer 480070 | K-42mm Single Lever Conventional Type Ceramic Kerox Universal Mixing Replacement Cartridge with Single Foot Can't find your Replacement Cartridge? We offer you the solution... Replacement Ceramic Disc Cartridge for Taps, Mixers, Bathroom, Kitchen and Laundry, Washbasin and Sink. Universal replacement cartridge with low ceramic discs, model K-42 Kerox. This cartridge is suitable for single-lever mixer tap of the washbasin, bidet, shower, bathtub and kitchen sink diameter 42 mm. This product is compatible with most taps on the market. Product tested and certified according to EEC standards. INSTALLATION: The ceramic cartridge you choose must be compatible with the faucet. Make sure that the cartridge positioning feet fit into the holes in your mixer and finally make sure that you have screwed the cartridge clamp nut tightly, taking care not to exert too much force, risking breaking it. If the problem of water leaks has not been solved, it is necessary to clean the holes in the faucet, from limescale and proceed with the installation HOW TO CHOOSE A CERAMIC DISC CARTRIDGE: You need to measure the outside diameter of the ceramic cartridge of your faucet, mixer, single lever to verify that you are buying a compatible cartridge.The diameter of the cartridge with ceramic discs is generally 25/28 mm - 35 mm and 40/42 mm. Carefully read the technical data sheets of the chosen product. PRODUCT FEATURES Type : Ceramic cartridge for mixer Material : Plastic Low: Without Rise Base PRODUCT SPECIFICATIONS Outer Diameter : 42 mm Total Height: 42 mm Feet : 1 TECHNICAL DATA OF CERAMICS Material : AL2O3 Surface roughness Ra: 0.1 μm Surface contact area : 50-80% PRESSURE LE
