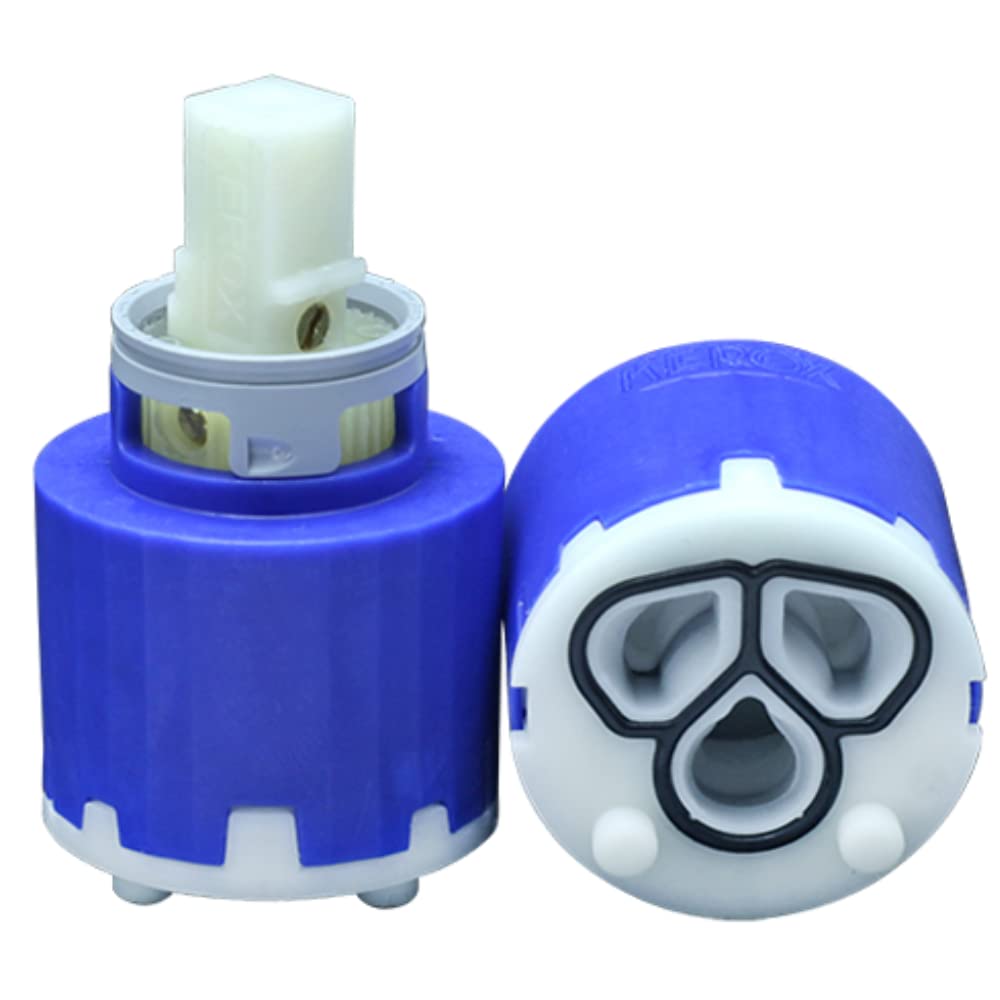

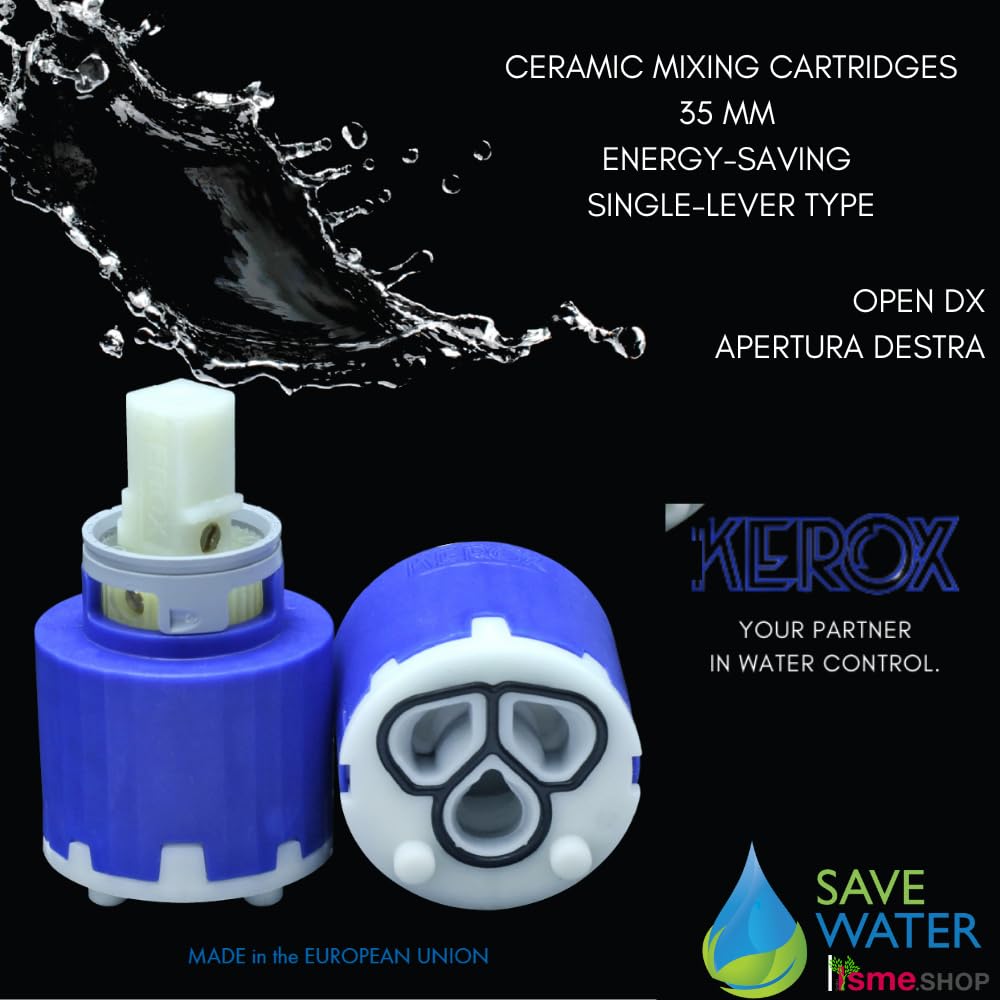

Schläfer 480050 | Ceramic Replacement Cartridge for Single Lever Mixer 35 mm, Water Saving Tap Cartridge, Low with 2 feet, Progressive Opening with Hot Water Block.

• MIXER REPLACEMENT CARTRIDGE: Universal replacement cartridge for single-lever mixers with hot water lock and quantity limitation. Adjustable Limiter Ring - The hot water limiting ring is preset from the factory in the neutral position (middle position). This way your kitchen faucet will turn on cold water directly.

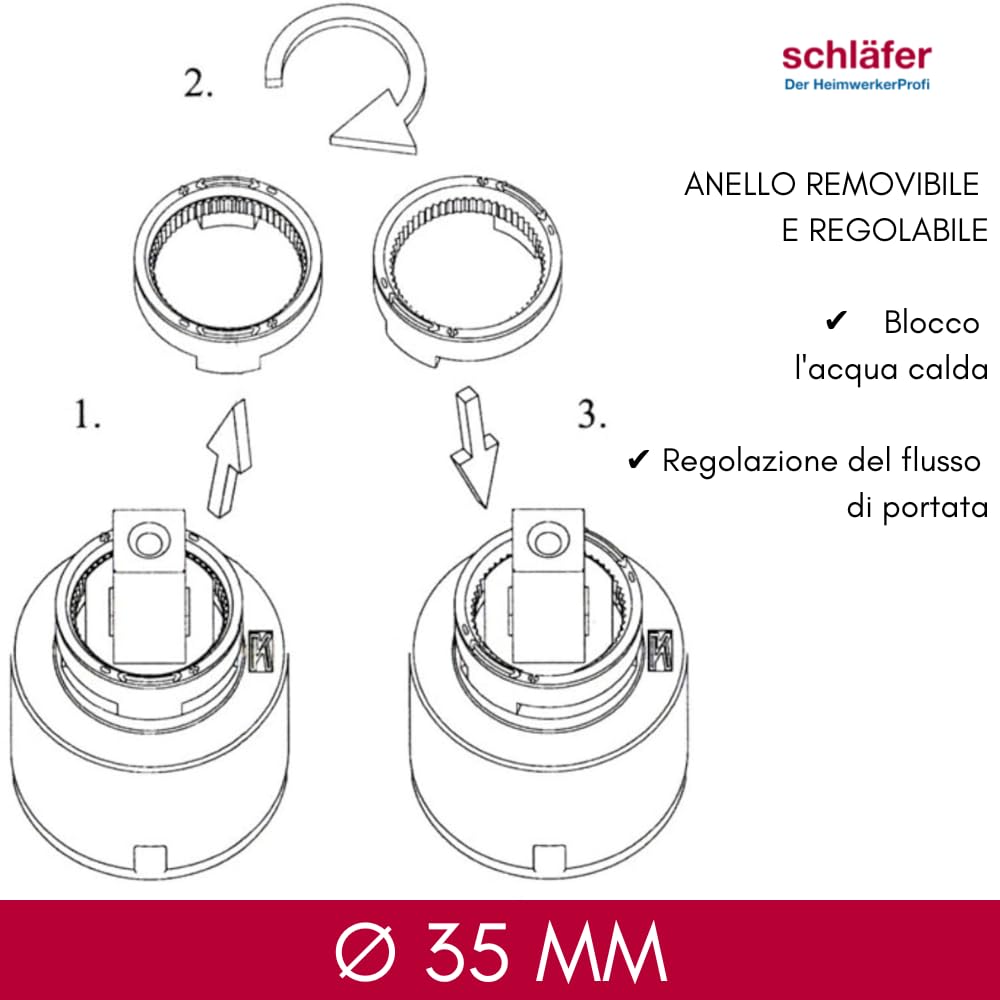

• WATER SAVING : The replacement cartridge ring for sink and basin mixer is adjustable and saves hot water. The ring is easily removable and adjustable to suit your needs Water flow adjustment, The maximum amount of water output can be reduced or increased through the quantity limiting screw in the cartridge lever.
• INSTALLATION : The ceramic cartridge you choose must be compatible with the tap. Make sure that the cartridge positioning feet fit into the holes in your mixer and finally make sure that you have screwed the cartridge clamp nut tightly, taking care not to exert too much force, risking breaking it. If the problem of water leaks has not been solved, it is necessary to clean the holes in the tap from limescale.

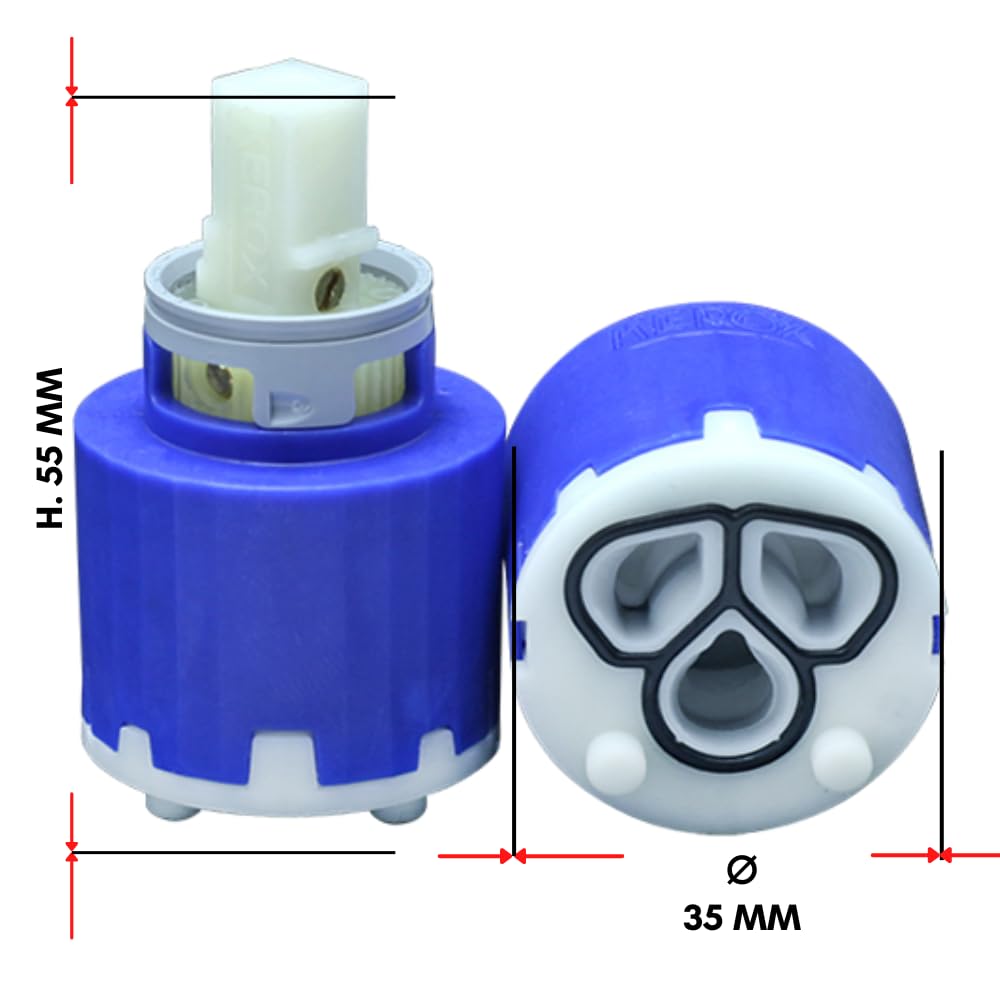

• HOW TO CHOOSE A CERAMIC DISC CARTRIDGE: You need to measure the outer diameter of the ceramic cartridge of your Bathroom or Kitchen single-lever mixer tap to verify that you are purchasing a compatible cartridge. The diameter of the cartridge with ceramic discs is generally 25 mm - 35 mm and 40 mm. Carefully read the technical data sheets of the chosen product.
• PRODUCT CERTIFICATION Cartridge for Ceramic Disc Mixers Taps Dimensions: Ø40 mm low without lifting base TECHNICAL DATA: Ring nut tightening torque: 12-13 Nm Leak tests under pressure: Air: 6 bar Water: 35 bar FLOW TESTS: at 3 bar in test tap according to EN 817 standards 20.1 l/min with resistance "C" DURABILITY TESTS: according to EN 817 standards 70 000 cycles.

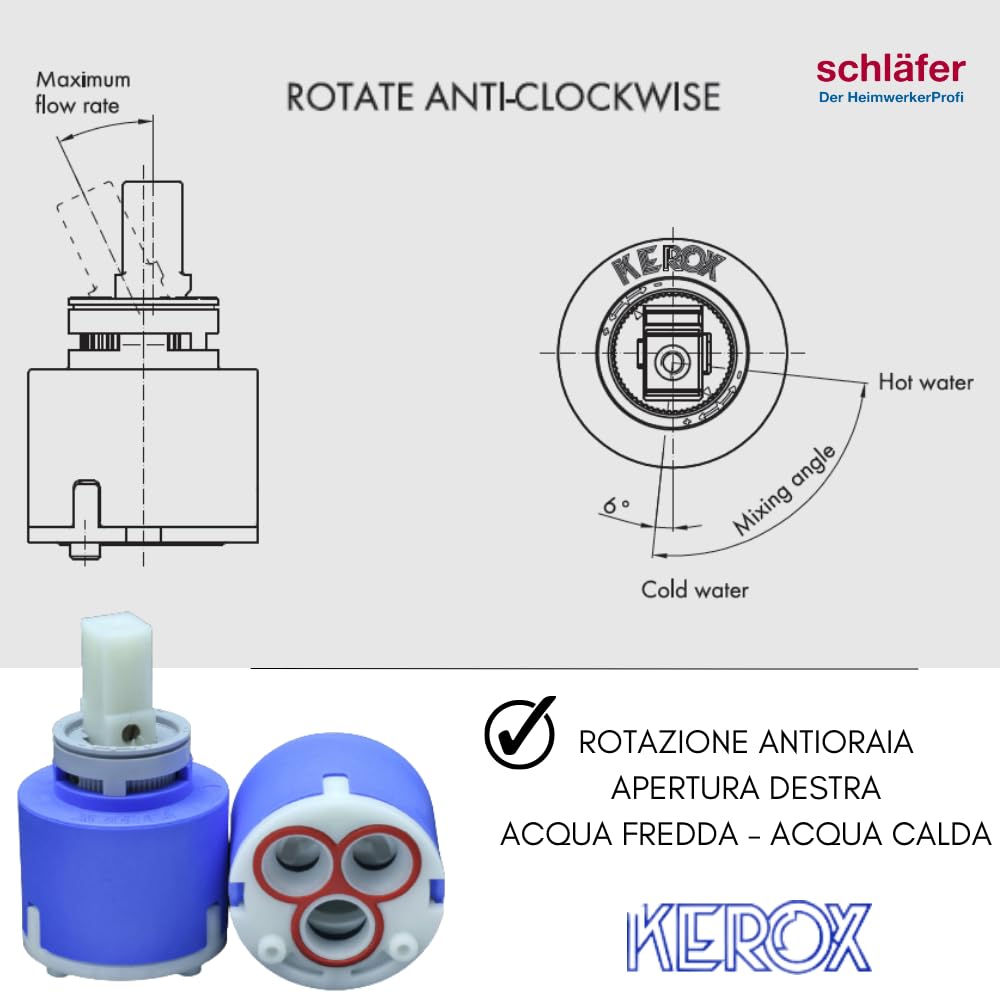

Schläfer Der HeimwerkerProfi – 480050 | Ceramic Replacement Cartridge for Single Lever Mixer 35 mm, Water Saving Tap Cartridge, Low with 2 Feet, Progressive Opening INSTALLATION: The ceramic cartridge you choose must be compatible with the faucet. Make sure that the cartridge positioning feet fit into the holes in your mixer and finally make sure that you have screwed the cartridge clamp nut tightly, taking care not to exert too much force, risking breaking it. If the problem of water leaks has not been solved, it is necessary to clean the holes in the faucet, from limescale and proceed with the installationHOW TO CHOOSE A CERAMIC DISC CARTRIDGE: You need to measure the outside diameter of the ceramic cartridge of your faucet, mixer, single lever to verify that you are buying a compatible cartridge. The diameter of the cartridge with ceramic discs is generally 25 mm – 35 mm and 40 mm. Carefully read the technical data sheets of the chosen product. PRODUCT FEATURES Cartridge for Ceramic Disc Mixers Water Saving Model: NKJ-35A Dimensions: ø 35 mm. Opening RH (Right) Counterclockwise Cold Water – Hot Water Low without rise base Material: AL2O3 Maximum temperature: 90°C IN THE BOX x1 35 mm mixer cartridge. Give the right space to the news! Discover all Schläfer Der HeimwerkerProfi offers on brand new products, many bargains await you!
