Schläfer 48004 | Replacement Ceramic Mixer Tap Cartridge 35mm for K35-A Kerox Low Single Lever Mixer with 2 Feet, Shower, Washbasin, Bidet, Bathtub, Kitchen, Bathroom 3 Pcs.

• SPARE CARTRIDGE: Low ceramic with 2 feet without KEROX - K35 A ceramic disc distributor. Suitable for mixers with low cartridge seat Ø 35 mm. Use : for single-lever mixer taps in the kitchen, bathroom, shower and bathtub.
• INSTALLATION : The ceramic cartridge you choose must be compatible with the tap. Make sure that the cartridge positioning feet fit into the holes in your mixer and finally make sure that you have screwed the cartridge clamp nut tightly, taking care not to exert too much force, risking breaking it. If the problem of water leaks has not been solved, you need to clean the holes provided for the tap.

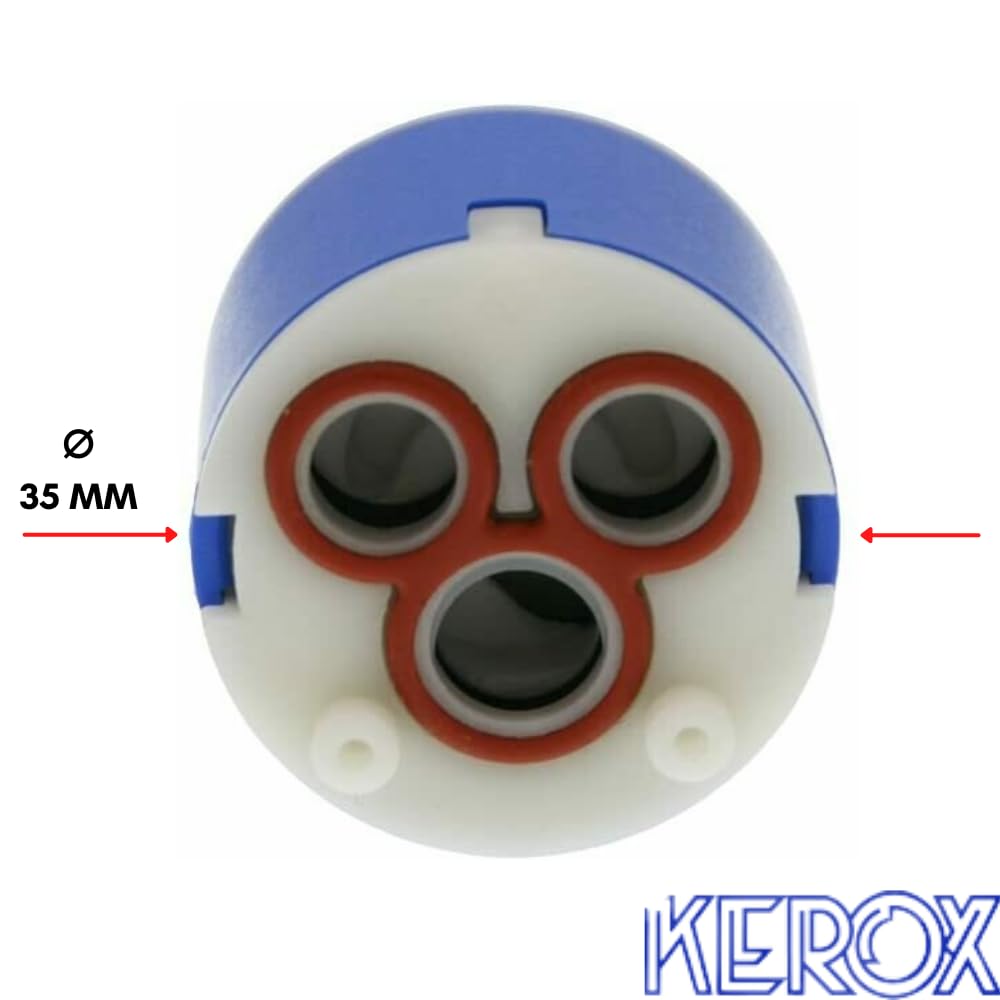

• HOW TO CHOOSE A CERAMIC DISC CARTRIDGE: You need to measure the outside diameter of the ceramic cartridge of your faucet, mixer, single lever to verify that you are buying a compatible cartridge. The diameter of the cartridge with ceramic discs is generally 25 mm - 35 mm and 40 mm. Carefully read the technical data sheets of the chosen product.
• PRODUCT CERTIFICATION: Cartridge for Ceramic Disc Mixers Dimensions: ø 40 mm. Low without lifting base TECHNICAL DATA: Ring nut tightening torque: 12-13 Nm Leak tests under pressure: Air: 6 bar Water: 35 bar FLOW TESTS: at 3 bar in test tap according to EN 817 standards 20.1 l/min with resistance "C" DURABILITY TESTS: according to EN 817 standards 70 000 cycles - According to ASME standards A 112.18.1M 500 000 cycles
• 24/7 SUPPORT: We offer an always-on, dedicated customer service that covers all your pre- and post-sales needs, including warranty management. Contact us if you need help.

Schläfer Der HeimwerkerProfi – 48004 | 35mm Mixer Tap Cartridge of 3 Pcs. INSTALLATION: The ceramic cartridge you choose must be compatible with the faucet. Make sure that the cartridge positioning feet fit into the holes in your mixer and finally make sure that you have screwed the cartridge clamp nut tightly, taking care not to exert too much force, risking breaking it. If the problem of water leaks has not been solved, it is necessary to clean the holes in the faucet, from limescale and proceed with the installationHOW TO CHOOSE A CERAMIC DISC CARTRIDGE: You need to measure the outside diameter of the ceramic cartridge of your faucet, mixer, single lever to verify that you are buying a compatible cartridge. The diameter of the cartridge with ceramic discs is generally 25 mm – 35 mm and 40 mm. Carefully read the technical data sheets of the chosen product. PRODUCT FEATURES Type: Ceramic cartridge for mixer Material: Plastic Low: Without Rise Base Outer Diameter : 35 mm Total Height: 58.6 mm Feet: 2 Material: AL2O3 Surface roughness Ra: 0.1 μm IN THE BOX x3 35 mm Mixer Cartridge. Give the right space to the news! Discover all Schläfer Der HeimwerkerProfi offers on brand new products, many bargains await you!
