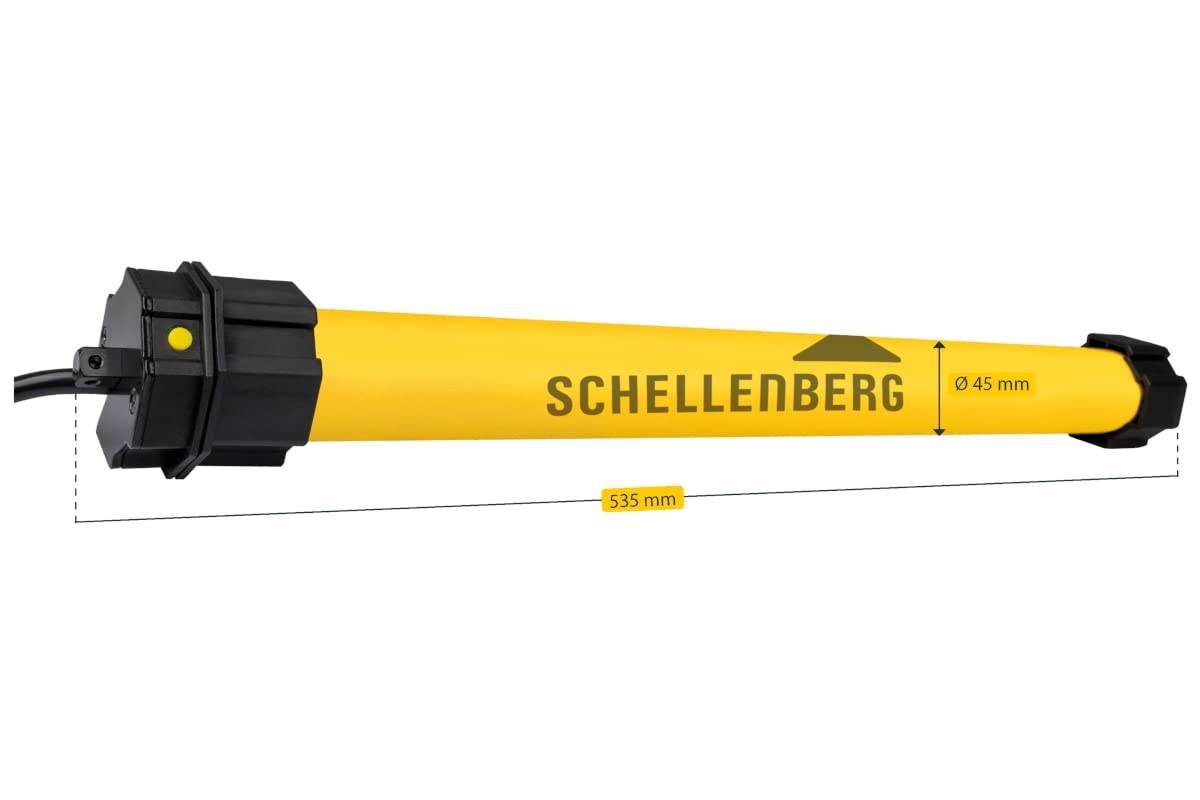

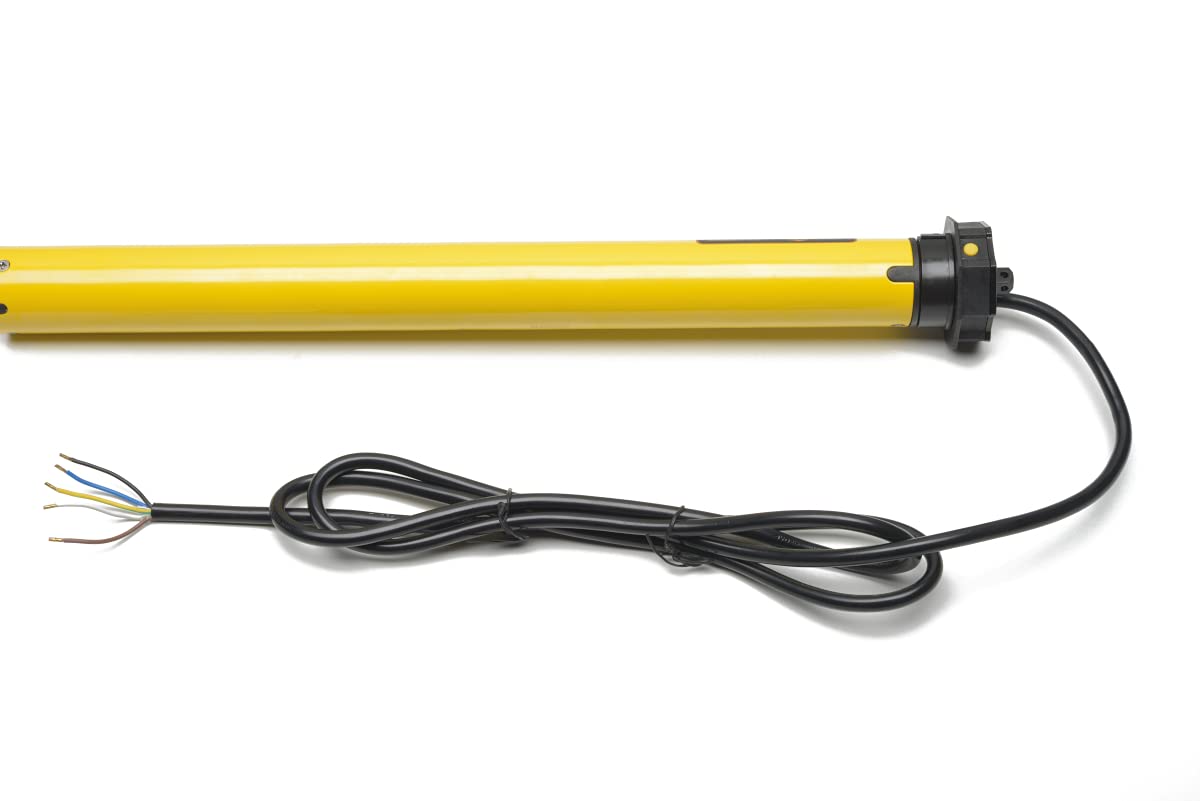

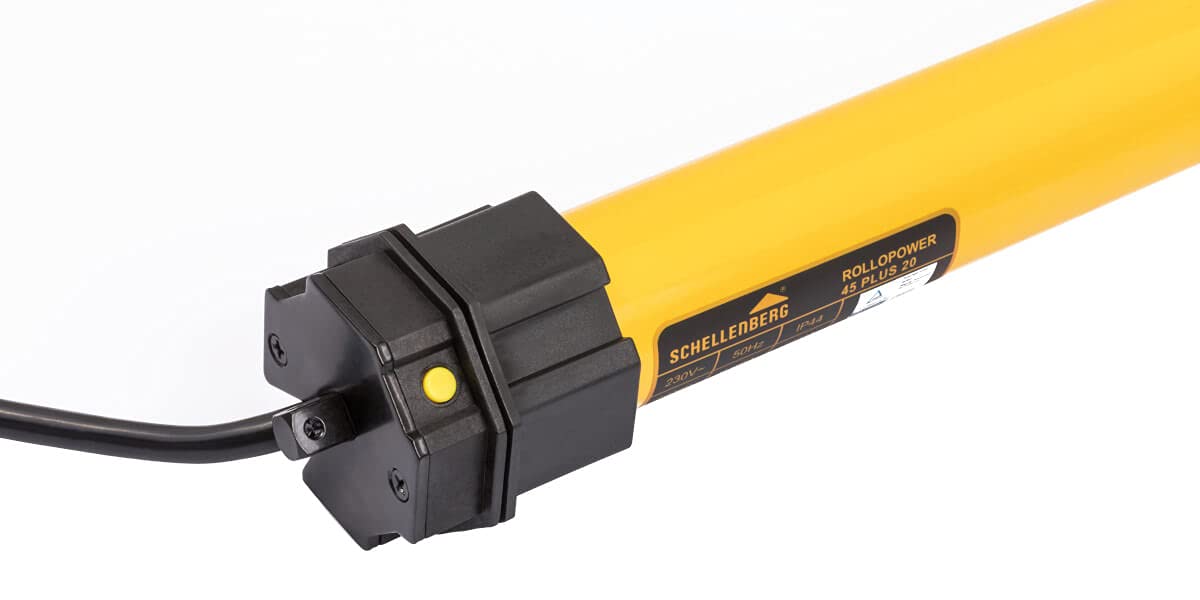

Schellenberg Maxi Standard 20720 Tubular Motor 20 Nm

• For heavy shutters, maximum 8.5 metre2 plastic

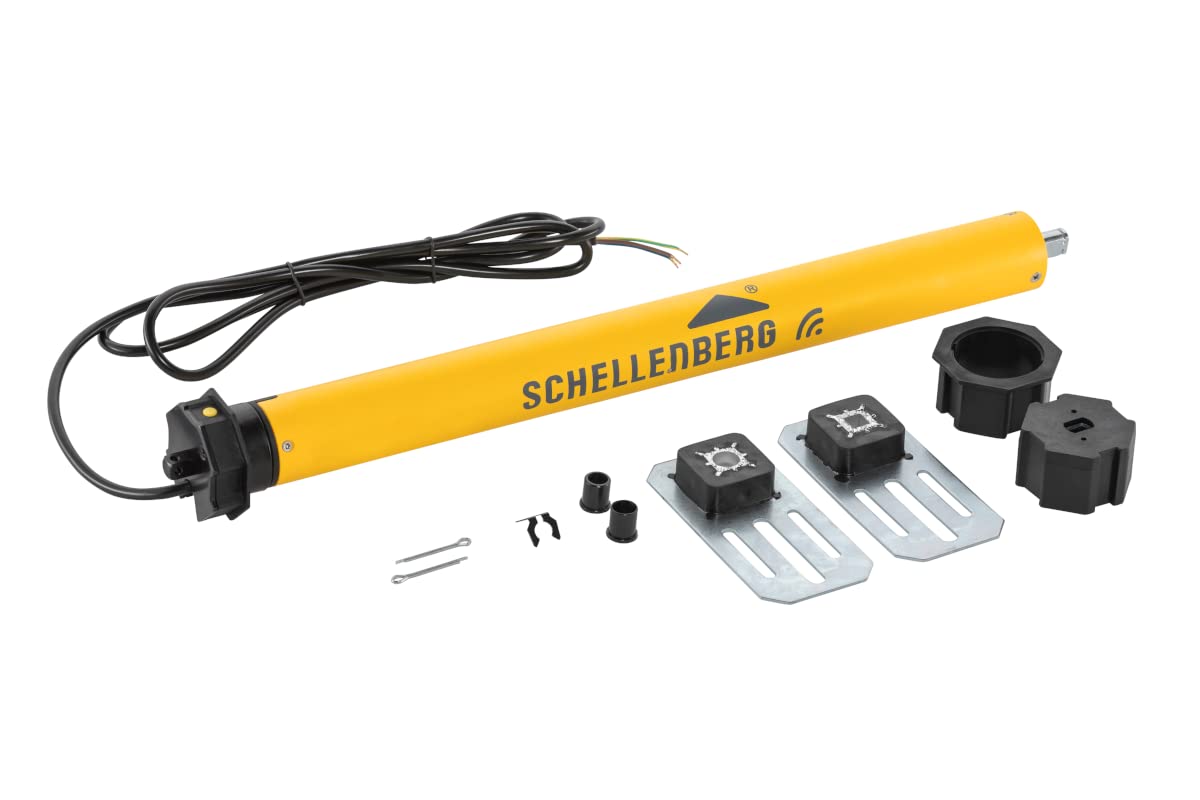

• Ready to mount with adapter and COMFORT bearing wall, height adjustable

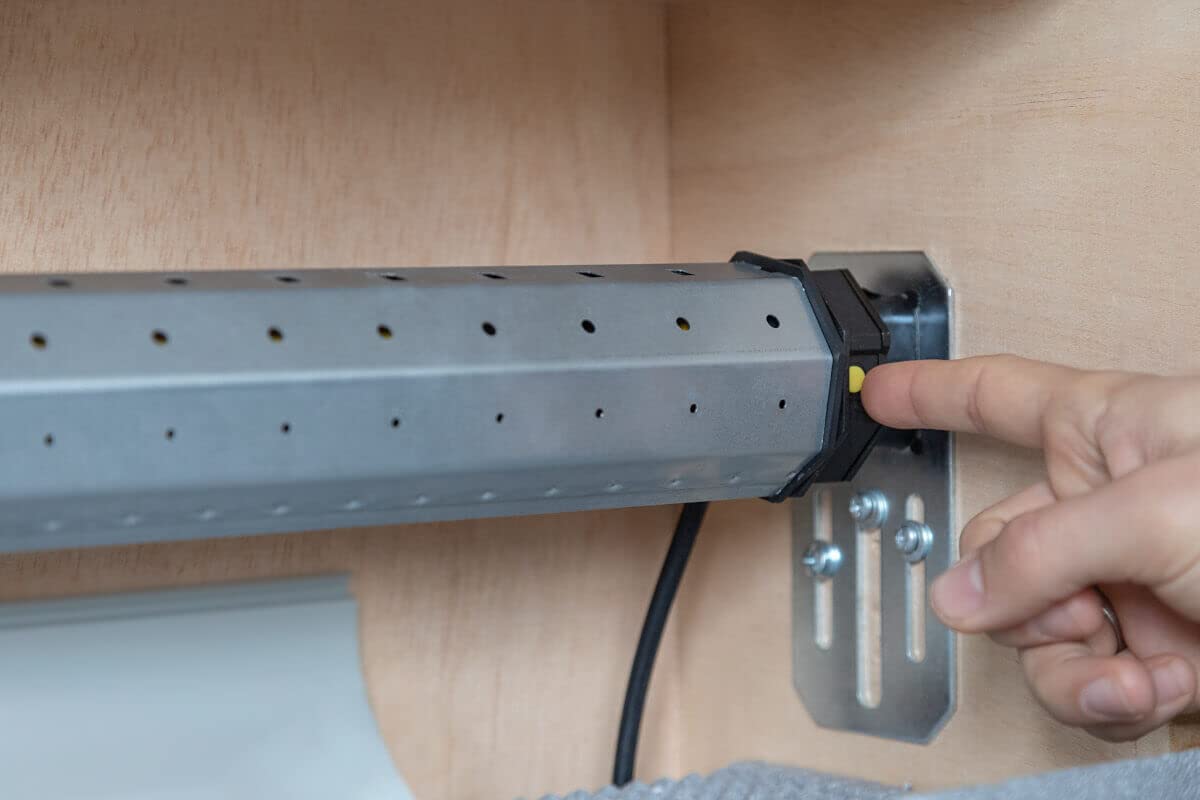

• electronic point adjustment by pressing a button
• Data retention in case of power failure

Schellenberg roller shutter motor Plus Maxi 20Nm The Schellenberg Plus roller shutter motor is mounted directly in the roller shutter shaft and is thus the most effective engine least subject to wear. Roller shutter motors are always the right choice when shutters controlled from multiple locations or more shutters to be operated simultaneously (multiple/group control). The roller shutter motor is ready for assembly supplied with adapter and wall bracket. The end point is set electronically by pressing a button. The tubular motor has a maximum Tensile force of 34 kg. Article summary: For light to extra heavy shutters Ready for mounting with adapter and wall height adjustable comfort stock Stored in hard rubber engine mounting, thereby noise Adapter with a large contact surface for optimum power transfer Electronic endpoint setting Operation via a button, no tools required Tubular motors for 60 mm octagonal shafts Electronic control, the end positions remain stored on power failure Specifications: maximum Plastic roller shutter area: 8.5 m.² Maximum traction.: 34 kg Torque: 20 Nm End Point Adjustment: Electronically, by pressing a button
