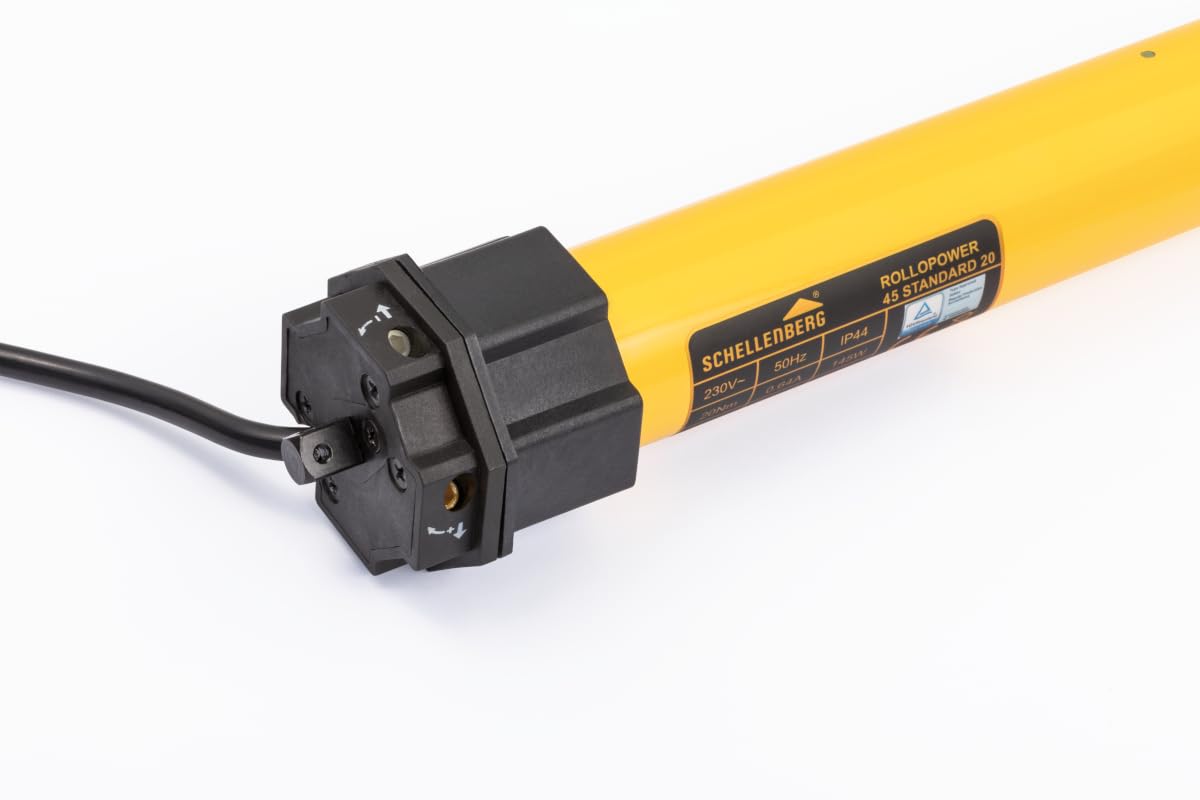

Schellenberg Maxi Standard 20620 Tubular Motor 20 Nm

• For light to extra heavy shutters

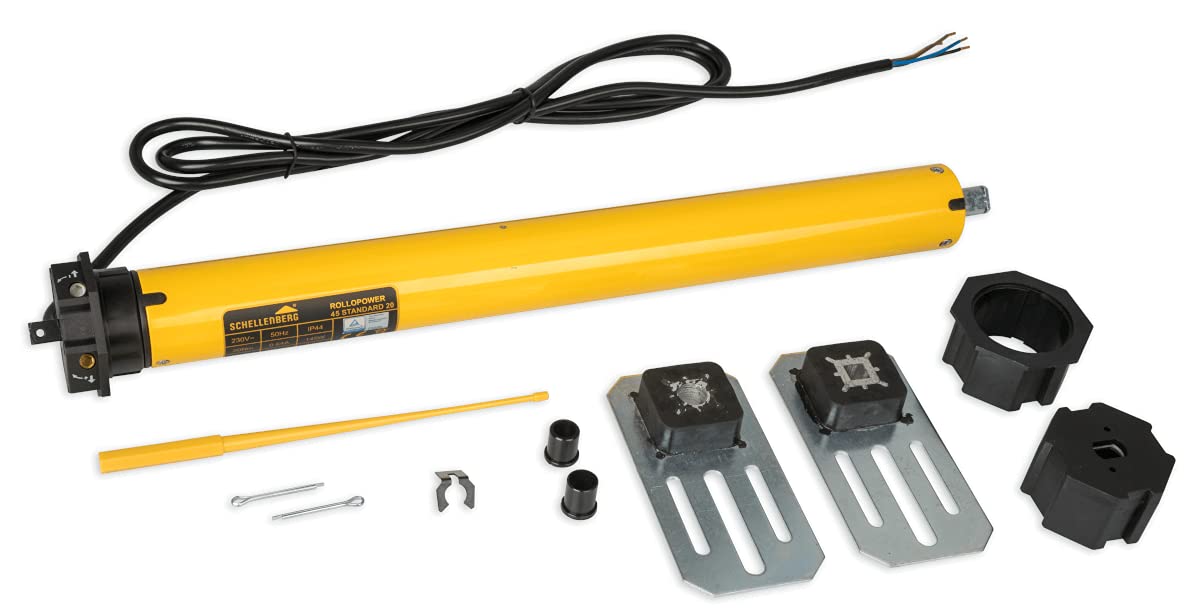

• Ready for mounting with adapter and wall bracket
• Adapter with a large contact surface for optimum power transfer

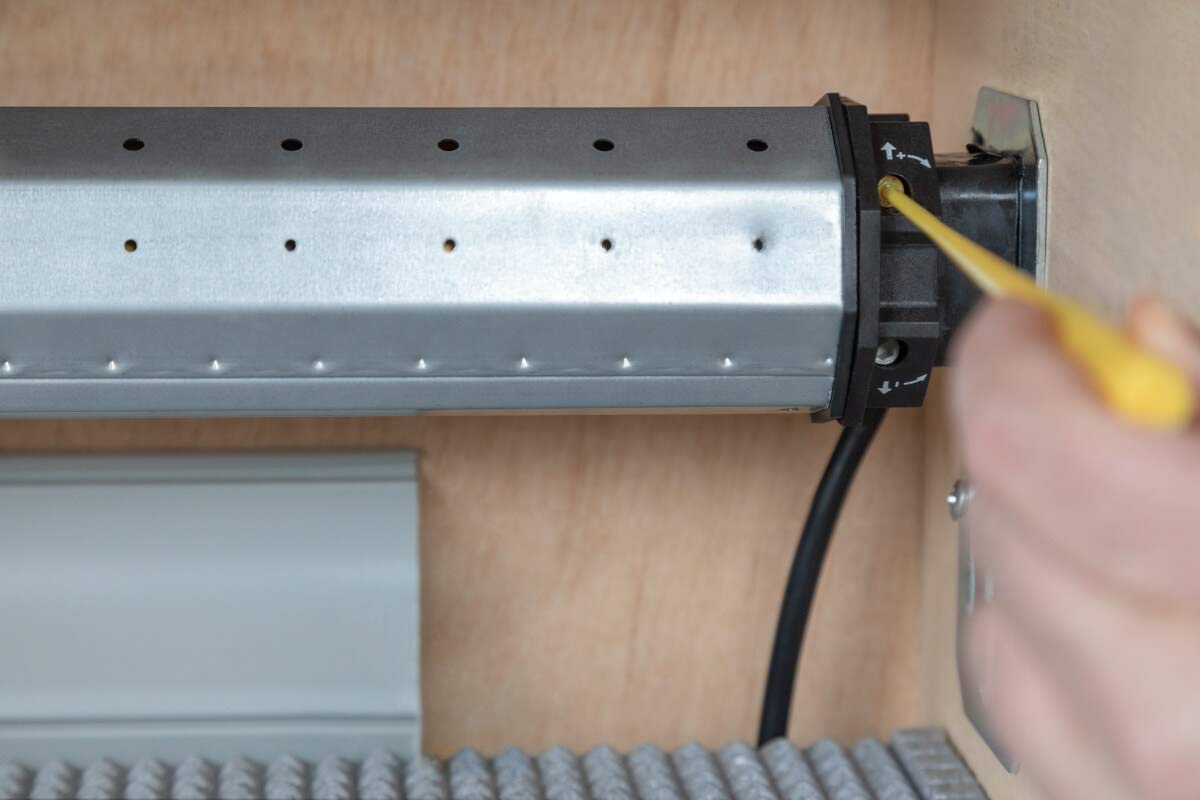

• Mechanical end-point adjustment
• Range finder with coloured screws (yellow and white)

Schellenberg tubular motor standard Maxi 8.5 metre² The Schellenberg roller shutter motor is mounted directly in the standard roller shutter shaft and is thus the most effective and wear poorest Engine. Roller shutter motors are always the right choice when shutters controlled from multiple locations or more shutters to be operated simultaneously (multiple/group control). The roller shutter motor is ready for assembly supplied with adapter and wall bracket. The end point is set with coloured screws. The tubular motor has a maximum Tensile force of 34 kg. Article summary: For light to extra heavy shutters Ready for mounting with adapter and wall bracket Adapter with a large contact surface for optimum power transfer Mechanical end-point adjustment Range finder with coloured screws (yellow and white) Tubular motors for 60 mm octagonal shafts Specifications: Maximum shutter surface area: 8.5 m.² Maximum traction.: 34 kg Torque: 20 Nm End Point Adjustment: Mechanical, colour adjustment
