Schellenberg Maxi Plus 20740 Tubular Motor 40 Nm

• For light to extra heavy shutters
• Ready for mounting with adapter and height-adjustable COMFORT bearing wall
• Adapter with a large contact surface for optimum power transfer
• Operation via a button, no tools required
• Electronic control, the end positions remain stored on power failure

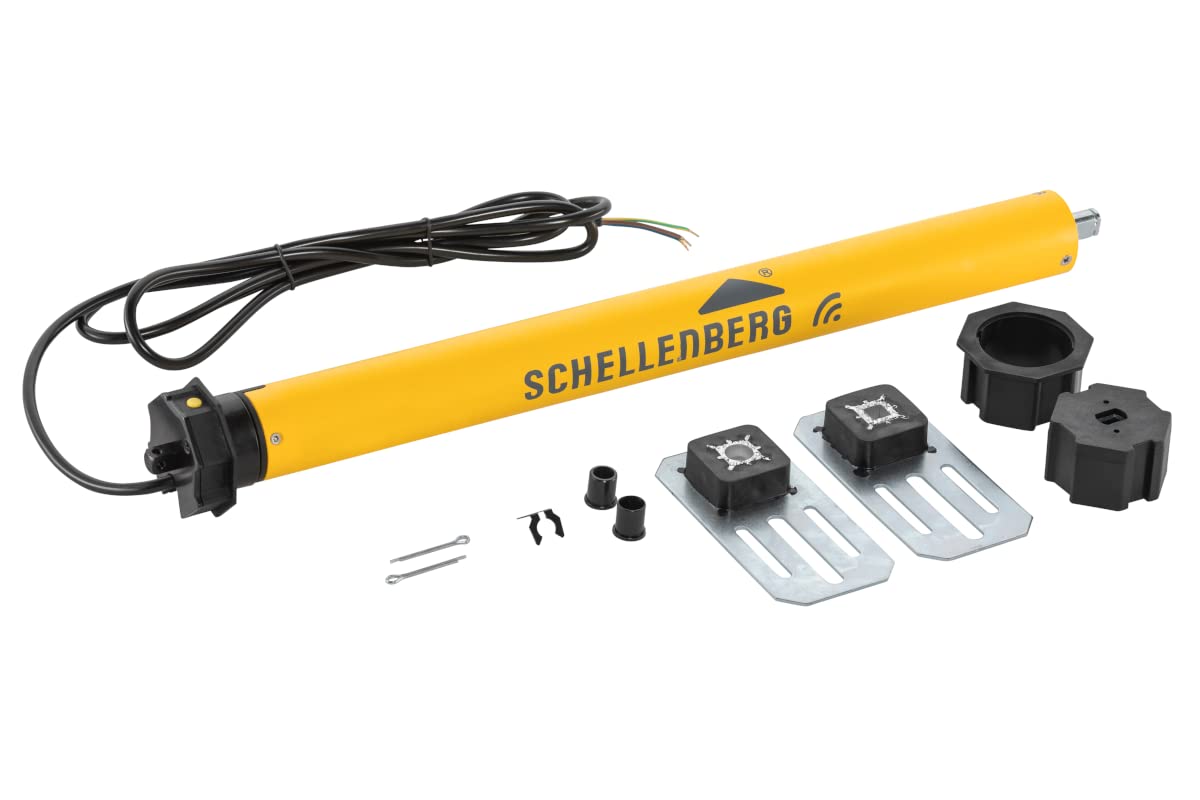

Schellenberg roller shutter motor Maxi Plus 15 m² The Schellenberg Plus roller shutter motor is mounted directly in the roller shutter shaft and is thus the most effective engine least subject to wear. Roller shutter motors are always the right choice when shutters controlled from multiple locations or more shutters to be operated simultaneously (multiple/group control). The roller shutter motor is ready for assembly supplied with adapter and wall bracket. The end point is set electronically by pressing a button. The tubular motor has a maximum Tensile strength of 60 kg. Article summary: For light to extra heavy shutters Ready for mounting with adapter and height-adjustable COMFORT bearing wall Stored in hard rubber engine mounting, thereby noise Adapter with a large contact surface for optimum power transfer Electronic endpoint setting Operation via a button, no tools required Tubular motors for 60 mm octagonal shafts Electronic control, the end positions remain stored on power failure Specifications: Maximum plastic roller shutter area: 15.0 m.² Maximum traction: 60 kg Torque: 40 Nm End Point Adjustment: Electronically, by pressing a button
