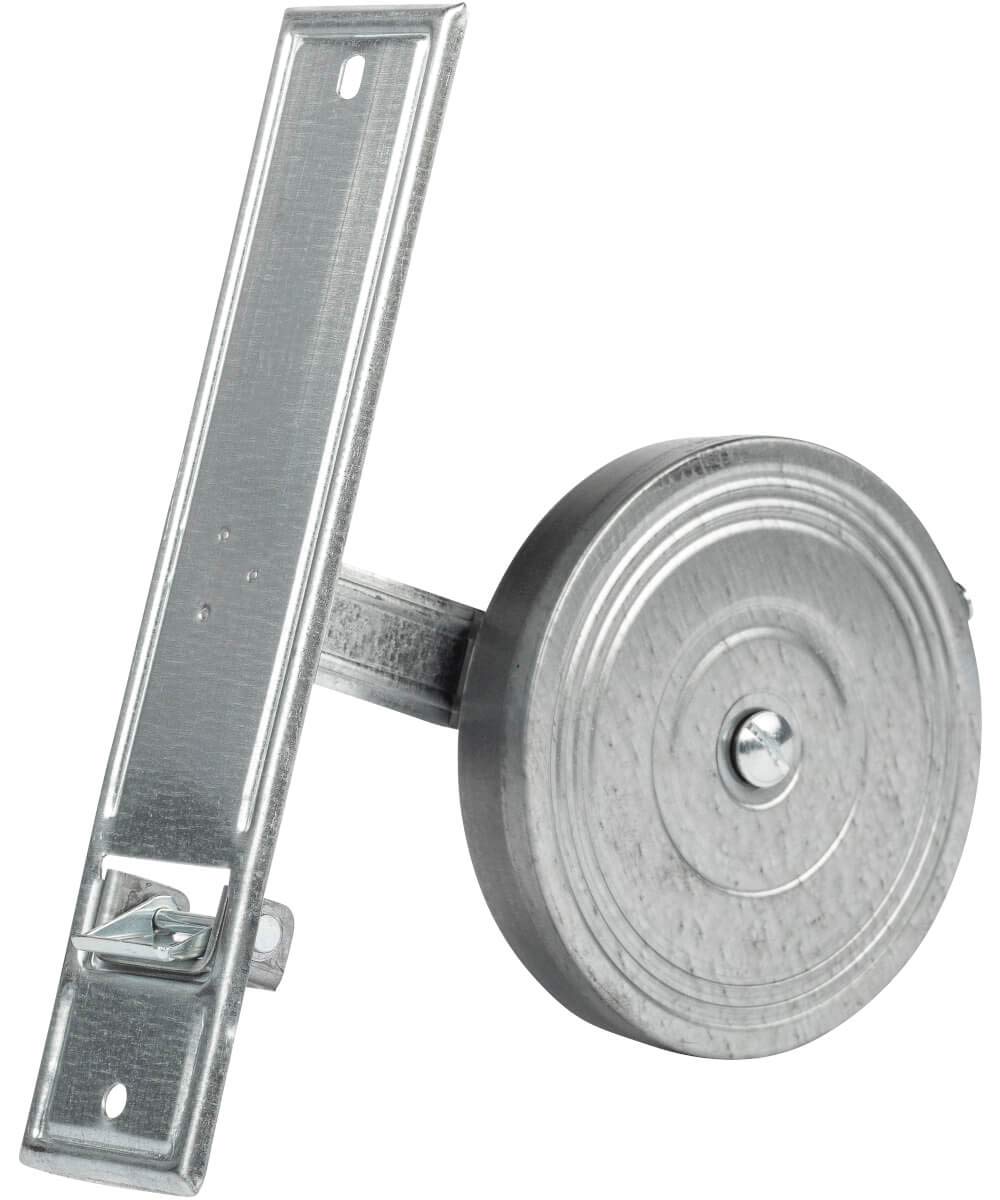

Schellenberg 50300 roller shutter belt winder flush mount, 18.5 cm hole spacing, intake winder system maxi, galvanised

• robust intake winder for heavy shutters up to 2.50 m high

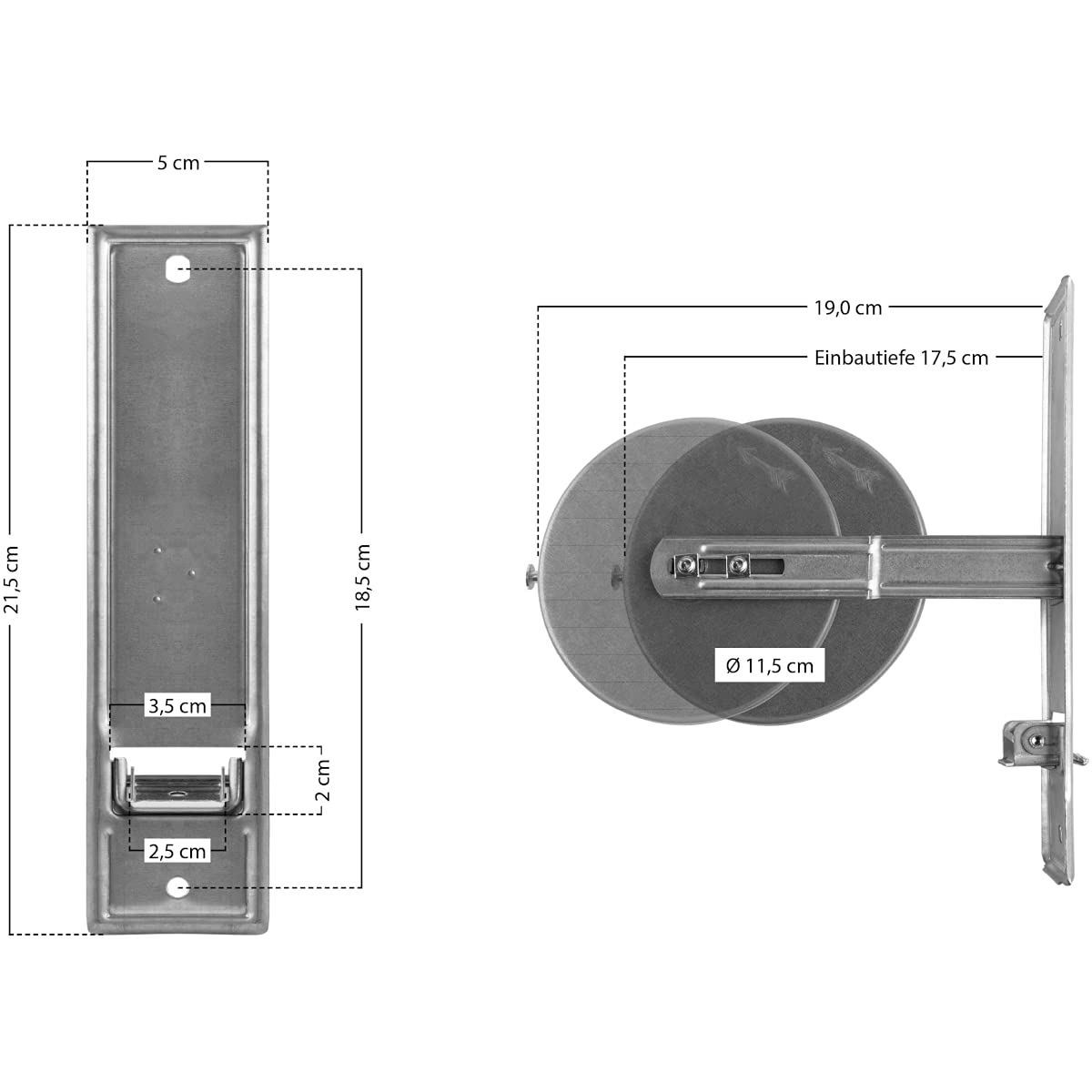

• 185 mm hole spacing, variable depth between 175 and 195 mm
• robust intake winder for heavy shutters, dimensions 50 x 215 x 175 mm
• high winding capacity of 12.0 m belt length, 23 mm belt width

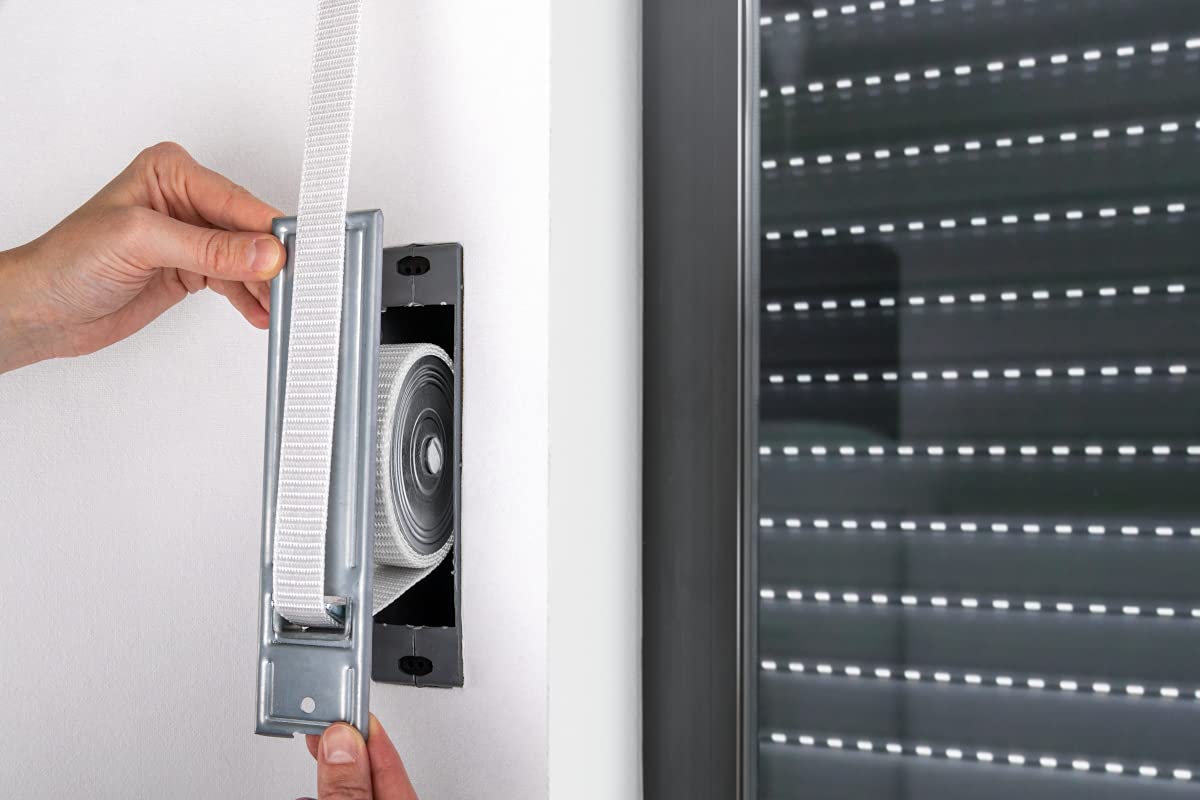

• Installation tip - Close the shutters before installation; remove the old intake winder. Pre-tension the new intake winder by turning the drum in the direction of the arrow until it stops. Hold the drum firmly and secure it against bouncing back. Then thread the belt through the cover plate into the winder and let it roll up slowly; insert the wrapping unit into the wall box and screw it back to a cover plate

Schellenberg inlet winder (For Maxi systems = belt width of 23 mm) The Schellenberg inlet winders with the dimensions of 50x194x122 mm and a hole spacing of 185 mm are suitable for our roller shutter Maxi systems. They are already prestressed, thus facilitating the winding of the belt during installation. The inlet winder is delivered without the shutter strap. Article Summary: Used for roller shutters. Used for Maxi systems. Dimensions: 50x194x122 mm (widthxheightxdepth) Hole spacing: 185 mm The Schellenberg inlet winders are prestressed, and thereby facilitate the winding up of the belt during installation. Simple installation and easy operation. Available without a shutter strap Compatible with Schellenberg cover plate (item number: 53003, 53803)
