Schellenberg 20222 Maxi Action Roller Shutter Motor, up to 3 m², Easy to use Electric Roller shutters, Mechanical end Position Adjustment, Suitable for 60 mm Steel Tube shafts, Roller Shutter Drive

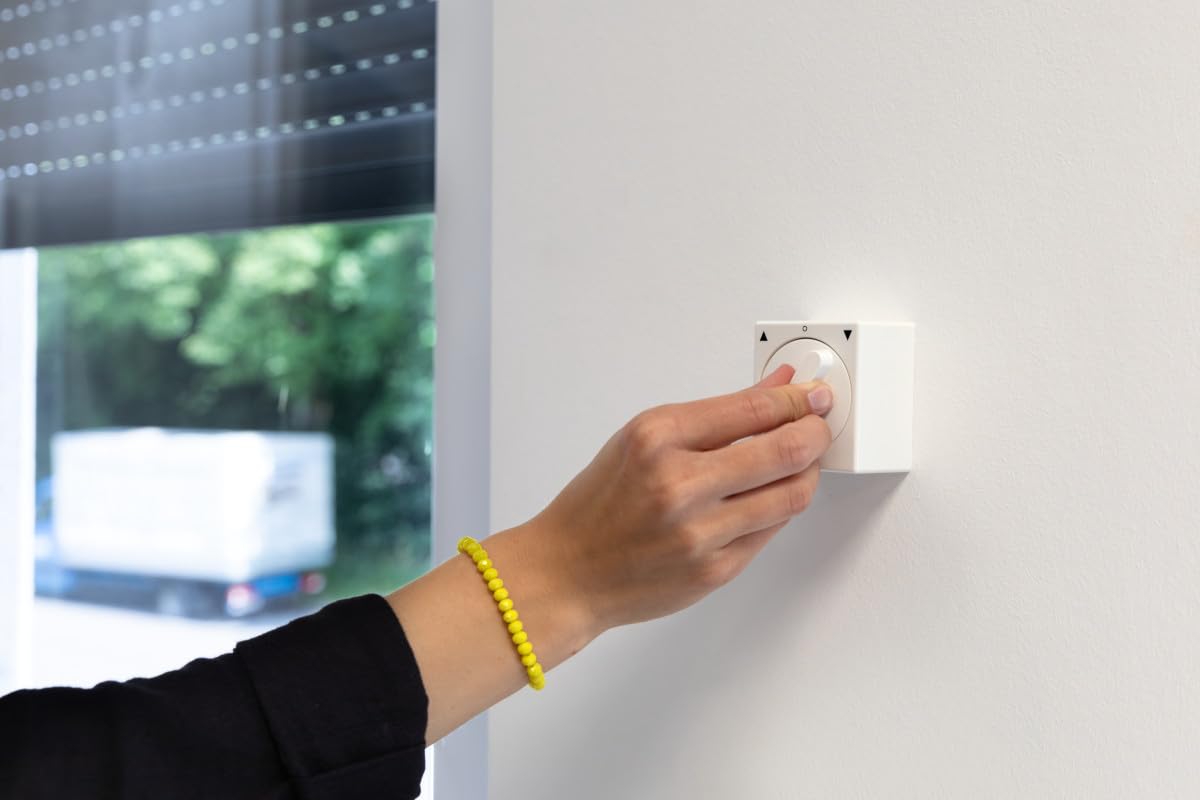

• Easily controllable with roller shutter switch or timer from Schellenberg (not included)
• For octagonal shafts with 60 mm diameter
• Max. Area for plastic shutters: 3.0 m²
• Mechanical end position adjustment

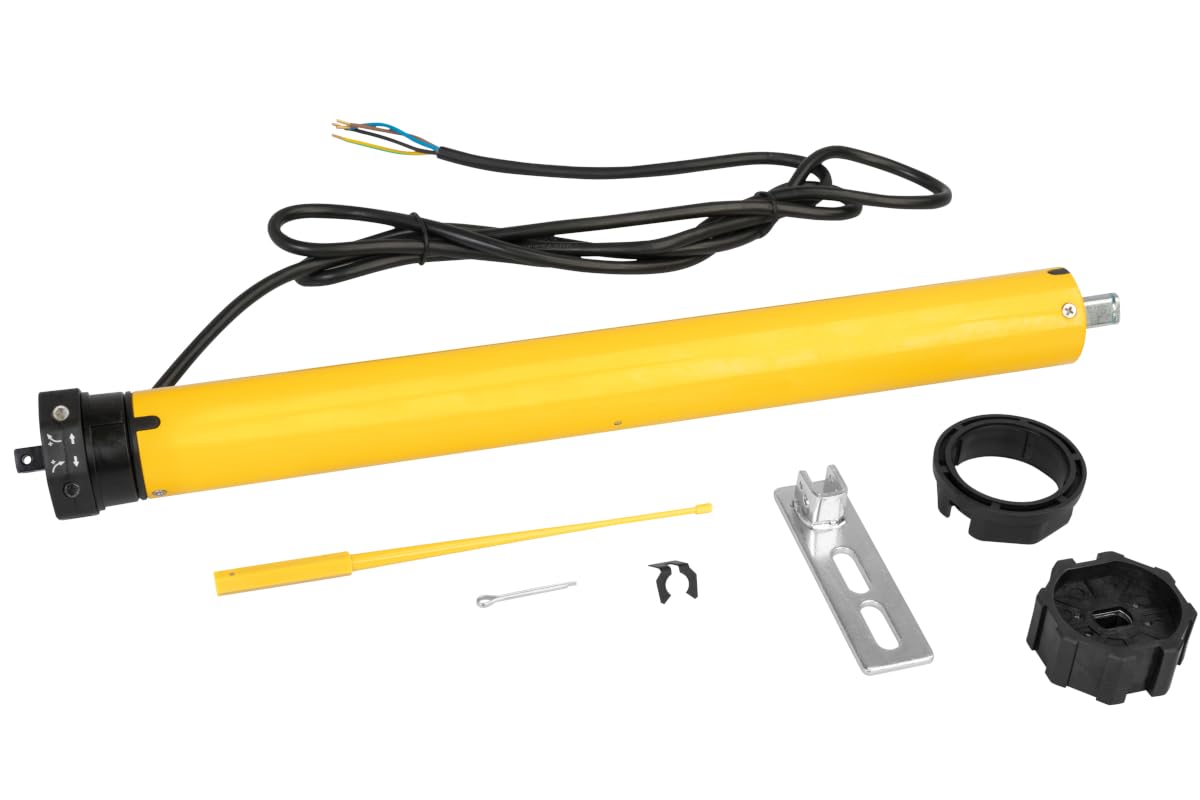

• Ready to assemble with adaptor and height-adjustable wall bracket

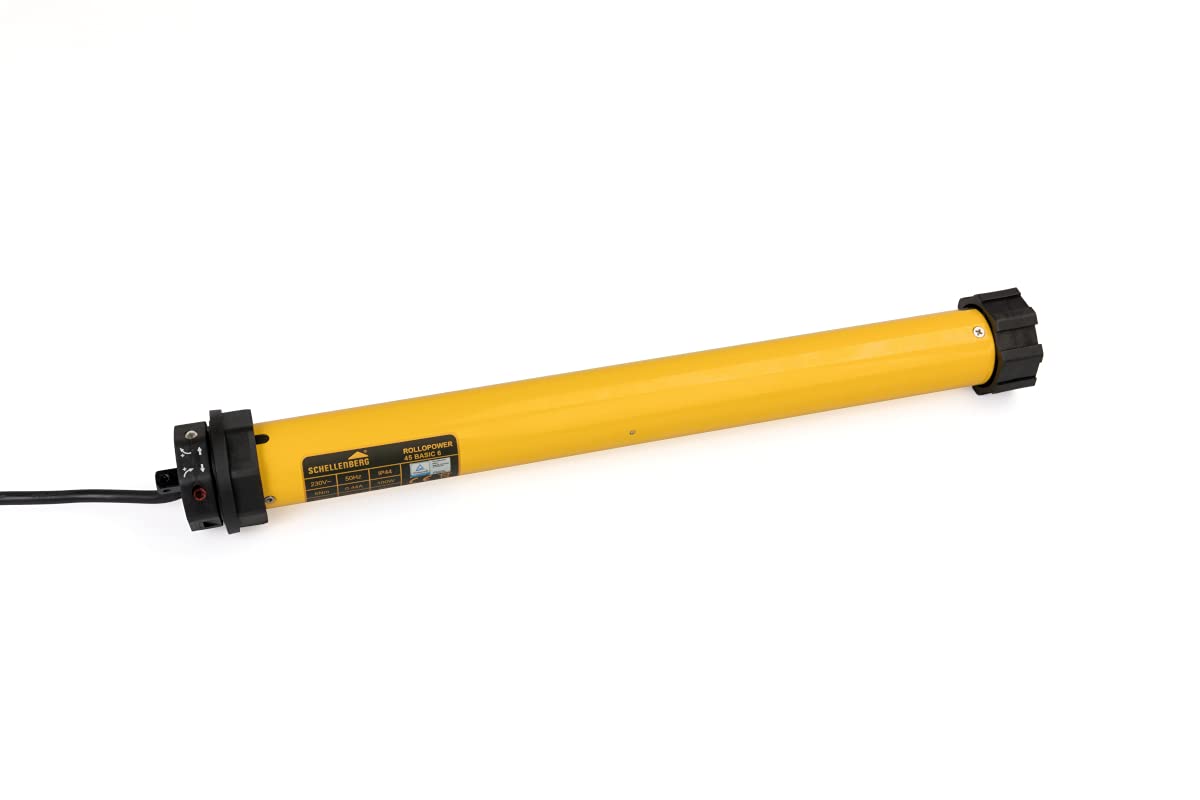

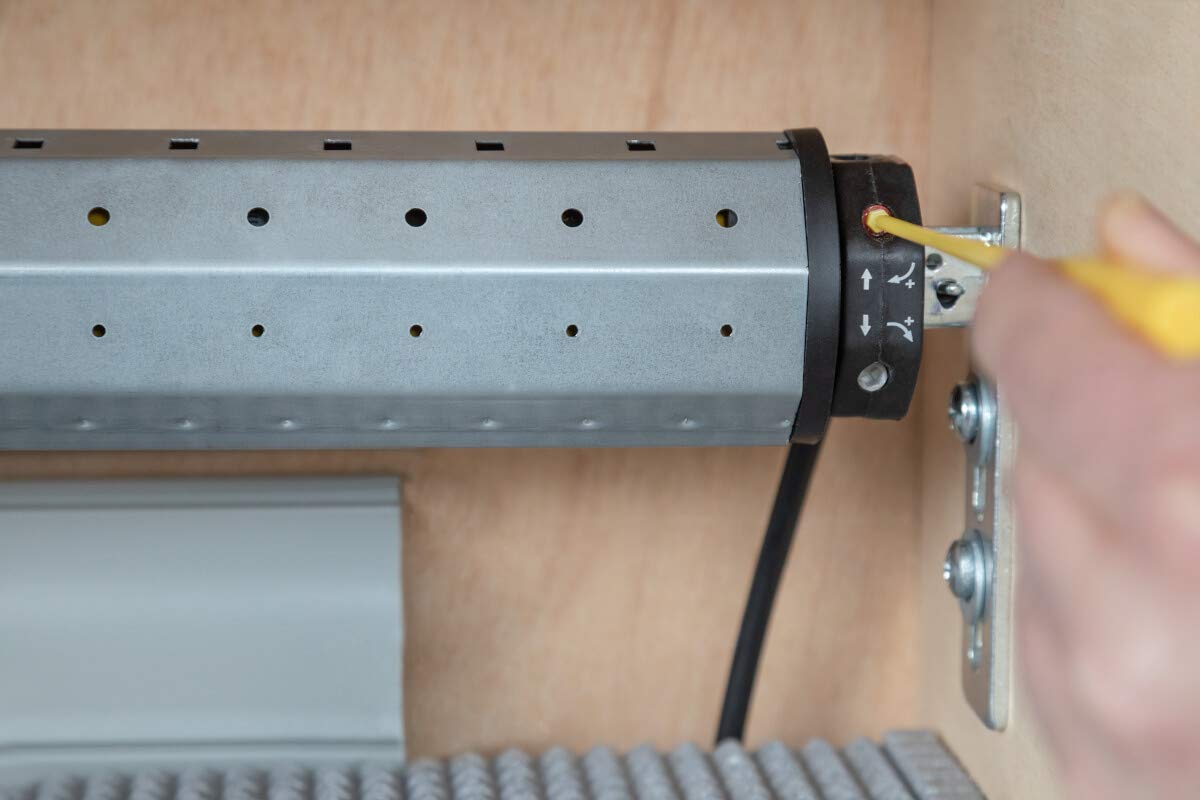

The tubular motor Rollopower Action with a torque of 6 Nm allows you to conveniently control a roller shutter with a maximum area of 3.0 m² and 15 kg weight. The roller shutter motor has been developed for the Maxi roller shutter system and therefore suitable for octagonal shafts with 60 mm diameter. It comes ready to install with shaft adapter and a wall mount. After installation in the roller shutter box, the end positions are mechanically adjusted with an adjustment pin. Thanks to the direct installation in the roller shutter shaft, the power of the motor is transmitted directly and with low wear. As a result, various roller shutter accessories, such as roller shutter belts or belt winders, unnecessary. The tubular motor is controlled with a separately available roller shutter switch or a timer from Schellenberg The control of several roller shutter motors is also possible with one relay.
