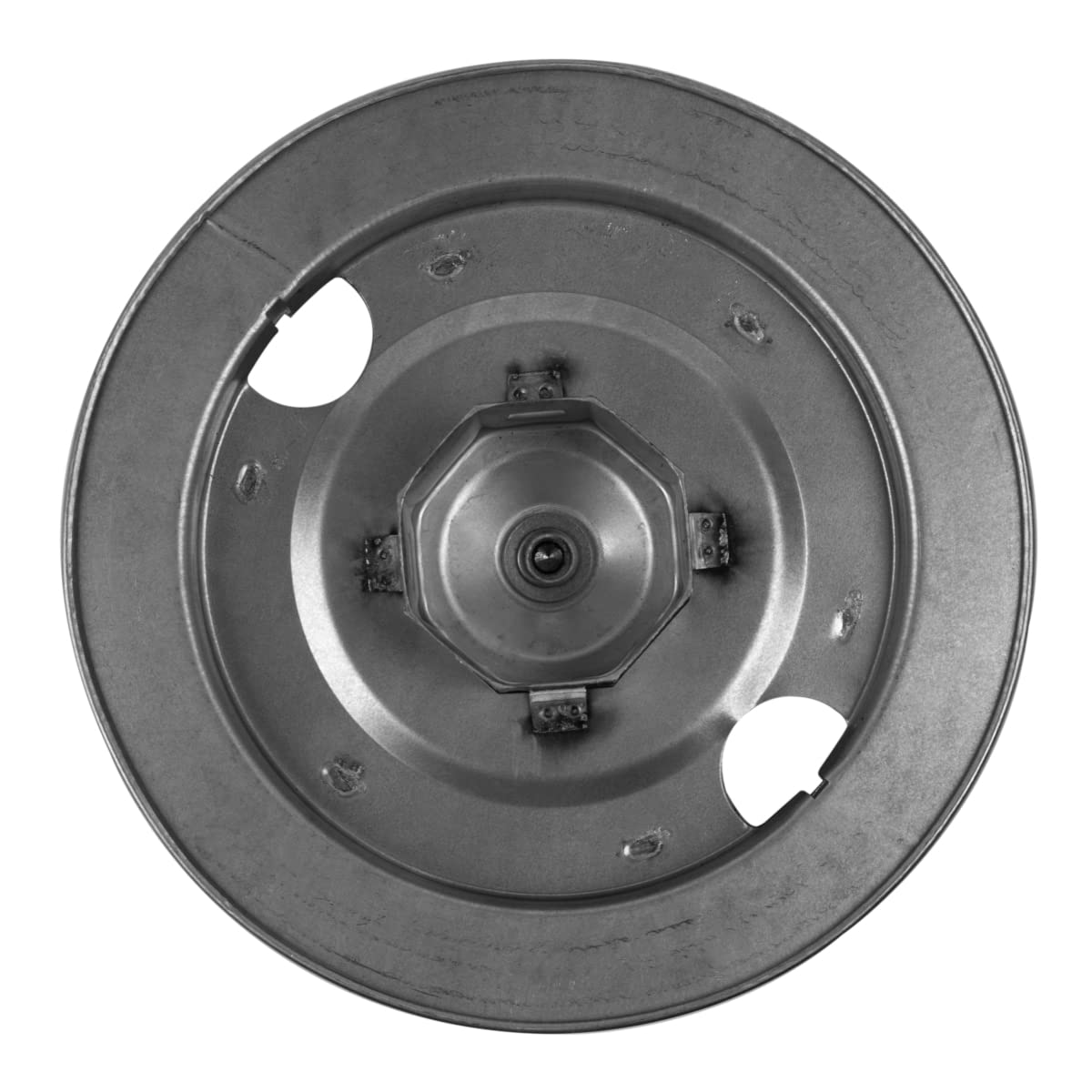

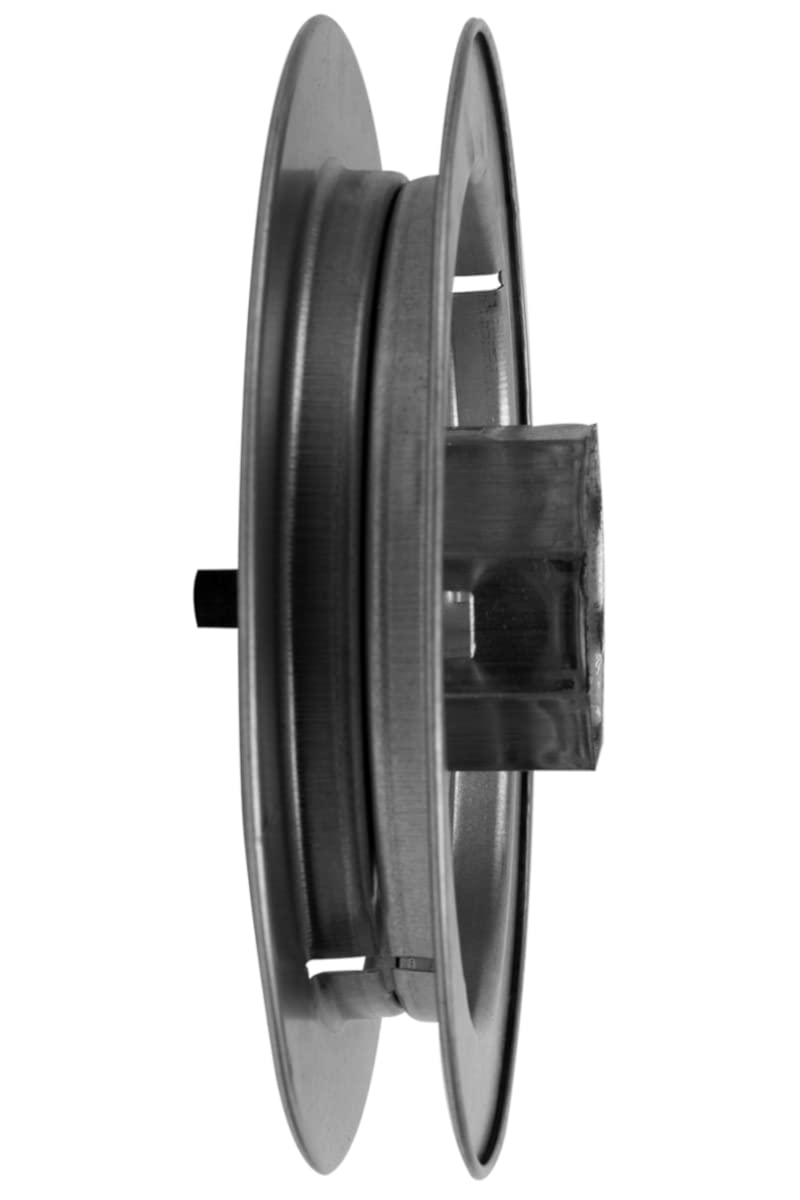

Schellenberg 10236 Pulley Metal

• To Wrap And Guide the band in the cassette blinds
• Included in the capsule roller for the insertion of the steel tube

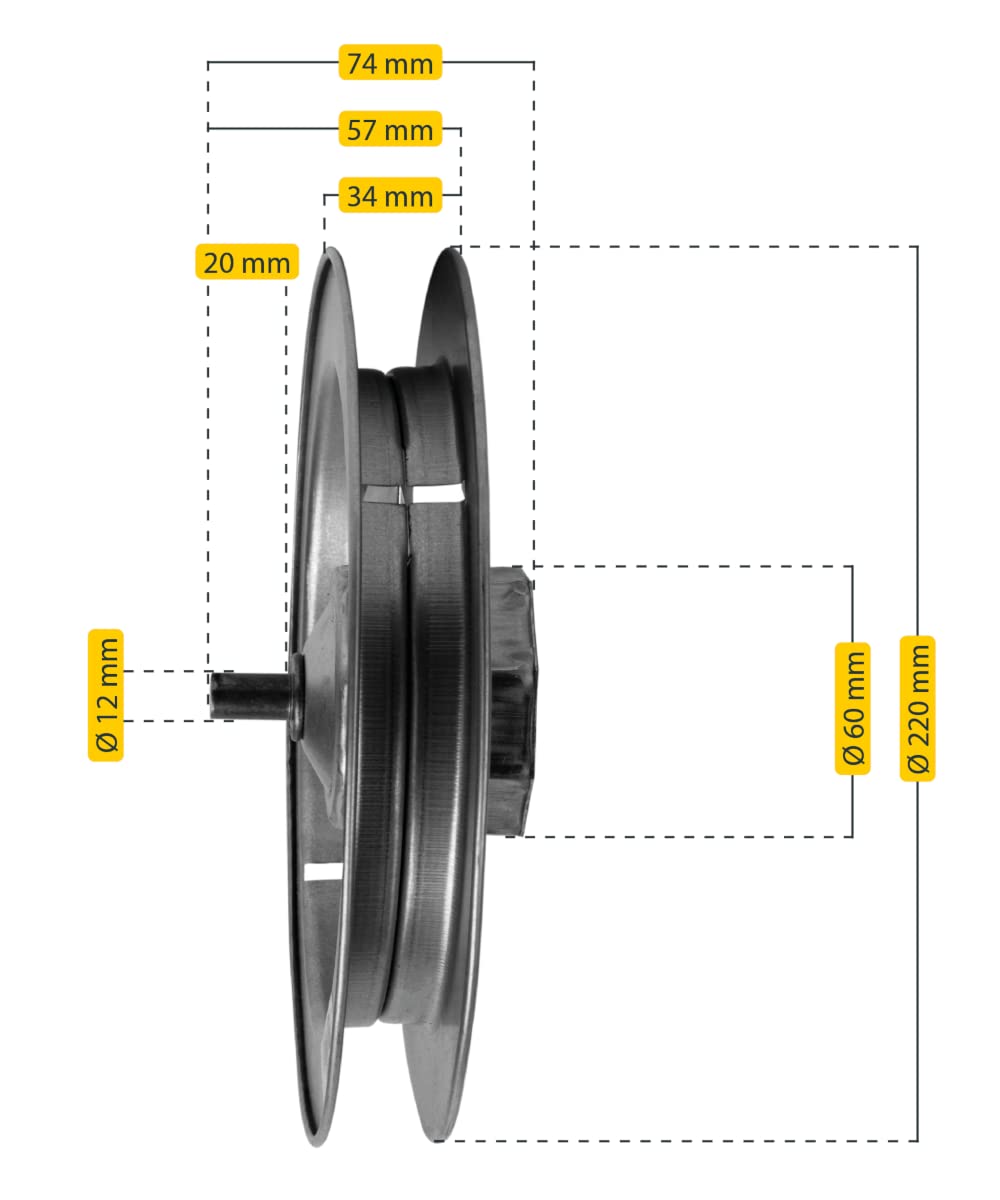

• Axle Pivot Diameter: 12 mm
• Suitable for a width of strap 23 mm
• Suitable for octagonal roller with a diameter of 60 mm

For wrapping and guide the strap in the cassette of the blind. Included in the capsule of the roller for inserting the steel tube. Axle diameter of the stud: 12 mm The chosen depends on the mounting space in the underbed storage diameter of the blind. The pulley is inserted laterally on the bearing – is then fixed the strap of the blind on the pulley. Suitable for straps with a width of 23 mm and for octagonal rollers with a diameter of 60 mm. Delivery unit: 1 pulley Mounting Push the pulley with the capsule of the roller on the octagonal roller. Ideal in the case, the pulley will form a straight line with the guide of the strap (to the point of output of the strap). Attach the strap of the blind to the pulley to make this tie must be strong – The strap with the pulley or securing with the help of a screw. Attach the roller octagonal to wall bearings. Wrap the strap through the rotation of the roller octagonal.
