Schellenberg 10220 Recessed Winder for Straps in Cotton, Grey, Hole Spacing 14.2-18.4 cm 1

• Suitable for window and door roller blinds
• Robust technology and high-quality workmanship
• For cotton straps with a width of 23 mm, maximum length of 6 m and thickness of 2 mm

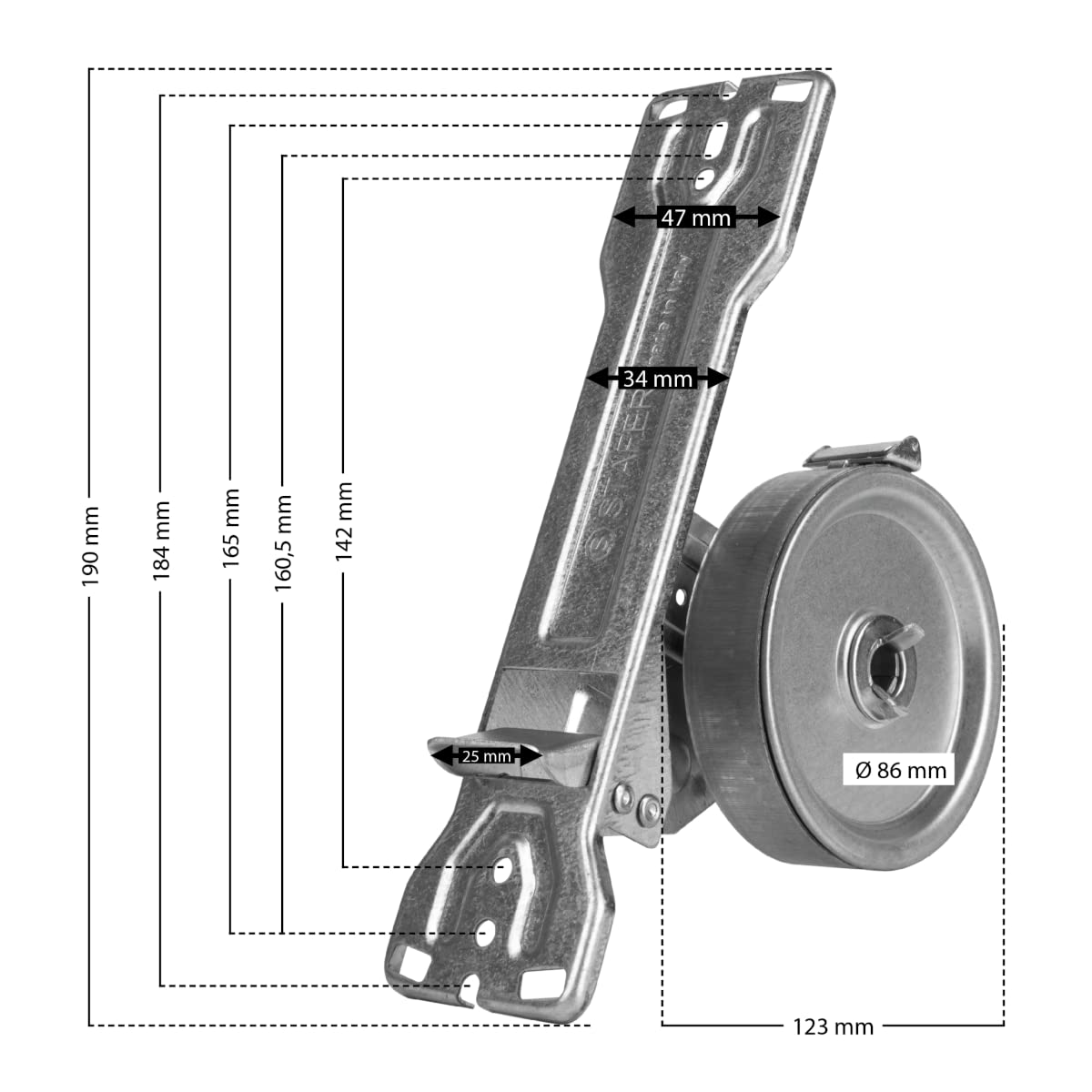

• Hole distance: 14.2-18.4 cm
• Maximum window height: 2.5 m

Heavy duty recessed winders are distinguished by hole distances and winding capabilities. The spring in the box is not stretched. Recessed depth: 130 mm To choose a model of recessed winder you must always pay attention to the distance of the holes and the winding capacity. Ideal use for plates with hole distance from 14.2 to 18.4 Assembly Close the roller shutters before assembly • Disassemble the old recessed winder. • Carefully unroll the roller blind belt. • The inlet spring of the new winder is not stretched – to perform the assembly, turn the drum to the stop. Attention - danger of injury - wear gloves! Hold the drum tightly and attach to it the strap. • Pass the strap between the plate and roll it up slowly. • Insert the winder into the chest of drawers and screw the cover plate
