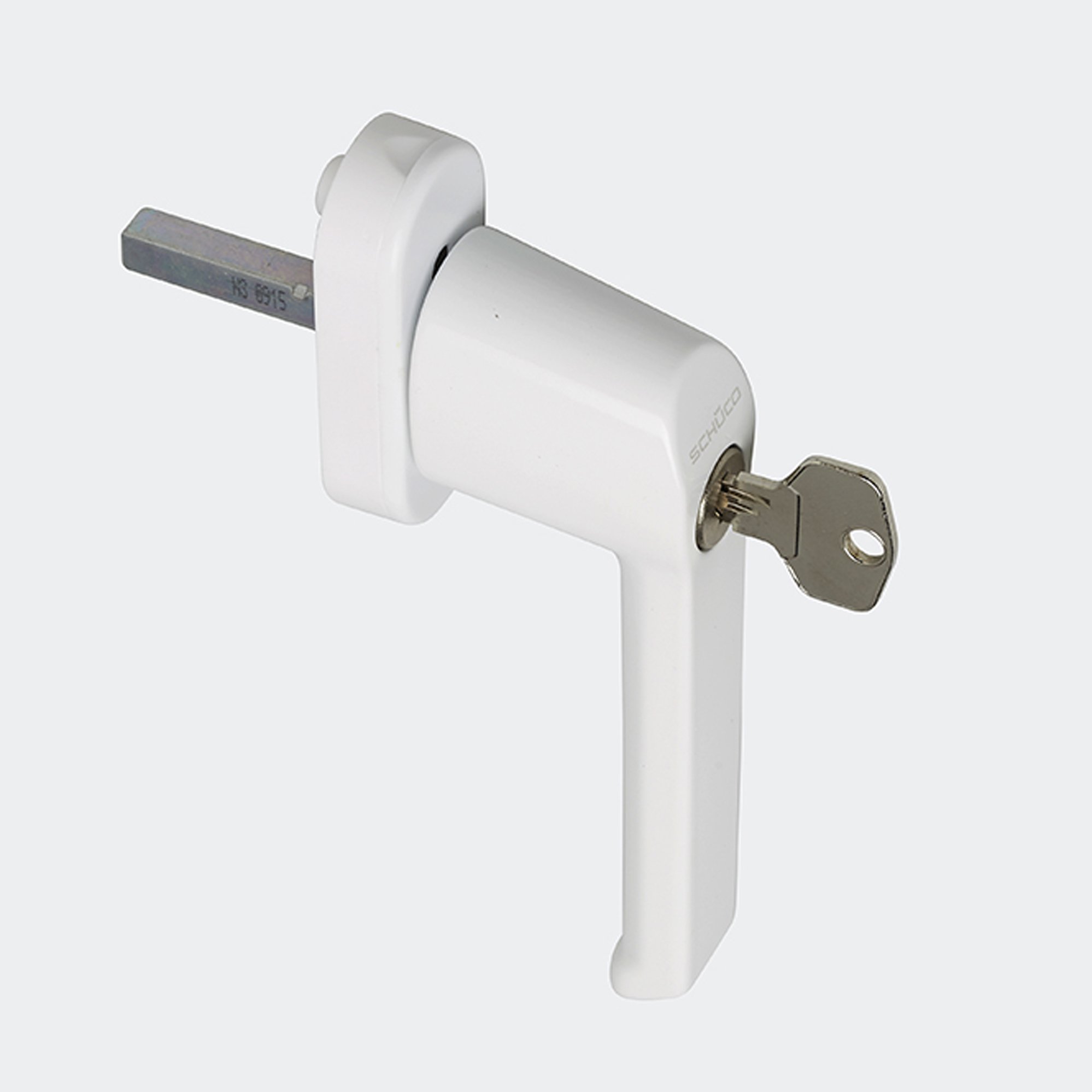

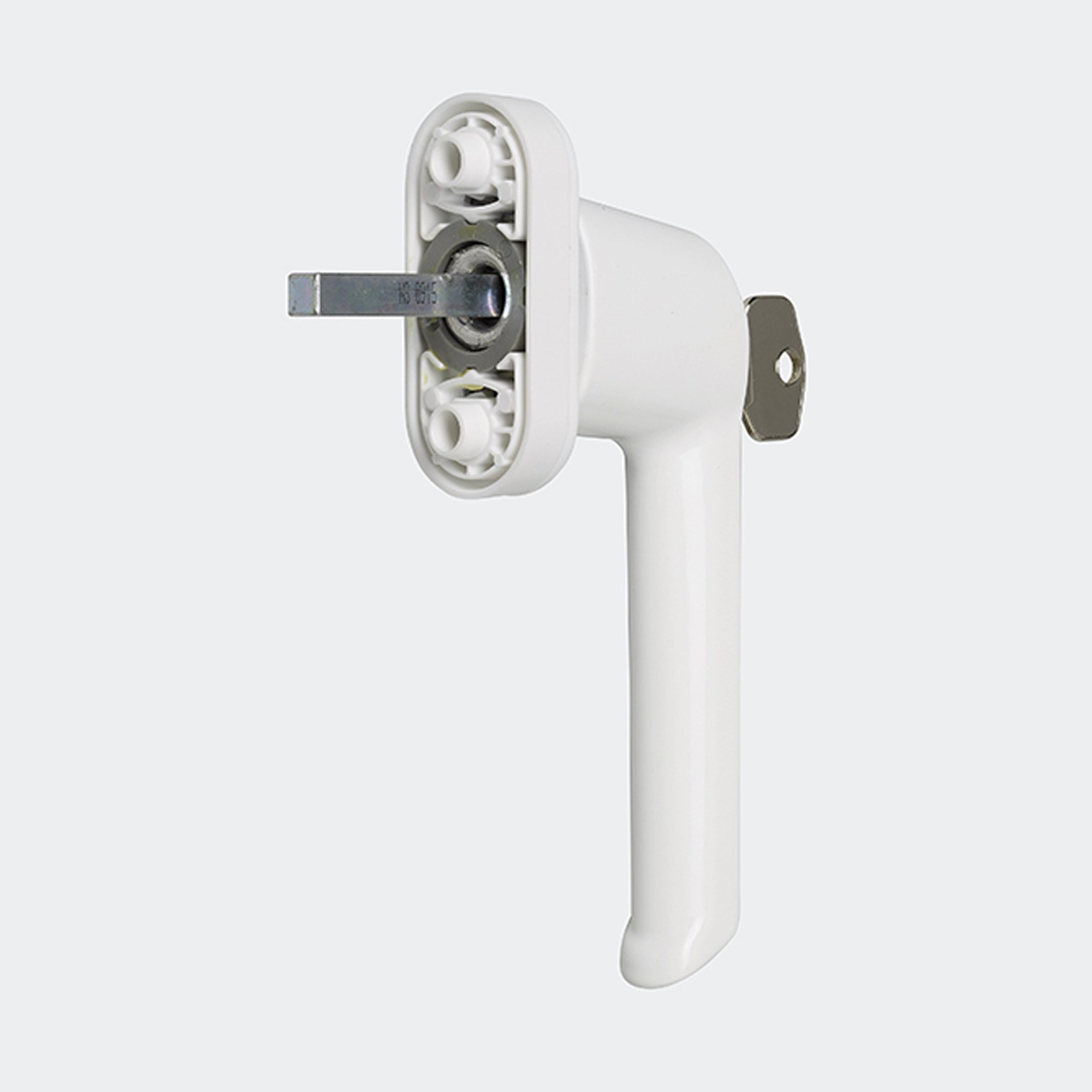

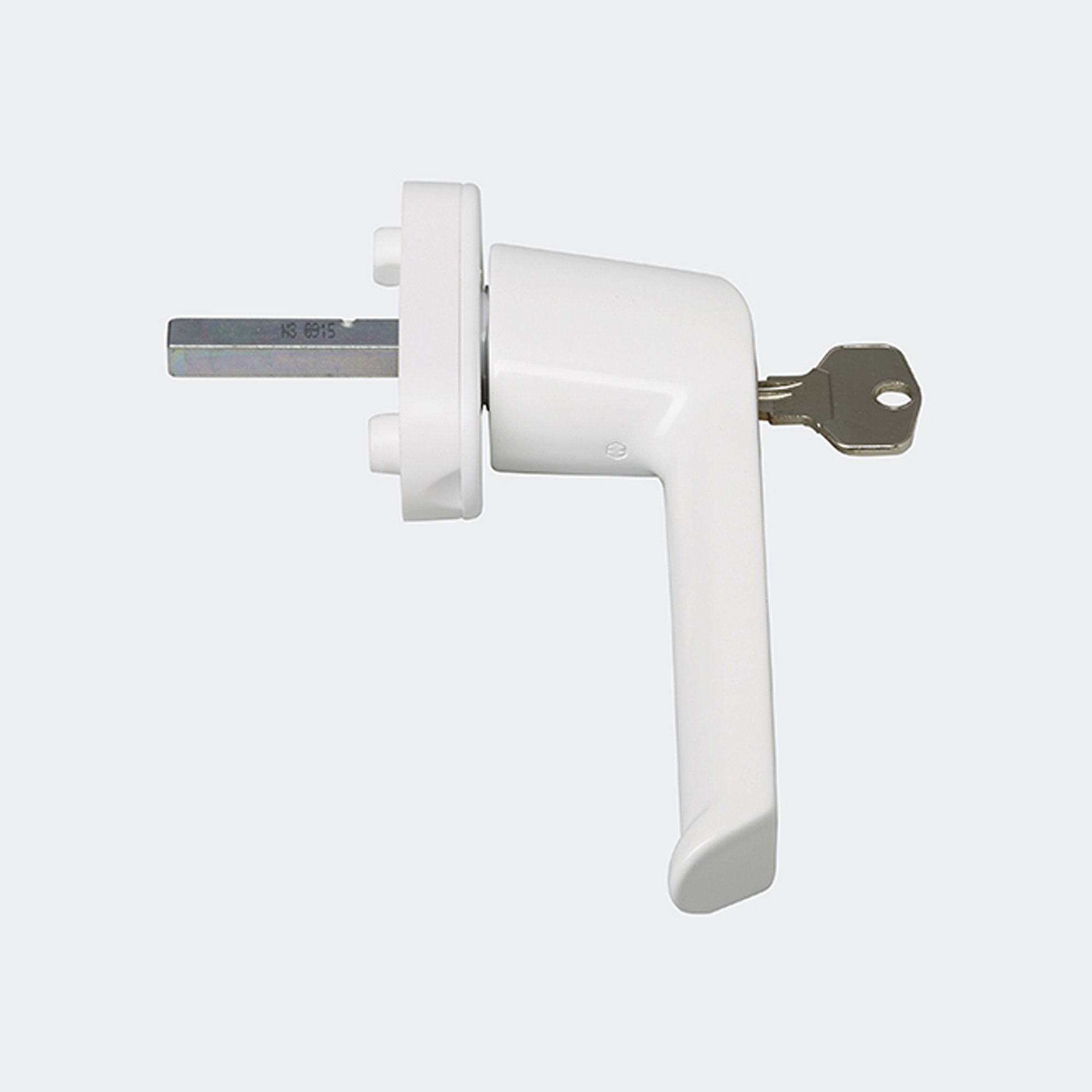

Schüco 98050192 VarioTec Window Handle Lockable White Corona CT 70 / SI 82, 100 NM

• More security at home: The smooth-running lock reliably secures the Schüco VarioTec window handle and protects against unauthorised access.
• Suitable for rotating, turn-tilting and tilting fittings as well as all opening directions: Both left and right opening windows can be equipped with this window handle.
• Dimensions and data: Profile system Schüco Corona CT 70 / SI 82, from year 2002, mounting distance 43 mm, pin length 37 mm, handle cut: 3-hole bore.
• The Schüco VarioTec window handle is supplied with a key and matching mounting material.
• Proven brand quality: Schüco stands for innovation, partnership, excellence and responsibility - this is also evident in the lockable VarioTec window handle.

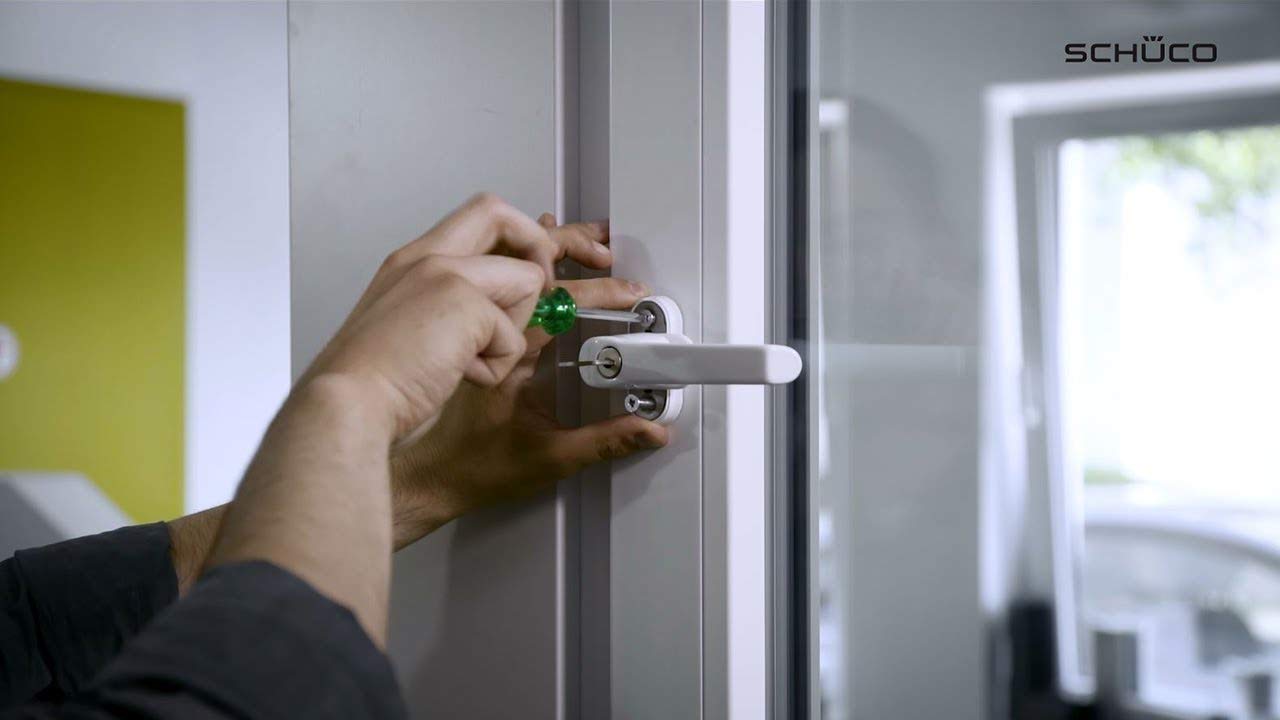

Schüco window handle lockable original Schüco window handle. Description: hand lever for plastic windows and balcony doors. Fitting systems: VarioTec Euro Fitting. Window profile system: CT 70. Year of manufacture: up to today. For operating rotating, rotating and tilting, and tilting fittings Opens to the left and right. Fixing spacing: 43 mm. Square: 7 mm. Can be used for RC 2. Lockable in tilt and lock position. Prevents activation when in closed position. The window handle meets the requirements of the resistance classes RC 1-6 when properly installed in combination with the appropriate window elements. Tearing or breaking the window handle from the rosettes body is prevented up to a torque of 100 NM. Item number: 25 49 01 white, 254902 black, 254903 stainless steel look. Colour: white, black, stainless steel look. Repair: put the window handle into a horizontal position, lift the cover cap and turn it to the side, loosen the screws and pull out the handle. Instal it in the reverse order.
