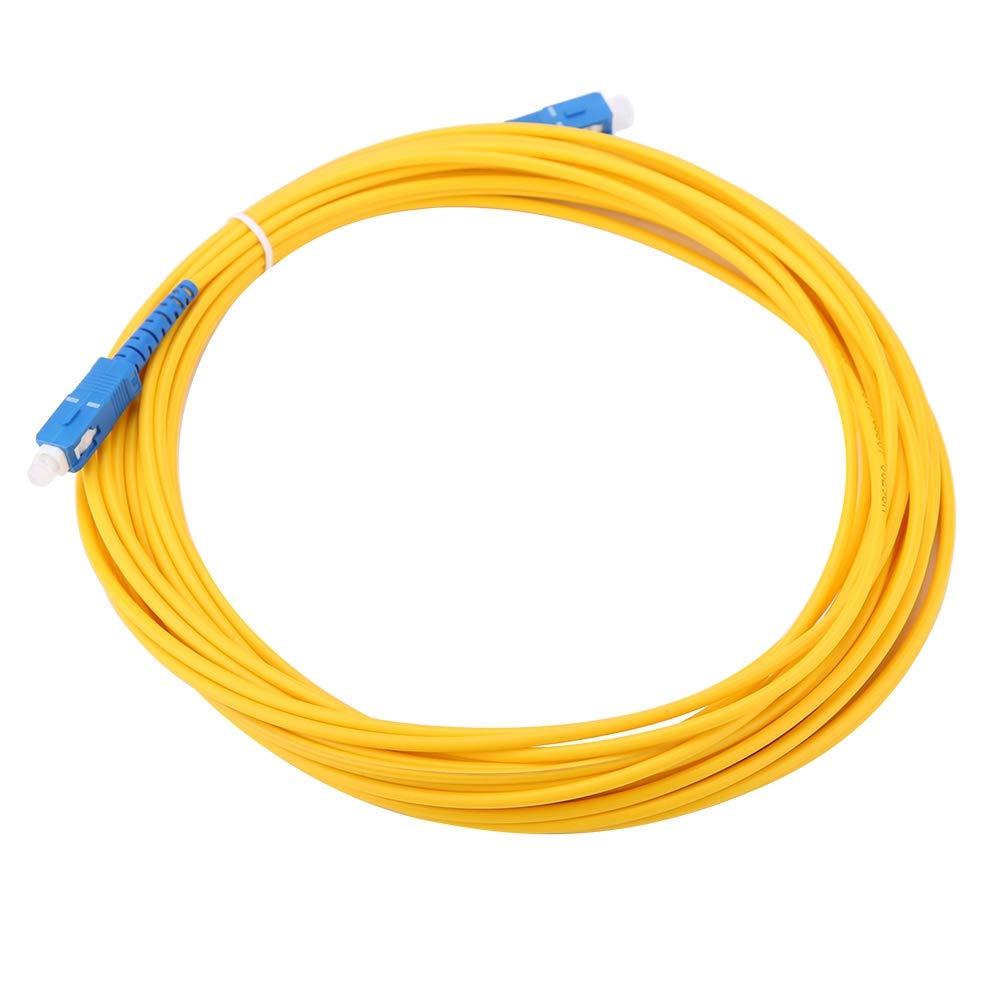

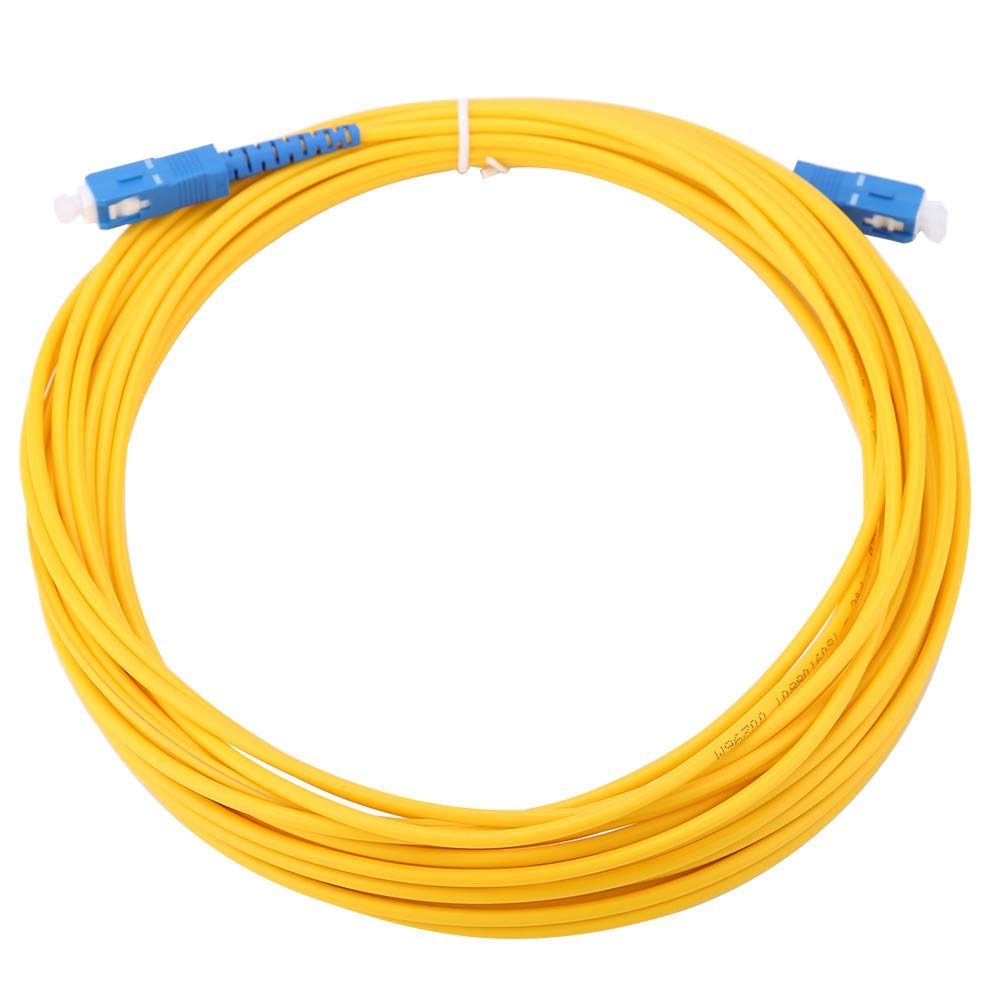

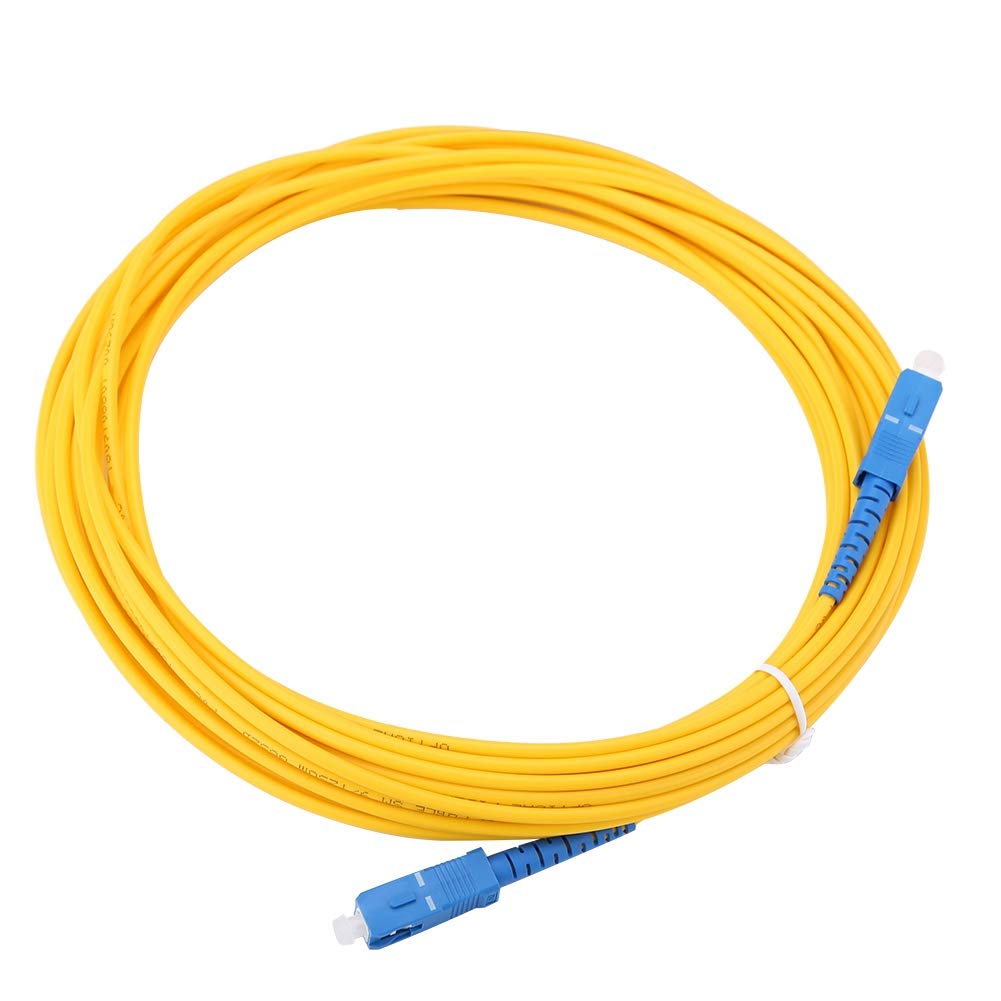

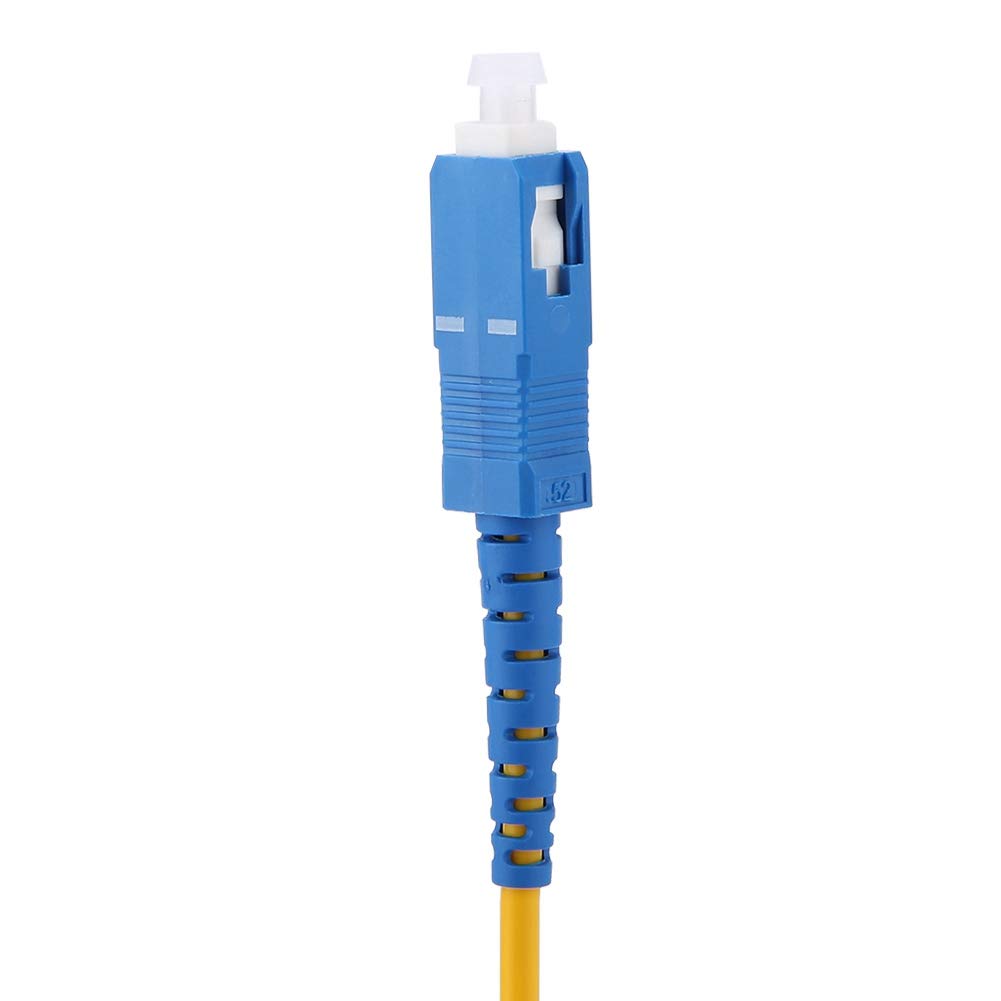

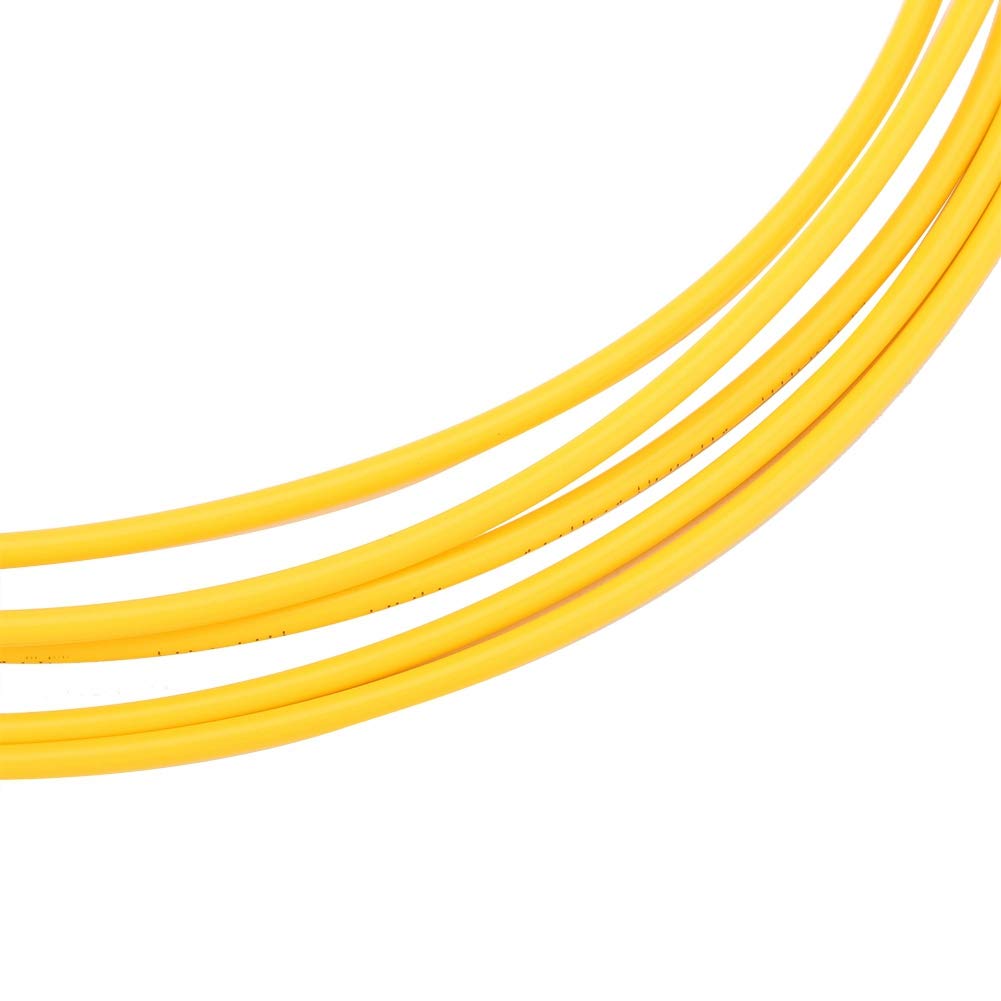

SC to SC Single Mode Cable, Mavis Laven Duplex Fiber Patch Cord Jumper Cable Single Mode Patch Cord Optical Connector (10m/32.8ft)

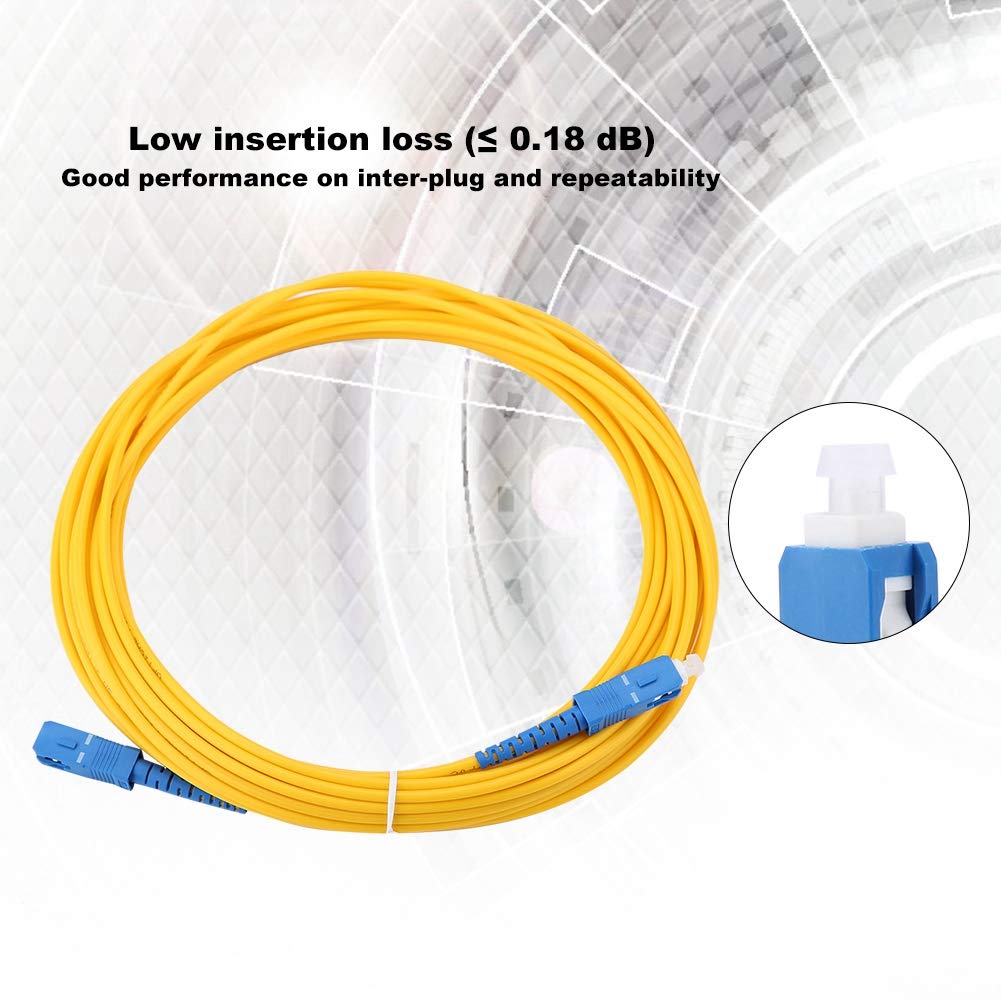

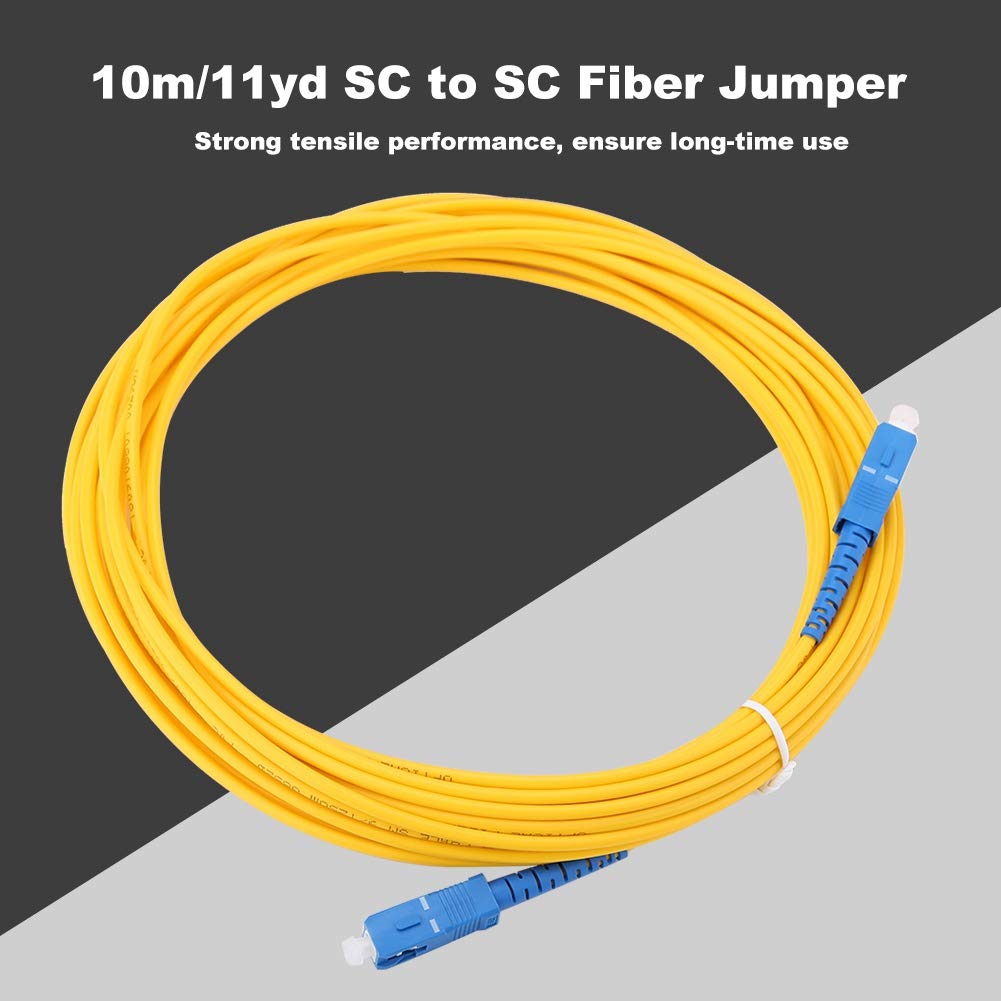

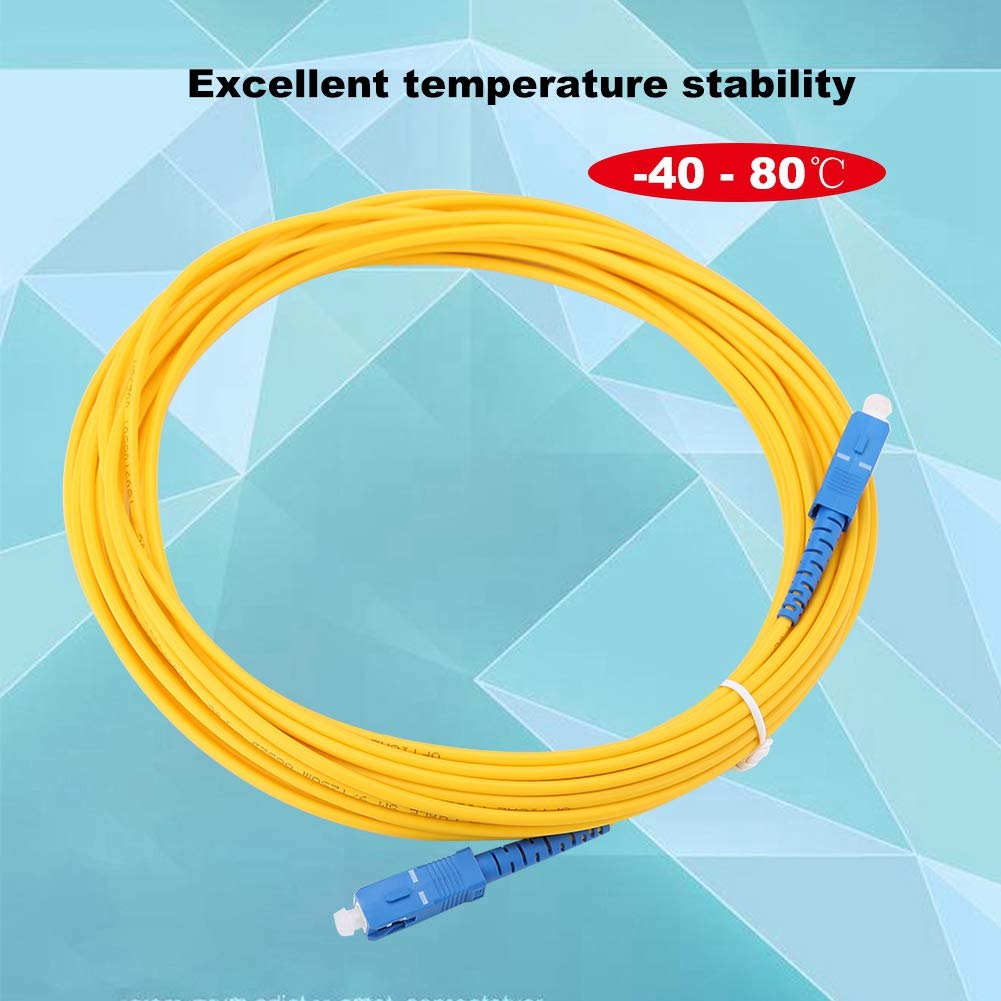

Specification: Type: SC-SC Fiber Jumper Insertion loss: single mode 0.18 dB Return loss: PC45db UDC50db APC60db Number of insertions and withdrawals: 1000 or more Tensile strength: 45KG Working temperature: -40 - 80 Weight: Approx. 76g Length: Approx. 10m / 11yd Package list: 1 * Patch Cord Note: Please allow slight error due to manual measurement. Thanks for your kind understanding. Project Test Conditions Single mode Multimode Optical factor Insertion loss UPC SM: 1310nm/1550nm MM: 850nm/1300nm 0.2dB 0.3dB 1310nm/1550nm 0.3dB Return loss UPC SM: 1310nm/1550nm MM: 850nm/1300nm 55dB 35dB 1310nm/1550nm 65dB Mechanical factor (additional loss) Impact test 1.8m, 8 times 0.1dB 0.1dB Vibration test 10-60Hz, 1mm Full amplitude 0.1dB 0.1dB Insertion life 100n 0.1dB 0.1dB Tensile strength 100n 0.1dB 0.1dB Environmental factor (additional loss) High and low temperature cycle test -25 - +70, 2 cycles 0.2dB 0.2dB High temperature test +80, 2 Hours 0.2dB 0.2dB Low temperature test -40, 2 Hours 0.2dB 0.2dB Warm test +40, 90-95%RH, 2Hours 0.2dB 0.2dB
