Satix 10 m F-Quick Plug Coaxial Cable

• High quality connection cable for set top box, receiver, cable modem, cable router, Freeview receiver and television set

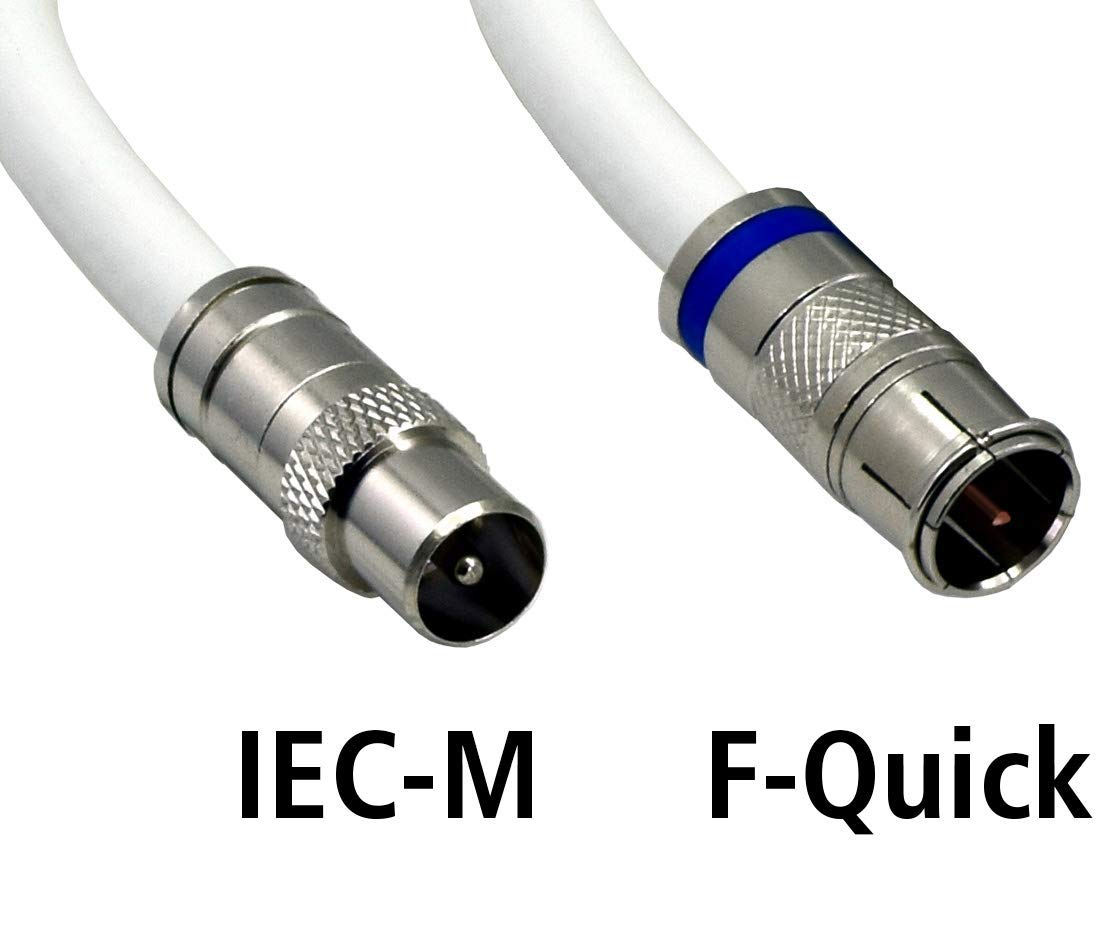

• Length 10 m, fully assembled with F-plug (push-on type, also called F-Quickfix) and coax plug (IEC male)
• Complies with class A+, triple shielded cable with adhesive foil, shielding > 120 dB, inner conductor made of pure copper
• Antenna cable with outer diameter 6.9 mm, inner conductor Ø 1.0 mm

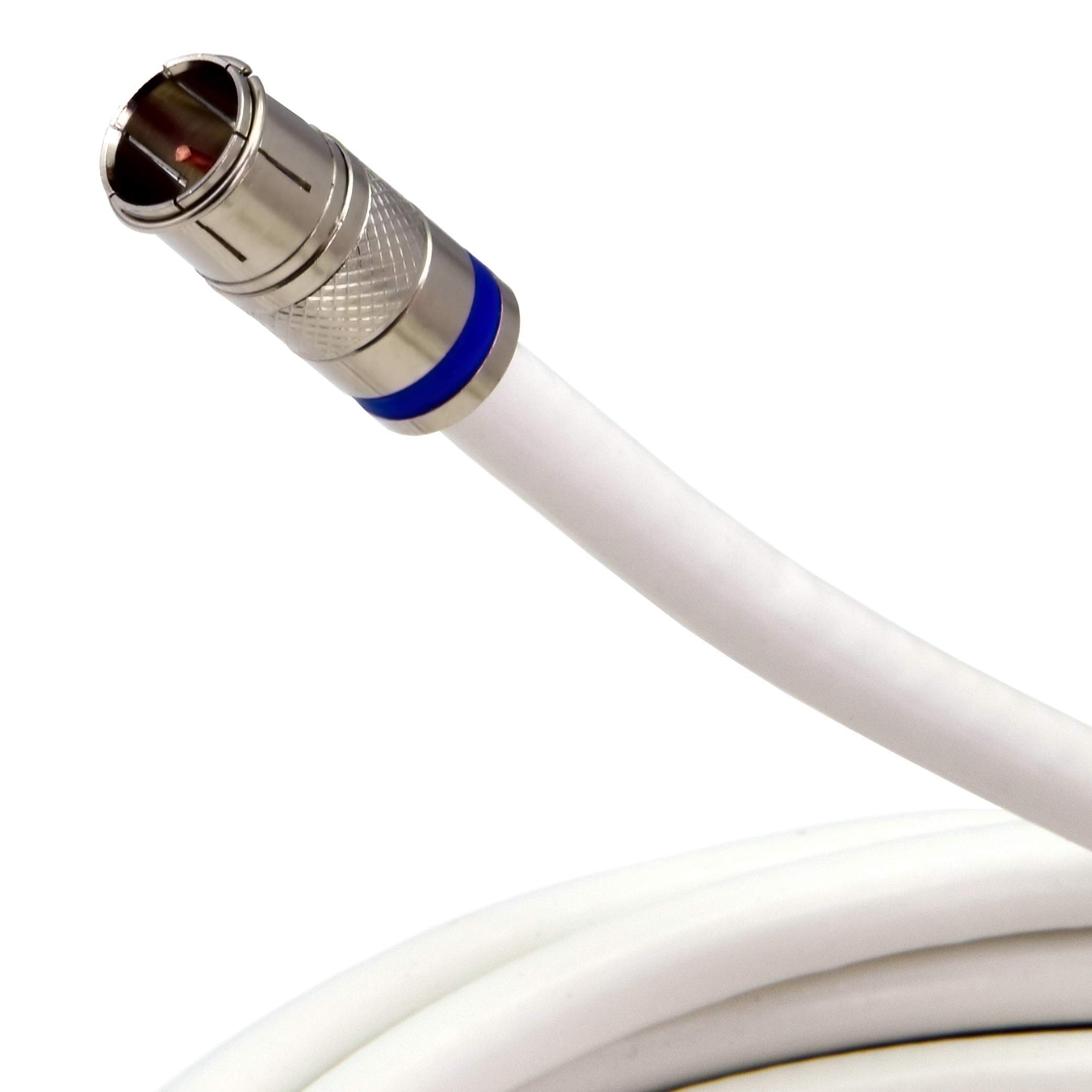

• With F quick plug for easy plugging onto antenna wall socket outlet

Product Description This coaxial cable has very low attenuation and is highly shielded. It is ideal for connecting a multimedia device such as a cable TV sert-top-box or cable modem for internet. The connection cable is also ideally suited for other devices and can be used for satellite TV, Freeview, terrestrial TV or radio. A good shielding is particularly important for the transmission of Internet data and HD digital signals, therefore it is also very well suited as a modem cable for the connection of cable modems or cable routers. Thanks to the triple shielding, interference signals from DECT telephones, LTE, mobile phones and microwaves are effectively suppressed. The shielding effectiveness is over 120 dB in the range 470 - 3000 MHz, at 30-470 MHz even over 130 dB. The coupling resistance is less than 2.5 mOhm/m (at 5-30 MHz). This corresponds to class A+. The inner conductor is made of pure copper with a diameter of 1 mm and an outer cable diameter of 6.9 mm. Minimum bending radius: 45 mm. The two plugs are permanently mounted on the cable. The F-quick connector can be plugged onto the usual F-socket of an antenna wall socket or similar (instead of being screwed on). This allows a fast connection in hard-to-reach places or antenna sockets. Only suitable for indoor use. Cable length: 10 m Box Contains antenna cable
