Saramonic BMCC-A01 XLR Audio Adaptor for Blackmagic Cinema Camera

• Two-channel xlr audio adaptor, specially designed for blackmagic cinema camera
• Professional audio devices such as xlr microphones, wireless mics, boom mics and mixing boards may be connected to the camera via this adaptor
• Audio from microphones will be passed to the camera by the bmcc-a01 with or without the use of a 9v battery.
• Allows the user to record high quality audio directly to the camera, eliminating the need for a separate audio recording device and syncing in the post editing work.

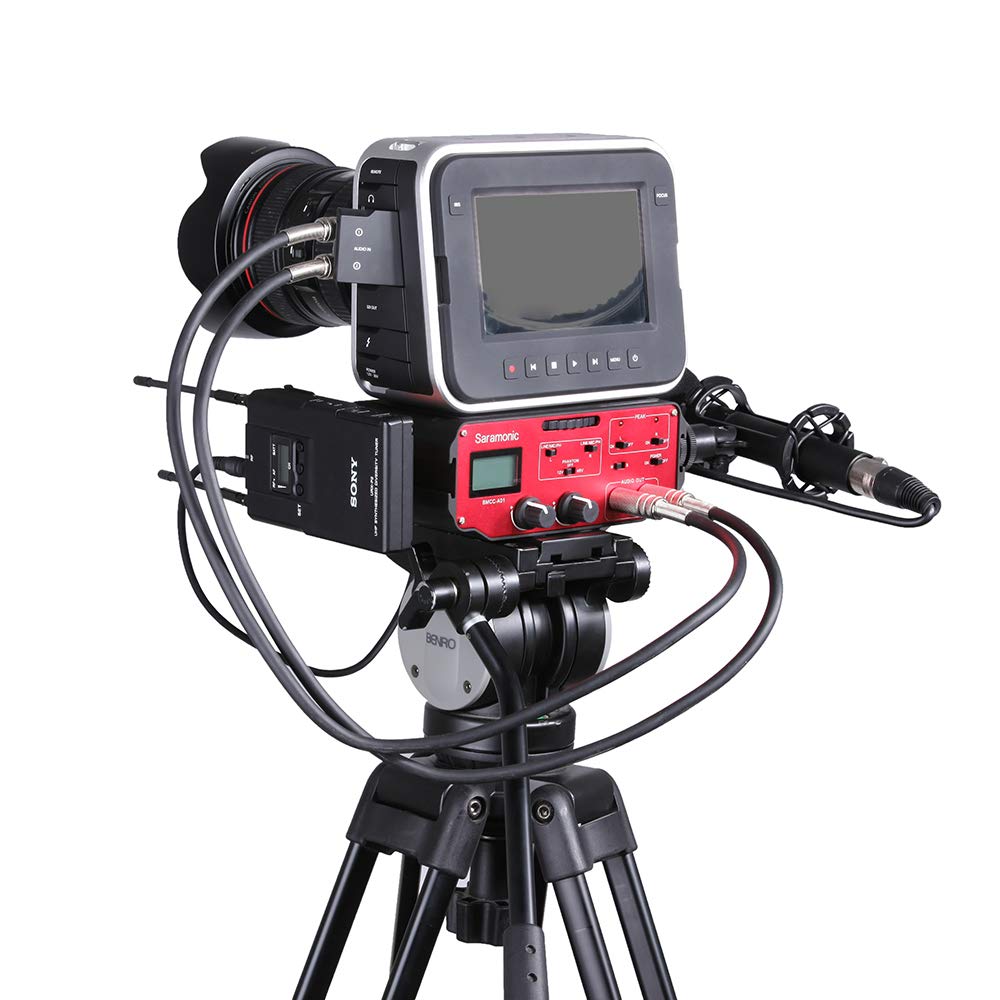

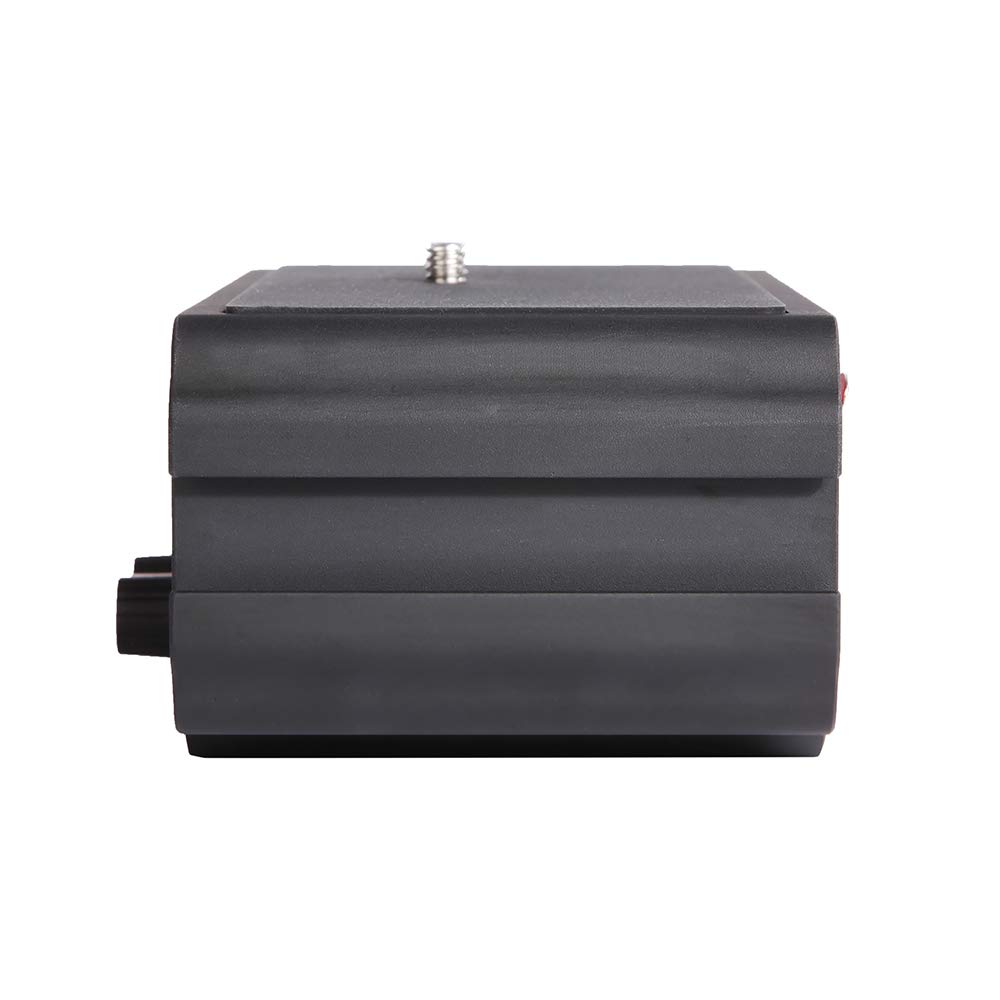

• Attaches to the base of the camera, and there is a threaded socket on the mixer base that allows for mounting on a tripod

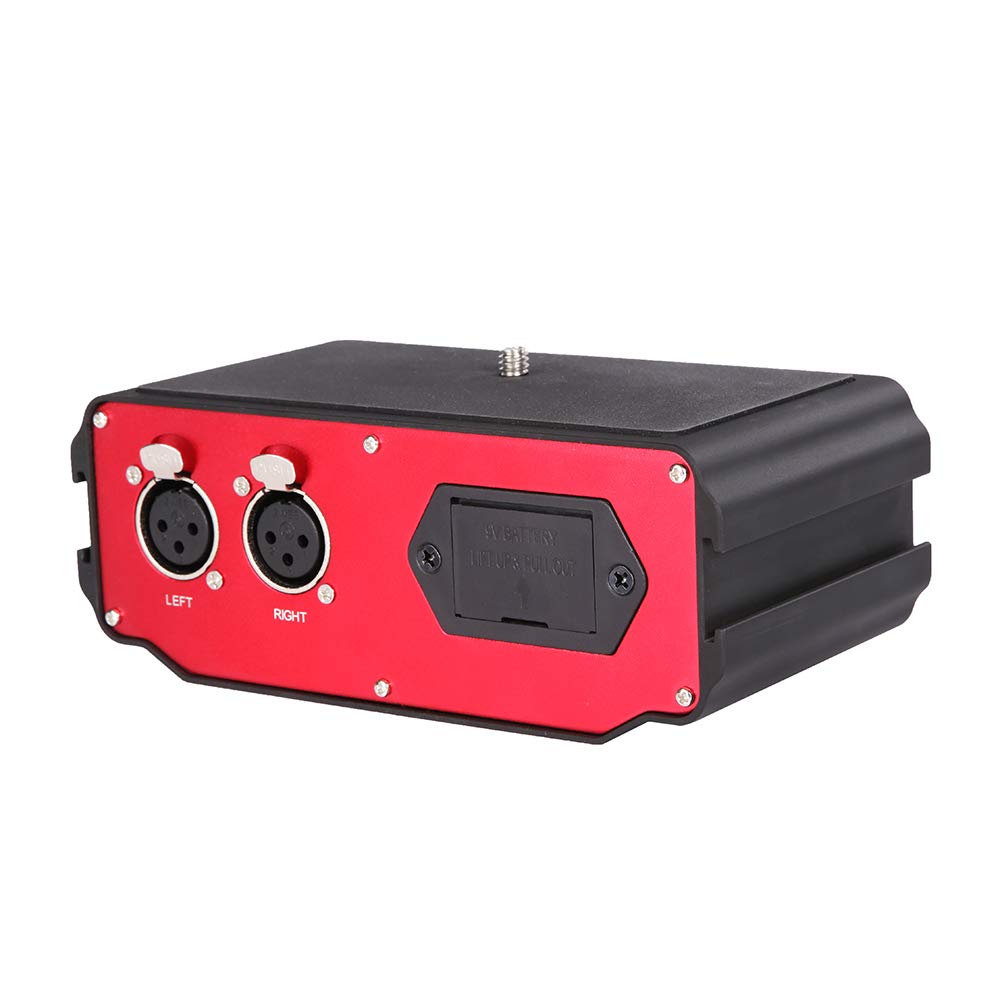

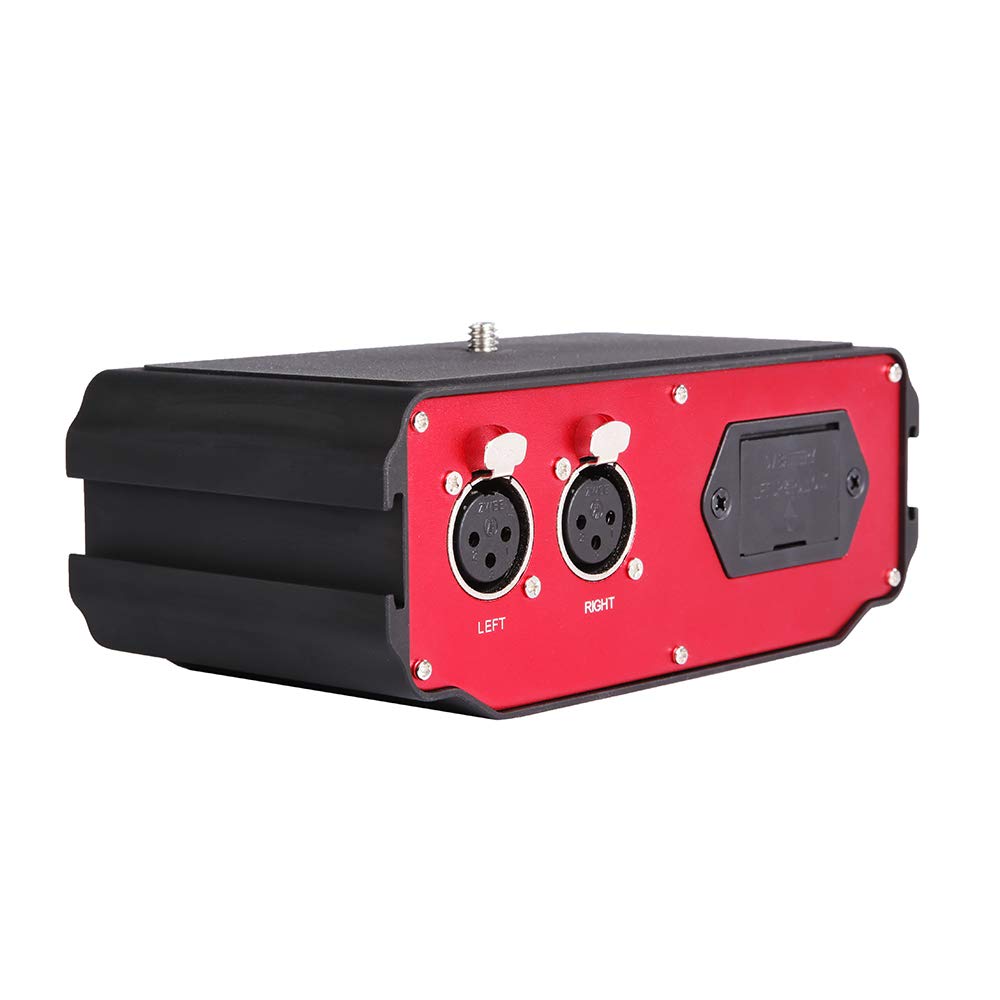

Product Description The Saramonic BMCC-A01 is a two-Channel XLR audio adaptor, specially designed for the Blackmagic Cinema Camera. A wide variety of professional audio devices such as XLR microphones, wireless mics, boom mics and mixing boards may be connected to the camera via this adaptor. Audio from your microphones will be passed to the camera by the BMCC-A01 with or without the use of a 9V battery. Advanced functions such as the level meter, 12V / 48V phantom power and LED are available when using a battery. Technical Information: Balanced left and right XLR inputs TRS 1/4 Audio Outputs: OUT 1 and OUT 2 (2 x 1/4 TRS balanced output cables included) Left and Right Trim Controls. Individually adjust the output levels of each channel M / S Switch. Select Mono or Stereo output mode. L and R LED Indicator: When the volume of LEFT and/or RIGHT channel is too high, the red LED will light for warning; please turn down the volume controller to a comfortable level. PH (phantom) Voltage. Select phantom voltage to 12V, 48V or off. Line / Mic / PH Switches. Selects LINE when camera is set to Line output. Select MIC when camera is set to MIC input. Selects PH when any channel requires phantom power Level meter. Indicates the sound level in dB for each channel Runs with or without a 9V battery (Battery not included) Attaches to the base of the camera, and there is a threaded socket on the mixer base that allows for mounting on a tripod Input Level: MIC 0dB on the level meter at -44 dBu input. LINE 0 dB on the level meter at +10 dBu input Gain: Unity Frequency Response: 10Hz to 100 kHz (+/- 0.5 dB) THD: Less than 0.01% @ 1 kHz, -30 dBu input S/N Ratio: 80 dB @ 1kHz, -30 dBu input Level Meter: -18 to +3 dB in 3 dB increments Battery Type: 1 x 9V alkaline or lithium battery (battery not included) Battery Duration: 6 hours approx. with alkaline battery (with phantom). 12 hours approx. with lithium battery (no phantom) Box Contains BMCC-A01 main unit two 1/4" TRS Balanced Output Cables user manual warranty card
