Sandvik Coromant V50-QC-C5-095 CAT-V to Capto adaptor with Quick change

• Benefits of this product family: Flexible with extensive modularity
• High basic stability and accuracy
• Minimized tool inventory
• Reduced set-up time

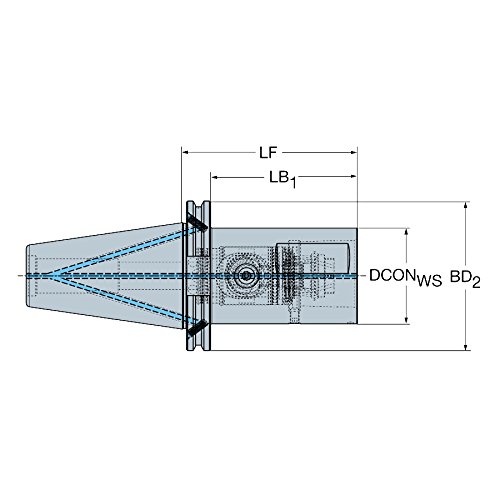

Product Description Part of the Coromant Capto product family. Coromant Capto is a modular quick change tooling concept offering three systems in one. Quick change tool holders reduce set-up and tool change time, leading to significantly increased machine utilization. Coromant Capto directly integrated in the spindle increases stability and versatility in e.g. multi-task machines, machining centres with turning capability and vertical lathes. Coromant Capto as a modular system for machining centres offers a large variety of extension- and reduction adaptors, enabling assembling of tools with different lengths and design characteristics regardless of the machine interface (SK, HSK, Big Plus). The modularity function means less need for expensive special tools with long delivery times. The same tools can thus be used in the entire workshop, providing unique flexibility, optimal rigidity and minimized tool inventory. PRODUCT SPECIFICATION: ADINTMS, Adaptive Interface Machine Direction: CAT-V -AD/B central/flange coolant - CAT-V50 ; ADINTWS, Adaptive Interface Workpiece Direction: Coromant Capto (segment clamping) -size C5 ; BBD, Balanced By Design: 1 ; BD1, Body Diameter: 50 mm ; BD1, Body Diameter: 1.9685 inch ; BD2, Body Diameter: 98.4 mm ; BD2, Body Diameter: 3.87402 inch ; BHTA1, Body Half Taper Angle: 0 deg ; BHTA2, Body Half Taper Angle: 0 deg ; BMC, Body Material Code: Steel ; CNSC, Coolant Entry Style Code: 7: decentral over flange and axial ; CP, Coolant Pressure: 80 bar ; CP, Coolant Pressure: 1160.3 lbf/in2 ; CRKS, Connection Retention Knob Thread Size: 1"-8 ; CXSC, Coolant Exit Style Code: 1: axial concentric exit ; DCON_WS, Connection Diameter: 50 mm ; DCON_WS, Connection Diameter: 1.9685 inch ; DPC, Damping Property: 0 ; LB1, Body Length: 75 mm ; LB1, Body Length: 2.95276 inch ; LB2, Body Length: 95 mm ; LB2, Body Length: 3.74016 inch ; LF, Functional Length: 95 mm ; LF, Functional Length: 3.74016 inch ; WT, Weight Of Item: 3.53 kg ; WT, Weight Of Item: 7.766 lbs ; Box Contains V50-QC-C5-095 + incl. in box: 5461 060-031, Draw bar set, (pcs. = 1, incl.); 3214 010-306, Set screw, (pcs. = 1, incl.); 5333 060-03, Cam shaft, (pcs. = 1, incl.); 3214 010-355, Set screw, (pcs. = 1, incl.); 3421 105-022, Circlip, (pcs. = 1, incl.); 5643 017-02, Dowel set, (pcs. = 2, incl.); 5680 035-07, Key extension, (pcs. = 1, incl.); 5692 012-01, Lubrication nipple, (pcs. = 1, not incl.); C-TK-01M, Torque wrench, (pcs. = 1, not incl.);
