Sandvik Coromant SNGN120716T025206190 T-Max insert for turning (Pack of 10)

• WT (weight of item, Metric): 0.0041 kg
• HAND (hand): N
• SUBSTRATE (Substrate ): CN
• CUTINT_SIZESHAPE (insert size and shape ): SN1207
• GRADE (grade ): 6190

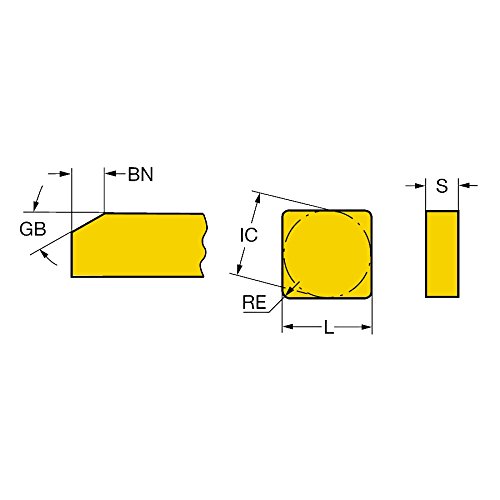

Part of the T-Max product family. PRODUCT SPECIFICATION: Material classification (TMC1ISO): K (ISO K Cast iron); Application: Finishing ; Grade: 6190 ; ISO Cutting Tool Material: CN ; Coating Type: Uncoated ; Substrate Type: CERAMIC ; AN, Clearance Angle Major: 0 deg ; BN, Face Land Width: 0.25 mm ; BN, Face Land Width: 0.009843 inch ; CTPT, Operation Type: Finishing ; CUTINT_SIZESHAPE, Insert Size And Shape: SN1207 ; GB, Face Land Angle: 20 deg ; HAND, Hand: N ; IC, Inscribed Circle Diameter: 12.7 mm ; IC, Inscribed Circle Diameter: 0.5 inch ; LE, Cutting Edge Effective Length: 11.1 mm ; LE, Cutting Edge Effective Length: 0.437008 inch ; RE, Corner Radius: 1.5875 mm ; RE, Corner Radius: 0.06248 inch ; S, Insert Thickness: 7.9375 mm ; S, Insert Thickness: 0.31252 inch ; SC, Insert Shape Code: S ; WEP, Wiper Edge Property: 0 ; WT, Weight Of Item: 0.0041 kg ; WT, Weight Of Item: 0.009 lbs ;
