Sandvik Coromant R216F-1230E-LP20A CoroMill 216F ball nose insert (Pack of 10)

• Benefits of this product family: High precision
• Excellent surface finish
• Cost effective compared to solid carbide solutions
• Easy to apply

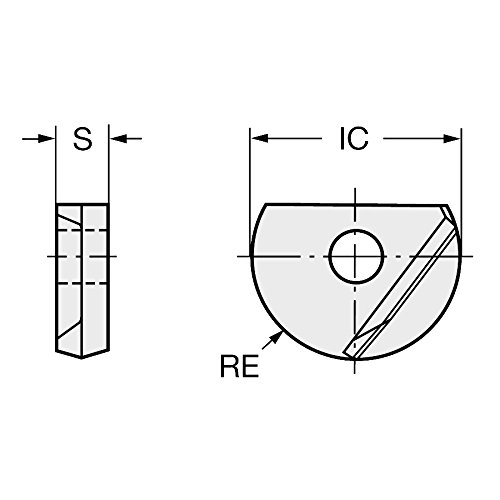

Part of the CoroMill 216F product family. The CoroMill216F cutter is used for finish milling of a range of materials used for die and mould-making, as well as for manufacturing of turbine blades within the aerospace industry. Its sharp edges cut hardened steel up to HRC 60 along with stainless steel, grey- or nodular cast iron, and aluminium. PRODUCT SPECIFICATION: Grade: P20A ; ISO Cutting Tool Material: HC ; Coating Process Type: PVD ; Coating Type: TiAlN ; Substrate Type: WC ; CBMD, Chip Breaker Manufacturer'S Designation: L ; CTPT, Operation Type: Light ; CUTINT_SIZESHAPE, Insert Size And Shape: CoroMill 216F metric -1230 ; DC, Cutting Diameter: 12 mm ; DC, Cutting Diameter: 0.472441 inch ; HAND, Hand: R ; IC, Inscribed Circle Diameter: 12 mm ; IC, Inscribed Circle Diameter: 0.472441 inch ; RE, Corner Radius: 6 mm ; RE, Corner Radius: 0.23622 inch ; S, Insert Thickness: 3 mm ; S, Insert Thickness: 0.11811 inch ; WT, Weight Of Item: 0.0055 kg ; WT, Weight Of Item: 0.0121 lbs ;
