Sandvik Coromant QS-3-80LL202034-10C CoroTurn 300 QS shank tool for turning

• Benefits of this product family : Chip control and long and predictable tool life
• High-quality surfaces
• Easy tool change for maximized production time
• Stable insert position
• Over- and under coolant

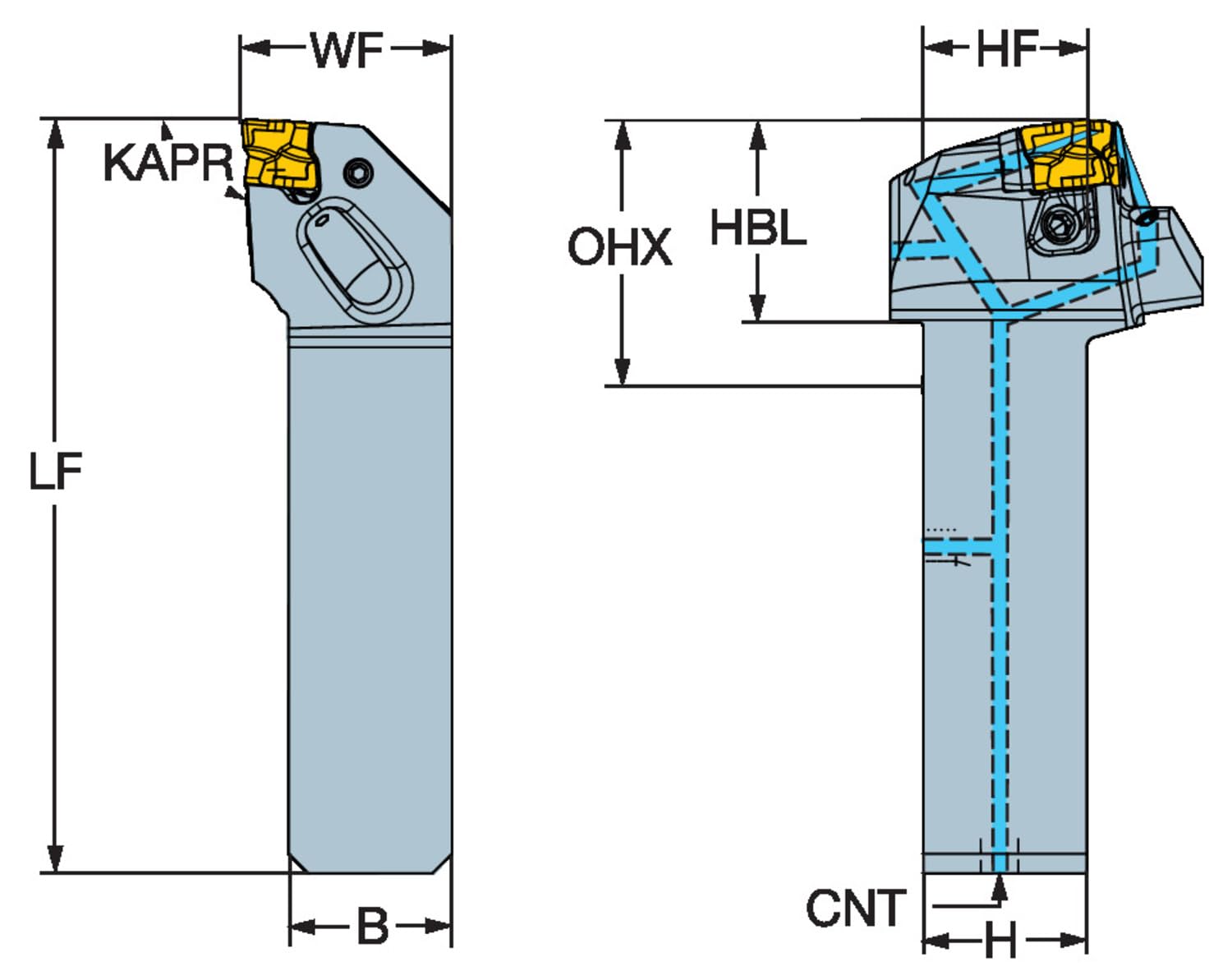

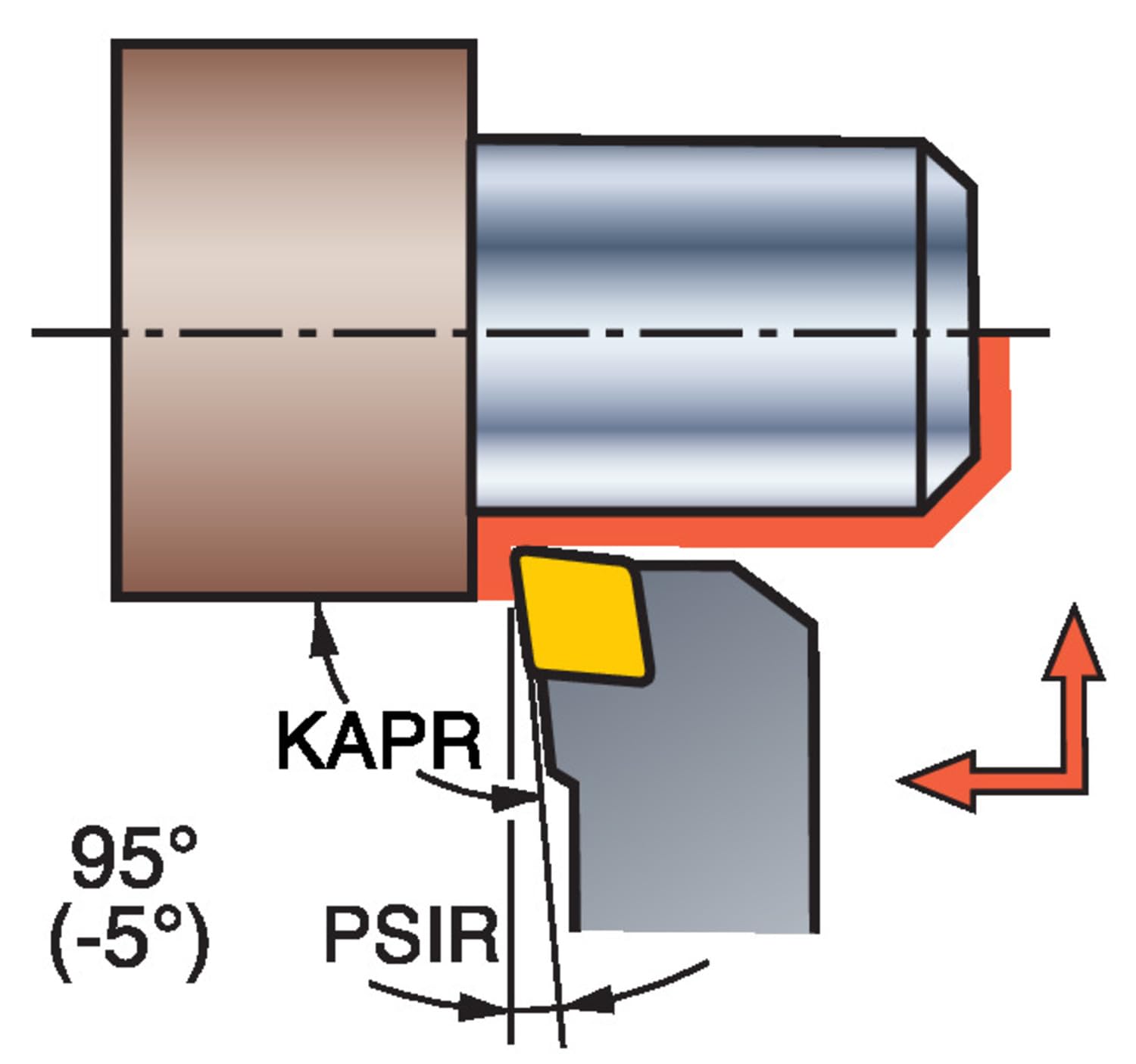

Product Description Part of the CoroTurn 300 product family. The eight-edged inserts of CoroTurn 300 ensure good heat transformation for predictable performance and wear. More edges also means fewer inserts which in turn means better control of the inventory. The geometries are designed for excellent chip breaking within their respective application areas. Last but not least; the eight-edged insert design means less carbide per edge which means less material to recycle and waste. Good for you and for the environment. PRODUCT SPECIFICATION: ADINTMS, Adaptive Interface Machine Direction: Rectangular shank -metric: 20 x 20 ; B, Shank Width: 20 mm ; B, Shank Width: 0.787402 inch ; BAMS, Machine Side Body Angle: 0 deg ; BAWS, Workpiece Side Body Angle: 0 deg ; BMC, Body Material Code: Steel ; CNSC, Coolant Entry Style Code: 3: axial concentric and radial entry ; CNT, Coolant Entry Thread Size: G1/8 ; CP, Coolant Pressure: 150 bar ; CP, Coolant Pressure: 2175.57 lbf/in2 ; CUTINT_MASTER, Part 2 Of Cutting Item Interface Identifiers: CoroTurn 300 -3-80-101108 ; CXSC, Coolant Exit Style Code: 8: decentral focused exit with nozzles ; DPC, Damping Property: 0 ; GAMO, Orthogonal Rake Angle: -5.5 deg ; H, Shank Height: 20 mm ; H, Shank Height: 0.787402 inch ; HAND, Hand: L ; HBL, Head Bottom Offset Length: 34 mm ; HBL, Head Bottom Offset Length: 1.33858 inch ; HF, Functional Height: 20 mm ; HF, Functional Height: 0.787402 inch ; KAPR, Tool Cutting Edge Angle: 94.7 deg ; LAMS, Inclination Angle: -6.466 deg ; LF, Functional Length: 103 mm ; LF, Functional Length: 4.05512 inch ; MIIDM, Master Insert Identification: 3-80-101108 ; OHN, Minimum Overhang: 34 mm ; OHN, Minimum Overhang: 1.33858 inch ; OHX, Maximum Overhang: 54 mm ; OHX, Maximum Overhang: 2.12598 inch ; PSIR, Tool Lead Angle: -4.7 deg ; RMPX, Maximum Ramping Angle: 0 deg ; TQ, Torque: 4.5 Nm ; TQ, Torque: 3.31903 ft lbs ; WF, Functional Width: 25 mm ; WF, Functional Width: 0.984252 inch ; WT, Weight Of Item: 0.471 kg ; WT, Weight Of Item: 1.0362 lbs ; Box Contains QS-3-80LL202034-10C + incl. in box: 5412 150-01, Clamp, (pcs. = 1, incl.); 174.1-864, Key, (pcs. = 1, incl.); 5512 104-02, Adaptor, (pcs. = 1, not incl.); 5512 104-03, Coolant stop screw, (pcs. = 1, not incl.); 5692 010-02, Coolant tube, (pcs. = 1, not incl.); 5680 083-01, Bit, (pcs. = 1, not incl.); 5680 046-04, Key, (pcs. = 1, not incl.); 3021 012-020, Key, (pcs. = 1, not incl.); 3021 010-050, Key, (pcs. = 1, not incl.); 5680 074-01, Key, (pcs. = 1, not incl.); 5516 010-02, Clamp screw, (pcs. = 1, incl.); 5322 600-01, Shim, (pcs. = 1, incl.); 416.1-832, Shim screw, (pcs. = 1, incl.); 5691 026-05, Nozzle, (pcs. = 1, incl.); 3214 013-03, Sealing plug screw, (pcs. = 1, incl.); 5512 104-01, Coolant screw, (pcs. = 1, incl.); 3214 013-01, Sealing plug screw, (pcs. = 1, incl.); 3214 012-01, Sealing plug screw, (pcs. = 1, incl.);
