Sandvik Coromant 266RG-16VW01A002M1125 CoroThread 266 insert for thread turning (Pack of 10)

• Benefits of this product family: Reduced machine- and downtime
• Excellent surface finish due to the exceptional stability
• High product consistency
• Three sharp cutting edges for high-quality threads
• Multi-point inserts available, require fever passes resulting in increased productivity

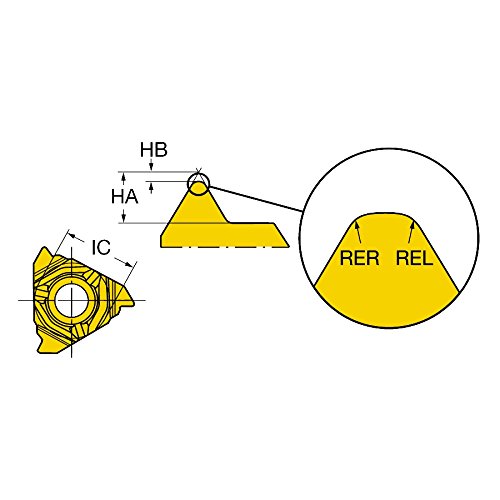

Part of the CoroThread 266 product family. CoroThread 266 is designed with an iLock interface to combat the extreme forces placed upon the insert in the threading operations. The tool guarantees excellent insert stability for ultimate accuracy, surface finish and product consistency. PRODUCT SPECIFICATION: Material classification (TMC1ISO): P (ISO P Steel); Grade: 1125 ; ISO Cutting Tool Material: HC ; Coating Process Type: PVD ; Coating Type: TiCr,AlN+ TiAlN ; Substrate Type: WC ; CBMD, Chip Breaker Manufacturer'S Designation: A ; CUTINT_SIZESHAPE, Insert Size And Shape: CoroThread 266/254 -external size 16R ; HA, Theoretical Thread Height: 2.79 mm ; HA, Theoretical Thread Height: 0.109843 inch ; HAND, Hand: R ; HB, Thread Height Difference: 0.26 mm ; HB, Thread Height Difference: 0.010236 inch ; IC, Inscribed Circle Diameter: 9.525 mm ; IC, Inscribed Circle Diameter: 0.375 inch ; NT, Tooth Count: 1 ; PDX, Profile Distance Ex: 1.5 mm ; PDX, Profile Distance Ex: 0.059055 inch ; PDY, Profile Distance Ey: 1.03 mm ; PDY, Profile Distance Ey: 0.040551 inch ; REL, Corner Radius Left: 0.23 mm ; REL, Corner Radius Left: 0.009055 inch ; RER, Corner Radius Right: 0.23 mm ; RER, Corner Radius Right: 0.009055 inch ; S, Insert Thickness: 3.96875 mm ; S, Insert Thickness: 0.15626 inch ; THFT, Thread Form Type: VP55 ; TPIN, Minimum Threads Per Inch: 8 ; TPIX, Maximum Threads Per Inch: 14 ; TPT, Thread Profile Type: P ; TTP, Thread Type: EXT ; WT, Weight Of Item: 0.0041 kg ; WT, Weight Of Item: 0.009 lbs ;
