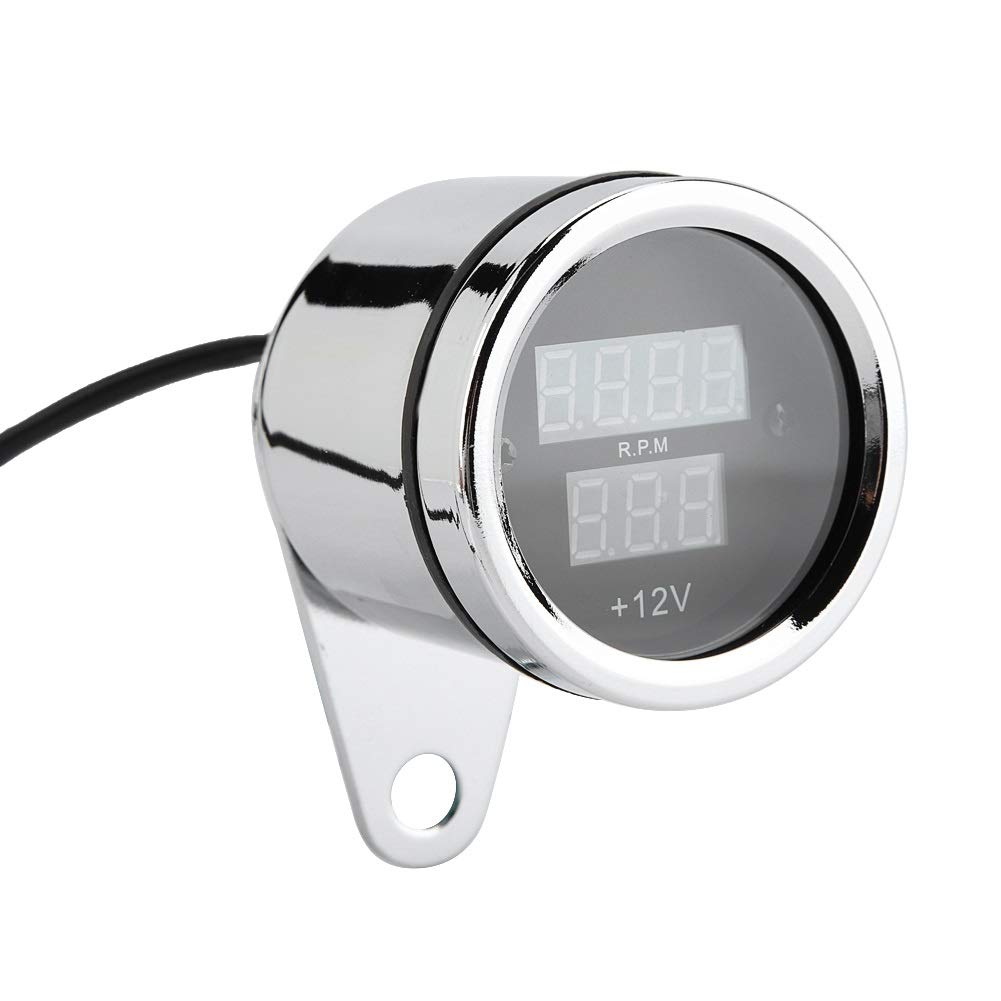

Samfox 2 In 1 Motorcycle Speedometer, General Metal LED Digital Voltmeter Tachometer Meter Metal Odometer Speedometer

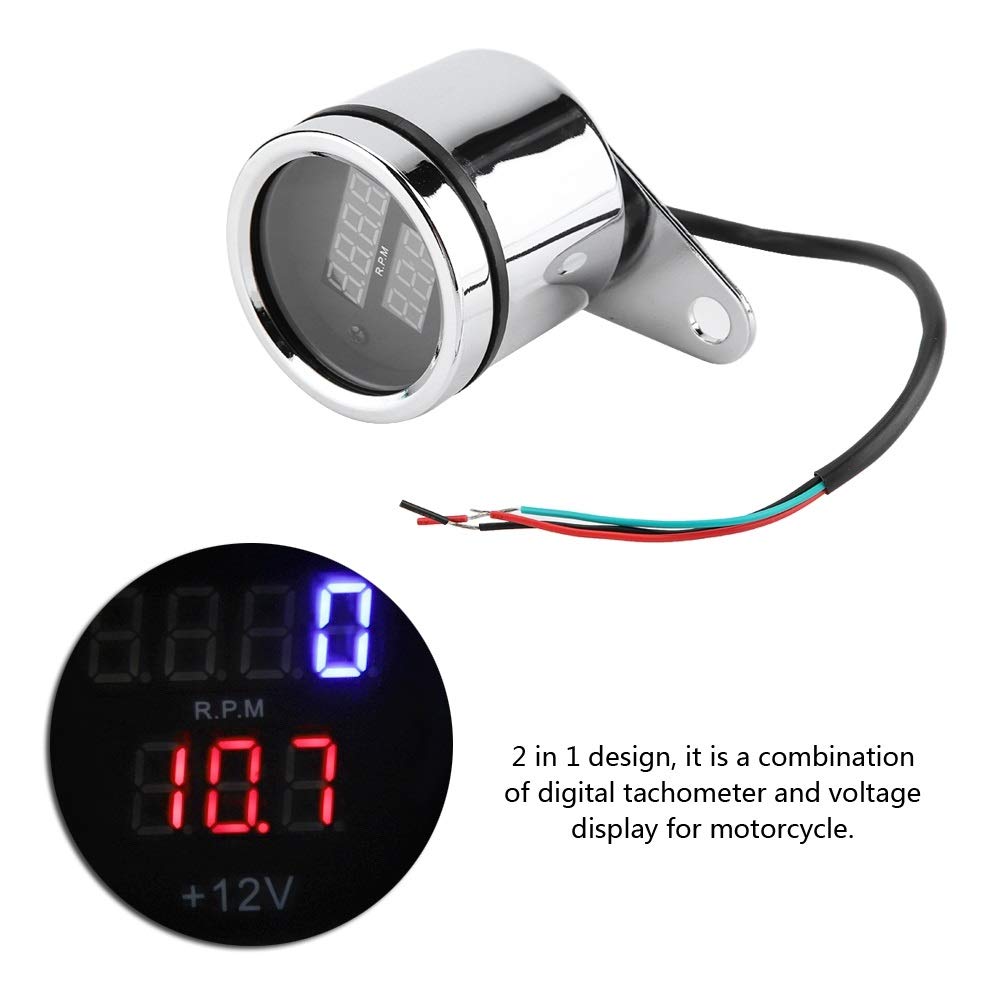

• This digital voltmeter features a two-in-one design combining a digital tachometer and motorbike voltage display. Made with excellent craftsmanship and durable metal materials. A motorbike accessory that is easy to ride and use.

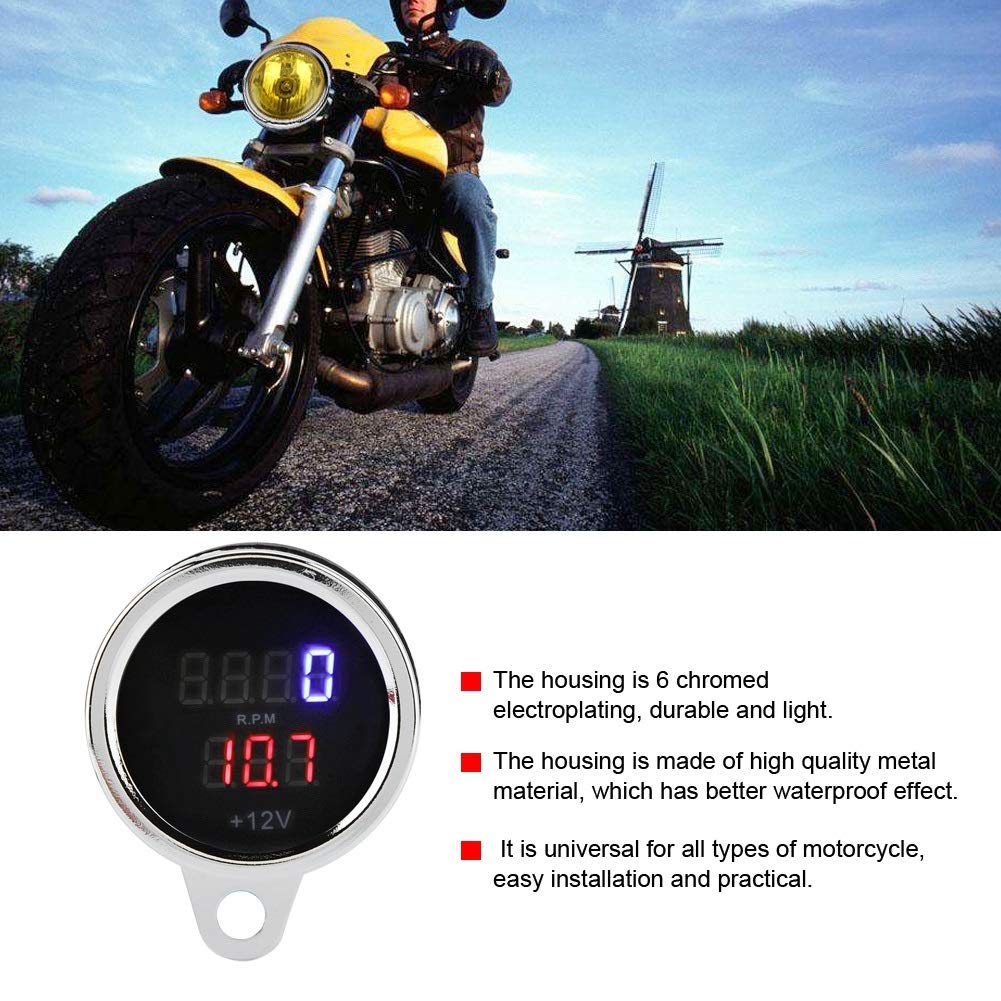

• The tachometer body is covered in 6 layers of chrome. The tachometer dial features anti-glare technology and is visible from all angles in the sun. Built-in high sensitivity chip for accurate data.
• The housing of the tachometer is made of high quality metal for better water resistance. Robust and light weight. Easy to install and can be done quickly without extra time and effort.
• Metal tachometers are common on all types of motorbikes. Excellent workmanship, consistent quality and long service life. Complete range of accessories, compact design and easy installation.
• The digital 2-in-1 motorbike LED speedometer is an indispensable tool for motorbike travel, it is sturdy in use and does not bend or break easily. Using it can provide great convenience for your life.

Installation and commissioning of the tachometer.1. Connect the positive and negative terminals to the power supply correctly.2. Turn on the electric door switch with the tachometer displaying 0, then allow the signal cable to touch the positive terminal of the power supply.If the digital display changes, it is working properly.3. Connect the signal cable and start the car, the speed can be displayed.How to install and commission the fuel gauge.1. Connect the positive and negative terminals to the power supply correctly.2. Turn on the electric door switch, the fuel gauge shows red frame, then connect the signal wire to the negative pole.Wait for a while, the LED lights will all light up slowly, indicating that it is working properly.3. Connect the signal wire, fill up with oil and slowly adjust the potentiometer so that all the LEDs light up.When the oil is used up, adjust the potentiometer slightly so that only one red LED lights up.Specifications.Item type: SpeedometerColour: SilverHousing material: high quality metalVoltage: 12 V DCLED colour: red and blueVoltmeter: for measuring the voltage on the motorbikeWiring instructions: Connect the red wire to the positive terminal and the black wire to the negative terminal. The emission test wire is the green wire (engine ignition induction wire or ignition wire from the ignition coil to the positive terminal).Setup: UniversalPacking list.1 * Tachometer
