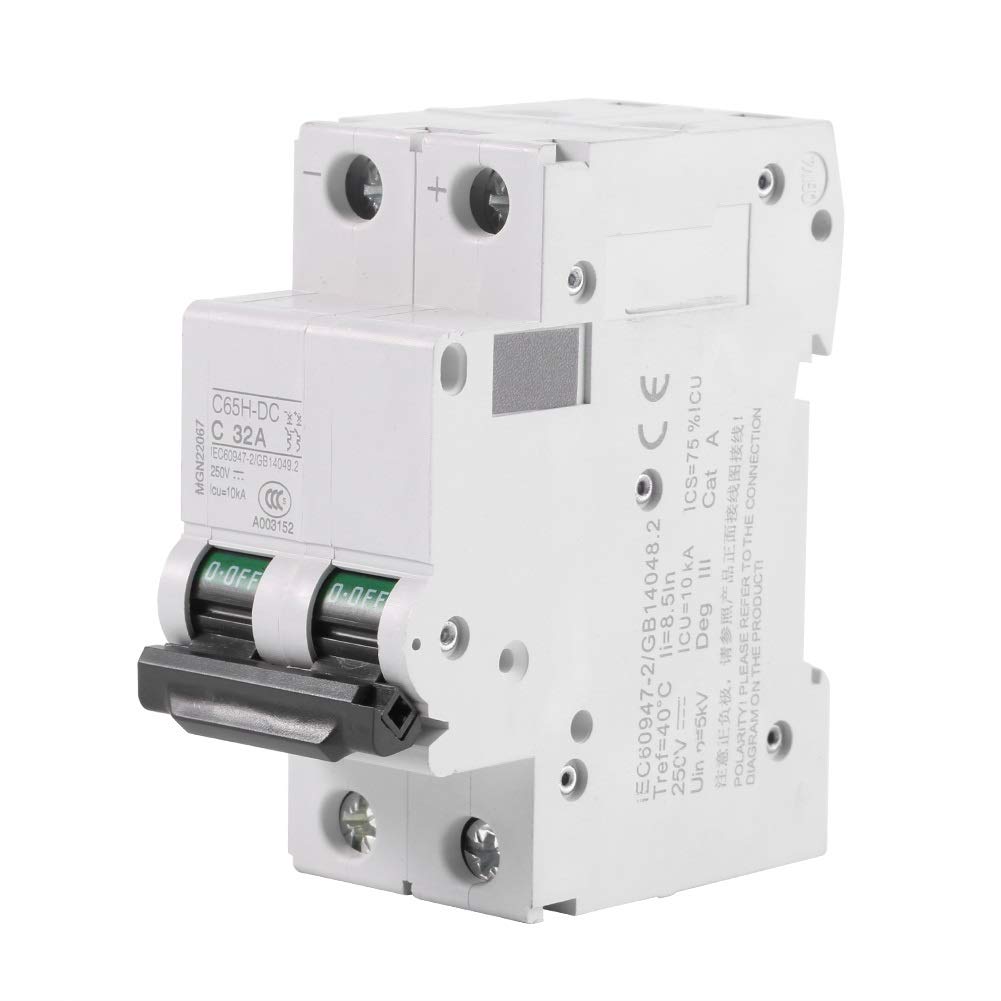

250V DC 2P Miniature Circuit Breaker Air Voltage Din Rail Mount Solar Power Switch for Solar Panels Grid System (Edition: 32A)

• This is a good circuit breaker with an electrical life of at least 8,000 times and a mechanical life of at least 20,000 times. Used to protect circuits from damage caused by overcurrent caused by overload or short circuit.
• Miniature circuit breakers can be closed quickly to ensure reliable load operation. Extends the life of electrical circuit breakers. Easy to install. Professional design, reasonable structure, easy to replace and use.
• The air circuit breakers are made of high quality materials and are sturdy and durable. Use can improve work efficiency, convenient and reliable use, support short circuit protection, overload protection.
• Miniature circuit breakers can be easily mounted on DIN rails, which are not included. With high anti-aging and corrosion resistance, powerful functions ensure high efficiency.
• Bipolar circuit breakers are tested several times before leaving the factory to provide corrosion protection and ensure high quality. Widely used in solar panels, wind-solar hybrid systems and many other DC systems.

Features: It is an excellent circuit breaker used to protect an electrical circuit from damage caused by excess current resulting from overload or short circuit. Quick release to ensure reliable load operation and extend the life of circuit breakers. It is easy to use, reliable and supports short circuit and overload protection. It can be easily mounted on DIN rail, DIN rail is not included. Widely used for solar panel grid system, wind and solar hybrid system and many other DC systems. Features: Model No.: C65H-DC 2P. Poles: 2P. Rated current: 16A / 32A / 63A (optional). Rated voltage: DC250V. Final Breaking Capacity (ICU): 10kA Trip features: B, C Nominal Pulse Withstanding Voltage (Uimp): 5kV Current Limiting Class: 3 Mechanical life: 20,000 times (IEC 60947-2 / GB14048.2). Electrical life: 10,000 times (IEC 60947-2 / GB14048.2). Operating temperature: -25 ~ +70 Storage temperature: -40 ~ + 85 °C. Heat and moisture resistance: 55°C, 95%RH Size: 8.2 x 3.6 x 7 cm/3.22 x 1.41 x 2.75 inches. Package includes: 1 x circuit breaker
