S-MAHO2 Magnetic Stand with Magnetic Base and Comparator Clock, Resolution 0-10 mm 0.01 mm

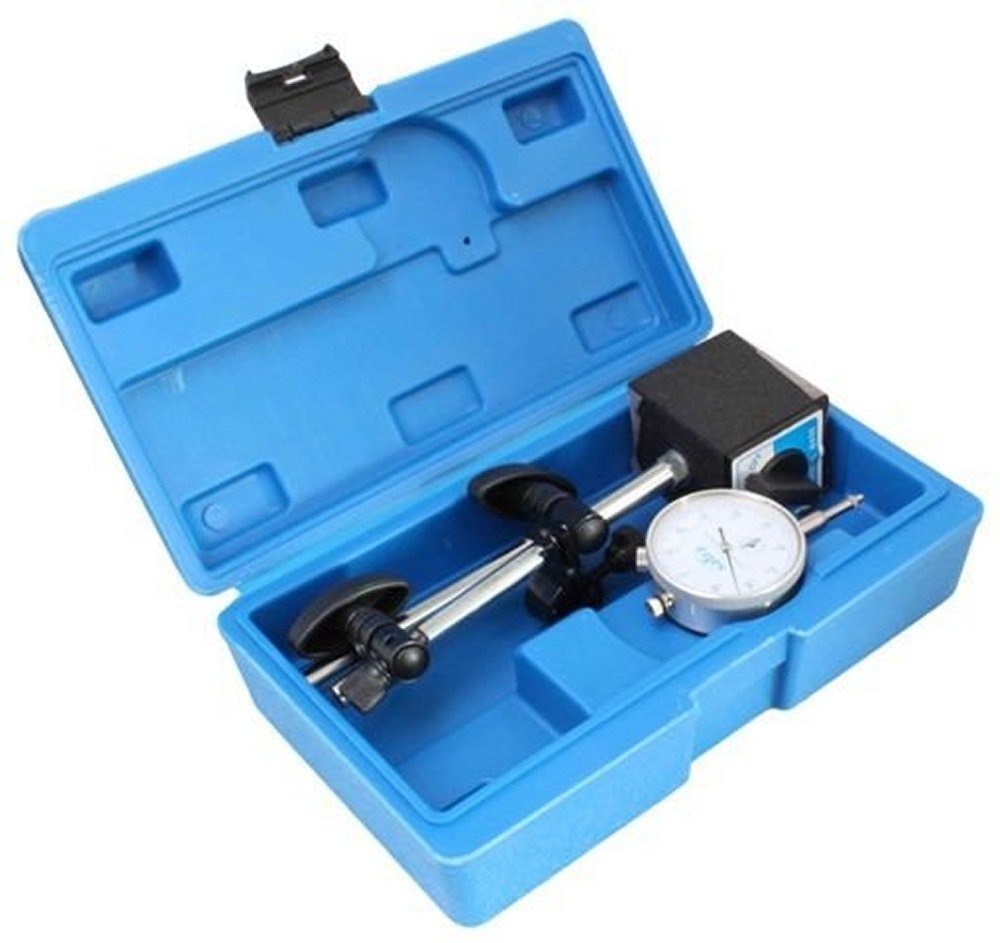

• S-MAHO2 Magnetic Measuring Instrument Stand Set with Analog Comparator Clock and Storage Box
• Indicator bracket description: versatile, lockable, with fine adjustment, chrome linkage, 2 milled magnetic surfaces (horizontal and vertical) with prismatic sole, plug-in and disconnectable magnet and 8mm measuring head holder.
• Technical data of the measuring bracket: total height with magnetic block: 228 mm; column height: 175 mm; linkage length: 150 mm (divided with fine adjustment); magnetic block dimensions: width: 50 mm; height: 55 mm; depth: 60 mm - threaded linkage.

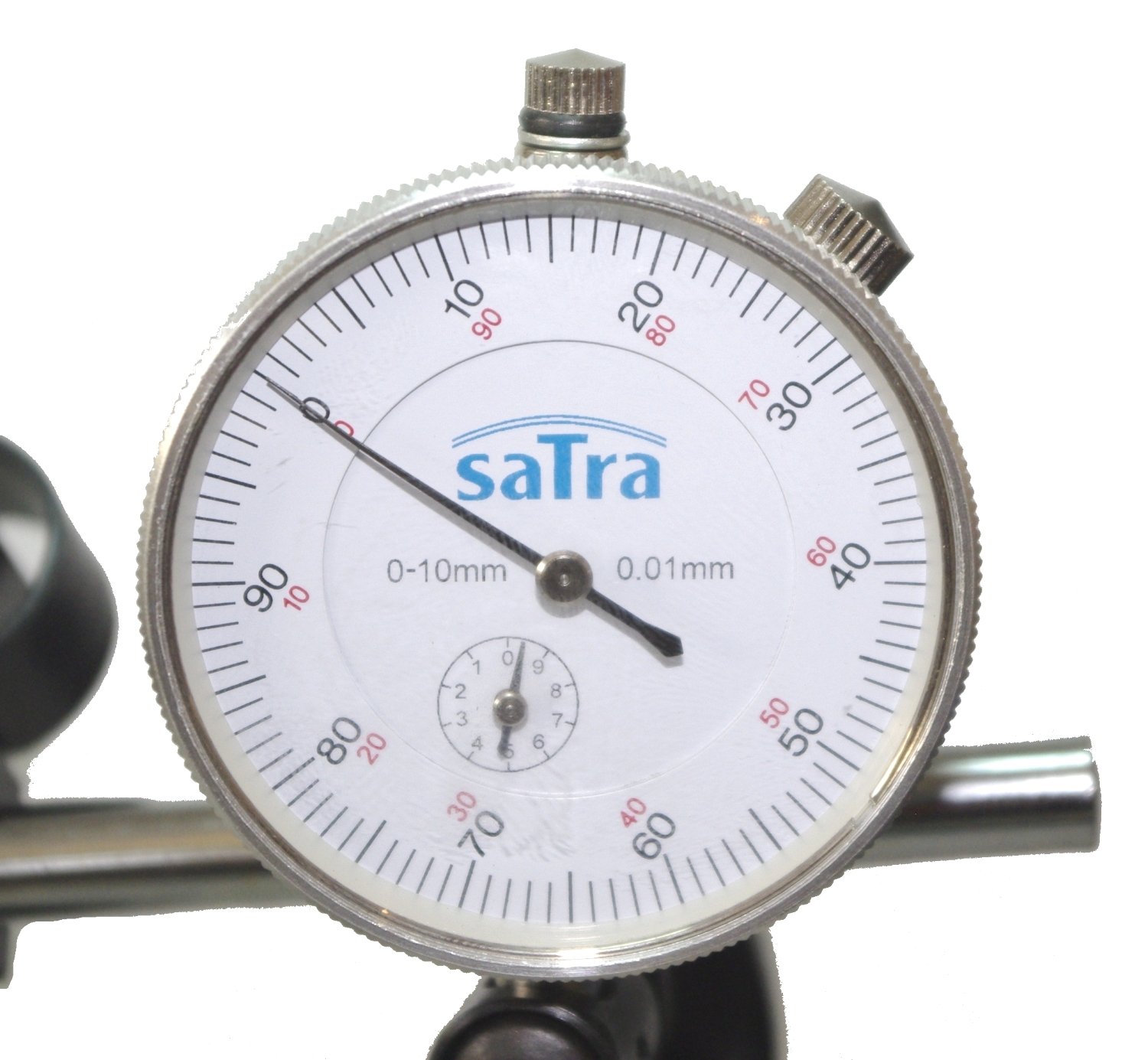

• Comparator watch description: comparator watch with metal housing, adjustable to zero position, 58mm diameter indicator, measuring range 0-10mm, revolution counter, 1 revolution = 1mm.
• Resolution/reading accuracy: 0.01 mm, rear attachment ring, interchangeable probe tip, 8 mm clamping shaft for mounting on measuring bracket.

Description S-MAHO2 Magnetic Measuring Instrument Stand Set with Analog Comparator Clock and Storage Box Indicator bracket description: versatile, lockable, with fine adjustment, chrome linkage, 2 milled magnetic surfaces (horizontal and vertical) with prismatic sole, plug-in and disconnectable magnet and 8mm measuring head holder. Technical data of the measuring bracket: total height with magnetic block: 228 mm; column height: 175 mm; linkage length: 150 mm (divided with fine adjustment); magnetic block dimensions: width: 50 mm; height: 55 mm; depth: 60 mm - threaded linkage: M8. Comparator watch description: comparator watch with metal housing, adjustable to zero position, 58mm diameter indicator, measuring range 0-10mm, revolution counter, 1 revolution = 1mm. Resolution/reading accuracy: 0.01 mm, rear attachment ring, interchangeable probe tip, 8 mm clamping shaft for mounting on measuring bracket.
