RUNCCI-YUN 24 Pcs 2.1MM x 5.5MM DC Power Barrel Plug Male Jack Socket/Female Panel Mount DC Connector Kit DIY Adapter Connector

• ★DC Power Jack Plug Connector Size : 5.5MM x 2.1MM (External Diameter x Internal Diameter ); Color : Black,Silver Tone
• ★Plastic Material: High Temperature Resistant Nylon Material; Surface Plating: Silver Plating

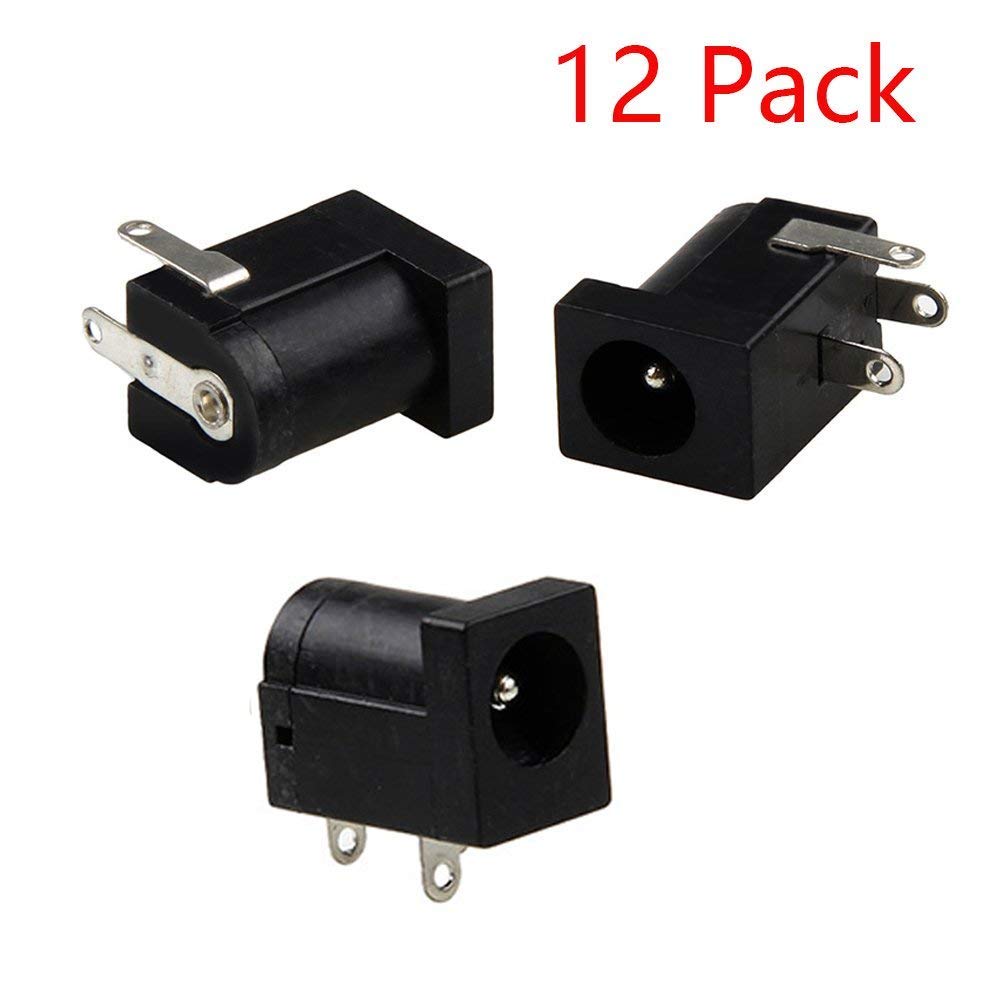

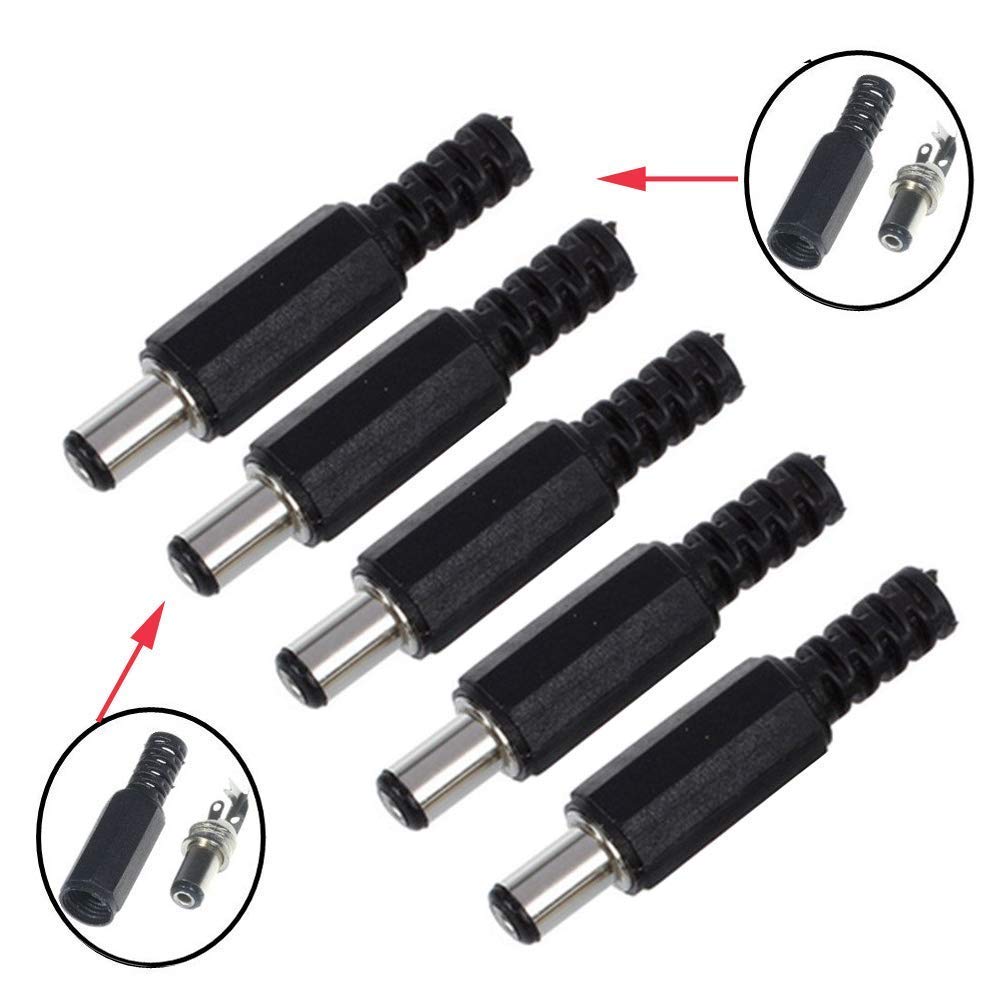

• ★Male DC Plug + Female DC Panel Socket , Solder Terminal Connector
• ★Female Male DC Solder Adapter Connector Application to Media Player, MP3 Player, MP4 Player, Audio-Video Equipment, AV Equipment, Note Book, Cellular Phone, Mobile Phone, Cell Phone, Smart Phone, PDA, Car Audio etc.
• ★Package Include:12 x DC Male Plug Connector＋12 x DC Female Screw Panel Socket

5.5MM x2.1 MM DC Male Plug Specification: Voltage rating ：30V AC,DC Current rating：1A Contact resistance：≤30mΩ Insulation resistance：≥100MΩ Withstand voltage ：50-60Hz. 500.60S Work temperature：-40℃+85℃ The above information is measured with error 0.05-0.2 5.5MM x 2.5MM Female DC Panel Socket Specification Voltage rating ：50V DC Current rating：1A Contact resistance：≤30mΩ Insulation resistance：≥100MΩ Withstand voltage ：50Hz. AC500V/60S Work temperature：-16℃+65℃ The above information is measured with error 0.05-0.2 DC male & female Connectors are attached to a power cable using solder terminals, perfect for making a cable to a desired length or replacing a broken connector. Application to Media Player, MP3 Player, MP4 Player, Audio-Video Equipment, AV Equipment, Note Book, Cellular Phone, Mobile Phone, Cell Phone, Smart Phone, PDA, Car Audio etc. Solder to the solder terminals and connect a DC Barrel plug into the end. Package Include:　12 x DC Male Plug Connector＋ 12x DC Female Screw Panel Socket
