RUNCCI-YUN 200PCS 3mm High Knob Vertical Micro Mini Slide Switchs,3 Pin 2 Position 1P2T SPDT Toggle Switches Panel Mount DC 50V 0.5A SS12D00-G3

• ✔Product Name: Slide Switch;Type: 1 Pole 2 Throw.Material: plastic, metal;Rated Voltage: DC 50V; Rated Current: 0.5A

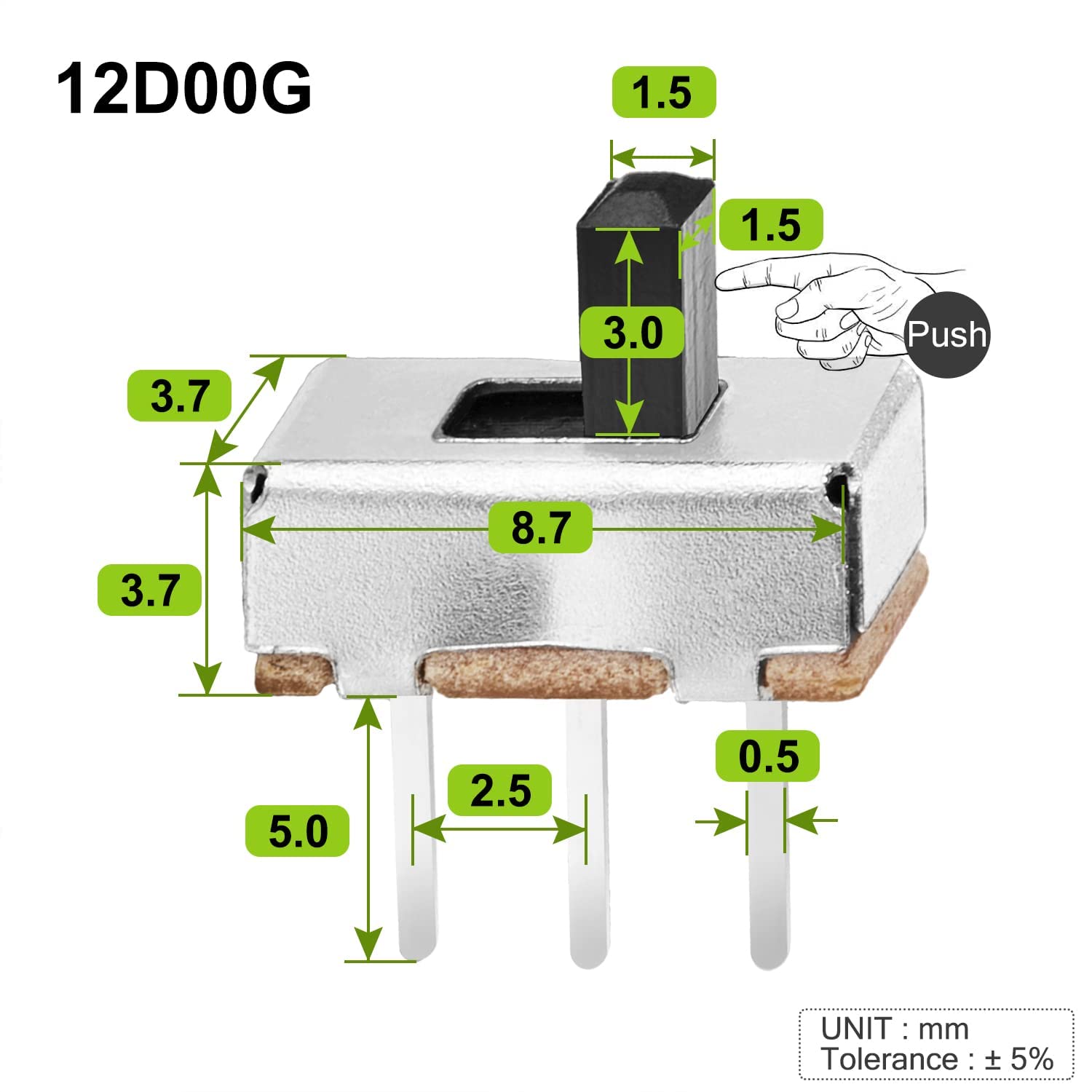

• ✔Soldering Pin Size:3mm/ 0. 12"; Pin Pitch: 2. 54mm / 1"; Main Body Size(not include Pins & Knob): 8 x 4 x 3. 8mm/ 0. 31" x 0. 16" x 0. 15"(L*W*H)
• ✔Switch Total Size: 8 x 4 x 10mm/ 0. 31" x 0. 16" x 0. 39"(L*W*H); Knob Size: 1. 5 x 1. 5 x 3mm/ 0. 06" x 0. 06" x 0. 12"(L*W*H)
• ✔Package Content:200 Pcs x Slide Switch
• ✔Wide use:Widely used to control the operation of many low-power electronic projects, including audio, video volume and other controls, lighting dimming control, etc

slide switch Specifications: Type: 1 Pole 2 Throw (1P2T) Terminal quantity: 3 Rated Current: 0.5A Rated voltage: 50V DC Pin Spacing: 2. 54mm / 1" Clamp Length: 3mm/ 0.12" Main body size (without pins and knob): 8 x 4 x 3.8 mm/ 0.31" x 0.16" x 0.15" (L*W*H) Features: This 1P2T mini slide switch is designed with 3 soldering lugs, can be easily soldered on the PCB surface. Widely used to control the operation of many small power electronic projects, including audio video volume and other controls, light dimmer controls, also a great DIY component. Contents of delivery: 200x slide switches
