RUNCCI-YUN 150PCS Insulated Piggyback Spade Connectors Quick Disconnect Electrical Terminals Wire Crimp Connectors Kit Red，Blue，Yellow (22-16 16-14 12-10 AWG)

• ✔【GOOD CONDUCTIVITY】The metal part of the connector is made of tin-plated brass, which has good conductivity and low resistance, and is not easy to heat.
• ✔【CONVENIENT】 Industry standard color-coded to indicate wire size range, which is convenient to distinguish the range of wires, so that the wiring plane is clear, orderly and beautiful.

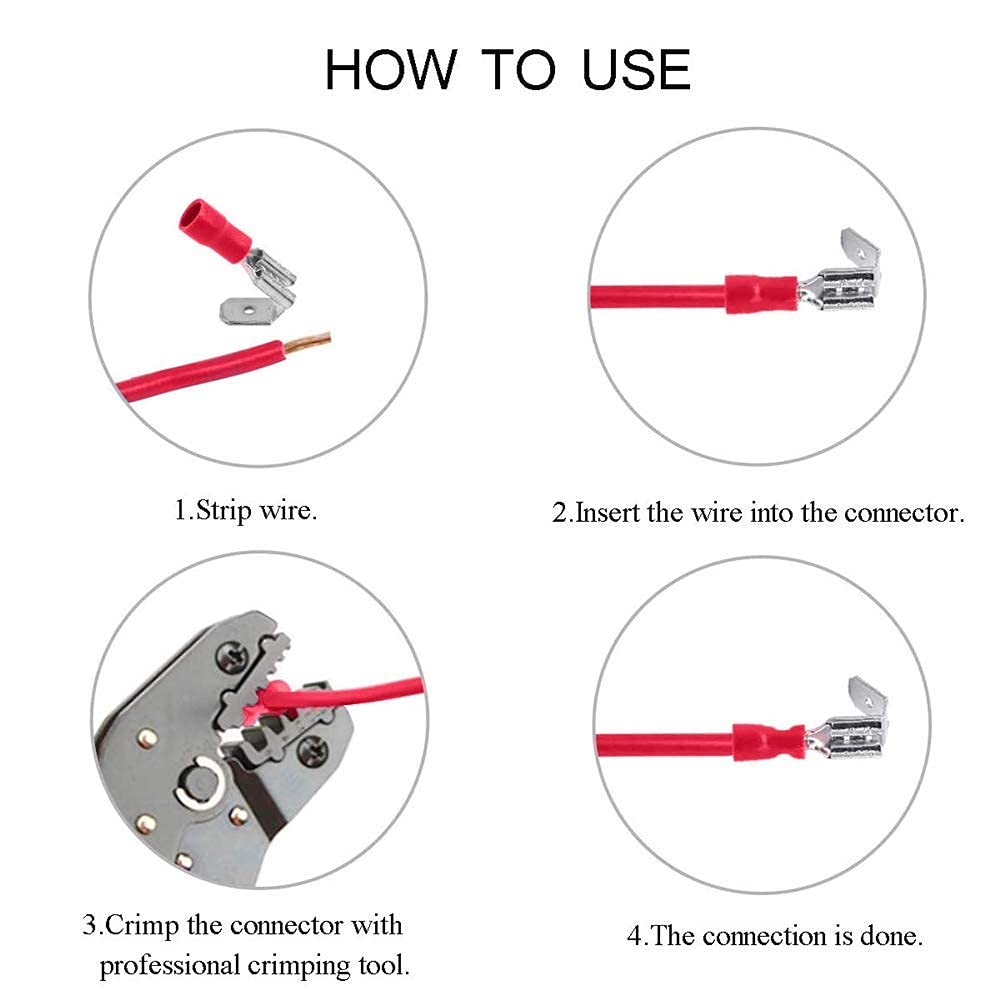

• ✔【EASY TO USE】 The insulation has a flared entrance for easier wire insertion.

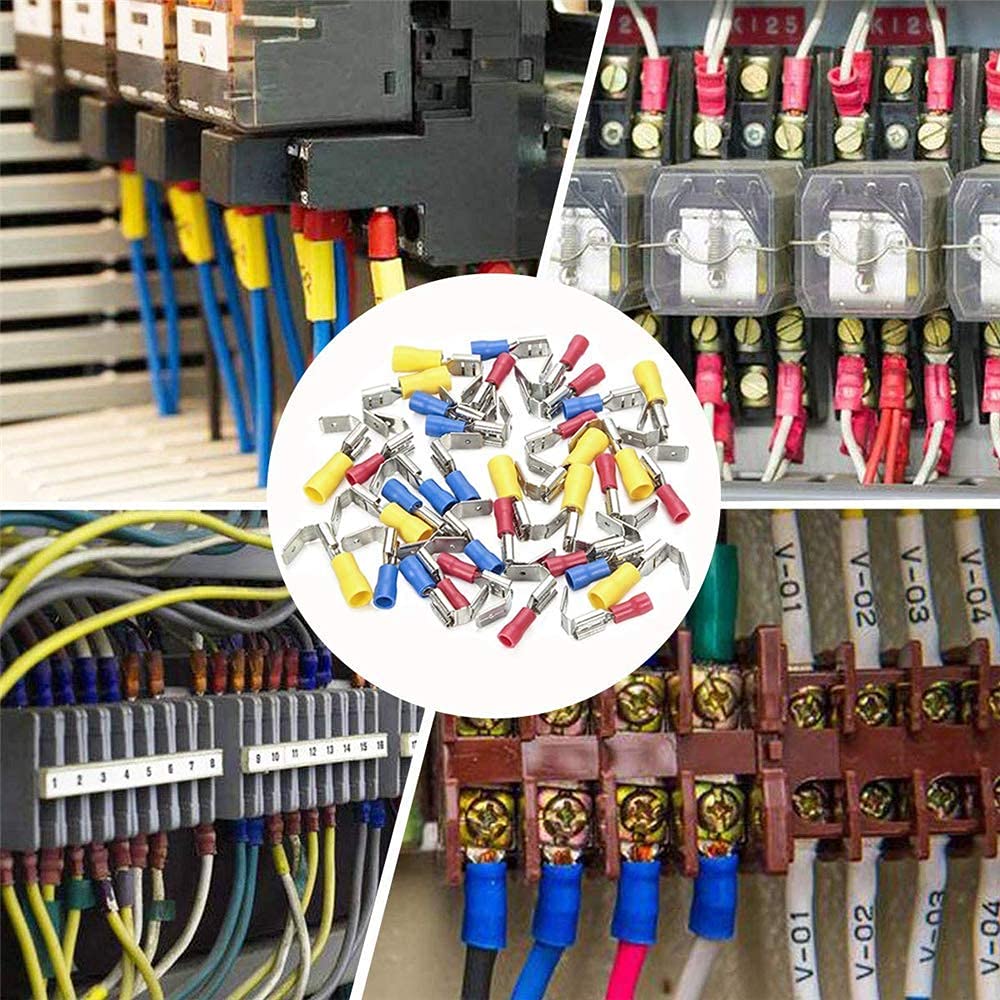

• ✔【WIDE APPLICATIONS】 Widely used in automotive, marine applications, industrial electronics, etc. But also used in various other applications that complete 1 to 1, 1 to 2, 1 to 3 or 1 to more electrical wiring.

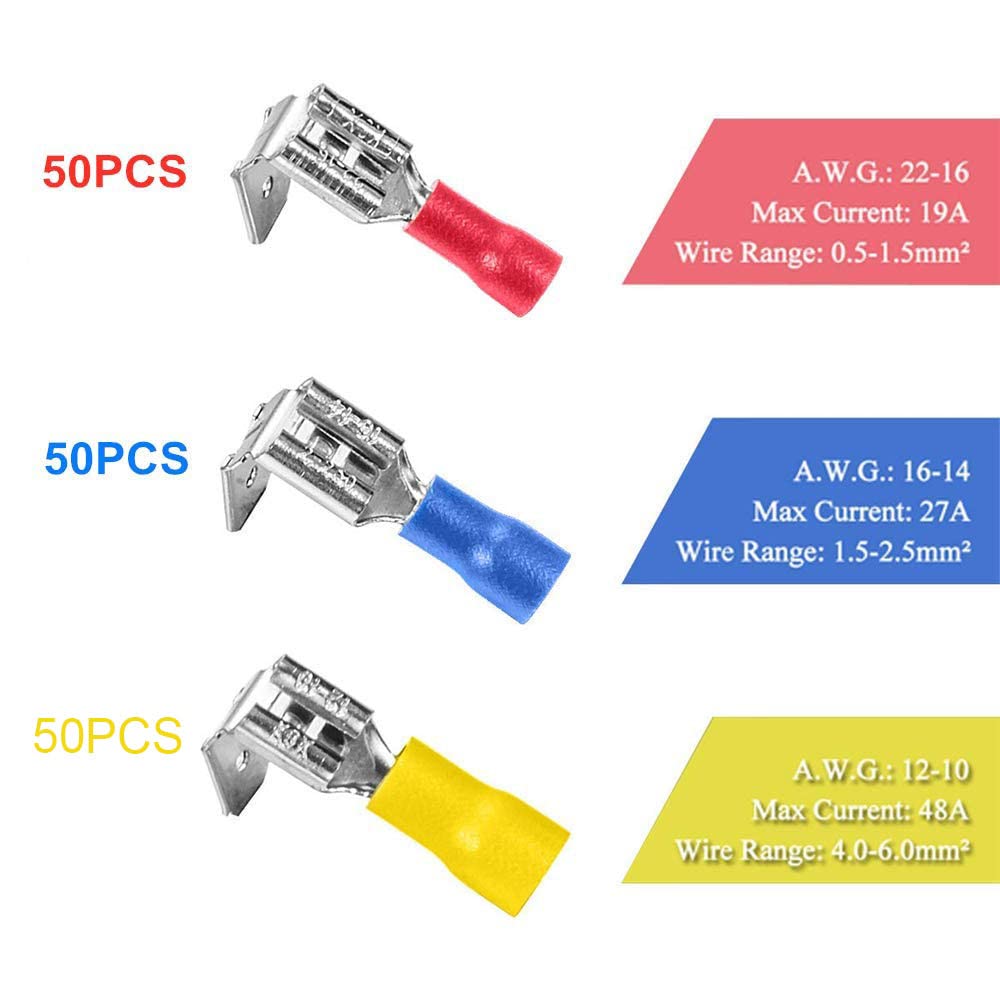

• ✔【Package Includes】C150 pieces piggyback crimp connectors. Red: 50 pieces 22-16 AWG; Blue: 50 pieces 16-14 AWG; Yellow: 50 pieces 12-10 AWG.

Non-insulated piggyback push-on terminals are female connectors that mate with an additional male connector and have an additional male connector to connect primary and secondary wires in one connection. A non-insulated piggyback clamp is best when special performance or installation characteristics are not required. Technical specifications: Product Type: Piggy Back Spade Quick Splice Wire Terminals Metal Material: Tin Plated Brass Interface type: AC / DC Insulation Material: Nylon Rated voltage: 600V Properties: Fire resistance / flame retardant Manufacturing process: cold pressing Appearance Color: Red Wire Sizes: 22-16AWG/0.5-1.5mm2 Maximum current: 10A Appearance Color: Blue Wire Sizes: 16-14AWG/0.5-1.5mm2 Maximum current: 15A Appearance Color: Yellow Wire Sizes: 12-10AWG/4-6mm2 Maximum current: 24A What's in the box: Pack of 50 Red 22-16 AWG Piggy Back Spade Quick Splice Wire Terminals Pack of 50 Blue 16-14 AWG Piggy Back Spade Quick Splice Wire Terminals 50 Pack Yellow 12-10 AWG Piggy Back Spade Quick Splice Terminals
