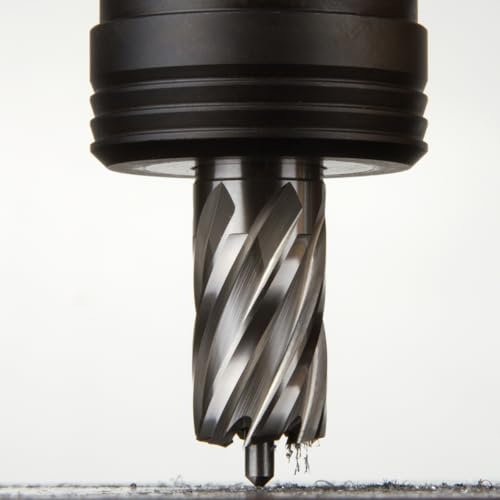

TERRAX 108224TX - Broca hueca - HSS vástago Weldon - Profundidad de Corte 30 mm (Ø 24 mm)

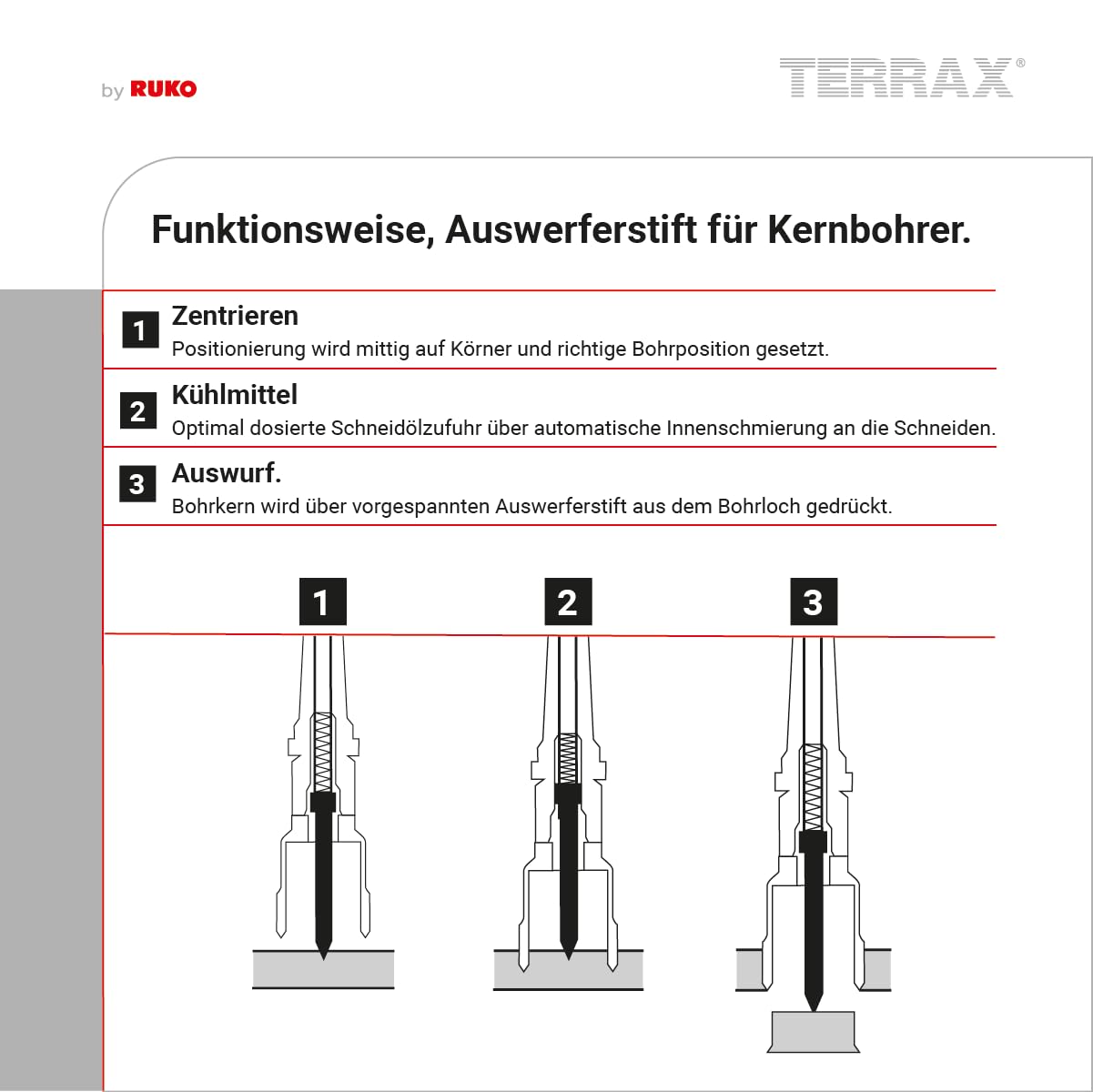

• Core drills only cut the tooth width, the drill core is ejected
• Thanks to an advanced cutting edge geometry, a significantly improved cutting behaviour was achieved, which has a positive effect on the cutting performance and service life
• Centring, pre-drilling and drilling is no longer necessary

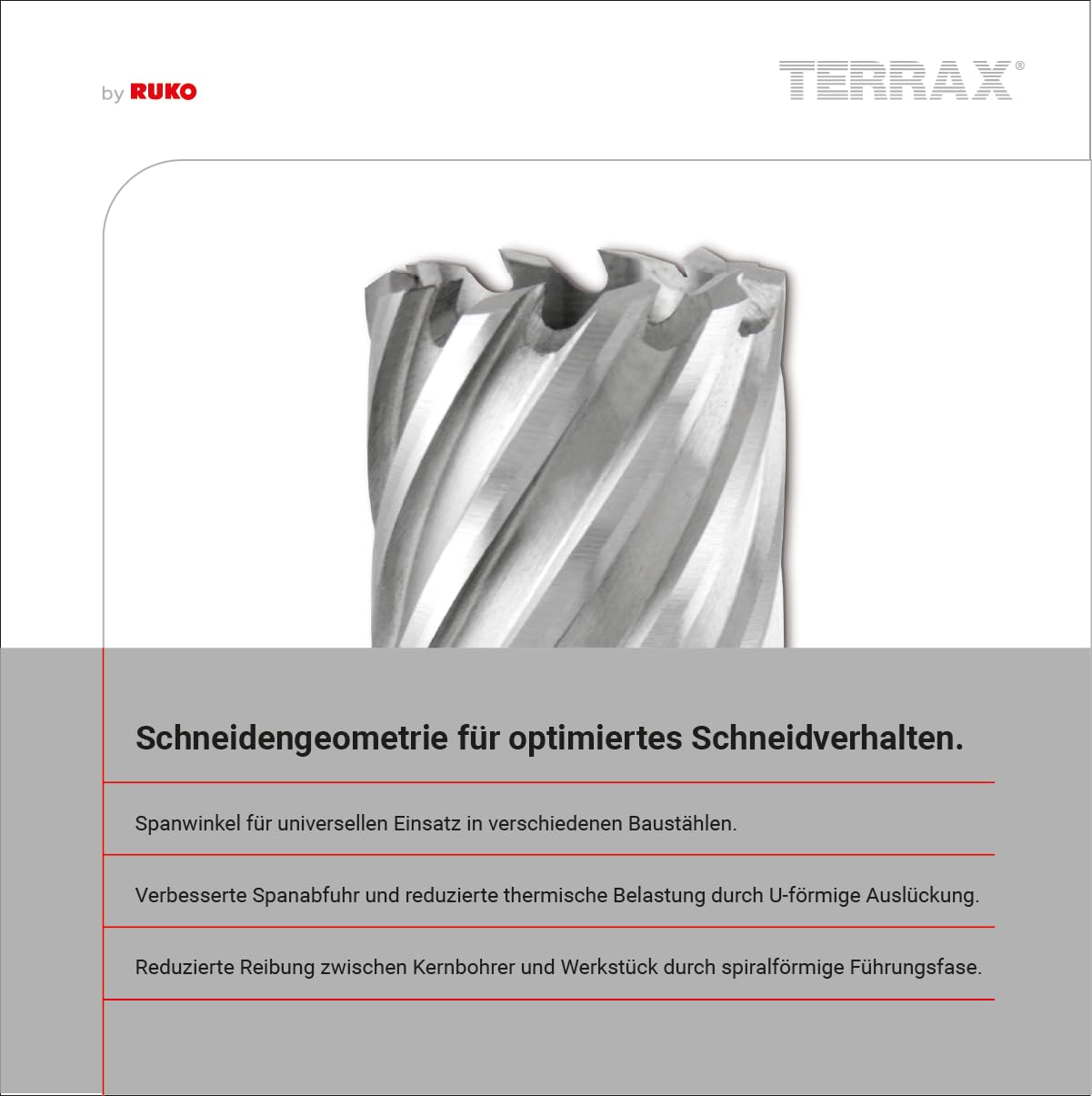

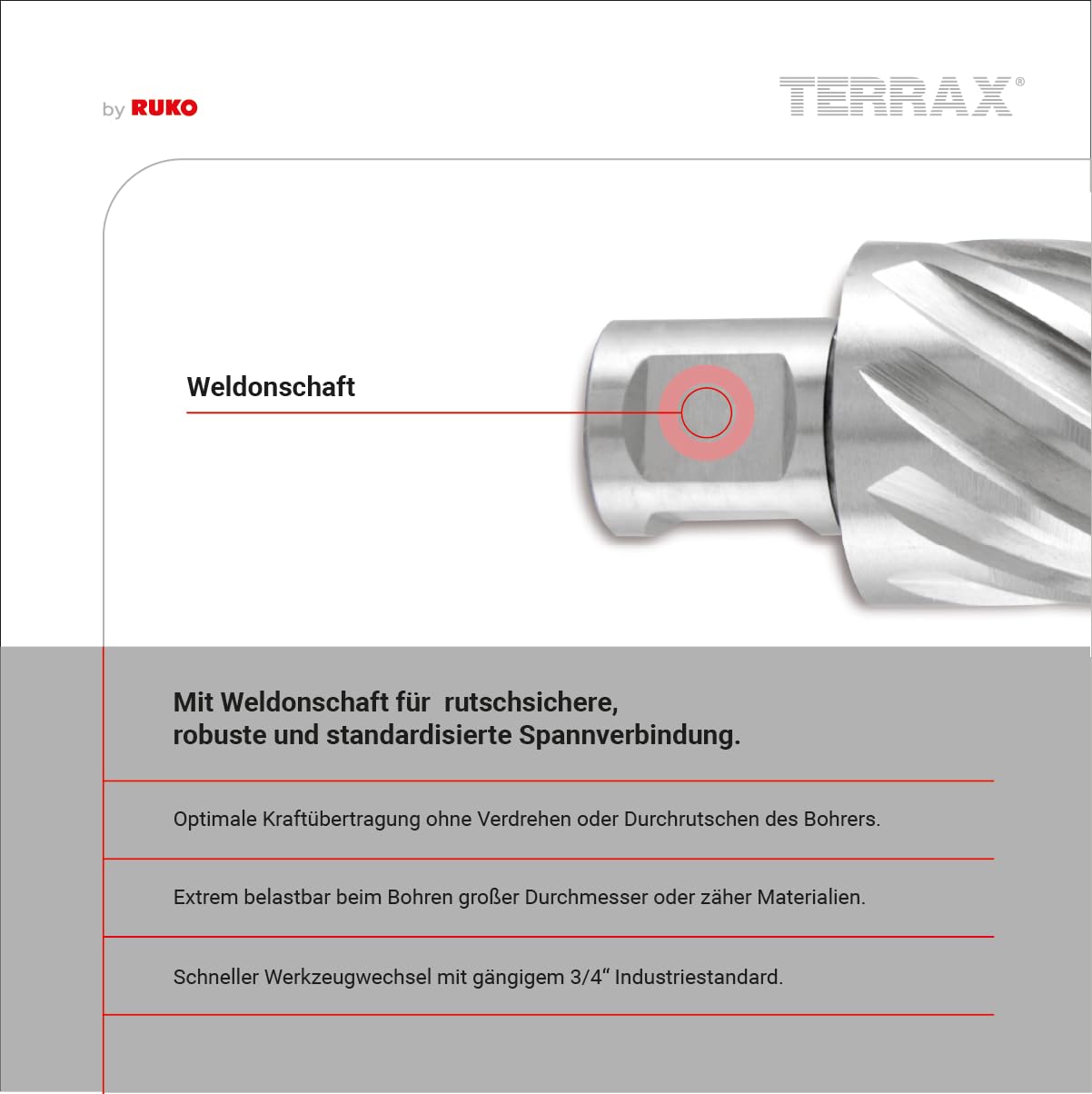

Core drill made of high-speed steel. Suitable for steel (such as I-beam, large-sized sheets), cast steel, non-ferrous and light metals. With an advanced blade geometry, a significantly improved cutting performance is achieved, which has a positive effect on the cutting performance and tool life. 1 Optimised cutting edge geometry for increased cutting performance and reduced cutting forces. 2 The rake angle is designed for universal use in various types of steel. 3 Improved chip evacuation by U-shaped notching. The special geometry of the notching reduces the thermal load on the high-speed steel, the core drill, since the heat generated during machining is largely removed with the chip. 4 Reduction of the friction occurs between the high-speed steel core drill and the workpiece through optimised, spiralling circular guiding chamfers. Specifications: Diameter: 24.0 mm Overall length: 63.0 mm Cutting: High-speed steel Depth of cut: 30 mm Mounting: Weldon shank, 19.0 mm (3/4 inch) Machine: TX 900 Surface: bright Right-hand cutting
