RUIZHI 40A ESC 2-4S Brushless ESC Speed Controller 5V 3A BEC Speed Controller Motor for Fixed Wing DIY RC Aircraft Drone Helicopter Quadcopter

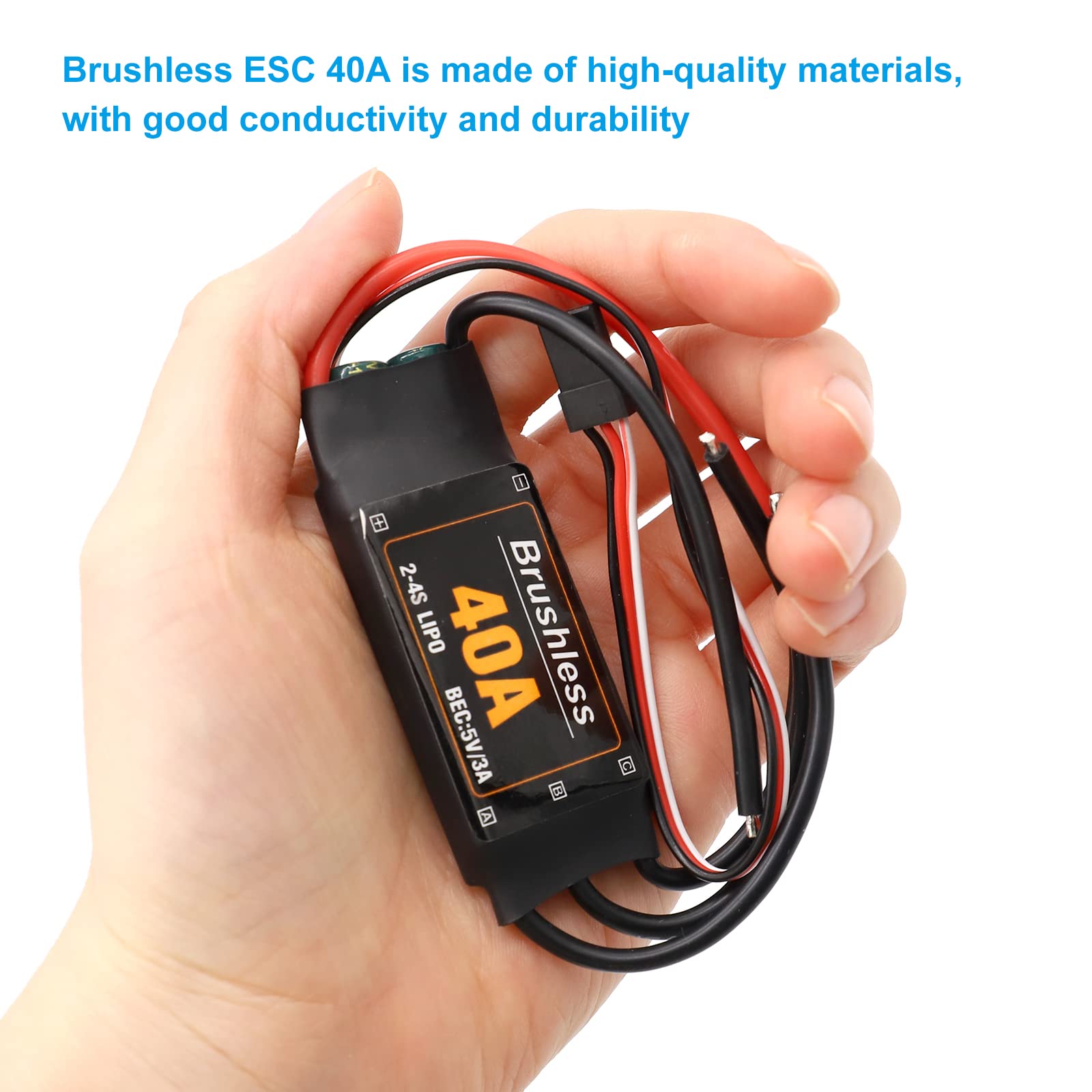

• High quality: Brushless ESC 40A is made of high-quality materials with good conductivity and durability.

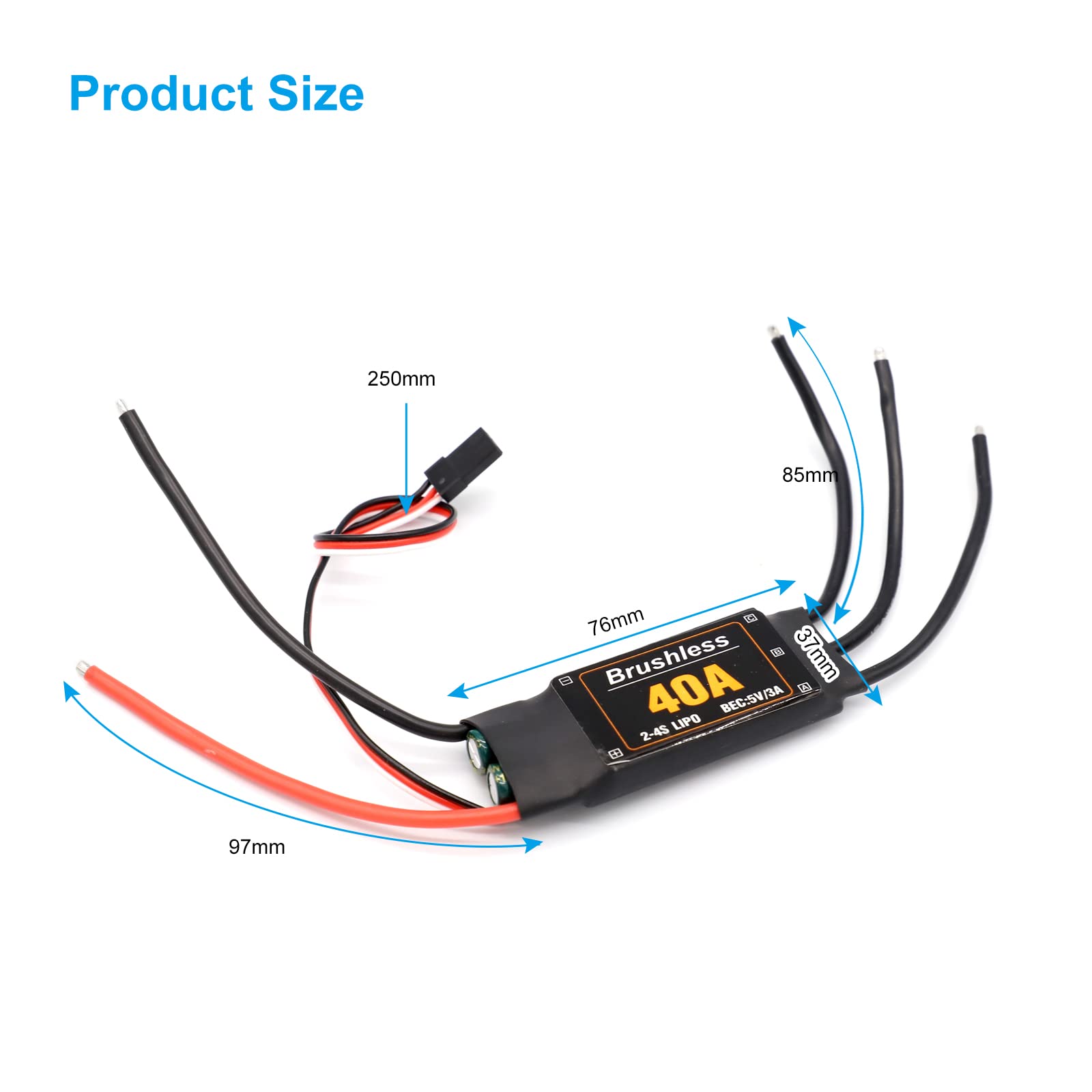

• Perfekte Gre: Die Gre des brstenlosen 40A-Reglers betrgt etwa 68 x 25 x 8 mm, die Gre ist angemessen und das Timing kann gendert werden, um sich an verschiedene brstenlose Motoren anzupen.

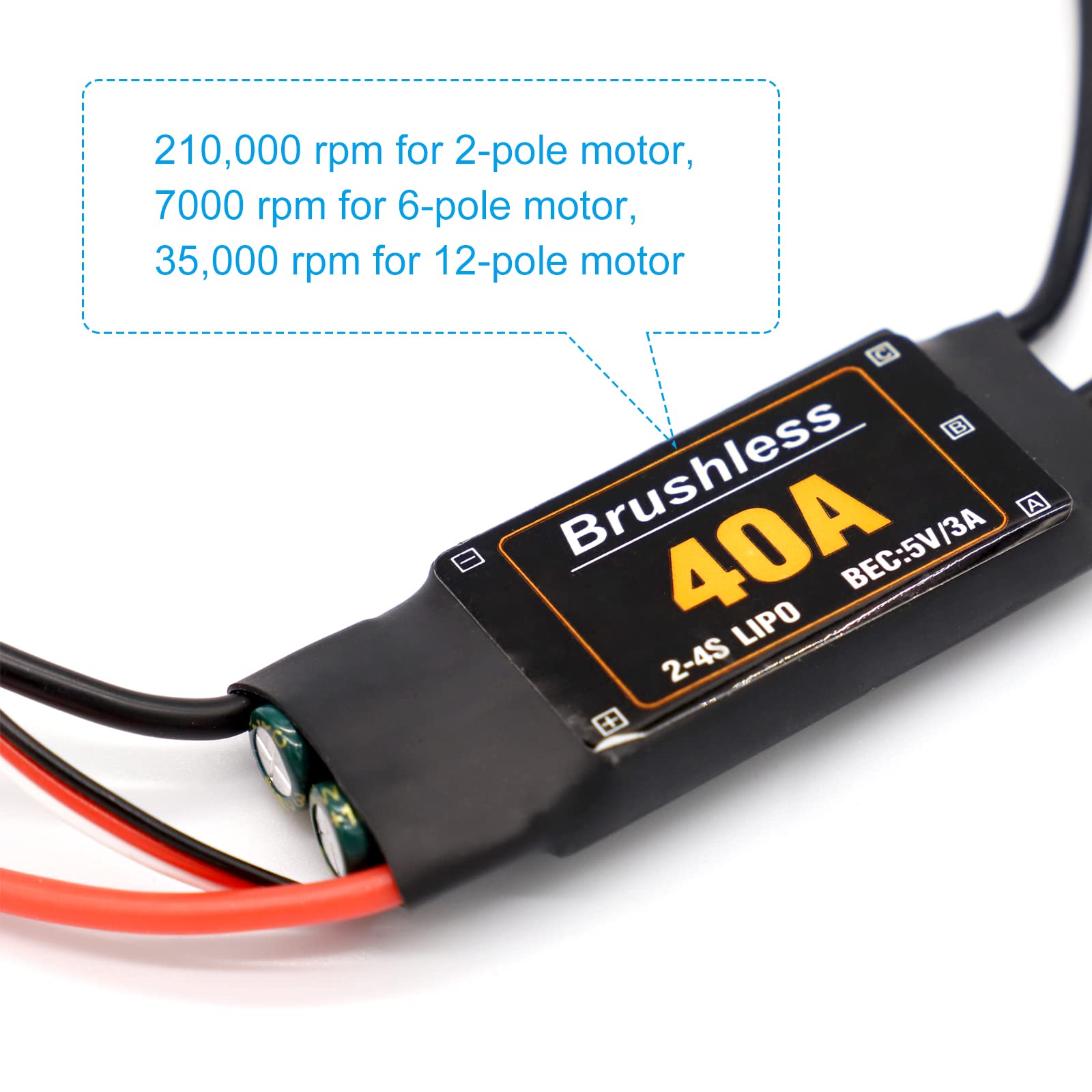

• Maximum speed: 210,000 rpm fr 2-poligen Motor, 7000 rpm fr 6-poligen Motor, 35,000 U/min fr 12-poligen Motor.
• Comprehensive protection: low voltage shut-off protection/overheating protection/throttle signal loss protection, continuous current 40A, short-term current 55A (not less than 10 seconds).
• Advantages: the gas signal cable has a twisted pair design, which effectively reduces the talk generated during signal transmission and makes the flight more stable.

Functions: - The timing can be changed to adapt it to different brushless motors. - The specially optimized software is perfectly compatible with disc motors. - Multi-rotor controller dedicated core program to meet various functional requirements of multi-rotor. Specifications: - Colour: as shown in the picture. - Types: long, short. - Current: 40 A. - Size: (approx.) 68x25x8mm - Power consumption: 2-4 lithium batteries (not included). - BEC output: 5V@3A (linear control mode - linear mode) - Output capacity: continuous current 40A, short-term current 55A (not less than 10 seconds). - Maximum RPM: 210,000 RPM for 2 pole motor, 7000 RPM for 6 pin motor, 35,000 RPM for 12 pin motor Package includes: - 1 x brushless regulator. Note: - Due to manual measurement, different measurement methods and tools, the size may vary slightly. - Thank you for visiting our store, if you have any questions after receiving the product, please contact us in time!
